The FortiGate 51G-SFP-POE-BDL-950-36 bundle streamlines SD-Branch deployments by combining the FortiGate 51G-SFP-POE firewall with FortiCare Premium and FortiGuard Unified Threat Protection (UTP) (3-year contract). Built on the Fortinet SP5 ASIC, it delivers high-speed inspection with firewall throughput of 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets). With 64GB of internal SSD storage, this bundle adds onboard storage capacity within a compact desktop form factor.
Designed for flexibility and reduced equipment footprint, the unit features a fanless desktop form factor ideal for noise-sensitive environments. It includes a dedicated GE SFP port for fiber uplinks and multiple PoE+ capable RJ45 ports (including WAN2 and FortiLink), providing 60W of total PoE budget to power essential branch devices such as access points and IP phones directly from the firewall.
Converged Security with Storage and PoE+
Key Benefits
- UTP Security Bundle: Includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) (3-year contract).
- Integrated SSD Storage: 64GB of onboard SSD storage.
- Integrated Power over Ethernet: Provides a 60W total PoE budget across PoE+ capable ports to help power connected devices.
- SP5 ASIC Acceleration: Delivers strong performance with IPS throughput up to 2.25 Gbps and NGFW throughput up to 1.25 Gbps.
- Fiber & Copper Connectivity: Includes 1x GE SFP port for fiber backhaul alongside GE RJ45 WAN and LAN connectivity.
- Silent Operation: Fanless design supports quiet deployment (0 dBA) in desktop and open-office environments.
Ideal Use Cases
- SD-Branch Deployment: Consolidates security, SD-WAN, and PoE+ power delivery for branch networks.
- Retail Point of Sale: Helps secure connectivity for POS environments while powering compatible edge devices via PoE+.
- Small Office Connectivity: Provides fiber uplink capability (SFP) and local wired connectivity with enterprise-grade protection.
- Remote Work: Supports secure VPN connectivity for remote users with simplified branch requirements.
Technical Specifications Summary
- Firewall Throughput: 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets)
- Security Performance: 2.25 Gbps IPS throughput, 1.25 Gbps NGFW throughput, 1.1 Gbps threat protection throughput
- Firewall Performance: 6 Mpps (packets per second), 2.42 μs firewall latency (64 byte UDP packets)
- Session Capacity: 720,000 concurrent TCP sessions, 85,000 new TCP sessions/second, 2,000 firewall policies
- IPsec VPN: 4.5 Gbps IPsec VPN throughput (512 byte), 200 gateway-to-gateway tunnels, 250 client-to-gateway tunnels
- SSL Inspection: 1.3 Gbps SSL inspection throughput (IPS, avg. HTTPS), 699 CPS, 74,000 concurrent sessions

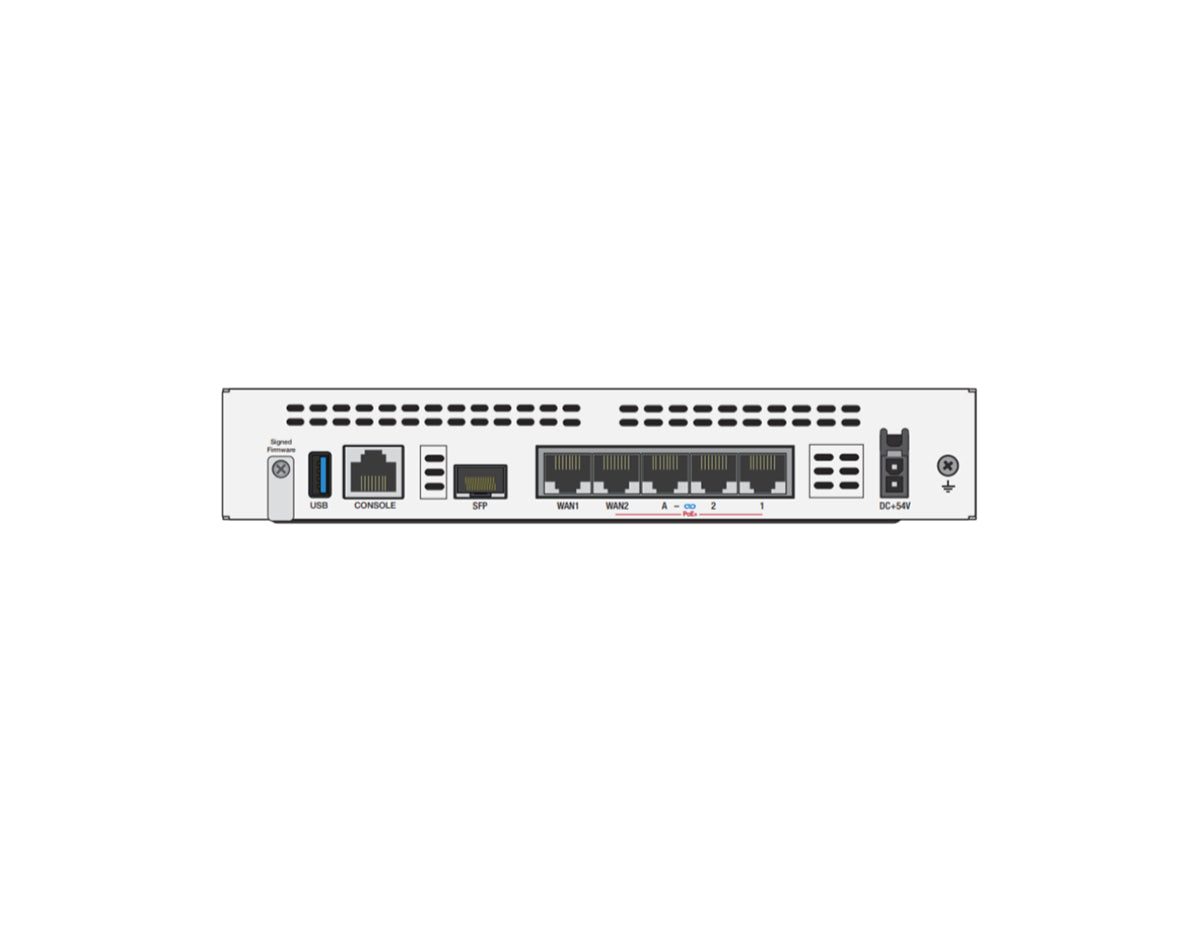

- Interfaces: 2x GE RJ45 WAN (WAN2 PoE+), 1x GE RJ45 FortiLink (PoE+), 2x GE RJ45 Ethernet (PoE+), 1x GE SFP, 1x USB, 1x RJ45 console
- PoE: 60 W total available PoE power budget (maximum 30 W per port, 802.3at)
- Storage: 64 GB SSD onboard storage
- Power & Thermals: 54VDC input, 78.7 W / 78.1 W (Average/Max) power consumption, 268.54 BTU/h heat dissipation
- Physical: Desktop form factor, 1.6 x 8.5 x 6.3 inches (40.5 x 216 x 160 mm), 2.2 lbs (1.0 kg)
- Environment & Compliance: 32°F to 104°F (0°C to 40°C) operating temperature, -31°F to 158°F (-35°C to 70°C) storage temperature, 10% to 90% non-condensing humidity, fanless 0 dBA, FCC/ISED/CE/UL/cUL/CB, USGv6/IPv6
Upgrade Your Network Security
Deploy the FortiGate 51G-SFP-POE-BDL-950-36 bundle today for streamlined operations and comprehensive protection with FortiCare Premium and FortiGuard Unified Threat Protection (UTP).
