The FortiGate 51G-SFP-POE-BDL-809-60 bundle streamlines SD-Branch deployments by combining the FortiGate 51G-SFP-POE firewall appliance with FortiCare Premium and FortiGuard Enterprise Protection (5 Year contract). Built on the Fortinet SP5 ASIC, it delivers high-speed inspection with firewall throughput of 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets). With 64 GB of internal SSD storage, this bundle adds onboard storage capacity within a compact desktop form factor.
Designed for flexibility and reduced hardware footprint, the unit features a fanless desktop form factor ideal for noise-sensitive environments. It includes a dedicated GE SFP port for fiber uplinks and multiple PoE+ capable RJ45 ports (including WAN2 and FortiLink), providing 60W of total PoE budget to power essential branch devices such as access points and IP phones directly from the firewall.
Converged Security with Storage and PoE+
Key Benefits
- Enterprise Protection Bundle: Includes FortiCare Premium and FortiGuard Enterprise Protection (5 Year contract).
- Integrated SSD Storage: 64GB of onboard SSD storage.
- Integrated Power over Ethernet: Provides a 60W total PoE budget across PoE+ capable ports to help power connected devices.
- SP5 ASIC Acceleration: Delivers strong performance with IPS throughput up to 2.25 Gbps and NGFW throughput up to 1.25 Gbps.
- Fiber & Copper Connectivity: Includes 1x GE SFP port for fiber backhaul alongside GE RJ45 WAN and LAN connectivity.
- Silent Operation: Fanless design supports quiet deployment (0 dBA) in desktop and open-office environments.
Ideal Use Cases
- SD-Branch Deployment: Consolidates security, SD-WAN, and PoE+ power delivery for branch networks.
- Retail Point of Sale: Helps secure connectivity for POS environments while powering compatible edge devices via PoE+.
- Small Office Connectivity: Provides fiber uplink capability (SFP) and local wired connectivity with enterprise-grade protection.
- Remote Work: Supports secure VPN connectivity for remote users with simplified branch hardware requirements.
Technical Specifications Summary
- Firewall Throughput: 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets)
- Security Throughput: IPS 2.25 Gbps; NGFW 1.25 Gbps; Threat Protection 1.1 Gbps
- Firewall Latency: 2.42 μs
- Firewall Throughput (Packets/Second): 6 Mpps
- Session Capacity: 720,000 concurrent TCP sessions; 85,000 new TCP sessions/second; 2,000 firewall policies
- IPsec VPN Throughput (512 byte): 4.5 Gbps
- IPsec VPN Tunnels: 200 gateway-to-gateway; 250 client-to-gateway
- SSL Inspection Throughput: 1.3 Gbps

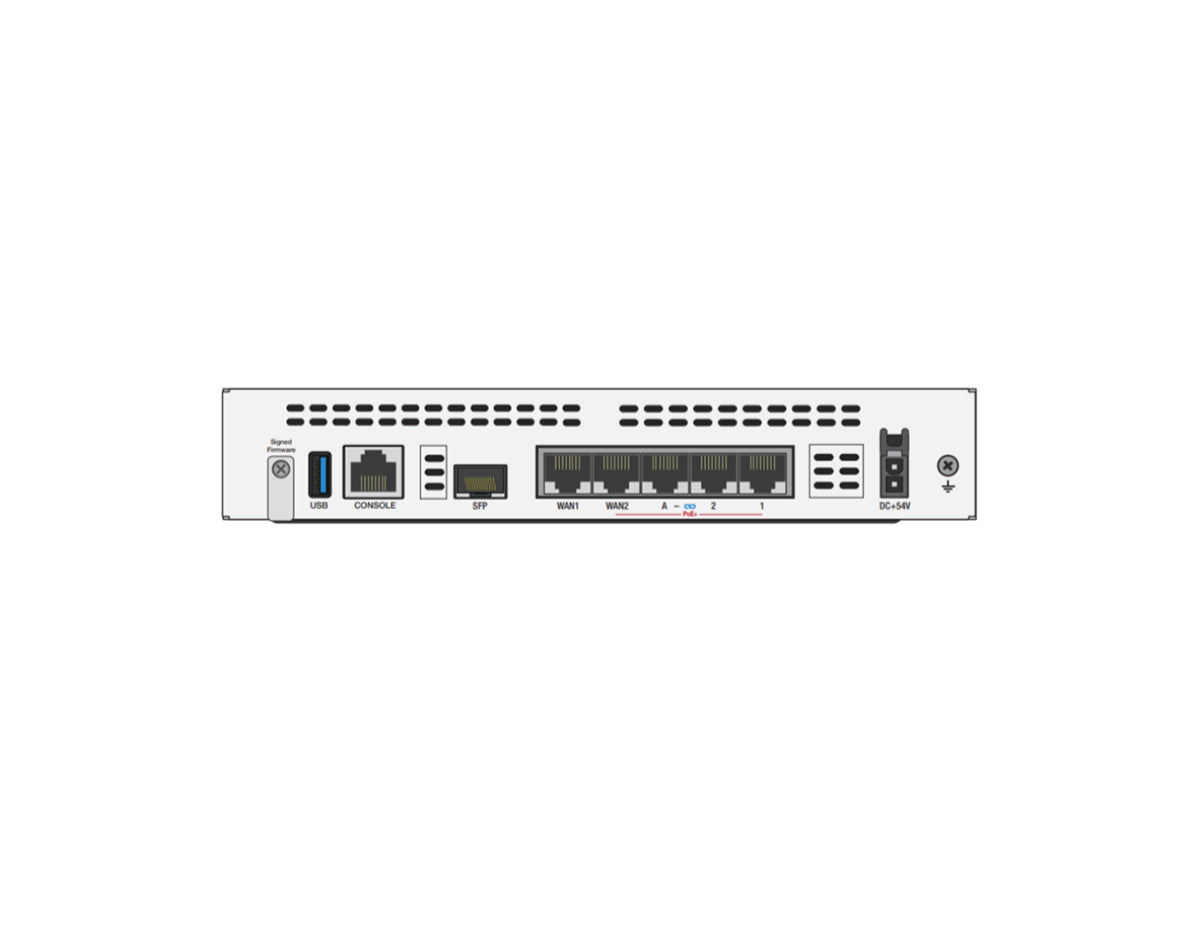

- Interfaces: 2x GE RJ45 WAN (WAN2 PoE+), 1x GE RJ45 FortiLink (PoE+), 2x GE RJ45 Ethernet (PoE+), 1x GE SFP, 1x USB, 1x RJ45 console
- PoE: 60 W total available PoE power budget across PoE+ capable ports
- Power, Physical & Environment: 54VDC input; 78.7 W / 78.1 W (Average/Max) power consumption; 268.54 BTU/h heat dissipation; 1.6 x 8.5 x 6.3 inches (40.5 x 216 x 160 mm); 32°F to 104°F (0°C to 40°C) operating temperature; fanless 0 dBA; FCC, ISED, CE, UL/cUL, CB; USGv6/IPv6
Upgrade Your Network Security
Deploy the FortiGate 51G-SFP-POE-BDL-809-60 bundle today for streamlined operations and enterprise-grade protection with FortiCare Premium and FortiGuard Enterprise Protection.
