The FortiGate 50G-SFP-POE series simplifies SD-Branch architecture by integrating advanced security, SD-WAN, and power delivery into a single compact appliance. Built on the Fortinet Secure SD-WAN ASIC SP5, it delivers high-speed inspection while providing integrated PoE+ capabilities to support essential downstream devices such as wireless access points, simplifying branch infrastructure.
Designed for flexibility and reduced equipment footprint, the FG-50G-SFP-POE features a fanless desktop form factor ideal for noise-sensitive environments. It includes a dedicated SFP port for fiber uplinks and multiple PoE+ capable RJ45 ports (including a PoE+ WAN port and FortiLink), allowing for diverse connectivity options and streamlined deployment in retail stores, small offices, and distributed enterprise sites.
Converged Security with Integrated PoE+ Power
Key Benefits
- Integrated Power over Ethernet: Powers compatible devices over PoE+ to reduce the need for separate injectors and simplify installations.
- SP5 ASIC Acceleration: Built on Fortinet’s Secure SD-WAN ASIC SP5 to enhance performance for security and SD-WAN use cases.
- Fiber & Copper Connectivity: Supports fiber uplinks via SFP alongside RJ45 WAN/LAN connectivity for flexible deployments.
- Unified Management: Centralizes control of networking and security through the FortiOS operating system.
- Silent Operation: Fanless design supports quiet desktop or open-office deployments.
Ideal Use Cases
- Secure Branch: Consolidates security and SD-WAN while powering PoE+ endpoints to streamline branch deployments.
- Perimeter Protection: Inspects and controls traffic based on defined security policies with real-time visibility.
- Secure SD-WAN: Enables WAN edge connectivity with integrated SD-WAN and unified management from a single FortiOS operating system.
- VPN Connectivity: Supports site-to-site and client VPN connectivity with IPsec tunnels for secure access.
Technical Specifications Summary
- Firewall Throughput: 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets).
- Threat Protection Throughput: 1.1 Gbps.
- IPS Throughput: 2.25 Gbps; NGFW Throughput: 1.25 Gbps.
- IPsec VPN Throughput (512 byte): 4.5 Gbps; 200 gateway-to-gateway and 250 client-to-gateway IPsec tunnels.
- SSL Inspection Throughput: 1.3 Gbps.

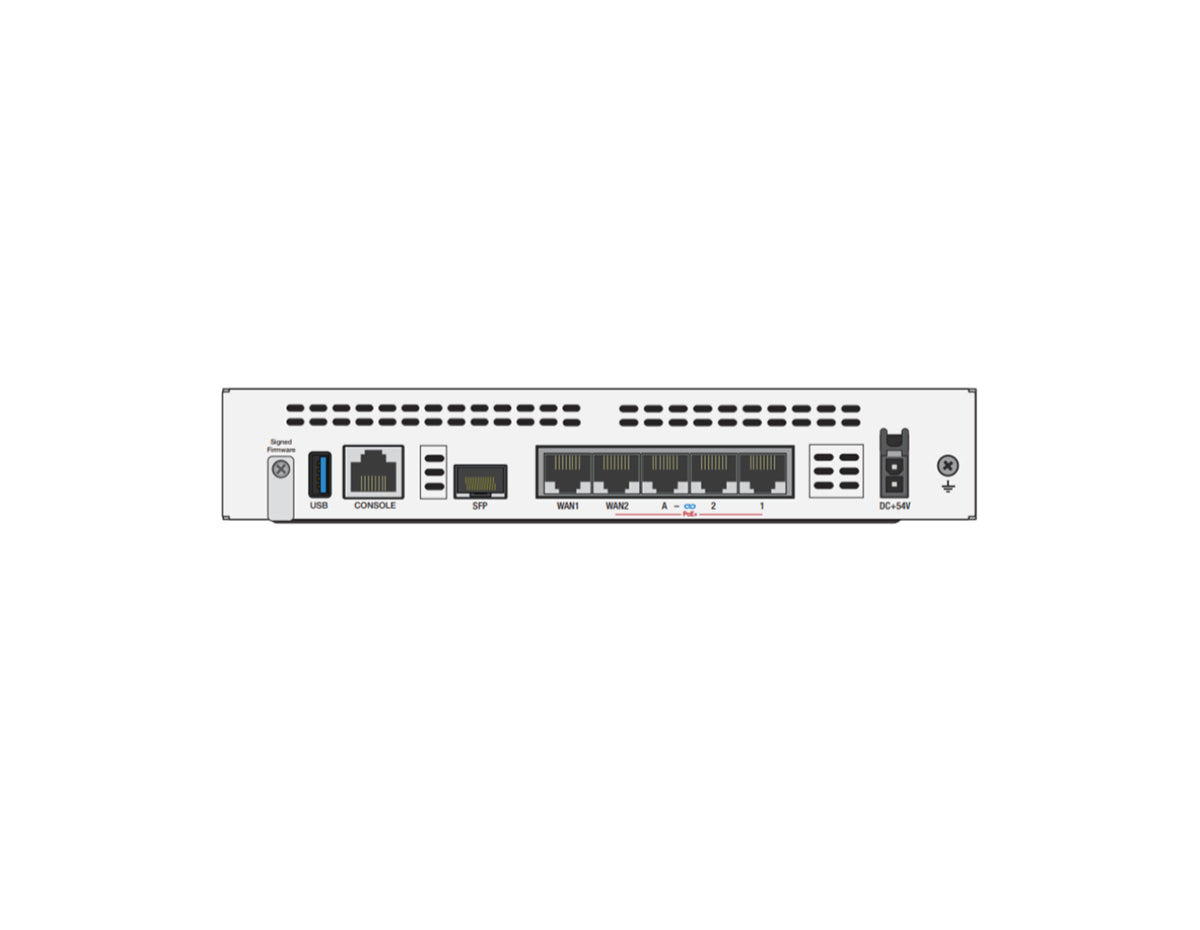

- Interfaces: 1x GE SFP, 1x GE RJ45 WAN, 1x GE RJ45 PoE+ WAN, 3x GE RJ45 PoE+ ports.
- Total PoE Power Budget: 60 W (maximum 30 W per PoE+ port).
- Power & Thermals: 54VDC input, 75.4 W / 76.3 W power consumption (avg/max), 260.48 BTU/h heat dissipation.
- Physical & Environment: 1.6 x 8.5 x 6.3 in (40.5 x 216 x 160 mm), operating 32°F to 104°F (0°C to 40°C), fanless (0 dBA).
