The FortiGate 50G-DSL series integrates enterprise-grade security and SD-WAN capabilities with a built-in DSL modem, providing a unified solution for locations relying on legacy broadband connections. This bundle includes FortiCare Premium and FortiGuard Enterprise Protection for a 5-year contract term, enabling security services and support coverage alongside the firewall platform. Built on Fortinet’s powerful SP5 ASIC, it accelerates firewall and security performance, ensuring that advanced protection does not compromise network speed. The integrated DSL interface supports various standards including VDSL2 and ADSL2+, allowing for seamless deployment without additional modem appliances.
Designed for compact, noise-sensitive environments, the fanless FG-50G-DSL offers reliable operation with 0 dBA noise levels. It simplifies network architecture by consolidating networking, security, and DSL connectivity into a single, centrally managed device. This reduces footprint, lowers cabling complexity, and provides robust connectivity options for retail stores, small offices, and distributed branch networks.
Integrated DSL and Secure SD-WAN
Key Benefits
- Bundle Coverage Included: FortiCare Premium and FortiGuard Enterprise Protection (5-year contract) included with the firewall.
- Embedded DSL Modem: Integrated RJ11 port supports VDSL2, ADSL2, and ADSL2+ for direct WAN connectivity, eliminating the need for external bridges.
- SP5 ASIC Performance: Delivers up to 5 / 5 / 4 Gbps firewall throughput (1518/512/64 byte UDP packets) and accelerated inspection capabilities, ensuring high-speed security for broadband connections.
- Silent Operation: Fanless desktop design ensures quiet, reliable performance, making it ideal for open office environments and retail counters.
- Unified Firewall and SD-WAN: Consolidates firewalling, SD-WAN, and security capabilities into a single device for distributed sites.
- Simplified Management: FortiOS provides a single operating system for managing networking and security policies alongside DSL connection settings.
Ideal Use Cases
- Branch Offices with DSL: Provides a secure, all-in-one gateway for locations where DSL is the primary internet connection.
- Retail Locations: Secures Point-of-Sale (POS) systems and guest Wi-Fi while maintaining reliable connectivity via existing phone lines.
- Legacy Network Consolidation: Replaces aging routers and modems with a modern, secure SD-WAN appliance that supports legacy DSL infrastructure.
- Secure Remote Work: Ensures secure connectivity for home offices or small sites requiring enterprise-grade protection over residential DSL lines.
Technical Specifications Summary
- Firewall Throughput (1518/512/64 byte UDP): 5 / 5 / 4 Gbps
- IPS / NGFW / Threat Protection Throughput: 2.25 Gbps / 1.25 Gbps / 1.1 Gbps
- Firewall Latency (64 byte UDP): 2.42 μs
- Session Capacity: 720,000 concurrent TCP sessions; 85,000 new sessions/second (TCP)
- IPsec VPN: 4.5 Gbps (512 byte); 200 gateway-to-gateway tunnels; 250 client-to-gateway tunnels
- SSL Inspection Throughput (IPS, avg. HTTPS): 1.3 Gbps

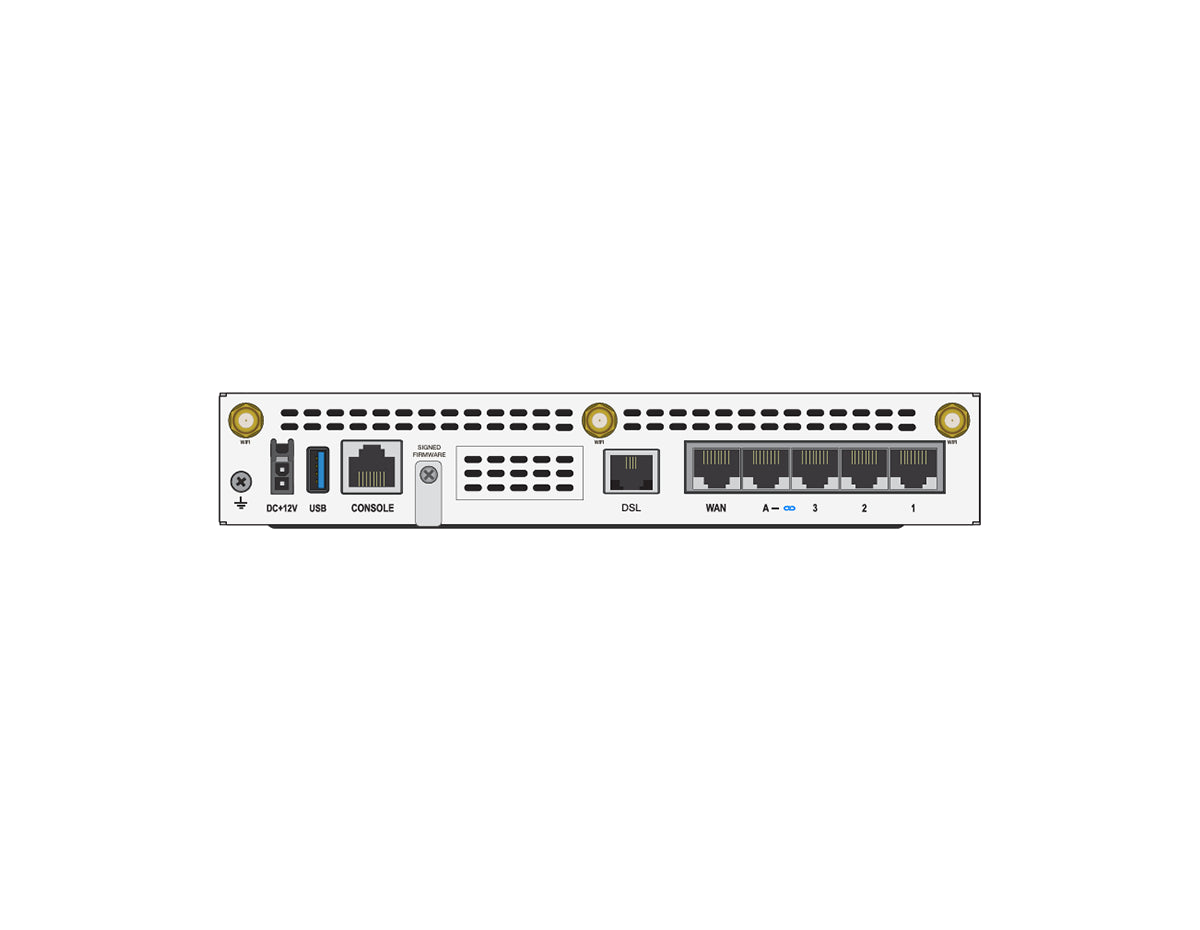

- Ports: 1x GE RJ45 WAN, 1x GE RJ45 FortiLink (default), 3x GE RJ45 Ethernet, 1x DSL RJ11, 1x USB, 1x RJ45 console
- xDSL Support: VDSL2, ADSL2, ADSL2+, G.DMT, T1.413, G.Lite; Annex A/B/I/J/M/L
- Power & Efficiency: 12VDC, 3A; 12.43 W average / 13.01 W maximum; 44.36 BTU/hr
- Physical: 1.7 x 8.5 x 7.0 in (42 x 216 x 178 mm); 2.14 lbs (0.97 kg)
- Environment & Compliance: 0°C to 40°C operating; 10% to 90% non-condensing; fanless 0 dBA; FCC, ISED, CE, UL/cUL, CB; USGv6/IPv6
Upgrade Your Network Security
Deploy the FortiGate 50G-DSL Bundle (FG-50G-DSL-BDL-809-60) today for a secure, streamlined, and high-performance network solution for DSL environments, including FortiCare Premium and FortiGuard Enterprise Protection coverage for 5 years.
