The FortiGate 50G-DSL series integrates enterprise-grade security and SD-WAN capabilities with a built-in DSL modem, providing a unified solution for locations relying on DSL connections. This bundle includes FortiCare Premium and FortiGuard Enterprise Protection for a 1-year contract term, enabling subscription-based security services and support alongside the FortiGate appliance. Built on Fortinet’s SP5 ASIC, it accelerates firewall and security performance to help maintain strong protection without compromising network speed. The integrated DSL interface supports standards including VDSL2 and ADSL2+, allowing for streamlined deployment without additional modem equipment.
Designed for compact, noise-sensitive environments, the fanless FG-50G-DSL offers reliable operation with 0 dBA noise levels. It simplifies network architecture by consolidating networking, security, and DSL connectivity into a single, centrally managed device. This reduces hardware footprint, lowers cabling complexity, and provides robust connectivity options for retail stores, small offices, and distributed branch networks.
Integrated DSL and Secure SD-WAN
Key Benefits
- Bundle Coverage Included: FortiCare Premium and FortiGuard Enterprise Protection (1-year contract) included with the FortiGate appliance.
- Embedded DSL Modem: Integrated RJ11 port supports VDSL2, ADSL2, and ADSL2+ for direct WAN connectivity.
- SP5 ASIC Performance: Delivers 5 / 5 / 4 Gbps firewall throughput (1518/512/64 byte UDP packets) and accelerates security processing for broadband connections.
- Silent Operation: Fanless desktop design supports quiet, reliable performance for open office environments and retail counters.
- Unified Platform: Combines firewalling and SD-WAN on FortiOS for consistent policy and connectivity control.
- Simplified Management: FortiOS supports unified administration for security policies, SD-WAN rules, and DSL connection settings.
Ideal Use Cases
- Branch Offices with DSL: Provides a secure, all-in-one gateway for locations where DSL is the primary internet connection.
- Retail Locations: Secures Point-of-Sale (POS) systems and branch connectivity while maintaining reliable connectivity via existing phone lines.
- Legacy Network Consolidation: Replaces aging routers and modems with a modern firewall and SD-WAN appliance that supports DSL infrastructure.
- Secure Remote Work: Supports secure connectivity for home offices or small sites requiring enterprise-grade protection over DSL lines.
Technical Specifications Summary
- Firewall Throughput (1518/512/64 byte UDP packets): 5 / 5 / 4 Gbps
- IPS Throughput (Enterprise Mix): 2.25 Gbps
- NGFW Throughput: 1.25 Gbps
- Threat Protection Throughput: 1.1 Gbps
- IPsec VPN Throughput (512 byte): 4.5 Gbps
- Concurrent Sessions / New Sessions: 720,000 TCP / 85,000 per second
- SSL Inspection (IPS, avg. HTTPS): 1.3 Gbps, 699 CPS, 74,000 concurrent sessions

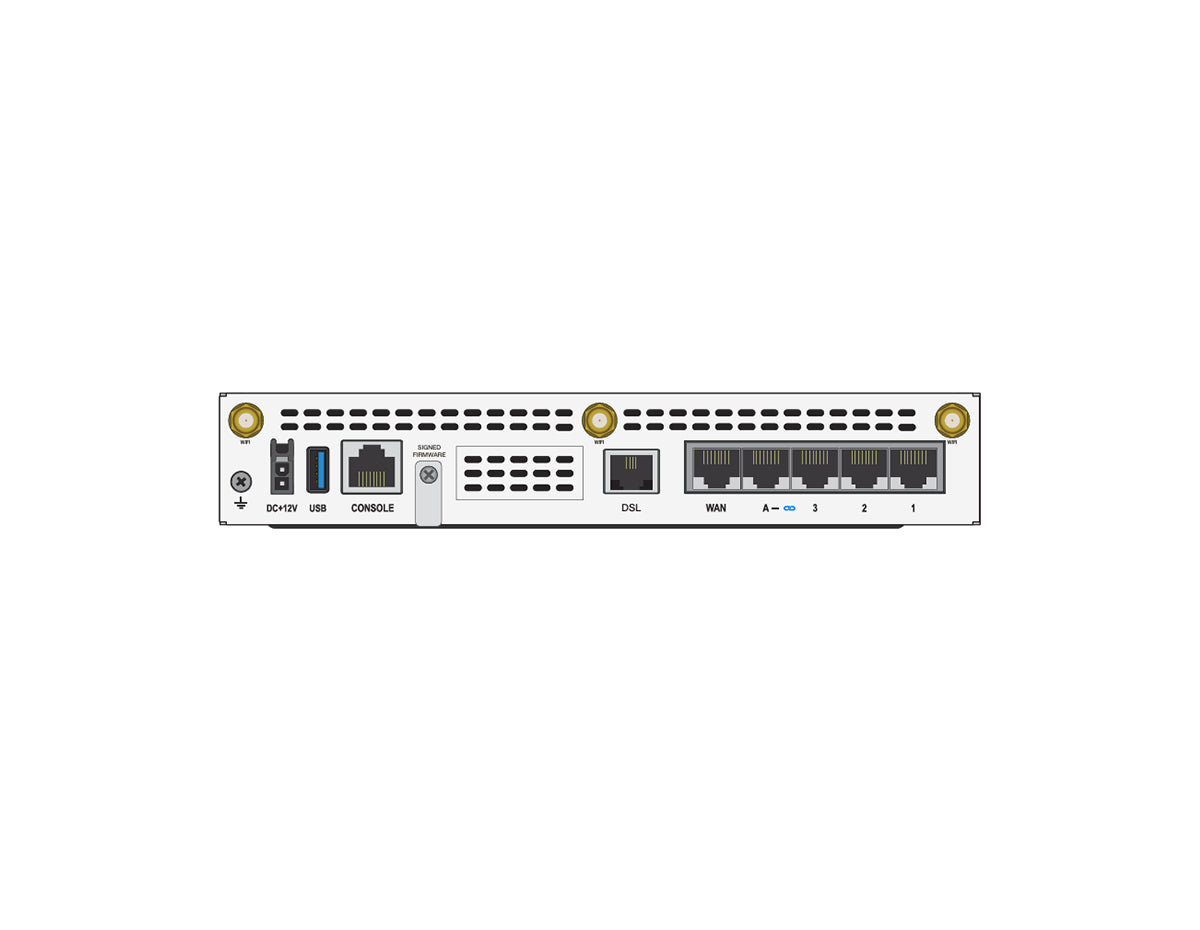

- Interfaces: 1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet, 1x DSL RJ11
- xDSL Standards: VDSL2, ADSL2, ADSL2+, G.DMT, T1.413, G.Lite; Annex A, B, I, J, M, L
- Power & Consumption: 12VDC, 3A; 12.43 W average / 13.01 W maximum; 44.36 BTU/hr heat dissipation
- Dimensions & Weight: 1.7 x 8.5 x 7.0 in (42 x 216 x 178 mm); 2.14 lbs (0.97 kg)
- Operating & Compliance: 0°C to 40°C; 10%–90% non-condensing; fanless 0 dBA; FCC, ISED, CE, UL/cUL, CB, USGv6/IPv6
Upgrade Your Network Security
Deploy the FortiGate 50G-DSL Bundle (FG-50G-DSL-BDL-809-12) today for a secure, streamlined, and high-performance network solution for DSL environments, including FortiCare Premium and FortiGuard Enterprise Protection coverage for 1 year.
