The FortiGate 50G series is designed to transform WAN architecture and provide robust perimeter protection for distributed enterprise locations. As a cornerstone of the Fortinet Security Fabric, it integrates networking and security into a single operating system, FortiOS. This approach eliminates security silos and enhances operational efficiency through automated workflows and deep analytics.
Powered by the patented Secure SD-WAN ASIC SP5 and FortiOS, the 50G delivers high-speed performance over traditional CPU-based firewalls while reducing power consumption. This bundle includes one year of FortiCare Premium and FortiGuard Unified Threat Protection (UTP), providing integrated security services such as IPS, anti-malware protection, and URL/DNS filtering to help protect against modern threats.
Advanced Converged Networking and Security Powered by SP5 ASIC
- Accelerated Performance: Delivers 5 / 5 / 4 Gbps firewall throughput and up to 1.3 Gbps SSL inspection throughput to help prevent bottlenecks.
- FortiGuard UTP Bundle: Includes 1 year of FortiCare Premium and FortiGuard Unified Threat Protection (UTP).
- Secure SD-WAN: Provides faster application identification and steering for an optimized cloud application experience.
- Trusted Platform Module (TPM) and Signed Firmware Switch: Adds a physical layer of protection for cryptographic keys and validated firmware loading.
- Unified Management: Simplifies operations with centralized management options including FortiManager and FortiGate Cloud.
- Quiet and Reliable: Fanless desktop design is ideal for small office environments, offering 0 dBA noise level.
- Eco-Efficient Design: Patented ASIC technology provides high performance with reduced power requirements and heat dissipation.
Ideal Use Cases
- Distributed Branch Offices: Securely connect remote sites with high-performance SD-WAN and converged security.
- Retail and POS Systems: Protect customer data and transaction traffic with a compact appliance.
- Secure Remote Work: Supports enterprise-grade IPsec VPN performance and integrated threat prevention.
- SD-Branch Transformation: Extends security to the access layer by integrating FortiSwitch and FortiAP connectivity.
Technical Specifications Summary
- Firewall Throughput (1518/512/64 byte UDP): 5 / 5 / 4 Gbps
- IPS Throughput (Enterprise Mix): 2.25 Gbps
- NGFW Throughput: 1.25 Gbps
- Threat Protection Throughput: 1.1 Gbps
- IPsec VPN Throughput (512 byte): 4.5 Gbps
- Firewall Latency (64 byte UDP): 2.42 µs

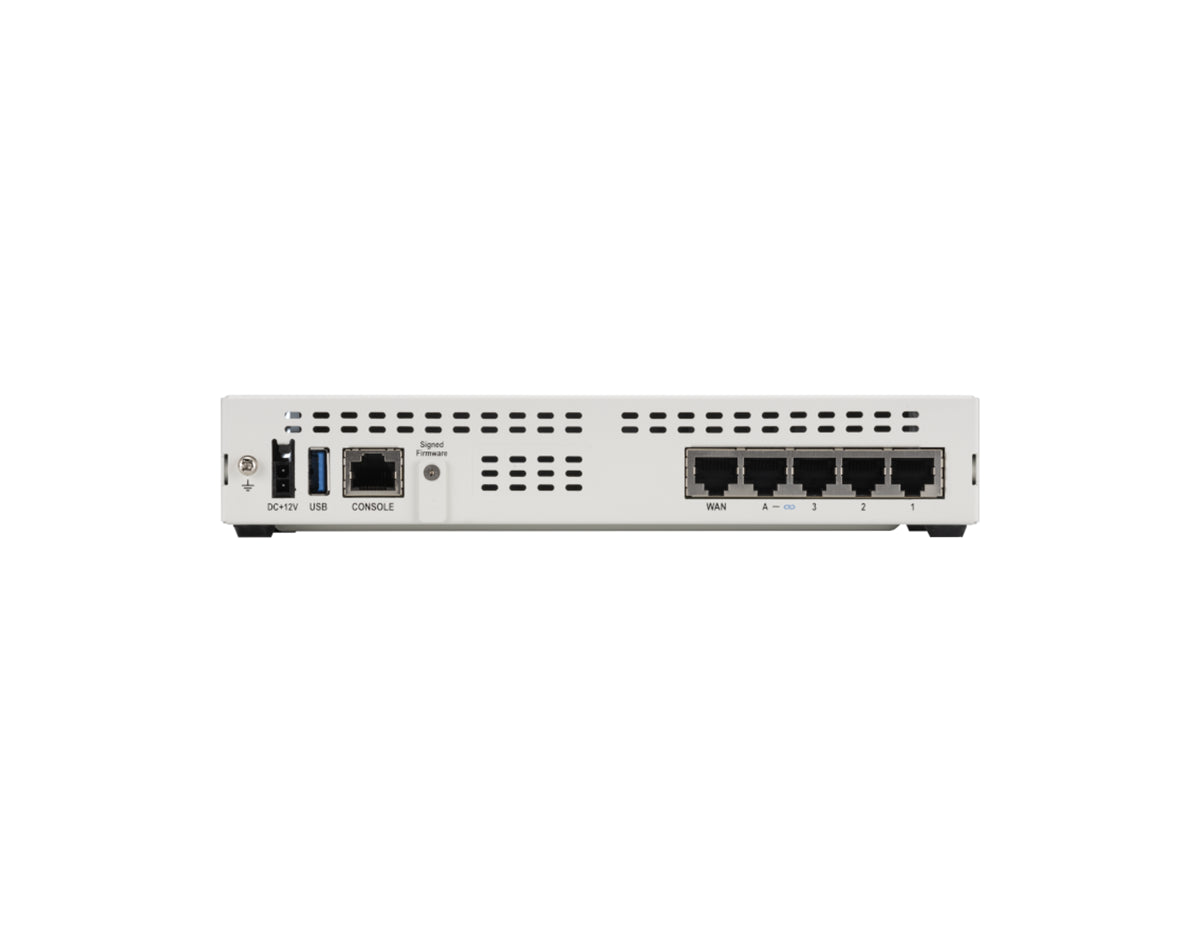

- Interfaces: 1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet, 1x USB, 1x Console
- Power / Consumption: 12VDC, 3A; 8.3 W average / 8.9 W maximum
- Physical: 1.6 x 8.5 x 6.3 in (40.5 x 216 x 160 mm), 2.2 lbs (1.0 kg)
- Operating Environment: 32°F to 104°F (0°C to 40°C), 10% to 90% non-condensing, up to 10,000 ft (3,048 m)
Upgrade Your Network Security
Protect your branch location with high-performance security and converged SD-WAN in a single, efficient desktop appliance.
