The FortiGate 50G-5G series transforms distributed enterprise connectivity with a powerful combination of Next-Generation Firewall security and embedded high-speed 5G connectivity. Built on the revolutionary Secure SD-WAN ASIC SP5, this appliance delivers high performance, while the integrated 5G/LTE module provides a robust primary or failover connection to help maintain business continuity at remote or branch locations.

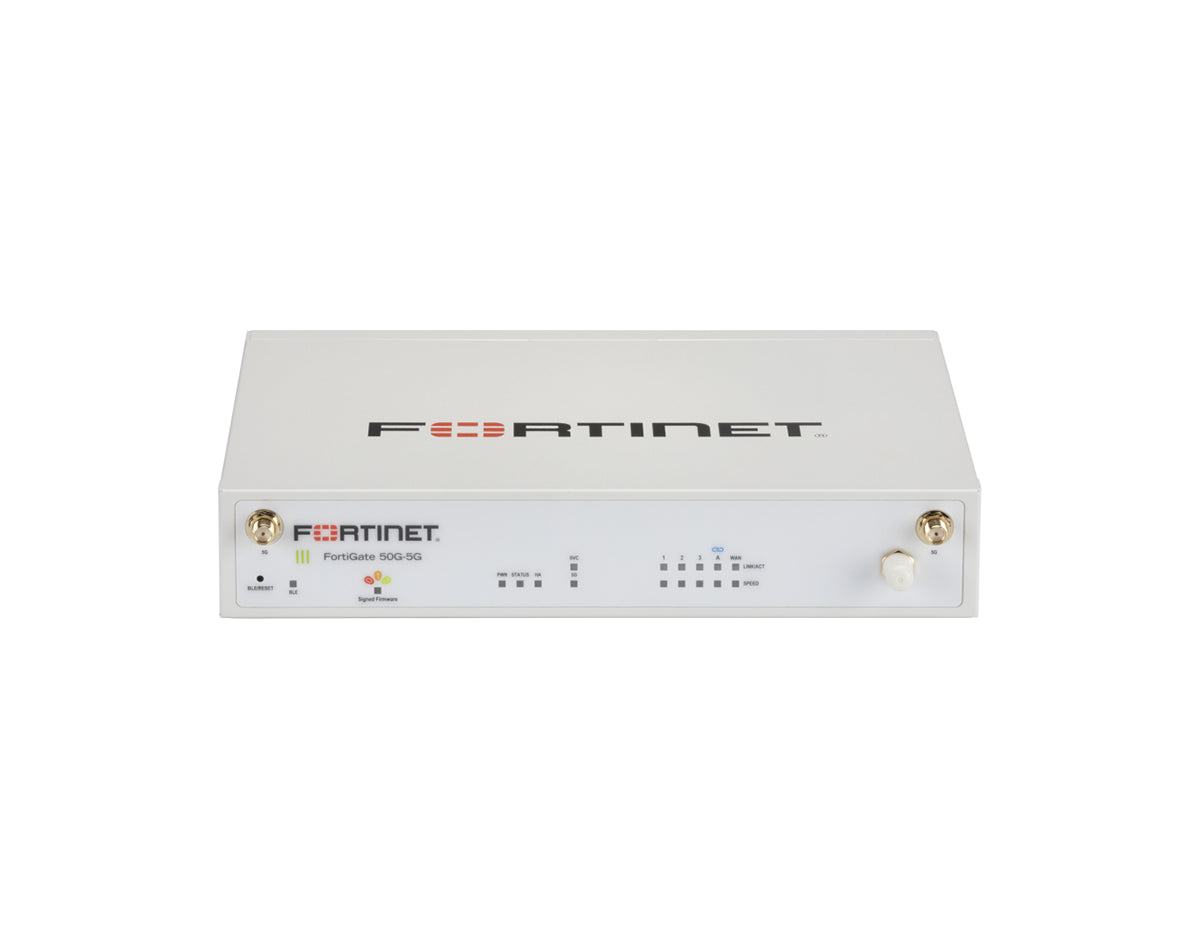

This compact, fanless desktop appliance features a Telit Cinterion FN990A28-HP modem supporting 5G and a broad range of LTE bands. With dual Nano SIM slots (Active/Passive), it enables carrier redundancy, allowing organizations to maintain uptime even if one cellular network becomes unavailable. The FortiGate 50G-5G seamlessly integrates into the Fortinet Security Fabric, offering centralized management, visibility, and threat protection for hybrid networks.
High-Performance 5G SD-WAN Gateway
Key Benefits
- Embedded 5G Connectivity: Integrated 5G modem with fallback to LTE enables fast, resilient wireless WAN connectivity.
- SP5 ASIC Performance: Powered by Fortinet’s Secure SD-WAN ASIC SP5 to deliver up to 5 / 5 / 4 Gbps firewall throughput and 2.25 Gbps IPS performance.
- Carrier Redundancy: Dual Nano SIM slots (Active/Passive) allow for flexible carrier switching to maximize uptime and network resilience.
- Silent & Reliable: Fanless desktop form factor enables deployment in noise-sensitive environments like retail stores and small offices.
- Converged Security: Unifies advanced threat protection, SSL inspection, and SD-WAN into a single device to reduce complexity and cost.
Ideal Use Cases
- 5G Branch Connectivity: Provides high-speed primary connectivity for locations where wired broadband is unavailable, expensive, or slow.
- Mission-Critical Failover: Acts as a reliable backup connection for retail and enterprise branches to reduce downtime during wired outage events.
- Pop-Up & Mobile Sites: Rapidly deploys secure, high-bandwidth networking for temporary kiosks, construction sites, or mobile workstations.
- Secure SD-WAN: Optimizes application performance with intelligent steering across wired and 5G links from a single, centrally managed console.
Technical Specifications Summary
- Firewall Throughput: 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets)
- IPS Throughput: 2.25 Gbps
- NGFW Throughput: 1.25 Gbps
- Threat Protection Throughput: 1.1 Gbps
- IPsec VPN Throughput: 4.5 Gbps (512 byte)
- SSL Inspection Throughput: 1.3 Gbps (IPS, avg. HTTPS)
- Firewall Latency: 2.42 μs (64 byte UDP packets)
- Sessions & Policies: 720,000 concurrent sessions (TCP), 85,000 new sessions/second (TCP), 2,000 firewall policies
- Cellular: Telit Cinterion FN990A28-HP modem, 2x Nano SIM (Active/Passive), PTCRB and AT&T certified

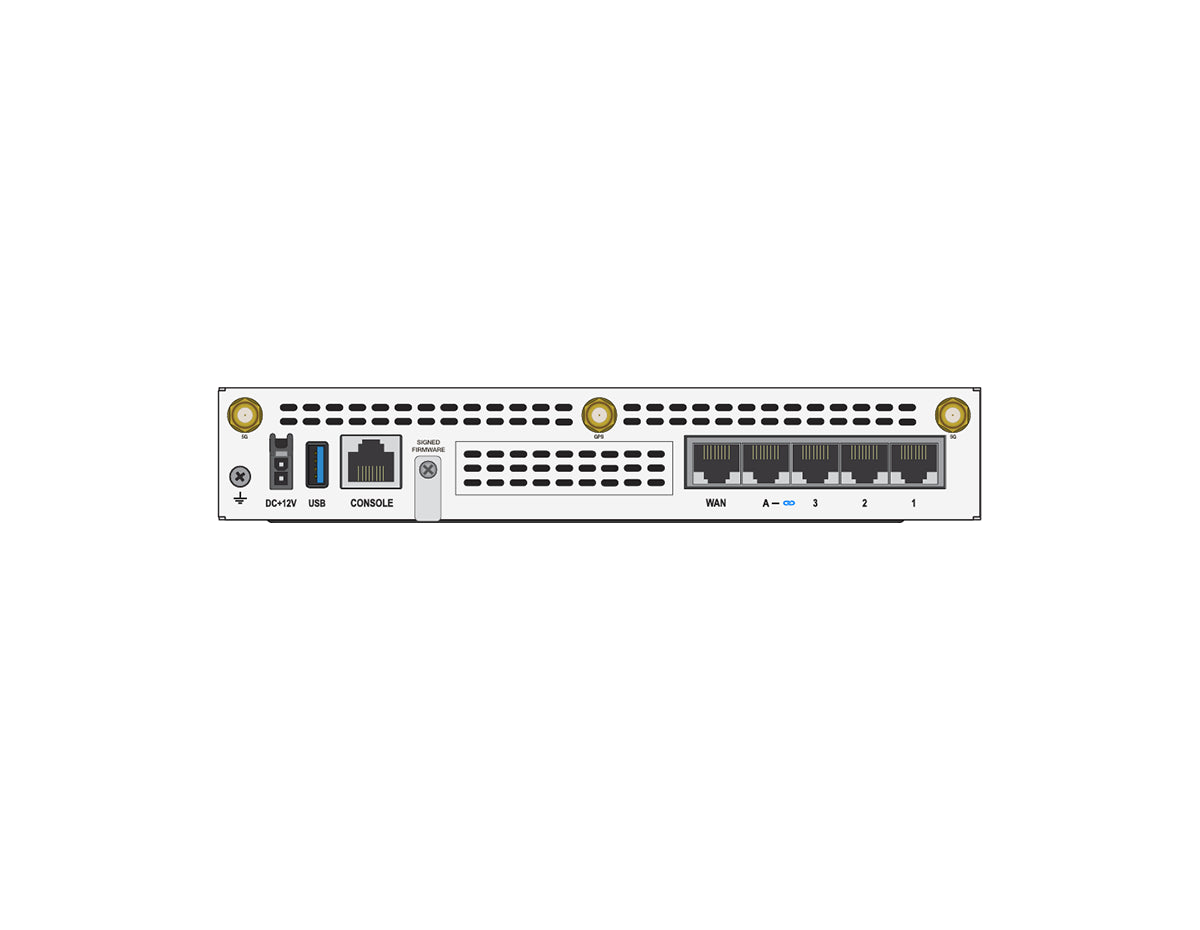

- Interfaces: 5x GE RJ45 (1x WAN, 1x FortiLink, 3x Ethernet), 1x USB, 1x RJ45 console, 5x SMA WWAN antenna ports
- Power & Acoustics: 12VDC, 3A; 8.3 W average / 8.9 W max; fanless 0 dBA
- Physical & Environment: 1.6 x 8.5 x 6.3 in, 2.2 lb; operating 0°C to 40°C; humidity 10% to 90% non-condensing
Upgrade Your Network Security
Deploy the FortiGate 50G-5G today for a secure, resilient, and future-proof network utilizing the power of 5G.
