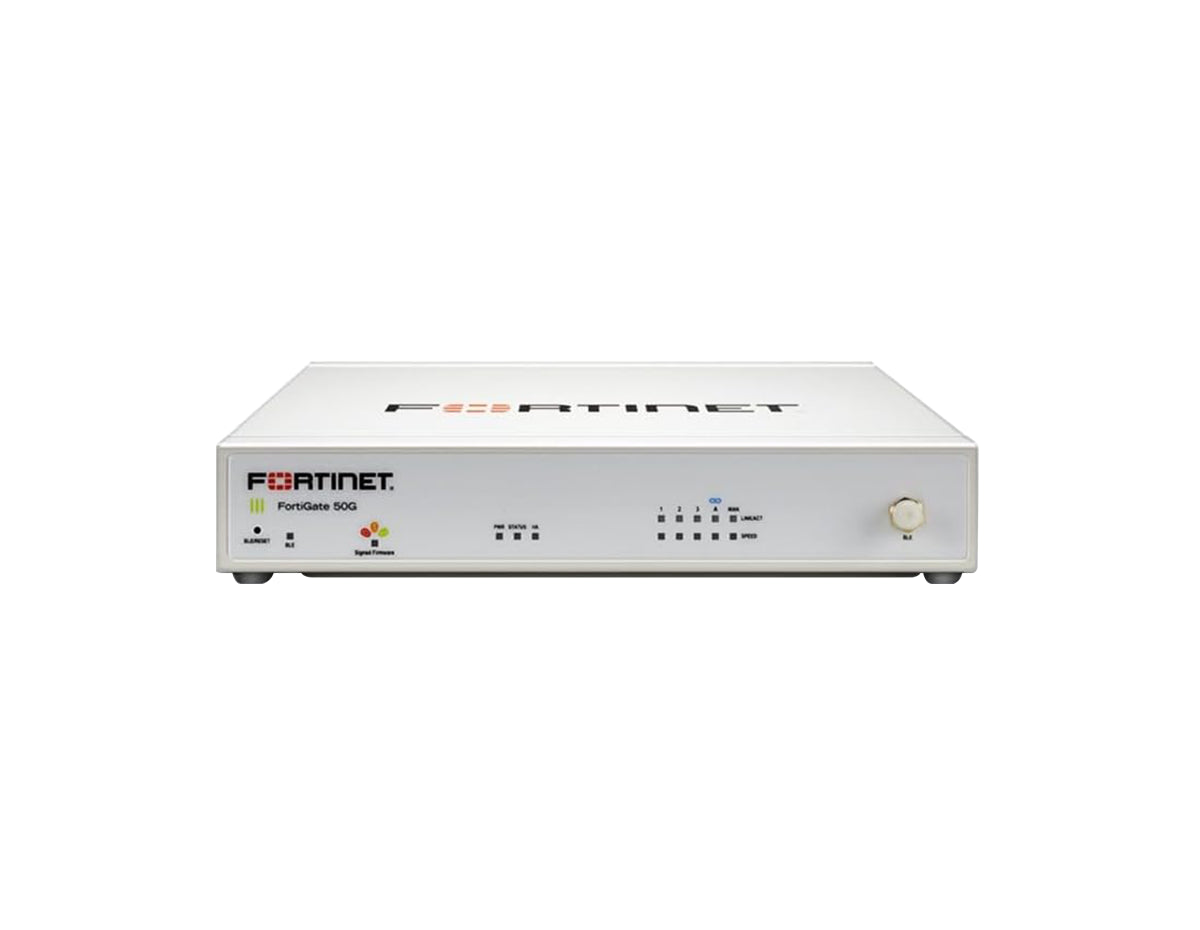

Fortinet FortiGate 50G Next-Generation Firewall (FG-50G)

The FortiGate 50G series runs on FortiOS, the industry's first converged networking and security operating system, enabling businesses to gain benefits of operational efficiency and unified protection. As a cornerstone of the Fortinet Security Fabric platform, the FortiGate NGFW works seamlessly with FortiGuard AI-Powered Security Services to deliver coordinated, automated, end-to-end threat protection in real time.

The 50G family is built on the patented SD-WAN-based ASIC SP5, which delivers unmatched performance over traditional CPUs with lower cost and reduced power consumption. This application-specific design further accelerates the convergence of networking and security functions in the 50G family to optimize secure connections and deliver a robust user experience at branch locations.

Converged Next-Generation Firewall and SD-WAN with SP5 ASIC

Key Benefits

• Unparalleled Performance: Enabled by Fortinet's patented ASIC and the FortiOS operating system to deliver industry-leading throughput and faster security inspections.
• Enterprise-Grade Protection: Natively integrated FortiGuard AI-Powered Security Services protect against malicious traffic, file-based threats, and web-based attacks.
• Simplified Operations: Centralized management for networking and security with automated workflows, deep analytics, and self-healing capabilities.
• Integrated SD-WAN: Delivers faster application identification to avoid delays and accelerates overlay performance regardless of location.
• Compact & Fanless: Small, lightweight desktop form factor with 0 dBA noise level, suitable for noise-sensitive environments.

Ideal Use Cases

• Secure Branch: Extends security to WAN, LAN, and WLAN at branch offices for unified protection and reliable connectivity.
• Perimeter Protection: Inspects and controls incoming and outgoing traffic based on defined security policies to guard against defined and unknown threats.
• Secure SD-WAN: Enables best-of-breed WAN edge with integrated SD-WAN, WAN optimization, and security from a single OS.
• Remote/Hybrid Work: Enhances hybrid working with a comprehensive SASE solution by integrating cloud-delivered SD-WAN with security service edge (SSE).

Technical Specifications Summary

• Firewall throughput: 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets).
• IPS throughput: 2.25 Gbps; NGFW throughput: 1.25 Gbps; threat protection throughput: 1.1 Gbps.
• Firewall latency: 2.42 μs; firewall policies: 2,000.
• Concurrent sessions (TCP): 720,000; new sessions/second (TCP): 85,000.
• IPsec VPN throughput (512 byte): 4.5 Gbps; IPsec tunnels: 200 gateway-to-gateway, 250 client-to-gateway.
• SSL inspection throughput: 1.3 Gbps.

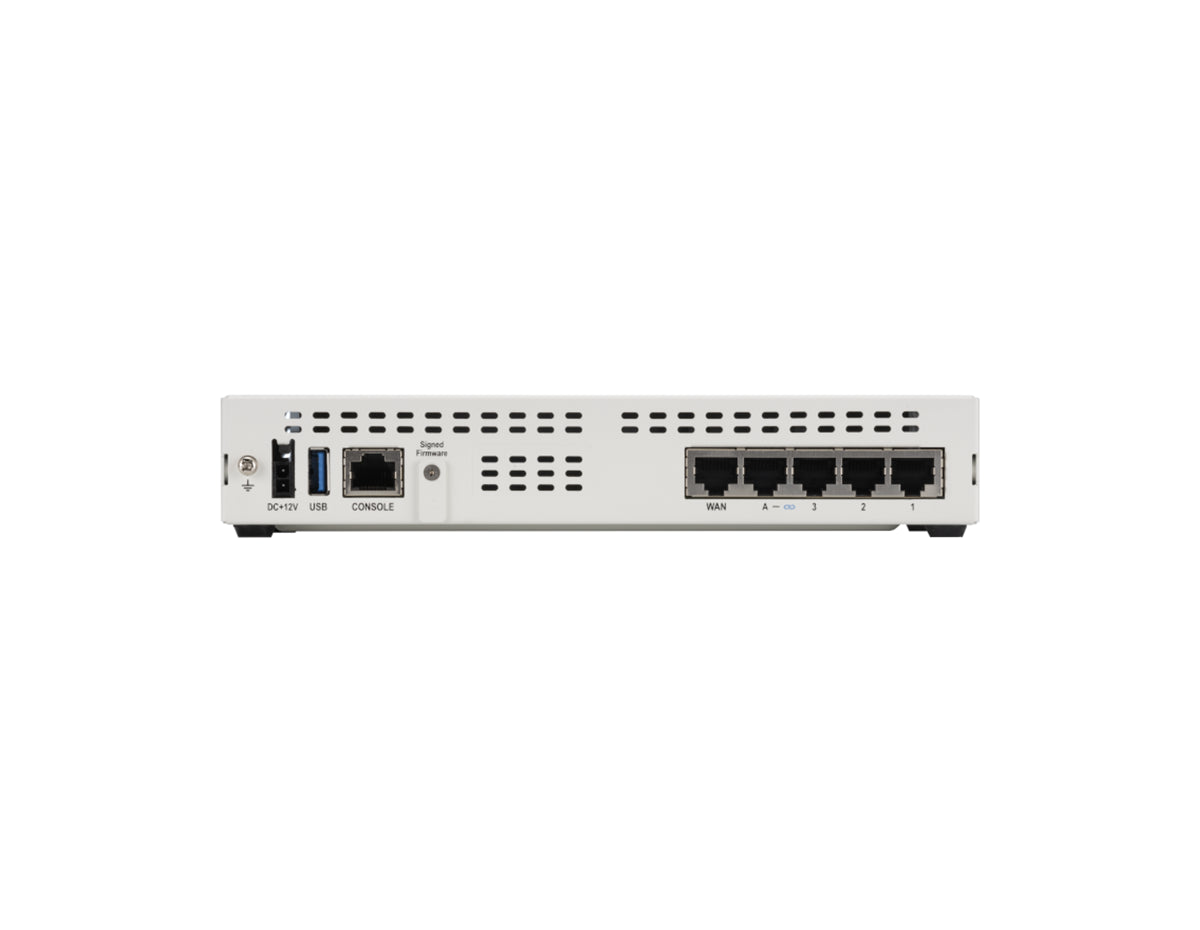

• Interfaces: 5x GE RJ45 (1x WAN, 1x FortiLink, 3x Ethernet), 1x USB, 1x RJ45 console.
• Power: 12VDC, 3A; power consumption (avg/max): 8.3 W / 8.9 W; heat dissipation: 30.35 BTU/h.
• Dimensions: 1.6 x 8.5 x 6.3 in (40.5 x 216 x 160 mm); weight: 2.2 lbs (1.0 kg).
• Operating temperature: 32°F to 104°F (0°C to 40°C); storage temperature: -31°F to 158°F (-35°C to 70°C); humidity: 10% to 90% non-condensing.
• Noise level: fanless 0 dBA.
• Compliance / certifications: FCC, ISED, CE, UL/cUL, CB; USGv6/IPv6.
