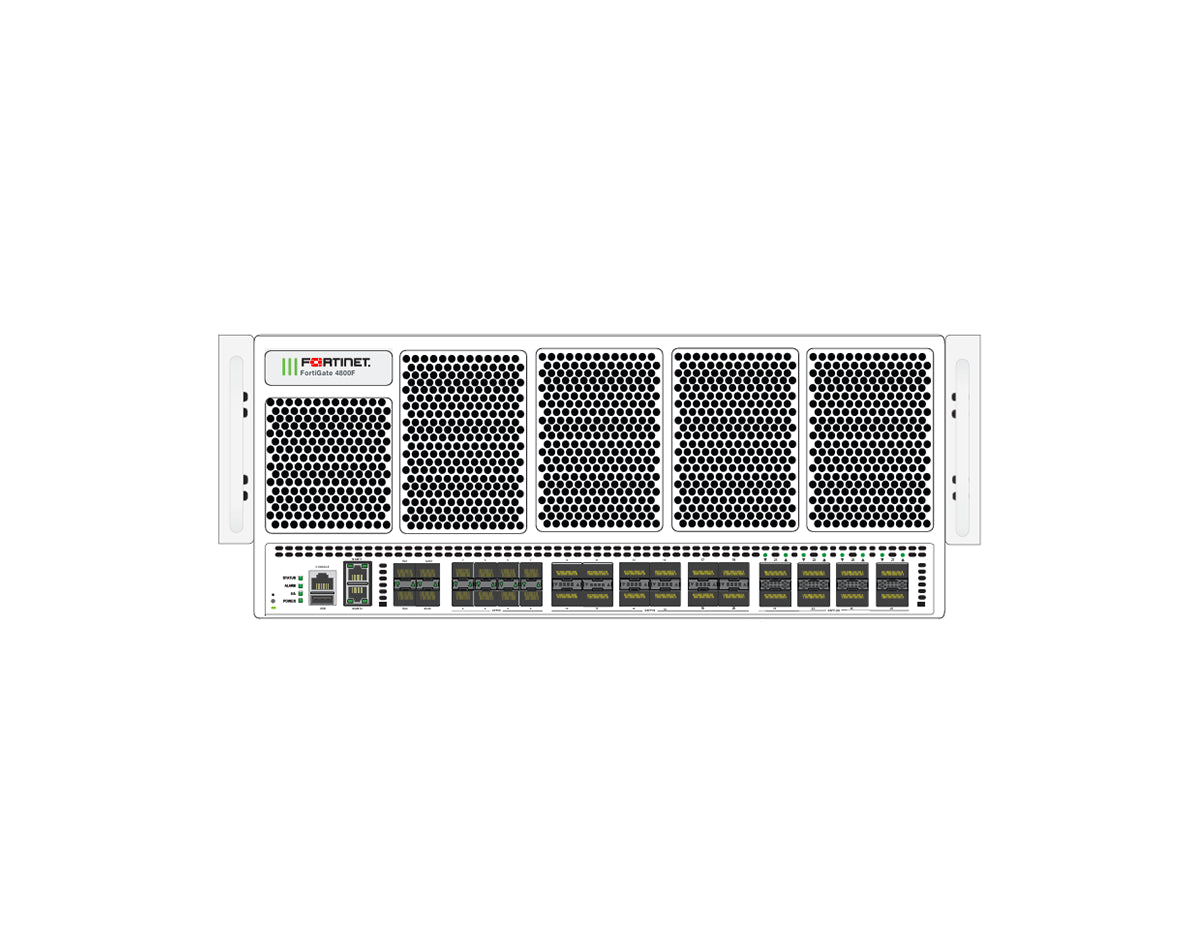

The Fortinet FortiGate 4801F-NEBS is a high-performance Next-Generation Firewall (NGFW) engineered specifically for carrier-grade environments and hyperscale data centers that require NEBS Level 3 compliance. This robust 4U rackmount appliance is built to withstand rigorous environmental conditions while delivering industry-leading security and connectivity. Powered by Fortinet's specialized NP7 and CP9 security processing units, it offers a massive firewall throughput of 3.1 Tbps, ensuring that security measures do not become a bottleneck for critical network traffic.
Equipped with ultra-high-speed interfaces, including 8x 400GE/200GE/100GE/40GE QSFP-DD slots and 12x 200GE/100GE/40GE QSFP56/QSFP28/QSFP+ slots, the FG-4801F-NEBS is designed to handle elephant flows and support massive data aggregation. The unit includes dual 1.92TB internal SSDs for local log storage and reporting, enhancing visibility and compliance capabilities. With four AC power supplies and a design focused on reliability, this firewall provides the resilience needed for core networks and telecommunications infrastructure.
Securing Critical Infrastructure with NEBS Level 3 Compliance and 400GE
- NEBS Level 3 Compliant: Certified for carrier-class environments, meeting strict standards for safety, spatial footprint, and environmental resilience.
- Unmatched 400GE Connectivity: Features 8x 400GE/200GE/100GE/40GE QSFP-DD slots to support high-bandwidth backbone requirements and future-proof networks.
- Hyperscale Performance: Powered by SPU NP7 and CP9 to deliver up to 1.8 billion concurrent sessions (Hyperscale).
- Integrated Internal Storage: Includes 2x 1.92 TB SSDs for local log storage and reporting.

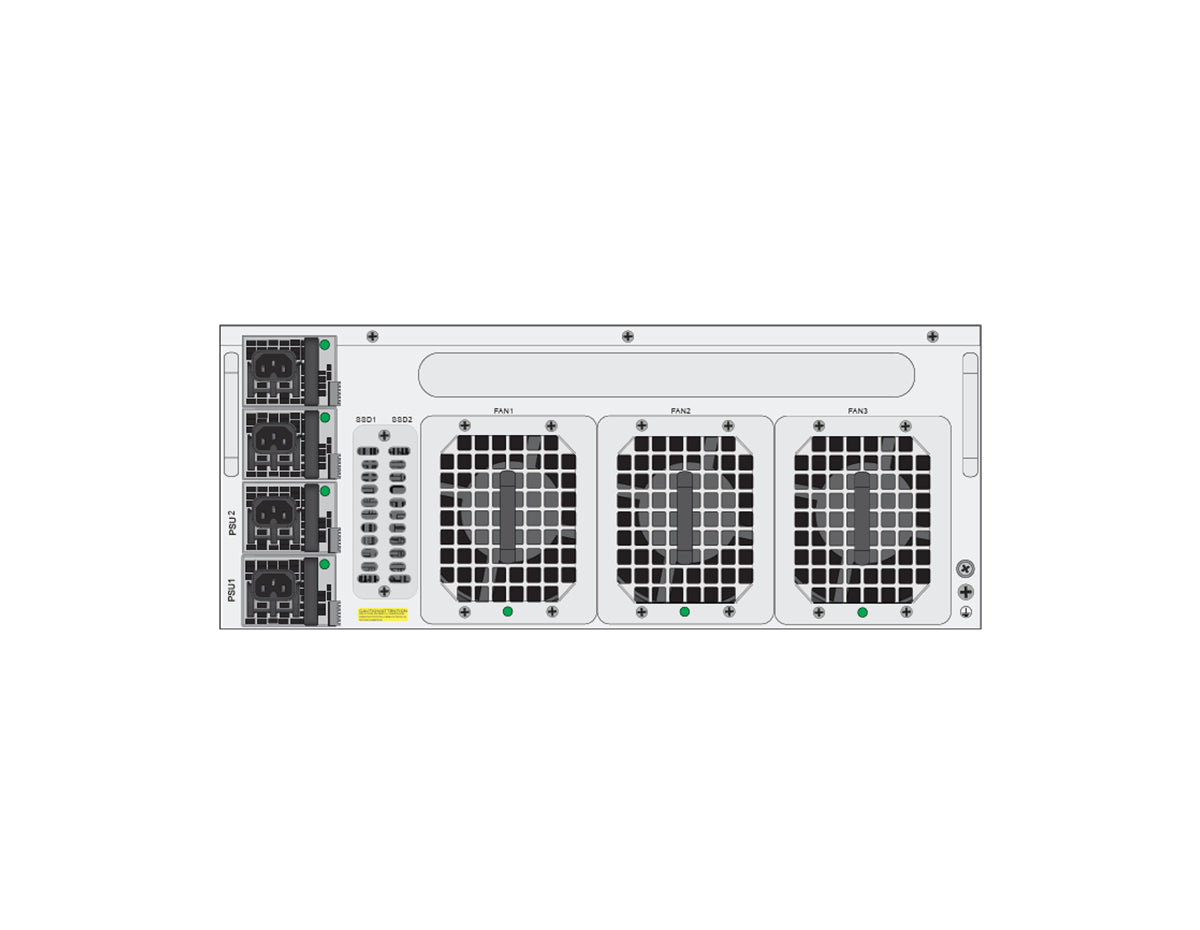

- Resilient Power Architecture: Comes with 4x AC power supplies in a redundant 2+2 configuration for maximum uptime.
- Advanced Threat Protection: Delivers up to 87 Gbps IPS, 77 Gbps NGFW, and 75 Gbps Threat Protection performance.
- Telecommunications Carriers: Securing core networks and Gi-LAN interfaces where NEBS compliance is mandatory.
- Hyperscale Data Centers: Protecting North-South and East-West traffic flows with ultra-high throughput and low latency.
- Service Providers: Supporting high-volume multi-tenant architectures requiring distinct segmentation and high-speed interconnects.
- Mobile Security for 4G, 5G, and IoT: Supporting CGNAT/IPv6 migration and high-performance IPsec aggregation and control security gateway use cases.
- IPv4/IPv6 Firewall Throughput (UDP): 3.1 / 3.1 / 0.93 Tbps (1518/512/64 byte IPv4; 1518/512/86 byte IPv6)
- Threat Protection / NGFW / IPS: 75 Gbps / 77 Gbps / 87 Gbps
- VPN Performance: IPsec VPN 800 Gbps (512 byte); SSL-VPN 18 Gbps
- Interface Capacity: 8x QSFP-DD (400GE/200GE/100GE/40GE), 12x QSFP56/28 (200GE/100GE/40GE), 8x SFP56/28 (50GE/25GE/10GE/GE) + 4x HA/Aux
- Power & Cooling: 200–240V AC; 1528.8 W avg / 1964.9 W max; 6700.31 / 6711.31 BTU/h; Front-to-Back airflow
- Physical & Compliance: 4 RU; 6.89 x 17.13 x 26.10 in (175 x 435 x 663 mm); 93.03 lbs (42.2 kg); NEBS Level 3; USGv6/IPv6
Upgrade Your Network Security
Contact us today to deploy the carrier-grade FortiGate 4801F-NEBS in your critical network infrastructure.
