Fortinet FG-4801F-DC-BDL-809-60 Data Center NGFW

Fortinet FG-4801F-DC-BDL-809-60 Data Center NGFW

Name: Fortinet FG-4801F-DC-BDL-809-60 Data Center NGFW
Brand: Fortinet
Price: 1238790.0 USD
Availability: InStock

Part Number: FG-4801F-DC-BDL-809-60

Technical Details

FG-4801F-DC-BDL-809-60 hyperscale data center NGFW, 8x 400GE/200GE QSFP-DD, NP7/CP9 SPUs, 2x 1.92TB SSD, FortiCare Premium + FortiGuard Enterprise, 5 Year.

$1,821,750.00

$1,238,790.00

32% OFF

You Save: $582,960.00

Net 30 or as low as $/month

Apply Now

Product & Solutions Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

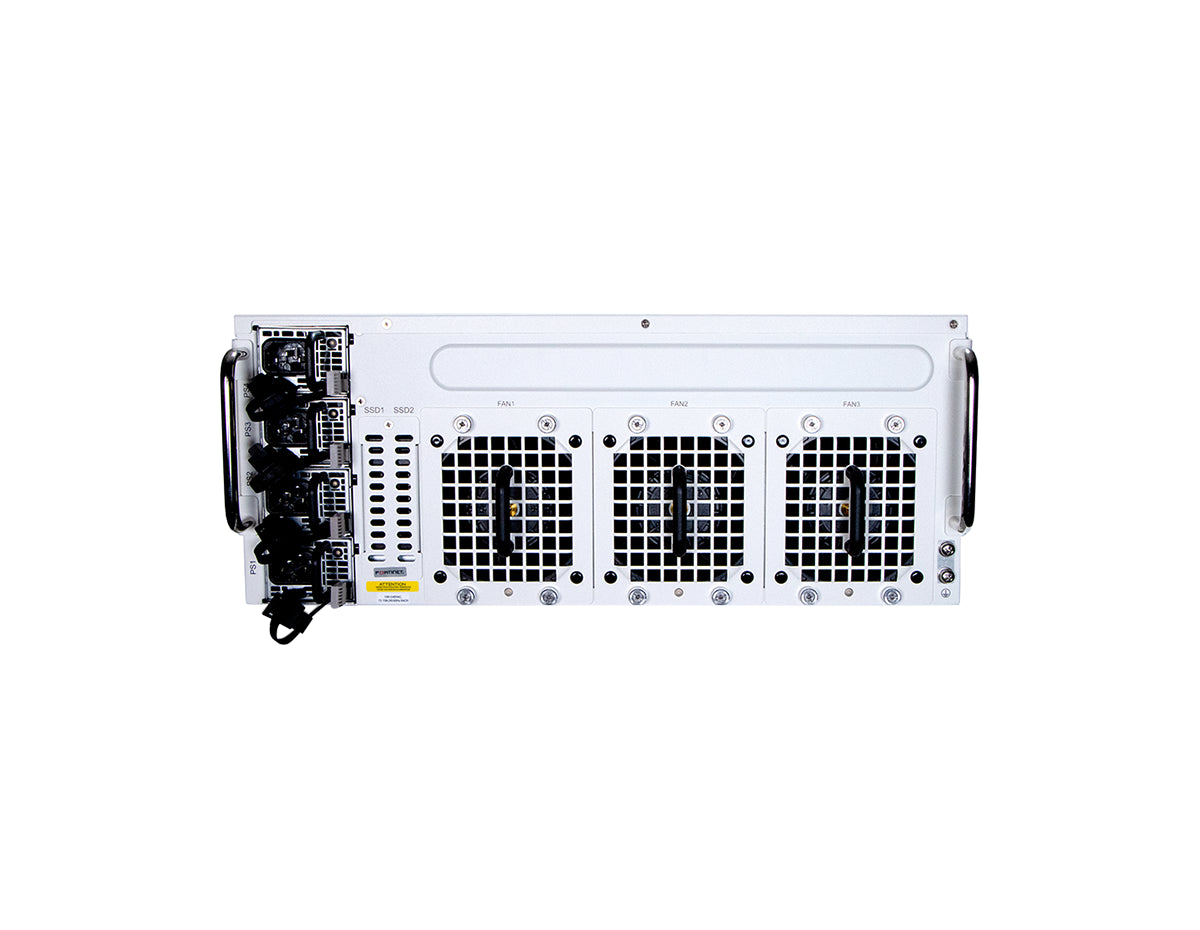

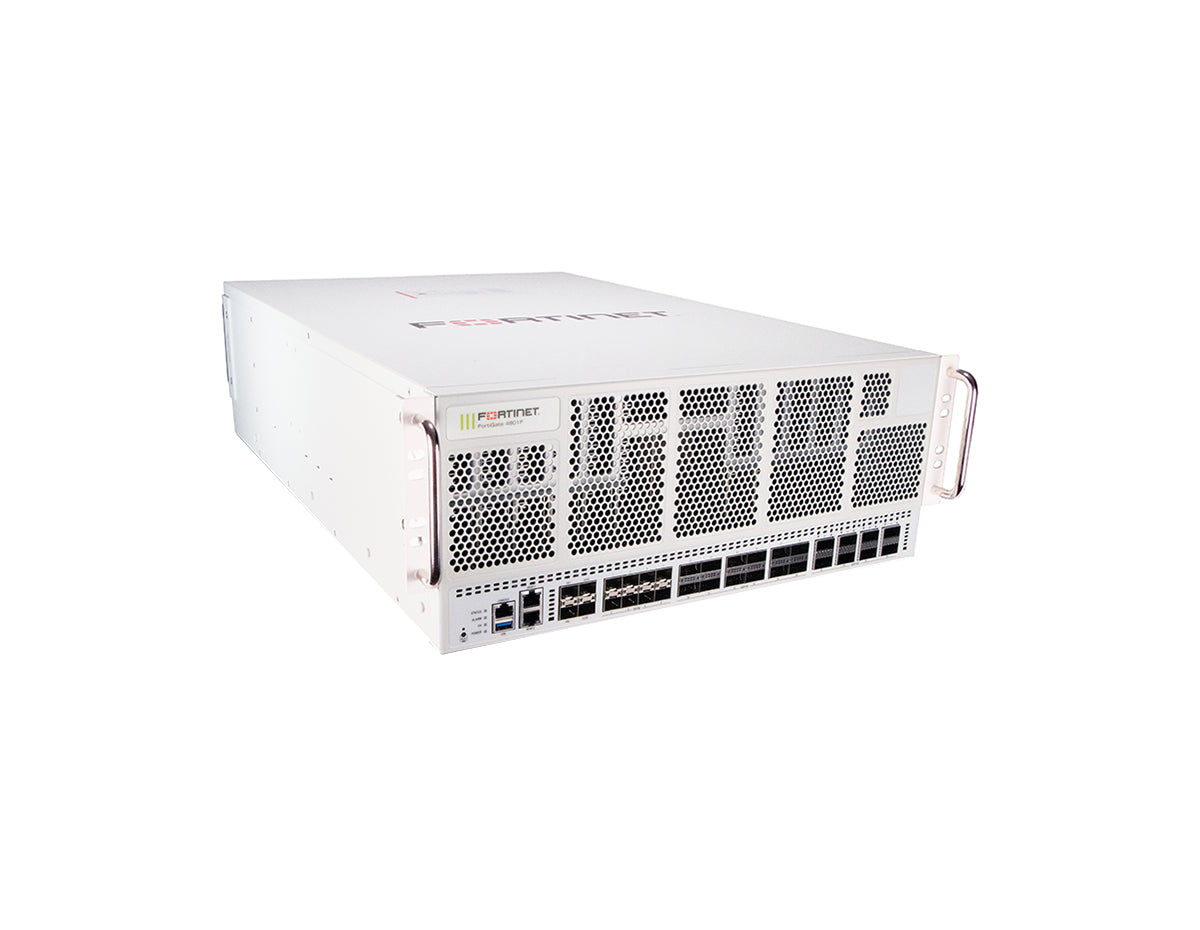

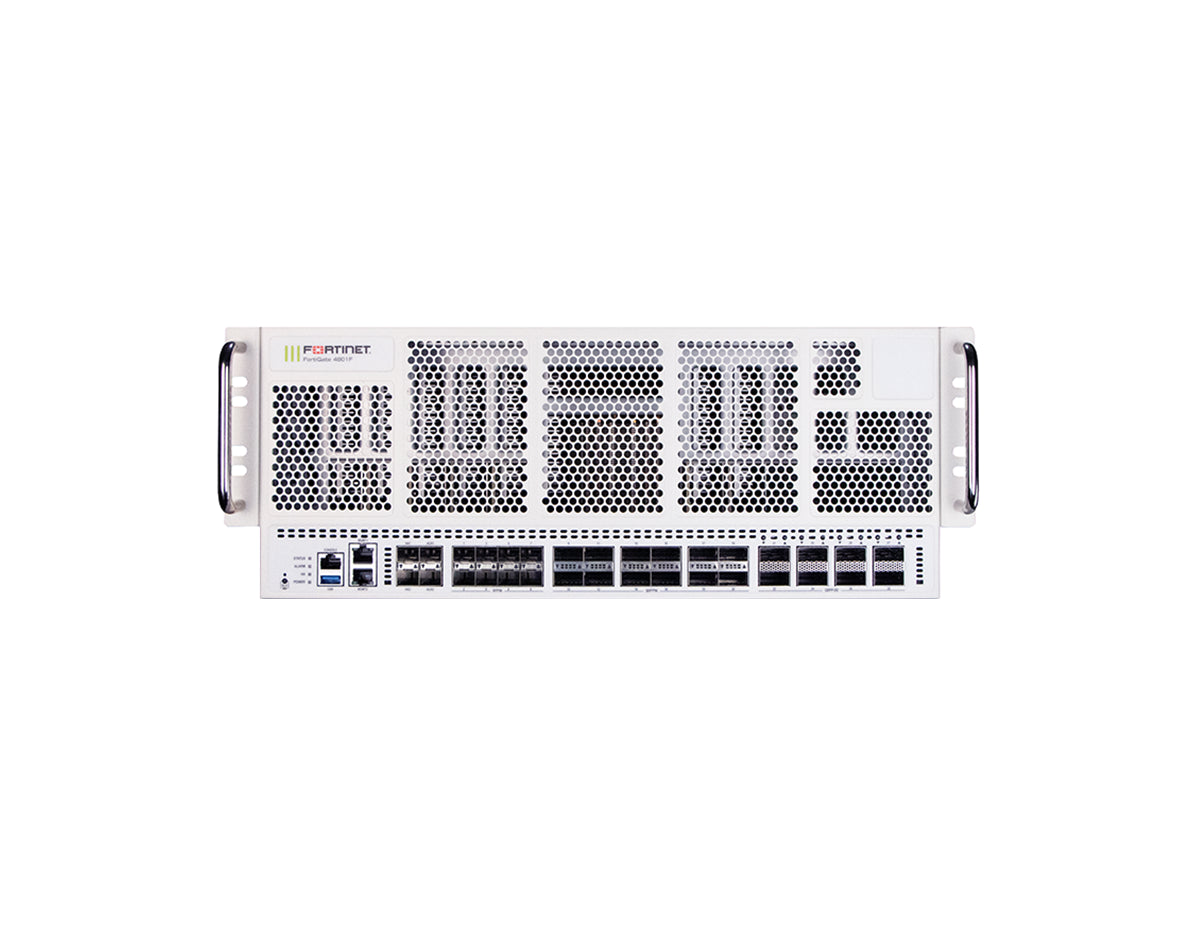

The FortiGate 4801F-DC is a 4U rackmount NGFW for hyperscale DC power environments, with 8x 400GE/200GE QSFP-DD slots, NP7 and CP9 acceleration, and 2x 1.92TB SSD storage.

This FG-4801F-DC-BDL-809-60 bundle includes FortiCare Premium and FortiGuard Enterprise Protection for 5 Year.

Securing Hyperscale Architectures with 400GE Connectivity and DC Power

8x 400GE/200GE QSFP-DD slots for core segmentation.
NP7 and CP9 SPUs for hardware-accelerated security inspection.
2x 1.92TB SSD for local logs and reporting.
-72V to -40V DC power input for DC environments.
Up to 3.1 Tbps IPv4 firewall throughput (1518/512/64, UDP).
BDL-809: FortiCare Premium + FortiGuard Enterprise, 5 Year.

Upgrade Your Network Security

Properties

Model	FortiGate 4801F-DC (FG-4801F-DC-BDL-809-60)
Bundle / Subscription	BDL-809: FortiCare Premium + FortiGuard Enterprise Protection (5 Year)
Form Factor	4U Rackmount
Firewall Throughput	3.1 Tbps
High-Speed Interfaces	8x 400GE/200GE QSFP-DD, 12x 200GE/100GE/40GE QSFP56/28, 12x 50GE/25GE/10GE/GE SFP56/28 (8x SFP slots + 4x HA/Aux)
Internal Storage	2x 1.92 TB SSD
Power Input	-72V to -40V DC
Dimensions	6.89 x 17.13 x 26.10 inches (175 x 435 x 663 mm)
Weight	90.83 lbs (41.2 kg)

Specifications

Performance / Throughput
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	3.1 / 3.1 / 0.93 Tbps
IPv6 Firewall Throughput (1518/512/86 byte, UDP)	3.1 / 3.1 / 0.93 Tbps
Firewall Latency (64 byte, UDP)	3.6 μs
IPsec VPN Throughput (512 byte)	800 Gbps
Threat Protection Throughput	75 Gbps
NGFW Throughput	77 Gbps
IPS Throughput	87 Gbps
SSL-VPN Throughput	18 Gbps
VPN / NGFW Capacity
Concurrent Sessions (TCP)	280 Million / 1.8 Billion (Hyperscale)
New Sessions/Second (TCP)	915,000 / 25 Million (Hyperscale)
Firewall Policies	200,000
Gateway-to-Gateway IPsec VPN Tunnels	40,000
Client-to-Gateway IPsec VPN Tunnels	200,000
Virtual Domains (Default / Maximum)	10 / 500
Interfaces / Ports
400GE/200GE/100GE/40GE QSFP-DD Slots	8
200GE/100GE/40GE QSFP56/28 Slots	12
50GE/25GE/10GE/GE SFP56/28 Slots	8
50GE/25GE/10GE/GE SFP56/28 HA and Aux Slots	4
10GE/GE RJ45 Management Ports	2
USB Ports	1x USB Port (3.0)
Console Port	1x Console Port
Dimensions & Weight
Height	6.89 inches (175 mm)
Width	17.13 inches (435 mm)
Length	26.10 inches (663 mm)
Power / Consumption
Power Consumption (Average)	1622 W
Power Consumption (Maximum)	1938.2 W
Heat Dissipation	6613.14 BTU/h

Accessories

Included Accessories	4x DC Power Supplies (Included), 2x SFP+ (SR 10 GE) Transceivers (Included)
Optional Accessories	Spare DC Power Supply (SP-FG4000F-DC-PS), Fan Tray (SP-FG4K6K-FAN), Transceivers (SFP/SFP+/SFP28/QSFP+/QSFP28/QSFP56/QSFP-DD), QSFP-DD DAC Cables (FN-CABLE-QSFPDD-DAC-01, FN-CABLE-QSFPDD-DAC-B5)
