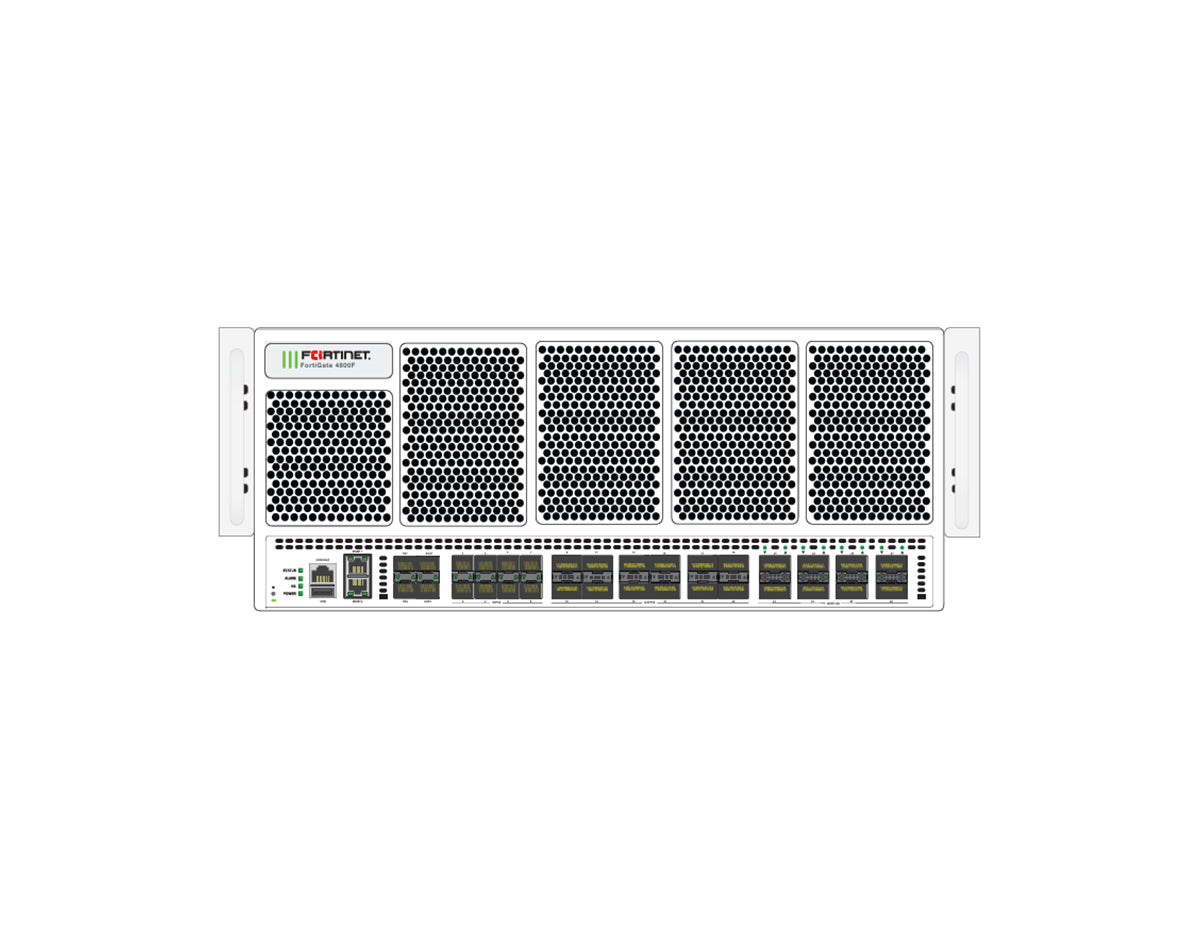

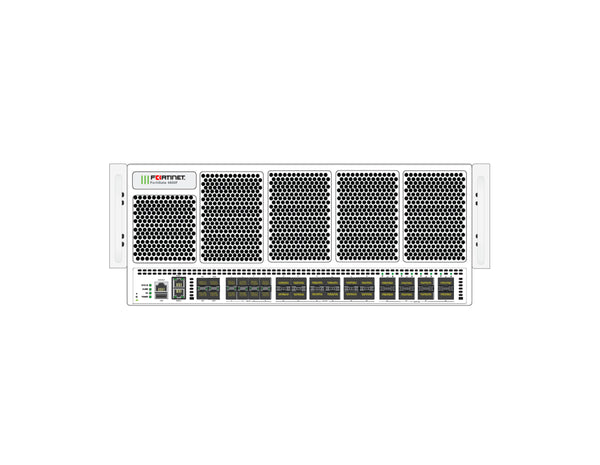

Fortinet FG-4800F-BDL-809-36 Next-Generation Firewall

Part Number: FG-4800F-BDL-809-36

Technical Details

FG-4800F-BDL-809-36 FortiGate 4800F NGFW, hyperscale 4RU, NP7+CP9 SPUs, 400GE QSFP-DD, FortiCare Premium + FortiGuard Enterprise Protection, 3-Year term.
$1,214,100.00
$825,588.00
32% OFF
You Save: $388,512.00
-
+
Product & Solutions Expert

Product & Solutions Expert

The FortiGate 4800F Series enables organizations to build security-driven networks, forming the foundation of a robust Hybrid Mesh Firewall architecture that protects any edge at any scale. Powered by AI/ML-based FortiGuard Services and an integrated security fabric platform, FortiGate 4800F delivers coordinated, automated threat protection with integrated ZTNA enforcement.

This FG-4800F-BDL-809-36 bundle includes FortiCare Premium and FortiGuard Enterprise Protection for a 3-Year term.

Secure Networking with Unparalleled Performance and AI/ML-Powered Threat Protection

  • NP7 and CP9 SPUs accelerate security processing with low latency.
  • 400GE/200GE QSFP-DD slots simplify high-speed core segmentation.
  • Enterprise AI/ML FortiGuard Services deliver coordinated, automated threat protection.
  • Integrated ZTNA enforcement controls and verifies user access to applications.
  • Hybrid Mesh Firewall architecture protects datacenter and hybrid IT environments.
  • FortiOS converges networking and security across IT, OT, and IoT.

Upgrade Your Network Security

Contact us to deploy the Fortinet FG-4800F-BDL-809-36 bundle in your datacenter.

Properties

Property Value
Model / SKU FG-4800F-BDL-809-36
Bundle / Subscription BDL-809 (FortiCare Premium + FortiGuard Enterprise Protection), 3-Year term
Form Factor Rack Mount 4 RU
IPv4 Firewall Throughput (1518/512/64 byte, UDP) 3.1 / 3.1 / 0.93 Tbps
IPS Throughput 87 Gbps
Interfaces (Summary) 8x 400GE/200GE/100GE/40GE QSFP-DD, 12x 200GE/100GE/40GE QSFP56/QSFP28/QSFP+, 12x 50GE/25GE/10GE/GE SFP56/SFP28/SFP+/SFP, 2x 10GE/GE RJ45 Management
Power Input 200-240V AC, 50/60 Hz
Dimensions (H x W x L) 175 x 435 x 663 mm (6.89 x 17.13 x 26.10 inches)
Weight 41.2 kg (90.83 lbs)

Specifications

Specification Value
Performance / Throughput
IPS Throughput 87 Gbps
Threat Protection Throughput 75 Gbps
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) 3.1 / 3.1 / 0.93 Tbps
SSL Inspection Throughput (IPS, avg. HTTPS) 63 Gbps
Concurrent Sessions (TCP) 280 Million/1.8 Billion
New Sessions/Second (TCP) 915,000/25 Million
VPN / NGFW
NGFW Throughput 77 Gbps
IPsec VPN Throughput (512 byte) 1800 Gbps
SSL-VPN Throughput 18 Gbps
Interfaces / Ports
Hardware Accelerated 400GE/200GE/100GE/40GE QSFP-DD/QSFP56/QSFP28/QSFP+ Slots 8
Hardware Accelerated 200GE/100GE/40GE QSFP56/QSFP28/QSFP+ slots 12
Hardware Accelerated 50GE/25GE/10GE/GE SFP56/SFP28/SFP+/SFP slots 8
Hardware Accelerated 50GE/25GE/10GE/GE SFP56/SFP28/SFP+/SFP High Availability and Aux Slots 4
10GE/GE RJ45 Management Ports 2
USB Port (3.0) 1
Console Port 1
Dimensions / Weight / Form Factor
Form Factor (supports EIA/non-EIA standards) Rack Mount, 4 RU
Height x Width x Length (mm) 175 x 435 x 663
Weight 90.83 lbs ( 41.2 kg)
Power / Consumption
AC Power Supply 200–240V AC, 50/60 Hz
Power Consumption (Average / Maximum) 1602 W / 1918.2 W
Redundant Power Supplies Hot Swappable, 2+2
Power Supply Efficiency Rating 80Plus Compliant

Accessories

Category Item Description
Included Transceivers 2x SFP+ (SR 10 GE)
Optional Hyperscale Firewall License (LIC-FGT-HYPSC) Unlocks further performance boosts and enables hardware acceleration of CGNAT features.
Optional AC Power Supply (SP-FG4000F-PS) 2000W AC power supply for 4000F and 6000F series, does not include power cord.
Optional AC Power Cord (SP-FGPCORC15-XX) 6ft power cord, 15A125V XXX, PSE BLACK ROHS-6, for FG-3900E, 4000F, 6000F, and 7000E/F Series.
Optional Fan Tray (SP-FG4K6K-FAN) Spare Hotswappable Fan Module for FG-420xF/440xF/480xF/6000F.
Optional Transceiver Modules Multiple options listed in datasheet (e.g., 1 GE SFP, 10 GE SFP+, 400 GE QSFPDD).
Optional Cables Multiple options listed in datasheet (e.g., 400 GE QSFPDD Passive Direct Attach Cable).
