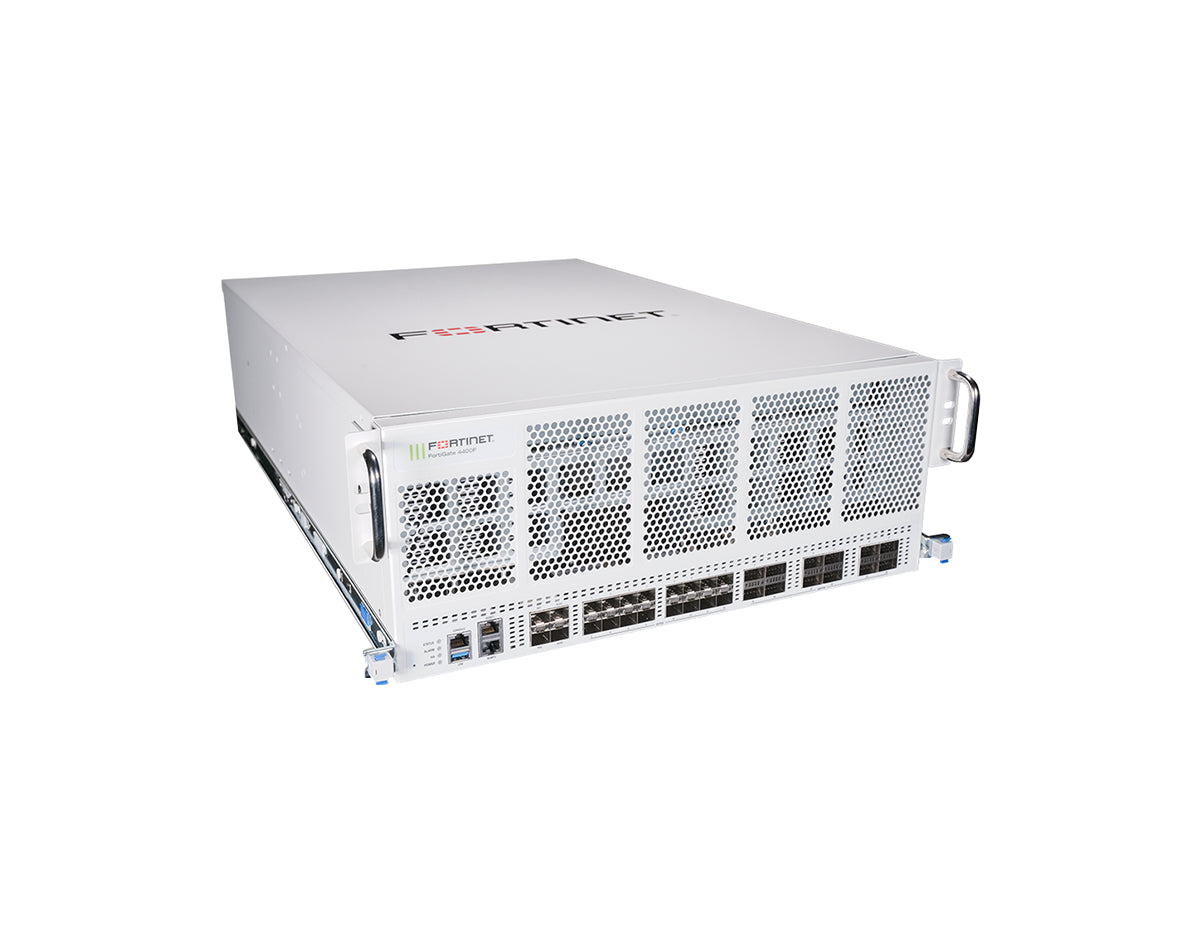

The FortiGate 4400F-DC is a hyperscale next-generation firewall designed for data centers and large enterprise environments that rely on DC power infrastructure. It leverages Fortinet's custom SPU NP7 and CP9 processors to deliver speed, scale, and efficiency. With up to 1.15 Tbps of IPv4 firewall throughput and 94 Gbps of IPS throughput, this appliance helps ensure that security does not become a bottleneck under demanding traffic loads.
This model forms the foundation of a robust Hybrid Mesh Firewall architecture, weaving security deep into the data center and across hybrid IT environments. It features integrated Zero Trust Network Access (ZTNA) enforcement within an NGFW, automatically controlling and verifying user access to applications. The FortiGate 4400F-DC supports hyperscale use cases with Carrier-Grade NAT (CGNAT) and highly scalable IPsec aggregation, making it suitable for service provider and mobile network security deployments.
Hyperscale Security with DC Power Reliability
- Unprecedented Performance: Delivers up to 1.15 Tbps IPv4 firewall throughput (1518/512/64 byte, UDP) and 750 Mpps firewall throughput.
- DC Power Optimization: Equipped with DC power supplies (-48V to -60V DC) and 1+1 hot-swappable redundant power.
- High-Density 100G Connectivity: Features 12x 100 GE QSFP28/40 GE QSFP+ slots plus 16x 25 GE SFP28/10 GE SFP+/GE SFP slots, with dedicated HA and AUX slots.
- Integrated ZTNA: Provides integrated Zero Trust Network Access enforcement within the NGFW to control and verify user access to applications.
- AI-Powered Protection: Leverages FortiGuard AI-powered security services integrated with the NGFW to help protect against modern threats.
- Massive Scalability: Supports up to 210 million concurrent TCP sessions (up to 700 million with Hyperscale Firewall License) and 1 million new sessions per second (up to 10 million with Hyperscale Firewall License).
- Hyperscale Data Centers: Secures high-volume traffic with ultra-low latency and hardware-accelerated performance.
- Service Provider Networks: Supports CGNAT and highly scalable IPsec aggregation for mobile network security deployments.
- Hybrid IT Segmentation: Uses dynamic segmentation to adapt to network topology and help prevent lateral movement.
- Secure SD-WAN: Supports unified security and management for WAN edge deployments.
- IPv4 Firewall Throughput (1518/512/64 byte, UDP): 1.15 / 1.14 / 0.50 Tbps
- IPv6 Firewall Throughput (1518/512/86 byte, UDP): 1.15 / 1.14 / 0.50 Tbps
- Enterprise Security Performance: IPS 94 Gbps; NGFW 82 Gbps; Threat Protection 75 Gbps
- VPN Performance: IPsec VPN 310 Gbps (512 byte); SSL-VPN 16 Gbps; SSL Inspection 86 Gbps (IPS, avg. HTTPS)
- SSL Inspection Scale: 70,000 CPS (IPS, avg. HTTPS); 9 Million concurrent sessions (IPS, avg. HTTPS)

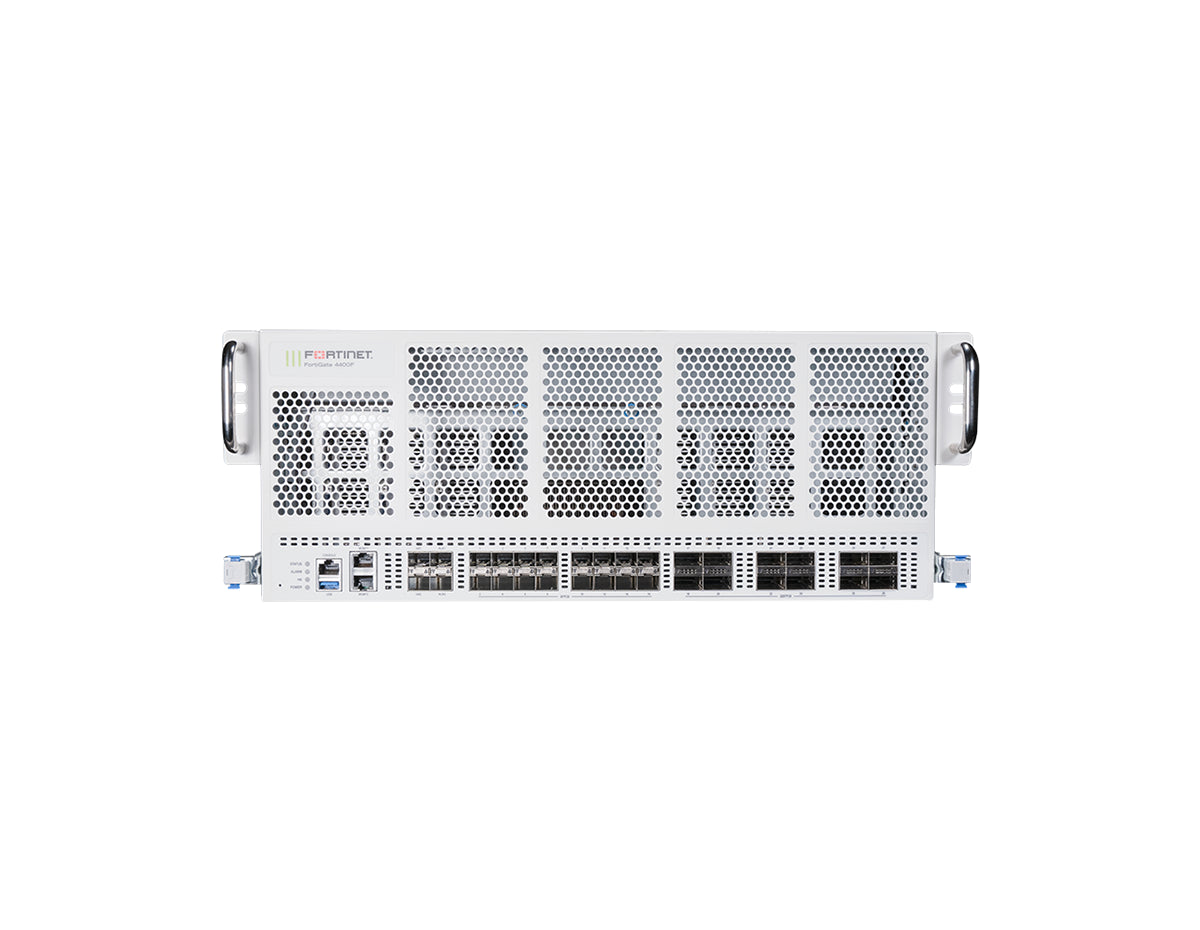

- Network Interfaces: 12x 100 GE QSFP28/40 GE QSFP+; 16x 25 GE SFP28/10 GE SFP+/GE SFP; 2x HA; 2x AUX; 2x GE RJ45 Mgmt; 1x USB 3.0; 1x Console
- Scale & Capacity: 210 Million / 700 Million* concurrent TCP sessions; 1 Million / 10 Million* new sessions/sec; 400,000 firewall policies; VDOMs 10 / 500

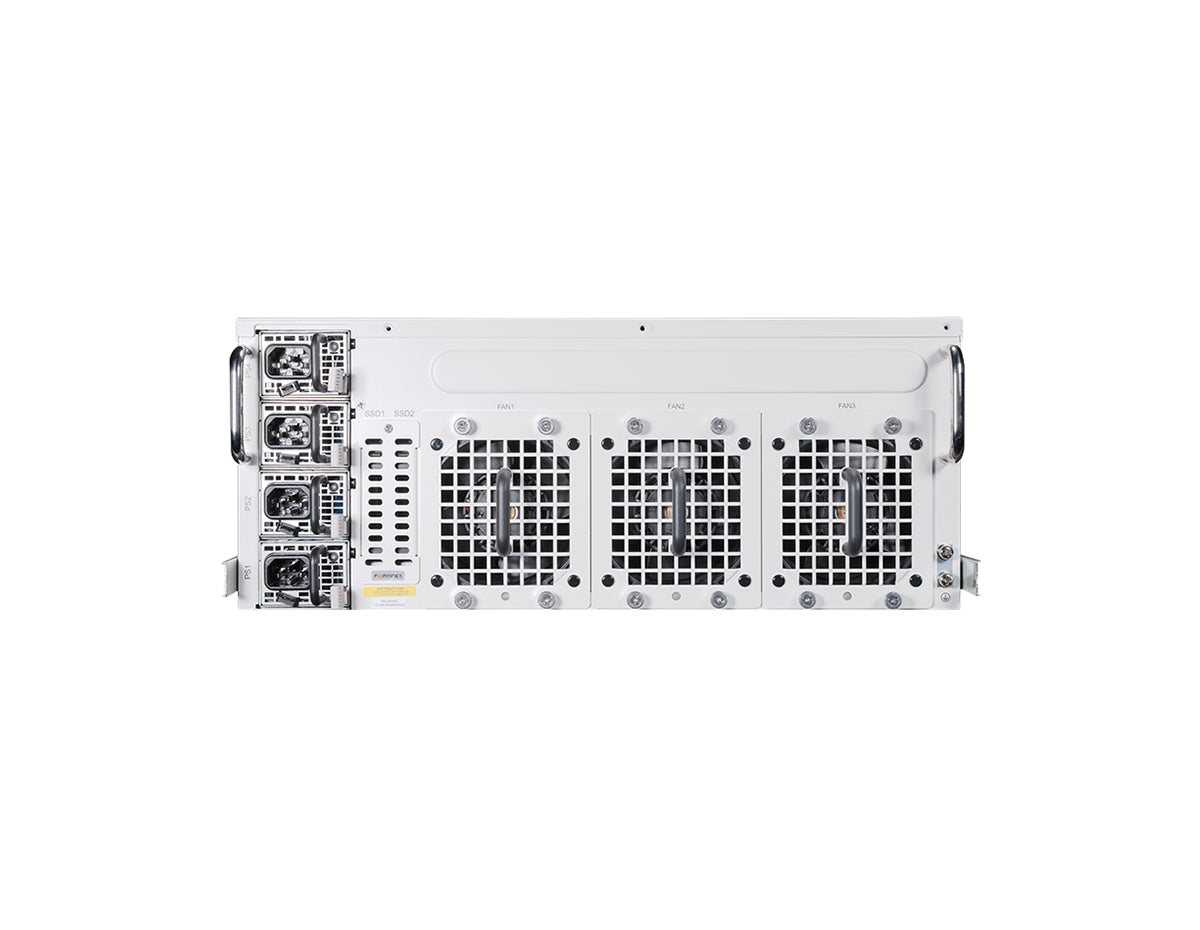

- Power & Environment (DC): -48V to -60V DC; 32A / 100A pk; 1533W / 1875W (avg/max); 6397.77 BTU/h; 68.9 dBA
- Physical, Environment & Compliance: 4 RU; 177 x 437 x 665 mm; 37.1 kg; 0°C to 40°C operating; 20% to 90% non-condensing humidity; FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB; USGv6/IPv6
Upgrade Your Network Security
Deploy the FortiGate 4400F-DC for hyperscale performance and data center security.
