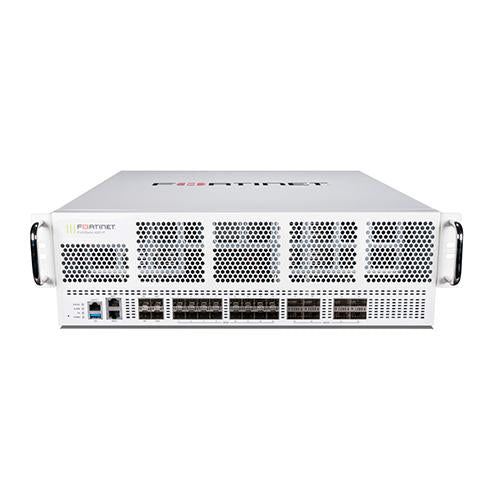

FORTINET FG-4200F-BDL-950-36 FIREWALL
| Model: | FG-4200F-BDL-950-36 |
| Detail: |
|
| List Price: | |
| Price: | $519,196.37 |
| You Save: | $155,084.63 (23% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
8x 100GE/40GE QSFP28 slots and 18x 25GE/10GE SFP28 slots, 2 x GE RJ45 Management Ports, SPU NP7 and CP9 hardware accelerated, and 2 AC power supplies, Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP), 3Yr Bundle, 24x7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web Filtering and Antispam Service) plus term of contract
Accessories
| SP-FG4000F-PS |
2000W AC power supply for 4000F and 6000F series, does not include SP-FGPCORC15-XX power cord.
|
| SP-FG3040B-RAIL |
Rack mount sliding rails for FG-1000C/-DC, FG-1200D, FG-1500D/DC, FG-3040B/-DC, FG- 3140B/-DC, FG-3240C/-DC, FG-3000D/-DC, FG-3100D/-DC, FG-3200D/-DC, FG-3400/3401E, FG-3600E-DC/3601E, FG-3700D/-DC, FG-3700DX, FG-3810D/-DC, FG-3950B/-DC, and FG4200F/4201F.
|
| SP-CABLE-ADASFP+ |
10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots.
|
| SP-FGPCORC15-XX |
6 ft power cord, 15A125V XXX, PSE BLACK ROHS-6, for FG-3900E, 4000F, 6000F and 7000E/F Series
|
| SP-FG4000F-DC-PS |
DC power supply for FG-4200F-DC/4201F-DC, FG-4400F-DC/4401F-DC and FG-6000F-DC.
|
| SP-FG4K6K-FAN |
Spare Hotswappable Fan Module for FG-420xF/440xF/6000F.
|
| FN-TRAN-SFP+SR |
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-SFP+LR |
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots.
|
| FN-TRAN-SFP+GC |
10 GE SFP+ RJ45 transceiver module for systems with SFP+ slots.
|
| FN-TRAN-SFP+ER |
10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-LX |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
|
| FN-TRAN-GC |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+ slots.
|
| FN-TRAN-SX |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots.
|
| FN-TRAN-SFP+BD27 |
10GE SFP+ transceiver module, 30km long range single BiDi for systems with SFP+ and SFP/ SFP+ slots (connects to FN-TRAN-SFP+BD33, ordered separately)
|
| FN-TRAN-SFP+BD33 |
10GE SFP+ transceiver module, 30km long range single BiDi for systems with SFP+ and SFP/ SFP+ slots (connects to FN-TRAN-SFP+BD27, ordered separately)
|
| FN-TRAN-SFP28-SR |
25 GE SFP28 transceiver module, short range for all systems with SFP28 slots
|
| FG-TRAN-SFP28-LR |
25 GE SFP28 transceiver module, long range for all systems with SFP28 slots
|
| FN-TRAN-QSFP+SR |
40 GE QSFP+ transceiver module, short range for all systems with QSFP+ slots
|
| FG-TRAN-QSFP+SR-BIDI |
40 GE QSFP+ transceiver module, short range BiDi for all systems with QSFP+ slots.
|
| FN-TRAN-QSFP+LR |
40 GE QSFP+ transceiver module, long range for all systems with QSFP+ slots.
|
| FN-TRAN-QSFP28-CWDM4 |
100 GE QSFP28 transceivers, LC connectors, 2KM for all systems with QSFP28 slots.
|
| FN-TRAN-QSFP28-BIDI |
100 GE QSFP28 BIDI transceiver module, 100m MMF LC connector, for systems with QSFP28 slots.
|
Specifications
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 800 / 788 / 400 Gbps |
| Firewall Latency (64 byte UDP packets) | 3.02 μs |
| Firewall Throughput (Packets Per Second) | 600 Mpps |
| Concurrent Sessions (TCP) | 210 Million / 450 Million |
| New Sessions/Second (TCP) | 1 Million / 7 Million |
| Firewall Policies | 400.000 |
| IPsec VPN Throughput (512 byte packets) | 210Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 40000 |
| Client-to-Gateway IPsec VPN Tunnels | 200000 |
| SSL-VPN Throughput | 16 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 30000 |
| SSL Inspection Throughput | 50 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 34000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 9 Million |
| Application Control Throughput | 135 Gbps |
| IPS Throughput | 52 Gbps |
| NGFW Throughput | 47 Gbps |
| Threat Protection Throughput | 45 Gbps |
| CAPWAP Throughput | 47 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Maximum Number of FortiSwitches Supported | 300 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 8192 / 4096 |
| Maximum Number of FortiTokens | 20000 |
| Maximum Number of Registered FortiClients | - |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Dimensions in. | 5.22 x 17.20 x 26.17 |
| Form Factor | Rack Mount, 3 RU |
| Power Required | 100240V AC, 5060 Hz |
| Maximum Current |
AC:13.5A@120V, 5.5A@240V
DC: 20A / 100Apk |
| Power Consumption (Average / Maximum) | 931 W / 1291 W |
| Operating Temperature | 32104°F (040°C) |
| Regulatory Compliance |
FCC Part 15 Class A, RCM, VCCI, CE, UL/ cUL, CB
|
| Certifications | USGv6/IPv6 |
Properties
| Properties | FG-4200F-BDL-950-36 |
| Description |
8x 100GE/40GE QSFP28 slots and 18x 25GE/10GE SFP28 slots, 2 x GE RJ45 Management Ports, SPU NP7 and CP9 hardware accelerated, 2 AC power supplies.
|
| Product Family | High End Firewalls |
| Product Type | Firewall |
| GE RJ45 Ports | - |
| GE RJ45 Management/DMZ/HA Ports | 2 |
| 100 GE QSFP28 / 40 GE QSFP+ Slots | 8 |
| 25 GE SFP28 / 10 GE SFP+ / GE SFP HA Slots |
2 |
| 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots |
16 |
| GE SFP Slots | - |
| GE RJ45 WAN Port | - |
| USB Port | 1 |
| Console (RJ45) | 1 |
| Internal Storage | - |
| Included Transceivers | 2x SFP+ (SR 10GE) |
| Bundle |
24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
|
| Bundle Duration | 3 Years |
