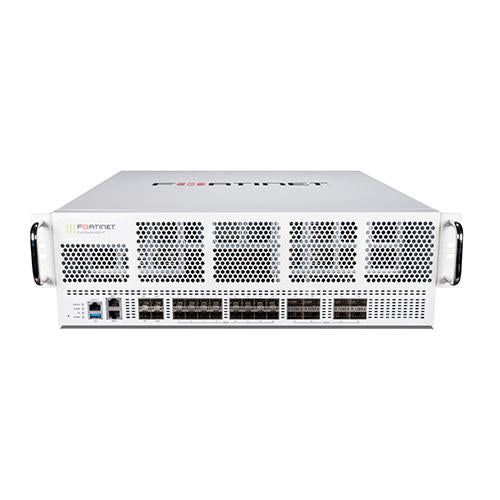

FORTINET FG-4200F FIREWALL

Accessories

SP-FG4000F-PS	2000W AC power supply for 4000F and 6000F series, does not include SP-FGPCORC15-XX power cord.
SP-FG3040B-RAIL	Rack mount sliding rails for FG-1000C/-DC, FG-1200D, FG-1500D/DC, FG-3040B/-DC, FG- 3140B/-DC, FG-3240C/-DC, FG-3000D/-DC, FG-3100D/-DC, FG-3200D/-DC, FG-3400/3401E, FG-3600E-DC/3601E, FG-3700D/-DC, FG-3700DX, FG-3810D/-DC, FG-3950B/-DC, and FG4200F/4201F.
SP-CABLE-ADASFP+	10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots.
SP-FGPCORC15-XX	6 ft power cord, 15A125V XXX, PSE BLACK ROHS-6, for FG-3900E, 4000F, 6000F and 7000E/F Series
SP-FG4000F-DC-PS	DC power supply for FG-4200F-DC/4201F-DC, FG-4400F-DC/4401F-DC and FG-6000F-DC.
SP-FG4K6K-FAN	Spare Hotswappable Fan Module for FG-420xF/440xF/6000F.
FN-TRAN-SFP+SR	10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots
FN-TRAN-SFP+LR	10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots.
FN-TRAN-SFP+GC	10 GE SFP+ RJ45 transceiver module for systems with SFP+ slots.
FN-TRAN-SFP+ER	10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots
FN-TRAN-LX	1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
FN-TRAN-GC	1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+ slots.
FN-TRAN-SX	1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots.
FN-TRAN-SFP+BD27	10GE SFP+ transceiver module, 30km long range single BiDi for systems with SFP+ and SFP/ SFP+ slots (connects to FN-TRAN-SFP+BD33, ordered separately)
FN-TRAN-SFP+BD33	10GE SFP+ transceiver module, 30km long range single BiDi for systems with SFP+ and SFP/ SFP+ slots (connects to FN-TRAN-SFP+BD27, ordered separately)
FN-TRAN-SFP28-SR	25 GE SFP28 transceiver module, short range for all systems with SFP28 slots
FG-TRAN-SFP28-LR	25 GE SFP28 transceiver module, long range for all systems with SFP28 slots
FN-TRAN-QSFP+SR	40 GE QSFP+ transceiver module, short range for all systems with QSFP+ slots
FG-TRAN-QSFP+SR-BIDI	40 GE QSFP+ transceiver module, short range BiDi for all systems with QSFP+ slots.
FN-TRAN-QSFP+LR	40 GE QSFP+ transceiver module, long range for all systems with QSFP+ slots.
FN-TRAN-QSFP28-CWDM4	100 GE QSFP28 transceivers, LC connectors, 2KM for all systems with QSFP28 slots.
FN-TRAN-QSFP28-BIDI	100 GE QSFP28 BIDI transceiver module, 100m MMF LC connector, for systems with QSFP28 slots.

Specifications

Firewall Throughput (1518 / 512 / 64 byte, UDP)	800 / 788 / 400 Gbps
Firewall Latency (64 byte UDP packets)	3.02 μs
Firewall Throughput (Packets Per Second)	600 Mpps
Concurrent Sessions (TCP)	210 Million / 450 Million
New Sessions/Second (TCP)	1 Million / 7 Million
Firewall Policies	400.000
IPsec VPN Throughput (512 byte packets)	210Gbps
Gateway-to-Gateway IPsec VPN Tunnels	40000
Client-to-Gateway IPsec VPN Tunnels	200000
SSL-VPN Throughput	16 Gbps
Concurrent SSL-VPN Users (Recommended Maximum)	30000
SSL Inspection Throughput	50 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	34000
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	9 Million
Application Control Throughput	135 Gbps
IPS Throughput	52 Gbps
NGFW Throughput	47 Gbps
Threat Protection Throughput	45 Gbps
CAPWAP Throughput	47 Gbps
Virtual Domains (Default / Maximum)	10 / 500
Maximum Number of FortiSwitches Supported	300
Maximum Number of FortiAPs (Total / Tunnel Mode)	8192 / 4096
Maximum Number of FortiTokens	20000
Maximum Number of Registered FortiClients	-
High Availability Configurations	Active/Active, Active/Passive, Clustering
Dimensions in.	5.22 x 17.20 x 26.17
Form Factor	Rack Mount, 3 RU
Power Required	100240V AC, 5060 Hz
Maximum Current	AC:13.5A@120V, 5.5A@240V DC: 20A / 100Apk
Power Consumption (Average / Maximum)	931 W / 1291 W
Operating Temperature	32104°F (040°C)
Regulatory Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/ cUL, CB
Certifications	USGv6/IPv6

Properties

Properties	FG-4200F
Description	8x 100GE/40GE QSFP28 slots and 18x 25GE/10GE SFP28 slots, 2 x GE RJ45 Management Ports, SPU NP7 and CP9 hardware accelerated, 2 AC power supplies.
Product Family	High End Firewalls
Product Type	Firewall
GE RJ45 Ports	-
GE RJ45 Management/DMZ/HA Ports	2
100 GE QSFP28 / 40 GE QSFP+ Slots	8
25 GE SFP28 / 10 GE SFP+ / GE SFP HA Slots	2
25 GE SFP28 / 10 GE SFP+ / GE SFP Slots	16
GE SFP Slots	-
GE RJ45 WAN Port	-
USB Port	1
Console (RJ45)	1
Internal Storage	-
Included Transceivers	2x SFP+ (SR 10GE)
