The Fortinet FortiGate 400F-DC-BDL-809-60 bundle includes Hardware + FortiCare Premium + FortiGuard Enterprise Protection for 5 Year. The Fortinet FortiGate 400F-DC is specifically engineered for data centers and telecommunications environments that rely on DC power infrastructure. This next-generation firewall combines AI-powered security and machine learning (ML) to deliver comprehensive threat protection. Powered by Fortinet's patented NP7 and CP9 SPUs, the FortiGate 400F-DC provides 10 Gbps of NGFW throughput and ultra-low latency, ensuring high-speed performance for mission-critical applications.
With integrated Secure SD-WAN and universal ZTNA capabilities, this appliance simplifies network management while reducing complexity in hybrid IT environments. It features 8x 10GE SFP+ slots, including 4 dedicated ultra-low latency slots, to handle high-bandwidth traffic efficiently. The device is built with dual redundant DC power supplies, ensuring continuous operation and reliability in demanding deployments.
Technical Specifications Summary
- Enterprise Traffic Mix Performance: IPS throughput up to 12 Gbps, NGFW throughput up to 10 Gbps, threat protection throughput up to 9 Gbps (logging enabled).
- Firewall Throughput: Up to 79.5 / 78.5 / 70 Gbps (IPv4 & IPv6, 1518 / 512 / 64 byte, UDP) and 105 Mpps firewall throughput.
- Ultra-Low Latency: Firewall latency 4.19 μs (standard) or 2.5 μs via Ultra Low Latency (ULL) ports (64 byte, UDP).
- VPN Performance & Scale: IPsec VPN throughput up to 55 Gbps (512 byte); supports 2,000 gateway-to-gateway tunnels and 50,000 client-to-gateway tunnels.
- SSL Performance: SSL-VPN throughput up to 3.6 Gbps; SSL inspection throughput up to 8 Gbps (IPS, avg. HTTPS).

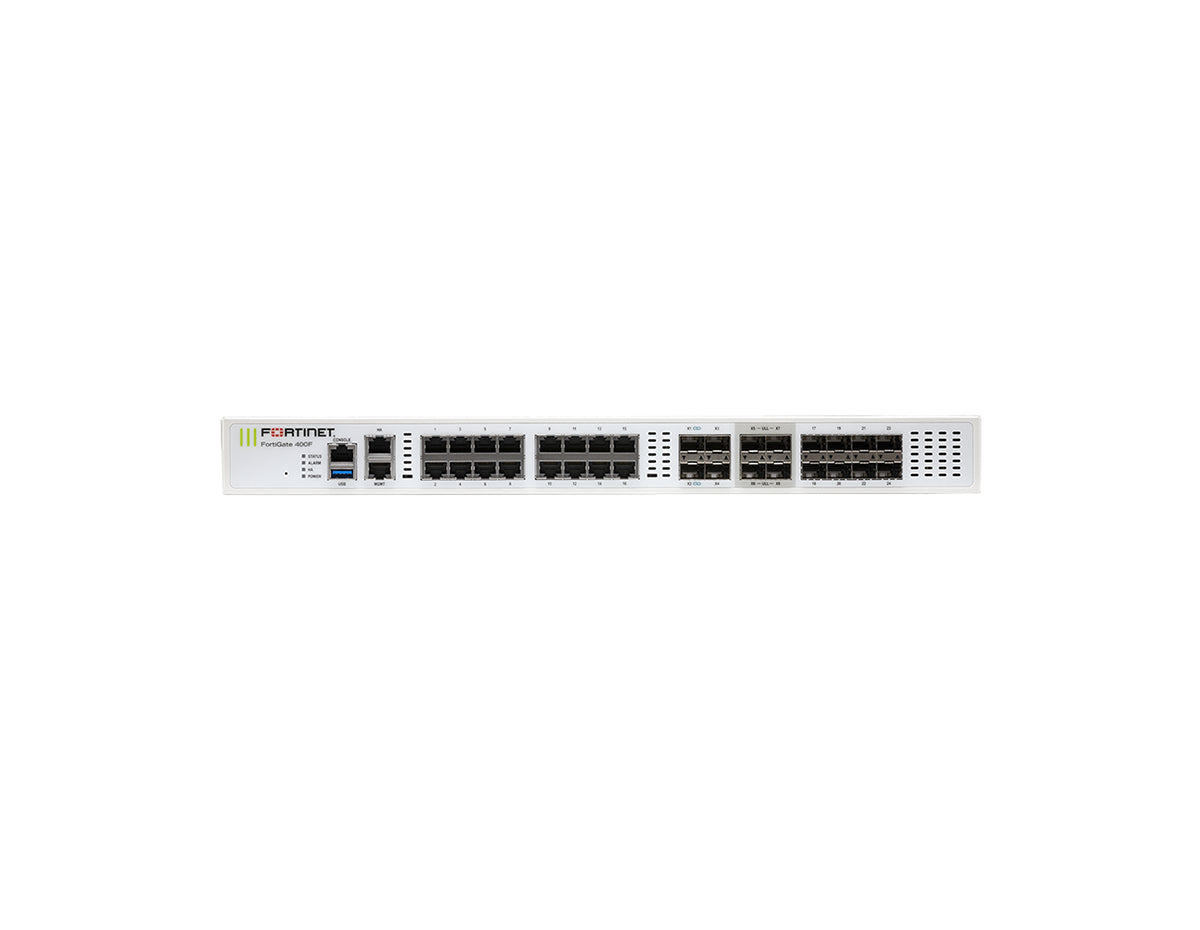

- Interfaces: 18x GE RJ45 (16 accelerated + 2x GE RJ45 MGMT/HA), 8x GE SFP, 8x 10GE SFP+ (4x standard + 4x 10GE SFP+ ULL slots), plus 1x USB and 1x RJ45 console port.

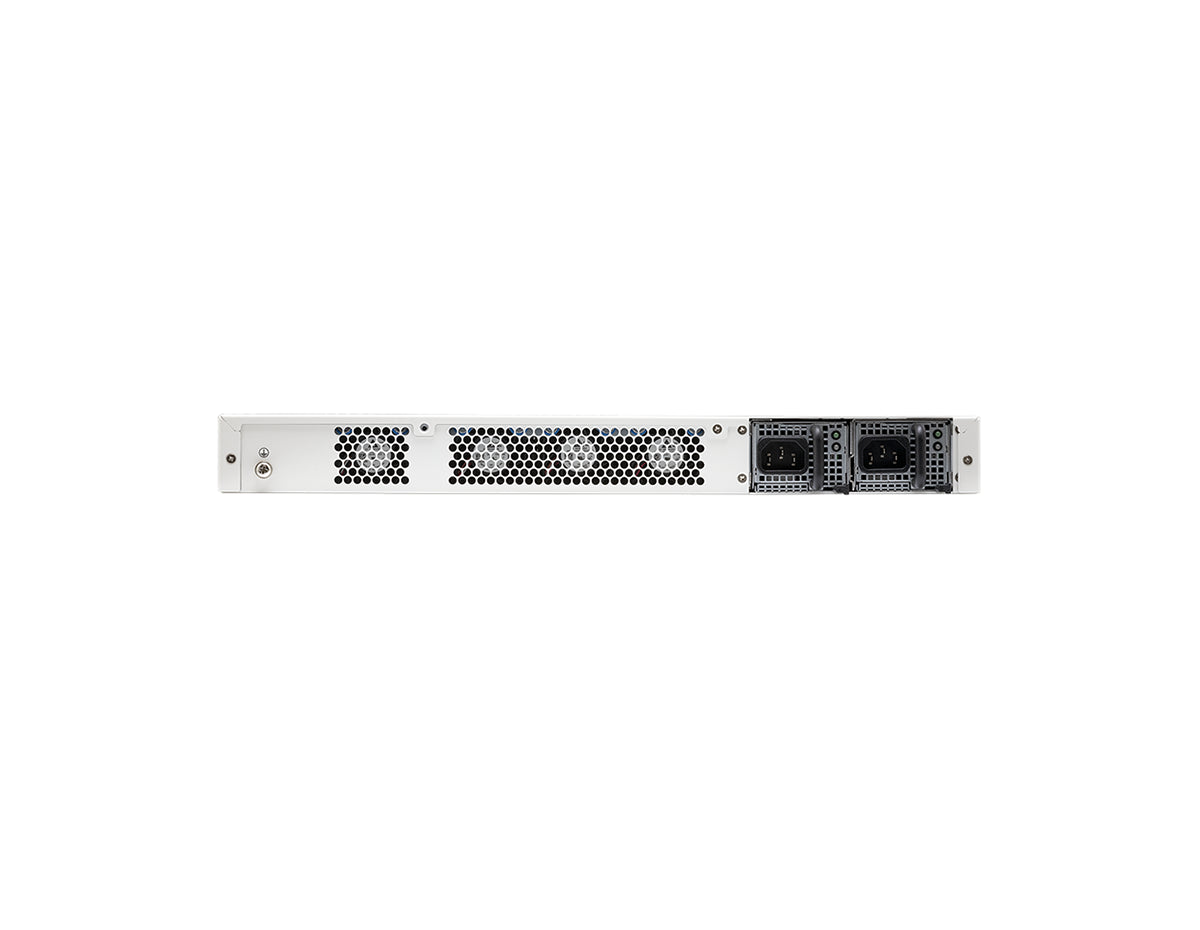

- Power & Physical: Dual DC power supplies, 48-60VDC input, 12A max DC current, 154.8 W average / 189.2 W maximum power consumption; 1RU (44.45 x 432 x 380 mm), 6.4 kg.
- Next Generation Firewall (NGFW): Designed to deliver AI-powered security and deep visibility for threat protection at scale.
- Secure SD-WAN: Enables converged networking and security with simplified operations for hybrid IT environments.
- Universal ZTNA: Controls and verifies user access to applications to reduce lateral threats.
- Segmentation: Supports segmentation strategies to reduce complexity and risk across hybrid networks.
- Firewall Throughput: 79.5 / 78.5 / 70 Gbps (IPv4 & IPv6, 1518 / 512 / 64 byte, UDP)
- IPS Throughput: 12 Gbps
- Power Input: 48-60VDC
- Interfaces: 18x GE RJ45, 8x GE SFP, 8x 10GE SFP+
- VPN Throughput: 55 Gbps (IPsec, 512 byte)
- Concurrent Sessions: 7.8 Million
- Power Supply: Dual DC power supplies
Upgrade Your Network Security
Deploy the FortiGate FG-400F-DC-BDL-809-60 for high-performance protection in your DC-powered environment.
