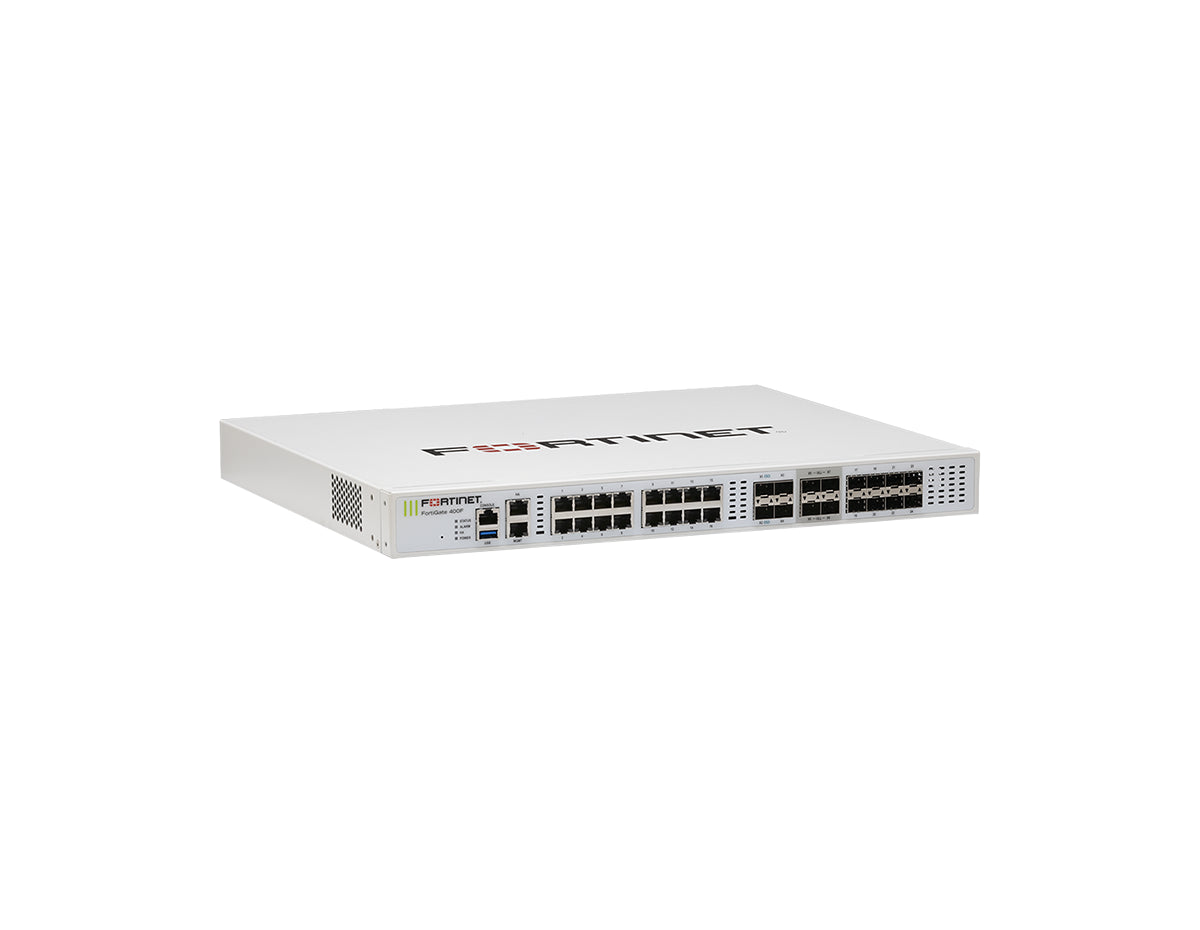

The Fortinet FortiGate 400F-DC is designed for high-performance deployments with DC power infrastructure, combining AI-powered security and machine learning for comprehensive threat protection at scale. Powered by Fortinet's patented NP7 and CP9 SPUs, the FortiGate 400F-DC delivers 10 Gbps of NGFW throughput and 12 Gbps of IPS throughput with ultra-low latency to support performance-sensitive traffic.
With integrated Secure SD-WAN and universal ZTNA capabilities, this appliance helps reduce complexity and risk in hybrid IT networks. It features 8x 10GE SFP+ slots, including 4 dedicated ultra-low latency slots, plus 18x GE RJ45 and 8x GE SFP interfaces to support flexible connectivity and segmentation. Dual redundant DC power supplies help maintain continuous operation for mission-critical environments.
Technical Specifications Summary
- Enterprise Threat Performance: IPS throughput 12 Gbps, Threat Protection throughput 9 Gbps, SSL inspection throughput 8 Gbps (IPS, avg. HTTPS).
- Firewall Throughput: IPv4 and IPv6 up to 79.5 / 78.5 / 70 Gbps (1518 / 512 / 64 byte, UDP), 105 Mpps firewall throughput.
- Ultra-Low Latency: Firewall latency 4.19 μs / 2.5 μs (Latency based on Ultra Low Latency (ULL) ports).
- VPN Performance & Scale: IPsec VPN throughput 55 Gbps (512 byte), 2,000 gateway-to-gateway tunnels, 50,000 client-to-gateway tunnels.
- SSL-VPN Capacity: SSL-VPN throughput 3.6 Gbps, 5,000 concurrent SSL-VPN users (recommended max).

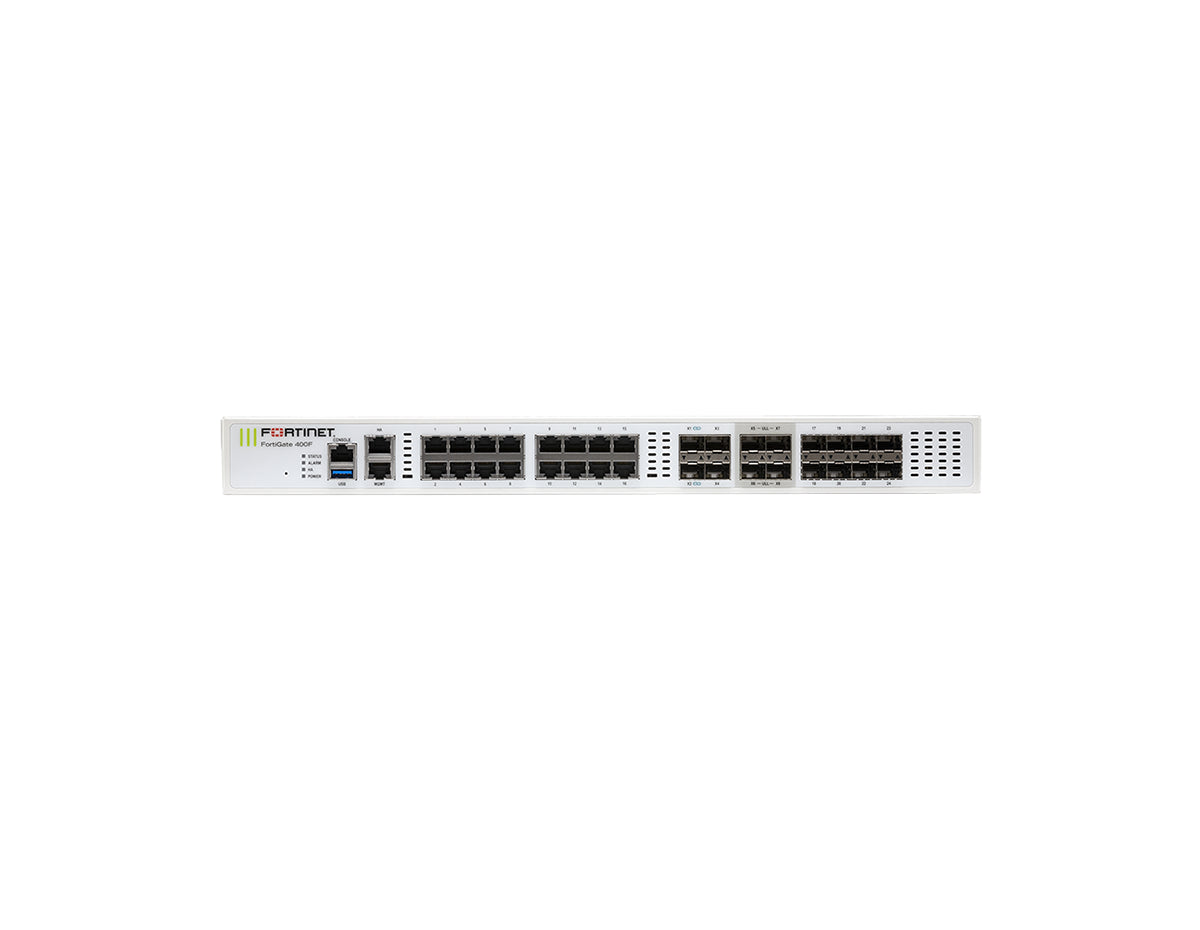

- Connectivity: 18x GE RJ45 (16 accelerated plus 2x GE RJ45 management ports), 8x GE SFP slots, 8x 10GE SFP+ slots (4 accelerated plus 4 accelerated ultra low latency).

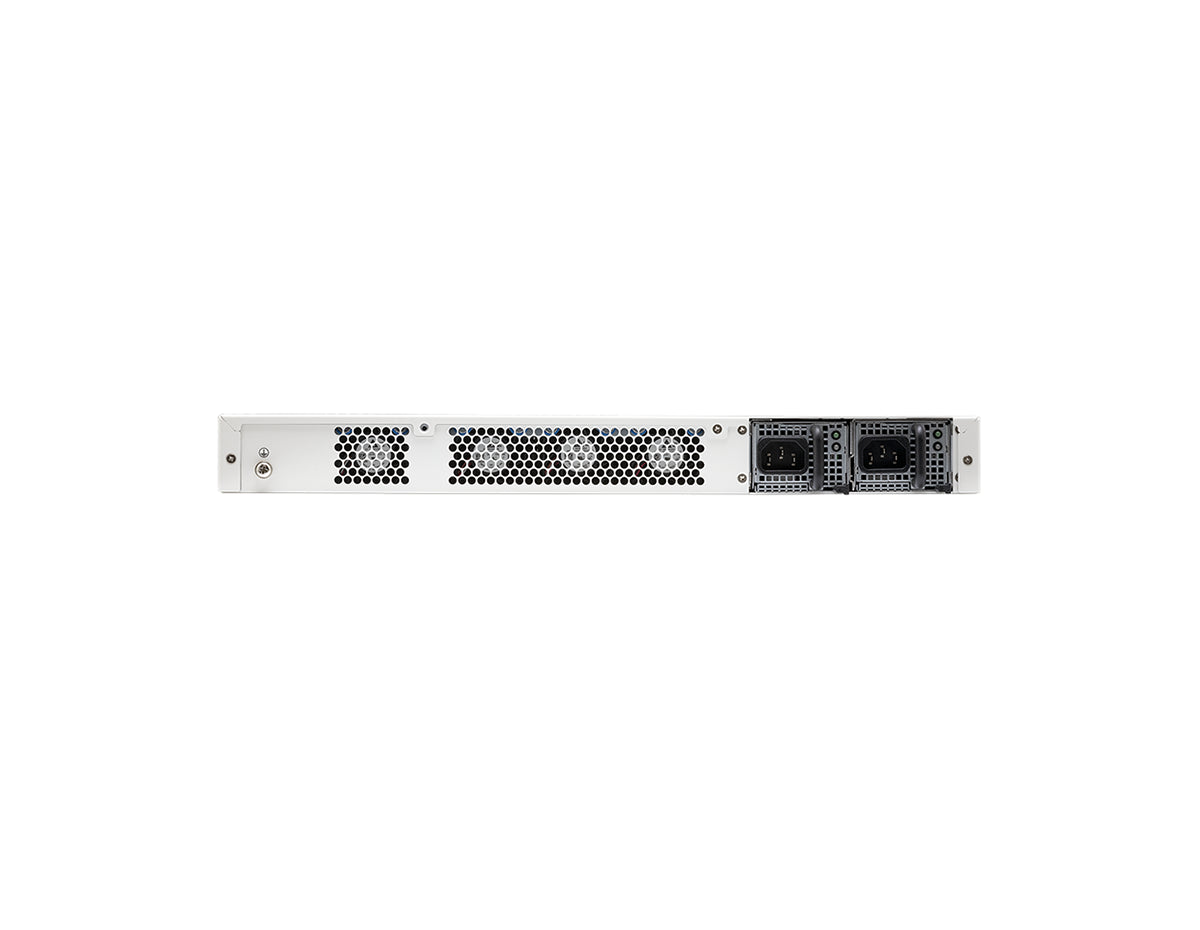

- Power & Physical: Dual DC power supplies, 48-60VDC input, 12A maximum DC current, 154.8 W average / 189.2 W maximum power consumption, 1RU chassis.
- Environmental & Compliance: Operating temperature 32°F to 104°F (0°C to 40°C), storage temperature -31°F to 158°F (-35°C to 70°C), compliance FCC Part 15 Class A/RCM/VCCI/CE/UL/cUL/CB, certifications USGv6/IPv6.
- Next Generation Firewall (NGFW): AI-powered security services and real-time SSL inspection for visibility into users, devices, and applications.
- Secure SD-WAN: FortiGate WAN Edge with unified security and management framework for SD-WAN use cases.
- Universal ZTNA: Controls and verifies user access to applications with enforced policy prior to granting access.
- Segmentation: Dynamic segmentation to prevent lateral movement across the network with coordinated protection.
- Firewall Throughput: 79.5 / 78.5 / 70 Gbps (IPv4 & IPv6, 1518 / 512 / 64 byte, UDP)
- IPS Throughput: 12 Gbps
- Power Input: 48-60VDC
- Interfaces: 18x GE RJ45, 8x GE SFP, 8x 10GE SFP+
- VPN Throughput: 55 Gbps (IPsec, 512 byte)
- Concurrent Sessions: 7.8 Million
- Power Supply: Dual DC power supplies
Upgrade Your Network Security
Deploy the FortiGate 400F-DC for high-performance protection in your DC-powered environment.
