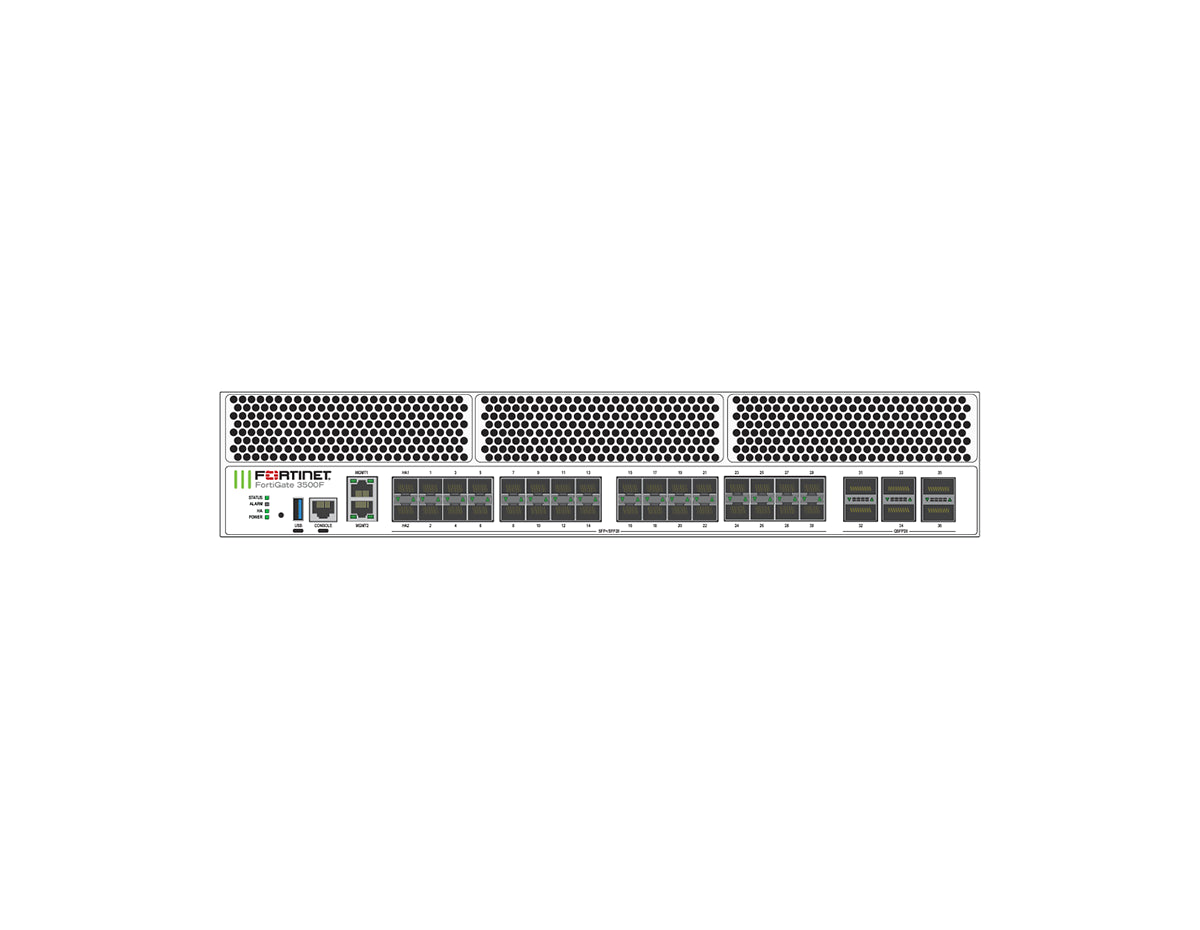

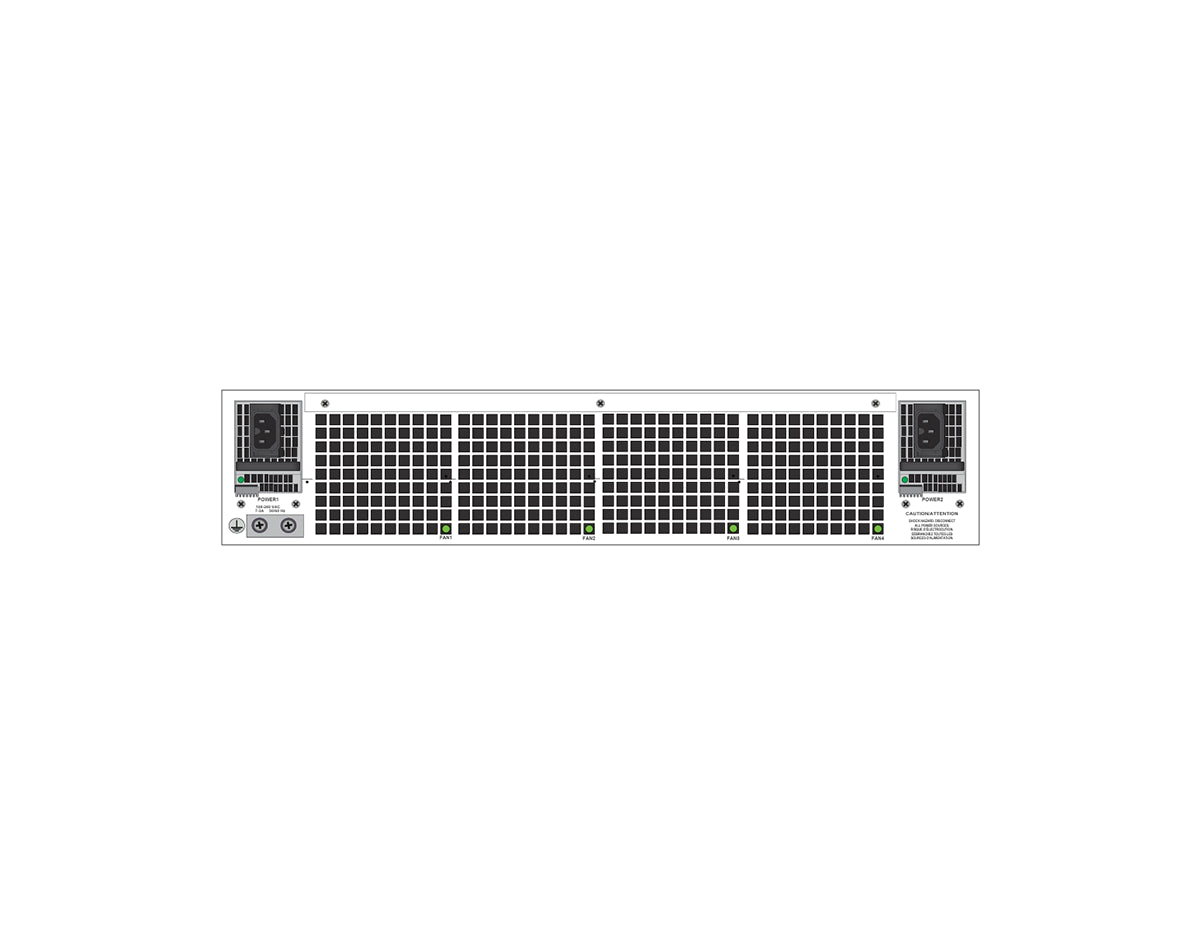

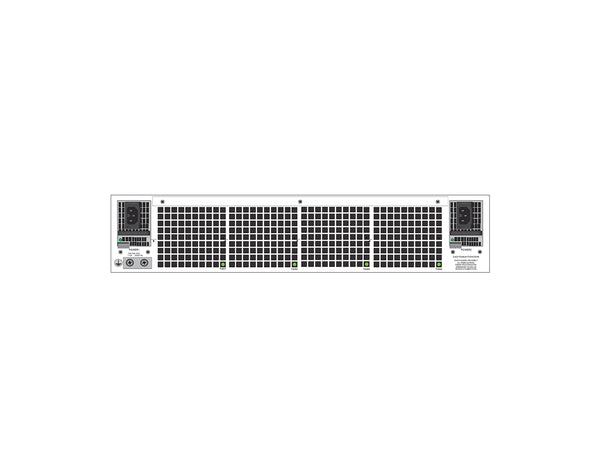

Fortinet FG-3500F-BDL-809-60 Next-Generation Firewall

Part Number: FG-3500F-BDL-809-60

Technical Details

FG-3500F-BDL-809-60 NGFW, 595 Gbps firewall, 6x 100GE QSFP28, 32x 25GE SFP28, FortiCare Premium + FortiGuard Enterprise Protection (5 Year).
$1,076,250.00
$731,850.00
32% OFF
You Save: $344,400.00
-
+
Product & Solutions Expert

Product & Solutions Expert

The FortiGate 3500F Series builds security-driven networks for large enterprises and data centers using FortiOS and Fortinet’s SPU NP7 and CP9 processors.

This bundle includes Hardware + FortiCare Premium + FortiGuard Enterprise Protection (5 Year) to support and protect the deployment.

High Performance with Flexibility and Hyperscale Security

  • NP7 and CP9 SPUs accelerate security inspection and SSL.
  • 6x 100GE QSFP28 and 32x 25GE SFP28 connectivity.
  • Integrated ZTNA enforcement controls and verifies application access.
  • Supports Hyperscale Firewall License for higher sessions and CPS.
  • FortiOS converged networking and security with FortiGuard Services.
  • Rack-mount 2RU design for large enterprises and data centers.

Upgrade Your Network Security

Upgrade your hyperscale environment with the Fortinet FG-3500F-BDL-809-60 today.

Properties

Model / SKU FG-3500F-BDL-809-60
Bundle / Subscription Hardware + FortiCare Premium + FortiGuard Enterprise Protection  (5 Year)
Form Factor Rack Mount, 2 RU
Firewall Throughput 595 Gbps
Interfaces 6x 100 GE QSFP28 / 40 GE QSFP+, 32x 25 GE SFP28 / 10 GE SFP+ / GE SFP, 2x 10 GE / GE RJ45 Management
Power Input 100-240V AC, 50/60 Hz

Specifications

System Performance
IPS Throughput 72 Gbps
NGFW Throughput 65 Gbps
Threat Protection Throughput 63 Gbps
IPv4 Firewall Throughput (1518/512/64 byte, UDP) 595 / 590 / 420 Gbps
Firewall Latency 2.98 µs
IPsec VPN Throughput (512 byte) 165 Gbps
SSL-VPN Throughput 16 Gbps
SSL Inspection Throughput (IPS, avg. HTTPS) 63 Gbps
Interfaces and Modules
100 GE QSFP28 / 40 GE QSFP+ Slots 6 (Hardware Accelerated)
25 GE SFP28 / 10 GE SFP+ / GE SFP Slots 32 (Hardware Accelerated)
10 GE / GE RJ45 Management Ports 2
USB Ports (Client / Server) 1 / 1
Console Port 1
Power and Environment
Power Supply Redundant Power Supplies (Hot Swappable), Default dual AC PSU
Power Consumption (Average / Maximum) 760 W / 1174 W
AC Current (Maximum) 12A@120V, 9A@240V
AC Power Supply 100–240V AC, 50/60 Hz
Dimensions and Weight
Form Factor (supports EIA/non-EIA standards) Rack Mount, 2 RU
Height x Width x Length (inches) 3.5 x 17.4 x 21.9
Height x Width x Length (mm) 89 x 443 x 556
Weight 43.8 lbs (19.9 kg)

Accessories

Included Transceivers 2x SFP+ (SR 10 GE)
Optional Accessories Rack Mount Sliding Rails (SP-FG3040B-RAIL), AC Power Supply (FG-7040E-PS-AC), Transceiver Modules (FN-TRAN / FG-TRAN series), Direct Attach Cables (FN-CABLE series)
