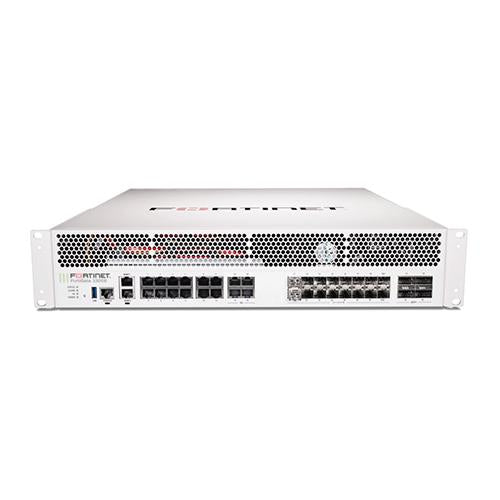

FORTINET FG-3300E FIREWALL
| Model: | FG-3300E |
| Detail: |
|
| List Price: | |
| Price: | $69,150.62 |
| You Save: | $20,655.38 (23% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
4 x 40GE QSFP+ slots , 16 x 10GE SFP+ slots (including 14x ports, 2x HA ports), 14 x GE RJ45 ports (including 12 x ports, 2 x management ports), 4 x 10GBase-T ports, SPU NP6 and CP9 hardware accelerated, and dual AC power supplies.
Accessories
| SP-FG3800C-PS |
AC power supply for FG-2200/2201E, FG-3300/3301E, FG-3400/3401E, FG-3600/3601E, FG-3700D, FG-3700D-NEBS, FG-3700DX, FG-3810D and FG-3815D
|
| SP-FG3040B-RAIL |
Rack mount sliding rails for FG-1000C/-DC, FG-1200D, FG-1500D, FG-3040B/-DC, FG-3140B/-DC, FG- 3240C/-DC, FG-3000D, FG-3100D, FG-3200D, FG-3700D/-DC, FG-3700DX, FG-3810D and FG-3950B/-DC
|
| SP-CABLE-ADASFP+ |
10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots.
|
| FN-TRAN-SFP+SR |
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-SFP+LR |
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots.
|
| FN-TRAN-SFP+GC |
10 GE SFP+ RJ45 transceiver module for systems with SFP+ slots.
|
| FN-TRAN-SFP+ER |
10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-SFP28-SR |
25 GE SFP28 transceiver module, short range for all systems with SFP28 slots
|
| FG-TRAN-SFP28-LR |
25 GE SFP28 transceiver module, long range for all systems with SFP28 slots
|
| FN-TRAN-QSFP+SR |
40 GE QSFP+ transceiver module, short range for all systems with QSFP+ slots
|
| FG-TRAN-QSFP+SR-BIDI |
40 GE QSFP+ transceiver module, short range BiDi for all systems with QSFP+ slots.
|
| FN-TRAN-QSFP+LR |
40 GE QSFP+ transceiver module, long range for all systems with QSFP+ slots.
|
| FG-TRAN-QSFP+4XSFP |
40GE QSFP+ Parallel Breakout Active Optical Cable with 1m length for all systems with QSFP+ slots.
|
| FG-TRAN-QSFP+4SFP-5 |
40G QSFP+ Parallel Breakout MPO to 4xLC connectors, 5m reach, transceivers not included.
|
Specifications
| System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 160 / 158 / 100 Gbps |
| Firewall Latency (64 byte UDP packets) | 3.17 μs |
| Firewall Throughput (Packets Per Second) | 150 Mpps |
| Concurrent Sessions (TCP) | 50 Million |
| New Sessions/Second (TCP) | 700.000 |
| Firewall Policies | 200.000 |
| IPsec VPN Throughput (512 byte packets) | 98 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 40000 |
| Client-to-Gateway IPsec VPN Tunnels | 200000 |
| SSL-VPN Throughput | 10 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 30000 |
| SSL Inspection Throughput | 21 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 11000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 4 Million |
| Application Control Throughput | 70 Gbps |
| IPS Throughput | 27 Gbps |
| NGFW Throughput | 23 Gbps |
| Threat Protection Throughput | 17 Gbps |
| CAPWAP Throughput | 55 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Maximum Number of FortiSwitches Supported | 300 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 4096 / 2048 |
| Maximum Number of FortiTokens | 20000 |
| Maximum Number of Registered FortiClients | - |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Dimensions in. | 3.5 x 17.44 x 21.89 |
| Form Factor | Rack Mount, 2 RU |
| Power Required | 100240V AC, 5060 Hz |
| Maximum Current | 12@100V, 9A@240V |
| Power Consumption (Average / Maximum) | 492 W / 610 W |
| Operating Temperature | 32104°F (040°C) |
| Regulatory Compliance |
FCC Part 15 Class A, RCM, VCCI, CE, UL/ cUL, CB
|
| Certifications | USGv6/IPv6 |
Properties
| Properties | FG-3300E |
| Description |
4x 40 GE QSFP+ slots, 16x 25 GE SFP28 slots (including 14x ports, 2x HA ports), 14x GE RJ45 ports (including 12x ports, 2x management ports), 4x 10GBase-T ports, SPU NP6 and CP9 hardware accelerated, and dual AC power supplies.
|
| Product Family | High End Firewalls |
| Product Type | Firewall |
| GE RJ45 Ports | 12 |
| GE RJ45 Management/DMZ/HA Ports | 2 |
| 40 GE SFP+ Slots | 4 |
| 25 GE SFP28 / 10 GE SFP+ / GE SFP HA Slots |
2 |
| 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots |
14 |
| GE SFP Slots | - |
| GE RJ45 WAN Port | - |
| USB Port | 1/ 1 |
| Console (RJ45) | 1 |
| Internal Storage | - |
| Included Transceivers | 2x SFP+ (SR 10GE) |
