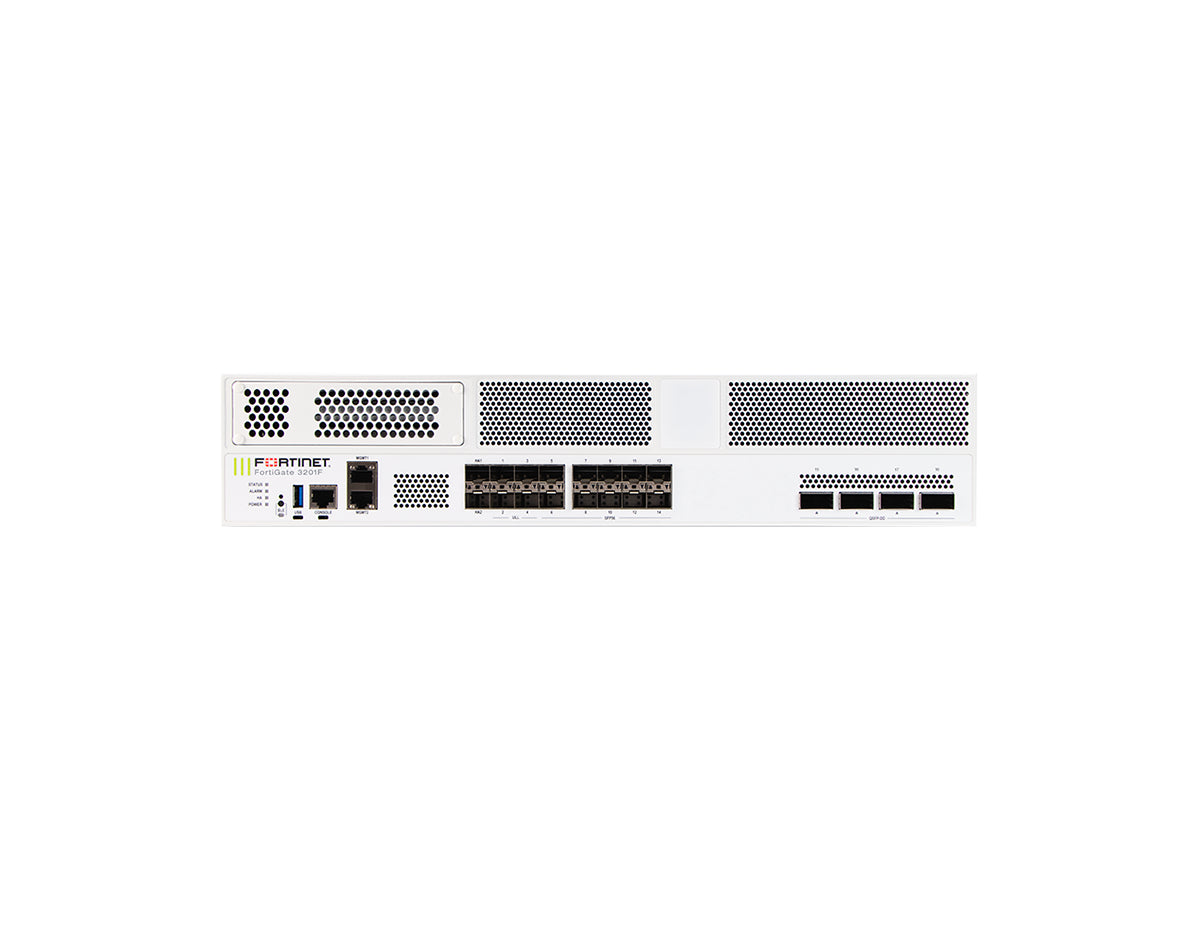

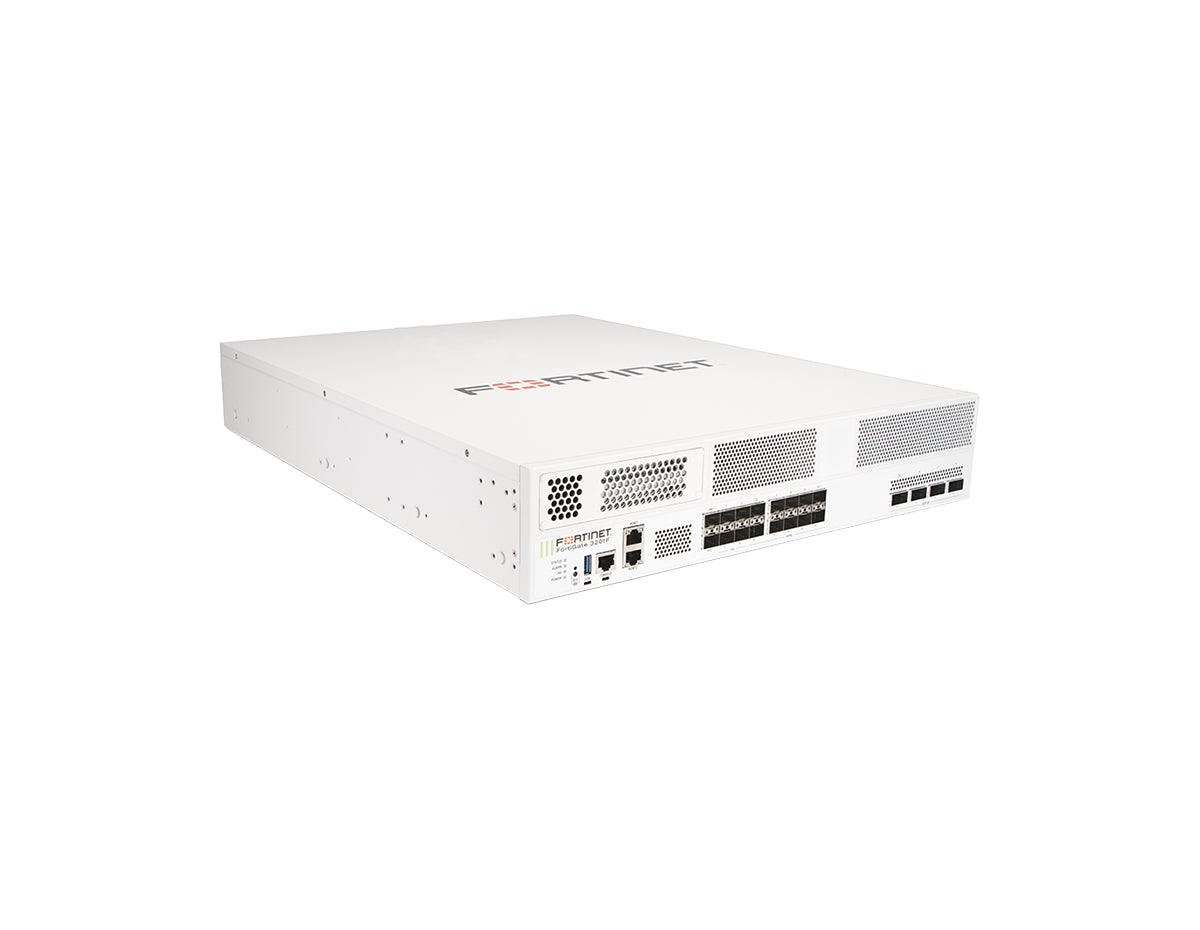

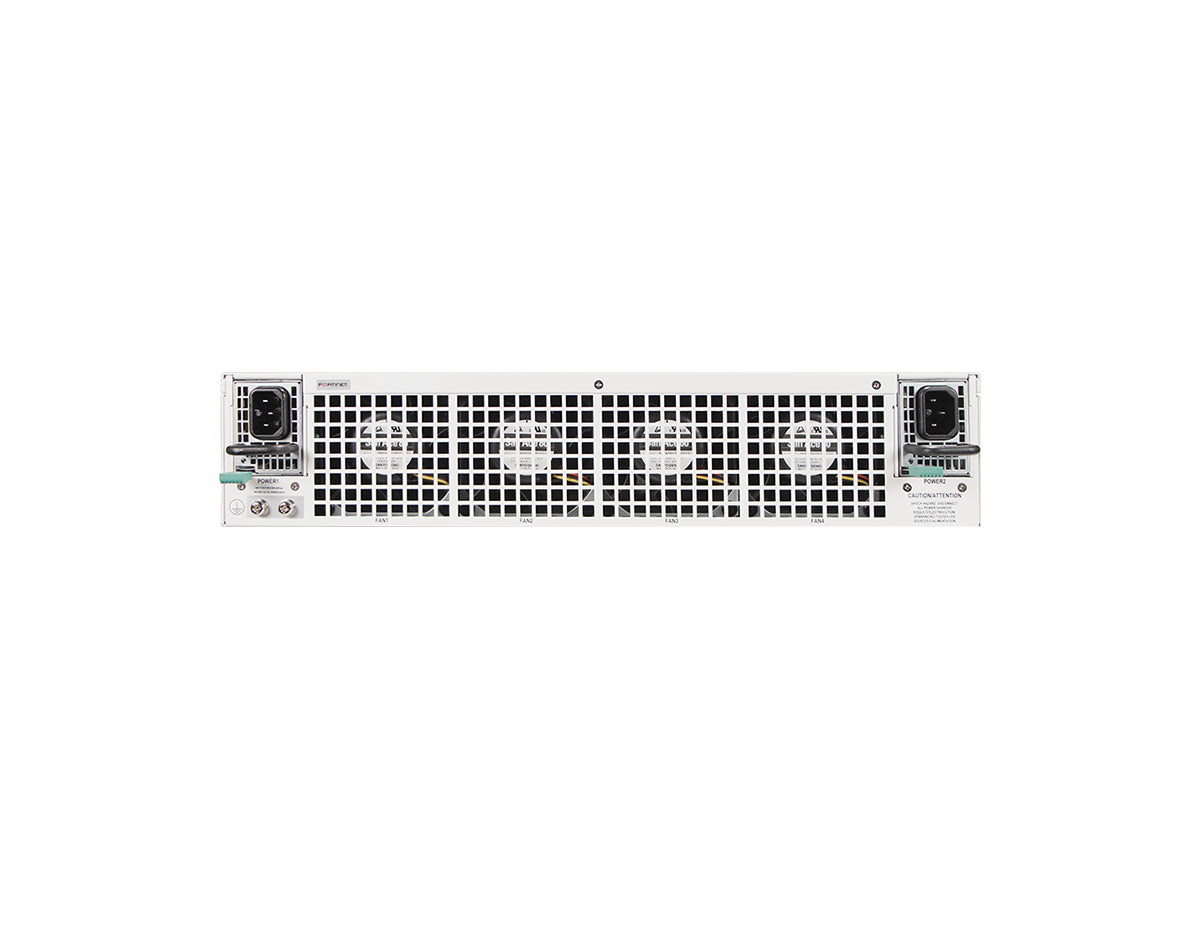

Fortinet FG-3201F-BDL-950-12 Next-Generation Firewall

Fortinet FG-3201F-BDL-950-12 Next-Generation Firewall

Name: Fortinet FG-3201F-BDL-950-12 Next-Generation Firewall
Brand: Fortinet
Price: 150280.0 USD
Availability: InStock

Part Number: FG-3201F-BDL-950-12

Technical Details

FG-3201F-BDL-950-12 Next-Generation Firewall, four 400GE QSFP-DD, dual 960GB SSDs, NP7/CP9 SPUs, 47 Gbps NGFW, FortiCare Premium + FortiGuard Unified Threat Protection (UTP), 1 Year.

$221,000.00

$150,280.00

32% OFF

You Save: $70,720.00

Net 30 or as low as $/month

Apply Now

Product & Solutions Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

The FortiGate 3201F supports security-driven networks for hyperscale data centers and hybrid IT environments. This bundle SKU includes Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (1 Year).

Purpose-built SPU NP7 and CP9 processors and onboard SSD storage support high-speed inspection plus local logging. Four 400GE QSFP-DD slots help maintain performance in demanding deployments.

Secure Networking with 400GE Hyperscale Connectivity and Onboard Storage

SPU Acceleration: NP7/CP9 SPUs accelerate inspection for high-speed traffic.
Hyperscale Ports: Four 400GE QSFP-DD slots simplify core connectivity.
Onboard Storage: Dual 960GB SSDs support local logging and reporting.
VPN Capacity: 105 Gbps IPsec throughput supports large site VPNs.
Session Scale: Supports up to 70 Million concurrent TCP sessions.
Resilient Power: Dual AC PSUs enable 1+1 redundancy.

Upgrade Your Network Security

Deploy FG-3201F-BDL-950-12 with FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (1 Year).

Properties

Model	FG-3201F-BDL-950-12
Bundle / Subscription	Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (1 Year)
Form Factor	Rack Mount, 2RU
Firewall Throughput (IPv4)	387 / 385 / 178.5 Gbps (1518 / 512 / 64 byte UDP)
Threat Protection Throughput	45 Gbps
Network Interfaces	4x 400GE QSFP-DD, 10x 50GE SFP56 (data), 2x 50GE SFP56 (HA1/HA2), 4x 25GE SFP28 ULL, 2x 10GE RJ45 Mgmt
Internal Storage	2x 960GB SSD
Dimensions (H x W x L)	3.5 x 17.44 x 23.9 inches (88.9 x 443 x 607.1 mm)
Weight	45.5 lbs (20.7 kg)
Power Input	100–240VAC, 60/50 Hz

Specifications

System Performance - Enterprise Traffic Mix
IPS Throughput	63 Gbps
NGFW Throughput	47 Gbps
System Performance and Capacity
IPv6 Firewall Throughput (1518/512/86 byte, UDP)	387 / 385 / 178.5 Gbps
Firewall Latency (64 byte, UDP)	3.42 μs / 1.45 μs*
Concurrent Sessions (TCP)	70 Million
New Sessions/Second (TCP)	800,000
IPsec VPN Throughput (512 byte)	105 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	40,000
Client-to-Gateway IPsec VPN Tunnels	200,000
SSL-VPN Throughput	11 Gbps
Concurrent SSL-VPN Users (Tunnel Mode)	30,000
Hardware Specifications
USB 3.0 Port	1
Console RJ45 Port	1
Dimensions and Power
Power Consumption (Average/Maximum)	527 W / 870 W
Current (Maximum)	12A@100V, 9A@240V
Heat Dissipation	2971 BTU/h
Redundant Power Supplies	Yes (Default dual AC PSU for 1+1 Redundancy)

Accessories

Optional Accessories

Rack Mount Sliding Rails (SP-FG3040B-RAIL), Spare AC Power Supply (SP-FG3800D-PS), various SFP/QSFP Transceiver Modules and Cables
