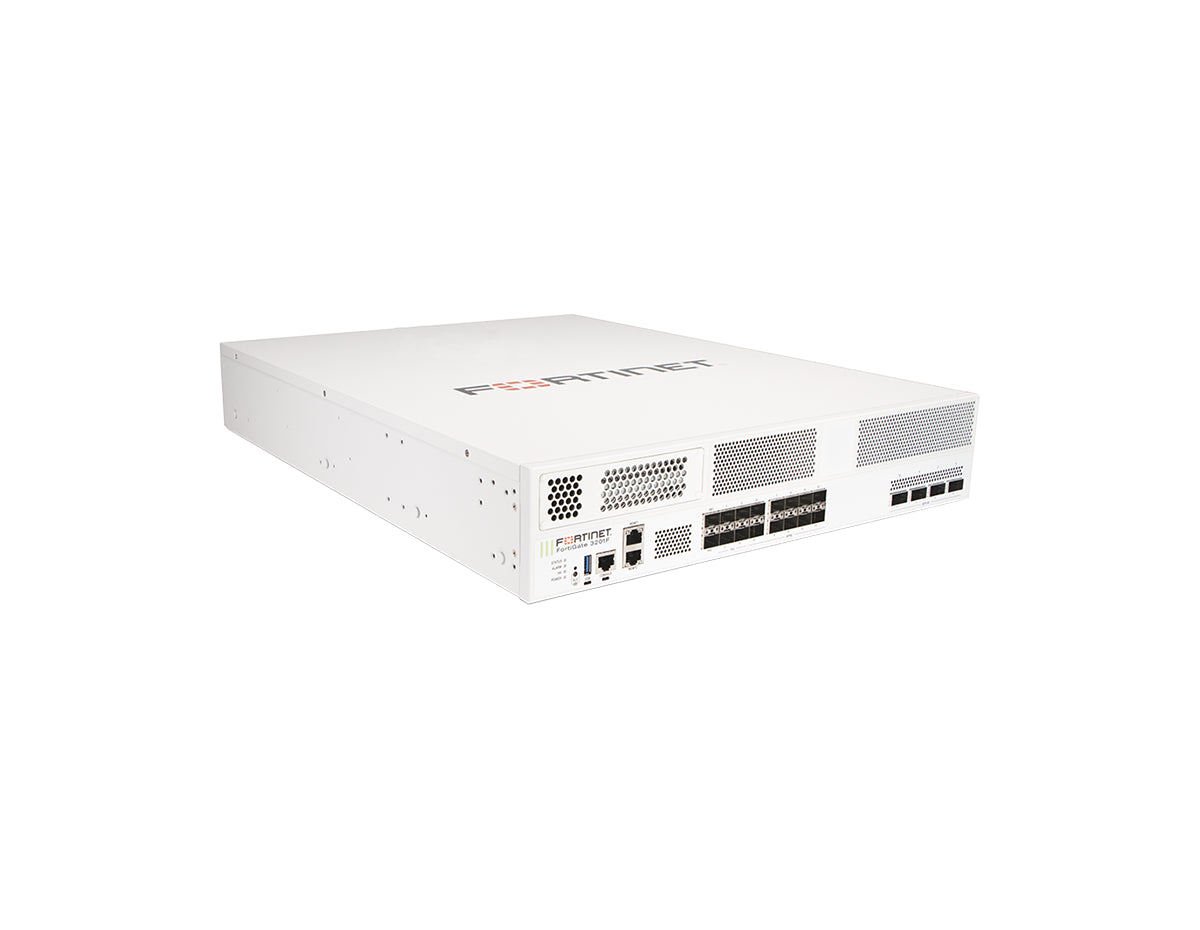

The FortiGate 3201F enables organizations to build robust security-driven networks with the foundation of a Hybrid Mesh Firewall architecture. Designed for high-performance enterprise and data center environments, this appliance weaves security deep into the network fabric, protecting any edge at any scale. By consolidating networking and security into a single platform powered by FortiOS, the FG-3201F reduces complexity while providing unparalleled visibility and control over users, applications, and devices.
Equipped with Fortinet’s purpose-built SPU NP7 and CP9 processors, the FortiGate 3201F delivers industry-leading throughput, including 63 Gbps of IPS performance and 47 Gbps of NGFW performance. The device supports hyperscale connectivity with four 400GE QSFP-DD slots, ensuring that security never becomes a bottleneck in high-speed data environments. Additionally, the FG-3201F includes dual 960GB onboard SSDs, enhancing logging, reporting, and local storage capabilities for improved operational efficiency.
Secure Networking with 400GE Hyperscale Connectivity and Onboard Storage
- Hyperscale Performance: Leverages patented SPU NP7 and CP9 technology to deliver 387 / 385 / 178.5 Gbps of IPv4 firewall throughput (1518 / 512 / 64 byte UDP) and 45 Gbps of threat protection throughput, handling massive traffic volumes with ease.
- Integrated Local Storage: Includes dual 960GB internal SSDs for local logging and reporting, distinguishing it from the standard 3200F model.
- 400GE High-Speed Connectivity: Features four 400GE QSFP-DD slots to simplify network design and support high-bandwidth core networks without additional bridging devices.
- AI-Powered Security: Integrates with FortiGuard AI-Powered Security Services to provide real-time protection against known, unknown, and zero-day threats.
- Ultra-Low Latency: Dedicated ULL ports and hardware acceleration support firewall latency as low as 1.45 μs on ULL ports (64 byte UDP), helping maintain performance in latency-sensitive environments.
- Integrated ZTNA Enforcement: Combines Next-Generation Firewall capabilities with universal Zero Trust Network Access (ZTNA) to automatically control and verify user access to applications.
- Energy Efficient Design: Engineered for strong performance per watt, helping reduce power consumption and total cost of ownership.
- Hyperscale Data Centers: Protects core networks with high-speed 400GE interfaces and massive session capacity (70 million concurrent TCP sessions).
- Hybrid Cloud Segmentation: Delivers dynamic segmentation across physical and virtual domains with VXLAN support and high-speed firewalling.
- Secure Web Gateway: Inspects SSL/TLS traffic at scale (29 Gbps SSL Inspection) to secure web access and block malicious content.
- High-Performance Edge: Secures the network edge with consolidated networking and security, supporting connectivity options from 10GE to 400GE.
- Firewall Throughput: 387 / 385 / 178.5 Gbps (1518 / 512 / 64 byte UDP)
- IPS Throughput: 63 Gbps
- NGFW Throughput: 47 Gbps

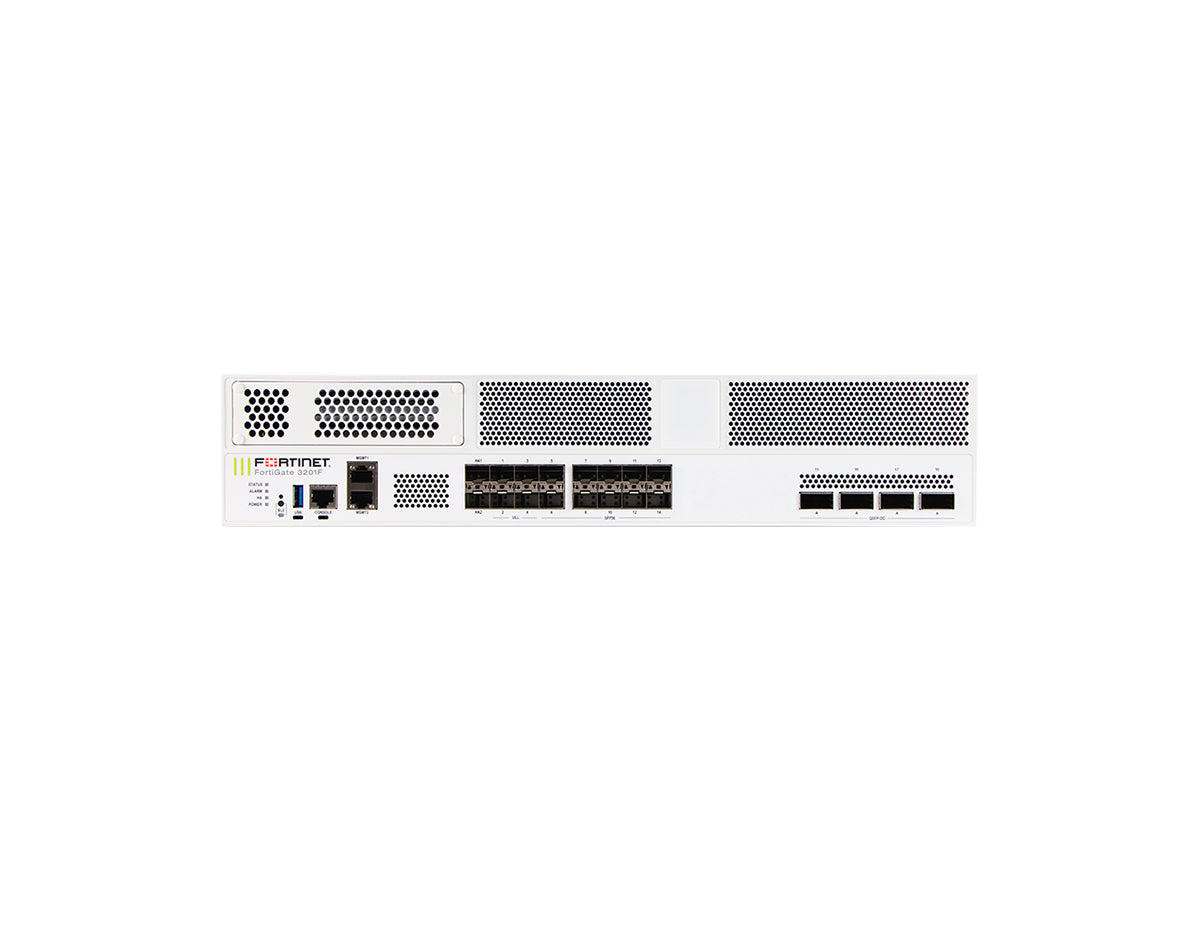

- Interfaces: 4 x 400 GE QSFP-DD / 200 GE QSFP56 / 100 GE QSFP28 / 40 GE QSFP+ slots, 10 x 50 GE SFP56 / 25 GE SFP28 / 10 GE SFP+ / GE SFP slots, 2 x 50 GE SFP56 / 25 GE SFP28 / 10 GE SFP+ HA1/HA2 slots, 4 x 25 GE SFP28 / 10 GE SFP+ ULL slots, 2 x 10 GE / GE RJ45 management ports
- Storage: 2x 960GB Internal SSDs
- Concurrent Sessions: 70 Million
- Form Factor: 2RU Rack Mount
Upgrade Your Network Security
Secure your high-performance network with the FortiGate 3201F and its advanced hyperscale capabilities today.
