The FortiGate 30G series runs on FortiOS, the industry's first converged networking and security operating system, enabling businesses to gain benefits of operational efficiency and unified protection. As a cornerstone of the Fortinet Security Fabric platform, the FortiGate NGFW works seamlessly with FortiGuard AI-Powered Security Services to deliver coordinated, automated, end-to-end threat protection in real time.
This bundle includes FortiGuard Enterprise Protection with FortiCare Premium support (24x7x365 availability, one-hour response for critical issues, and next-business-day response for noncritical matters). FortiGuard AI-Powered Security Bundles provide a comprehensive, curated selection of security services to combat known, unknown, zero-day, and emerging AI-based threats; some services are not available for the FortiGate/FortiWiFi 30G series as noted by Fortinet.
Converged Next-Generation Firewall with Enterprise Protection
Key Benefits
- Enterprise-Grade Security Bundle: Includes FortiGuard Enterprise Protection with FortiCare Premium services for defense against malicious traffic, file-based threats, and web-based attacks.
- Unparalleled Performance: Built on the patented SD-WAN-based ASIC to deliver industry-leading throughput and faster security inspections.
- Simplified Operations: Centralized management for networking and security with automated workflows, deep analytics, and self-healing capabilities.
- Integrated SD-WAN: Delivers faster application identification to avoid delays and accelerates overlay performance regardless of location.
- Compact Form Factor: Small, lightweight, and highly reliable desktop design suitable for small environments or wall-mounting.
Ideal Use Cases
- Secure Branch: Extends security to WAN, LAN, and WLAN at branch offices for unified protection and reliable connectivity.
- Perimeter Protection: Inspects and controls incoming and outgoing traffic based on defined security policies to guard against defined and unknown threats.
- Secure SD-WAN: Enables best-of-breed WAN edge with integrated SD-WAN, WAN optimization, and security from a single OS.
- Remote/Hybrid Work: Enhances hybrid working with a comprehensive SASE solution by integrating cloud-delivered SD-WAN with security service edge (SSE).
Technical Specifications Summary
- IPv4 Firewall Throughput (1518/512/64 byte, UDP): Up to 4 / 4 / 3.9 Gbps
- IPS Throughput (Enterprise Mix): 800 Mbps
- NGFW Throughput: 570 Mbps
- Threat Protection Throughput: 500 Mbps

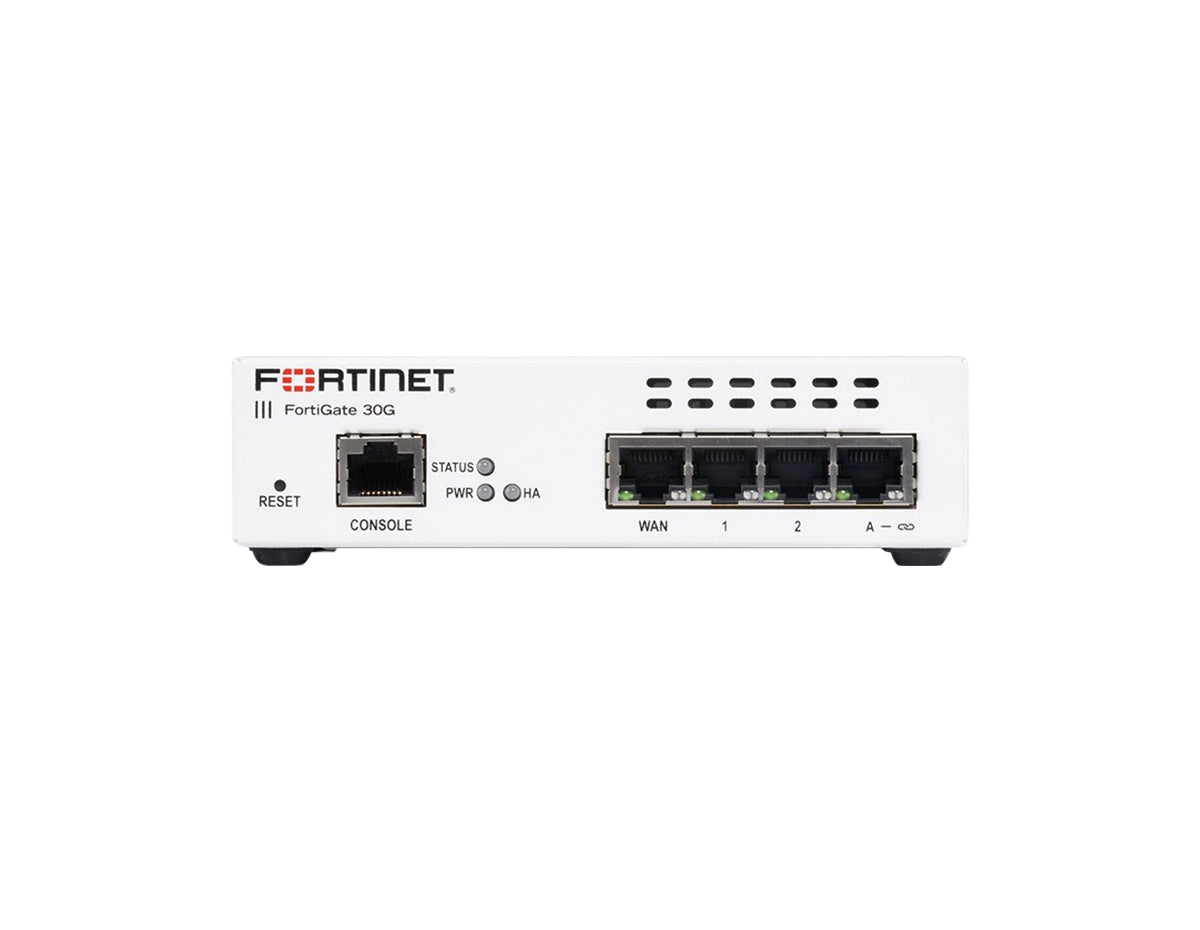

- Interfaces: 4x GE RJ45 Ports (1x WAN, 2x internal, 1x FortiLink; 3 internal total)
- IPsec VPN Throughput (512 byte): 3.5 Gbps
- Firewall Latency (64 byte UDP): 2.87 μs
- Concurrent Sessions (TCP): 600,000
- Power Rating: 12VDC, 2A
- Power Consumption (Average/Maximum): 6.8 W / 8.2 W
- Dimensions (H x W x L): 1.6 x 5.6 x 6.3 inches (40.5 x 142 x 160 mm)
- Compliance & Certifications: FCC, IC, CE, UL/cUL, CB, VCCI, BSMI, RCM, UKCA; USGv6/IPv6
Upgrade Your Network Security
Deploy the FortiGate 30G with Enterprise Protection for a complete, compact, and high-performance security solution.
