Fortinet FG-2601F-DC-BDL-809-60 Next-Generation Firewall

Fortinet FG-2601F-DC-BDL-809-60 Next-Generation Firewall

Name: Fortinet FG-2601F-DC-BDL-809-60 Next-Generation Firewall
Brand: Fortinet
Price: 234964.0 USD
Availability: InStock

Part Number: FG-2601F-DC-BDL-809-60

Technical Details

Firewall, DC dual PSU, 4x100GE QSFP28, 16x25GE SFP28, 2x960GB NVMe SSD, 25 Gbps threat protection, including 5 Year FortiCare Premium and FortiGuard Enterprise Protection

$345,534.00

$234,964.00

32% OFF

You Save: $110,570.00

Net 30 or as low as $/month

Apply Now

Product & Solutions Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

The FortiGate 2601F-DC is a Next-Generation Firewall for DC-powered data centers and telecom environments, leveraging Fortinet's patented SPU NP7 and CP9 processors with 100 GE connectivity and dual 960GB NVMe onboard SSDs for integrated logging and storage.

FG-2601F-DC-BDL-809-60 bundles the firewall appliance with FortiCare Premium and FortiGuard Enterprise Protection for a 5 Year term.

Technical Specifications Summary

IPS throughput: 31 Gbps (enterprise traffic mix).
NGFW throughput: 27 Gbps (enterprise traffic mix).
Threat protection throughput: 25 Gbps (enterprise traffic mix).
IPv4 firewall throughput (1518/512/64 byte, UDP): 198 / 196 / 140 Gbps.
IPsec VPN throughput (512 byte): 55 Gbps; SSL-VPN throughput: 16 Gbps.

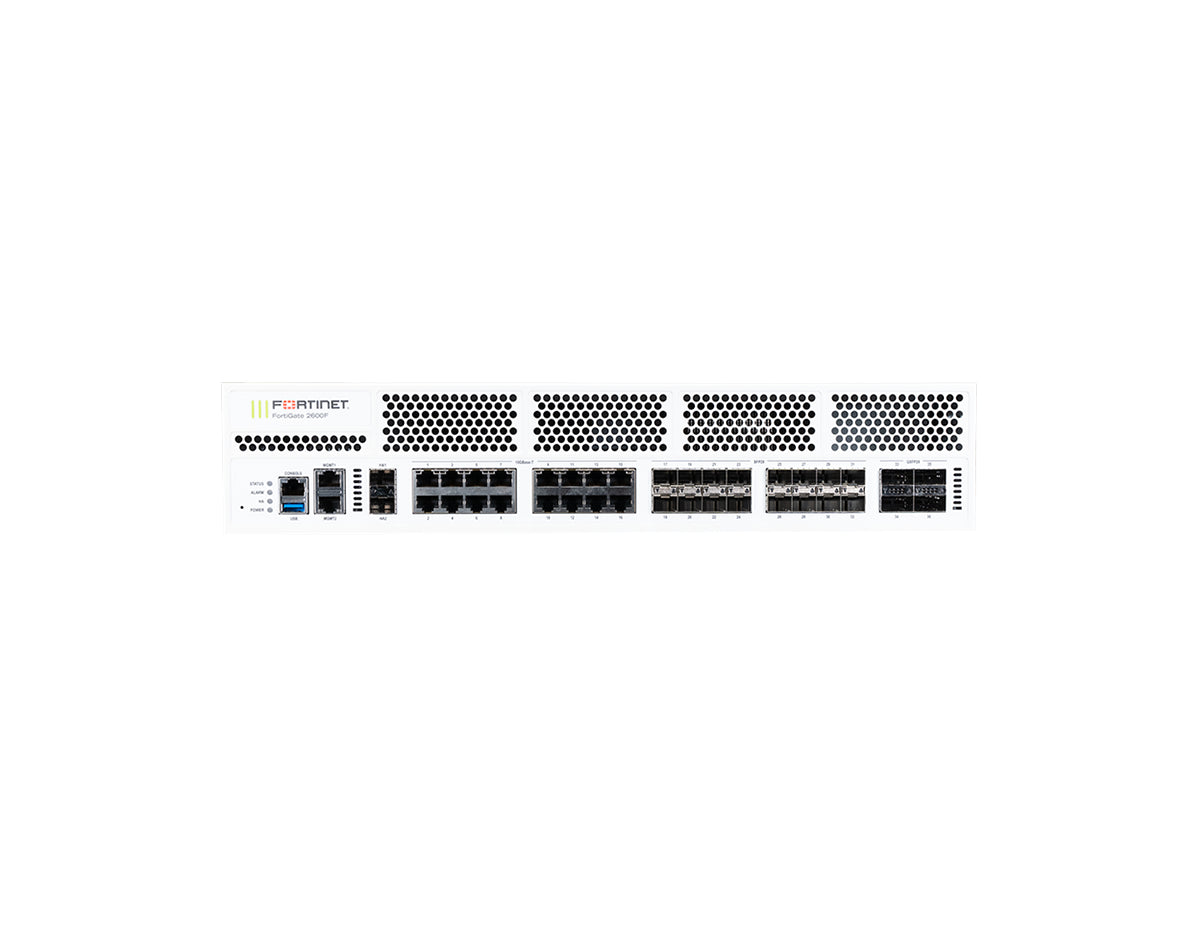

Interfaces: 4x 100 GE QSFP28 / 40 GE QSFP+ slots, 16x 25 GE SFP28 / 10 GE SFP+ / GE SFP slots, 8x 10 GE SFP+ slots, 16x 10 GE / GE RJ45 ports.
High availability and management: 2x 10 GE SFP+ / GE SFP HA slots, 2x GE RJ45 MGMT ports; USB 3.0 and console RJ45 included.
Onboard storage: 2x 960GB NVMe SSD; Trusted Platform Module (TPM) included.
Power: dual hot-swappable DC power supplies, -48VDC to -60VDC input; 420.3 W average / 513.7 W maximum consumption.
Physical: rack mount 2RU, 3.5 x 17.25 x 21.1 in (88.4 x 438 x 536 mm), 30.9 lbs (14.0 kg).

Upgrade Your Network Security

Deploy the FortiGate 2601F-DC-BDL-809-60 for high-performance, DC-powered security with integrated storage and 100 GE connectivity.

Properties

Product Series	FortiGate 2600F Series
SKU	FG-2601F-DC-BDL-809-60
Bundle / Subscription	Appliance + FortiCare Premium + FortiGuard Enterprise Protection (5 Year)
Form Factor	Rack Mount, 2RU
Threat Protection Throughput	25 Gbps
Interfaces	4x 100 GE QSFP28 / 40 GE QSFP+ slots, 16x 25 GE SFP28 / 10 GE SFP+ / GE SFP slots, 8x 10 GE SFP+ slots, 16x 10 GE / GE RJ45 ports, 2x 10 GE SFP+ / GE SFP HA slots, 2x GE RJ45 MGMT ports
Onboard Storage	2x 960GB NVMe SSD
Power Input	-48VDC to -60VDC
Dimensions (H x W x L)	3.5 x 17.25 x 21.1 in (88.4 x 438 x 536 mm)
Weight	30.9 lbs (14.0 kg)

Specifications

System Performance - Enterprise Traffic Mix
IPS Throughput	31 Gbps
NGFW Throughput	27 Gbps
System Performance & Capacity
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	198 / 196 / 140 Gbps
IPsec VPN Throughput (512 byte)	55 Gbps
SSL-VPN Throughput	16 Gbps
Concurrent Sessions (TCP)	24 Million / 40 Million* (requires Hyperscale Firewall License)
New Sessions/Second (TCP)	1 Million / 2 Million* (requires Hyperscale Firewall License)
Hardware & Interfaces
Hardware Accelerated 100 GE QSFP28 / 40 GE QSFP+ Slots	4
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots	16
10 GE SFP+ Slots	8
Hardware Accelerated 10 GE / GE RJ45 Ports	16
Hardware Accelerated 10 GE SFP+ / GE SFP HA Slots	2
GE RJ45 Management Ports	2
USB 3.0 Port	1
Console RJ45 Port	1
Trusted Platform Module (TPM)	Included
Dimensions & Power
Power Consumption (Average / Maximum)	420.3 W / 513.7 W
Redundant Power Supplies	Dual DC Power Supplies (Hot Swappable)

Accessories

Included Transceivers	2x SFP+ (SR 10 GE)
Optional Accessories	Rack Mount Sliding Rails (SP-FG3040B-RAIL), AC Power Supply (SP-FG1800F-PS), DC Power Supply (SP-FG1800F-DC-PS), Hyperscale Firewall License (LIC-FGT-HYPSC-1K2K), transceiver modules (1 GE SFP, 10 GE SFP+, 25 GE SFP28, 40 GE QSFP+, 100 GE QSFP28), direct attach cables (40 GE QSFP+ and 100 GE QSFP28), and QSFP breakout cable
