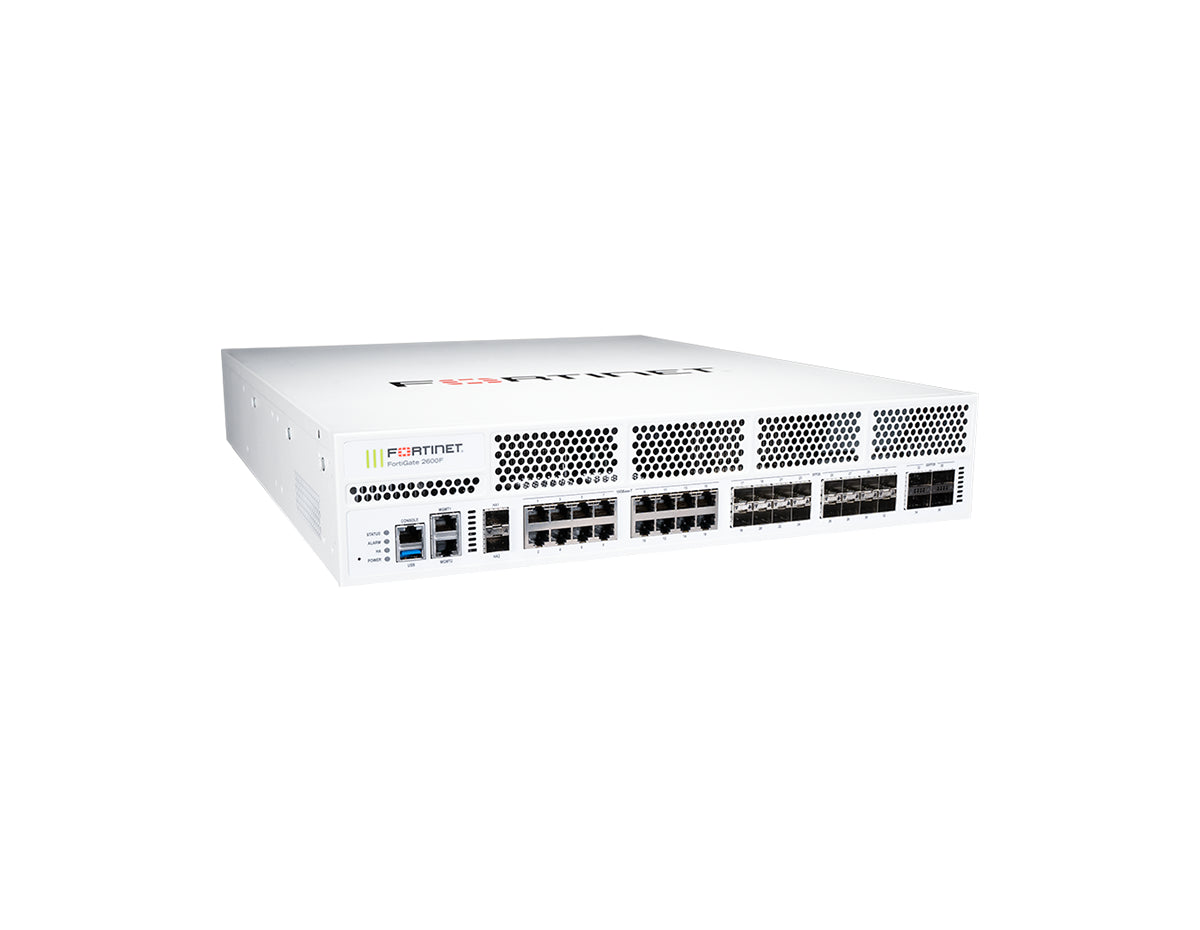

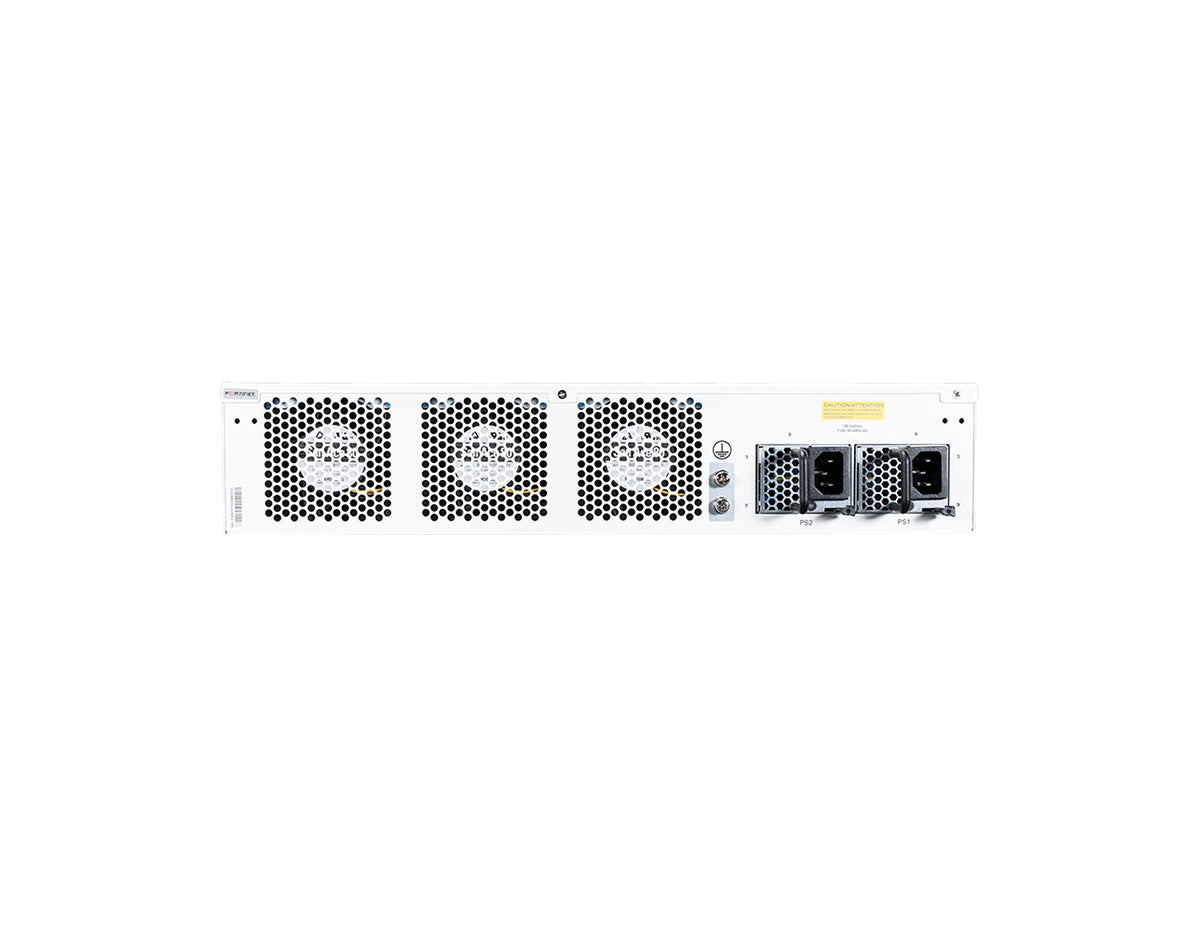

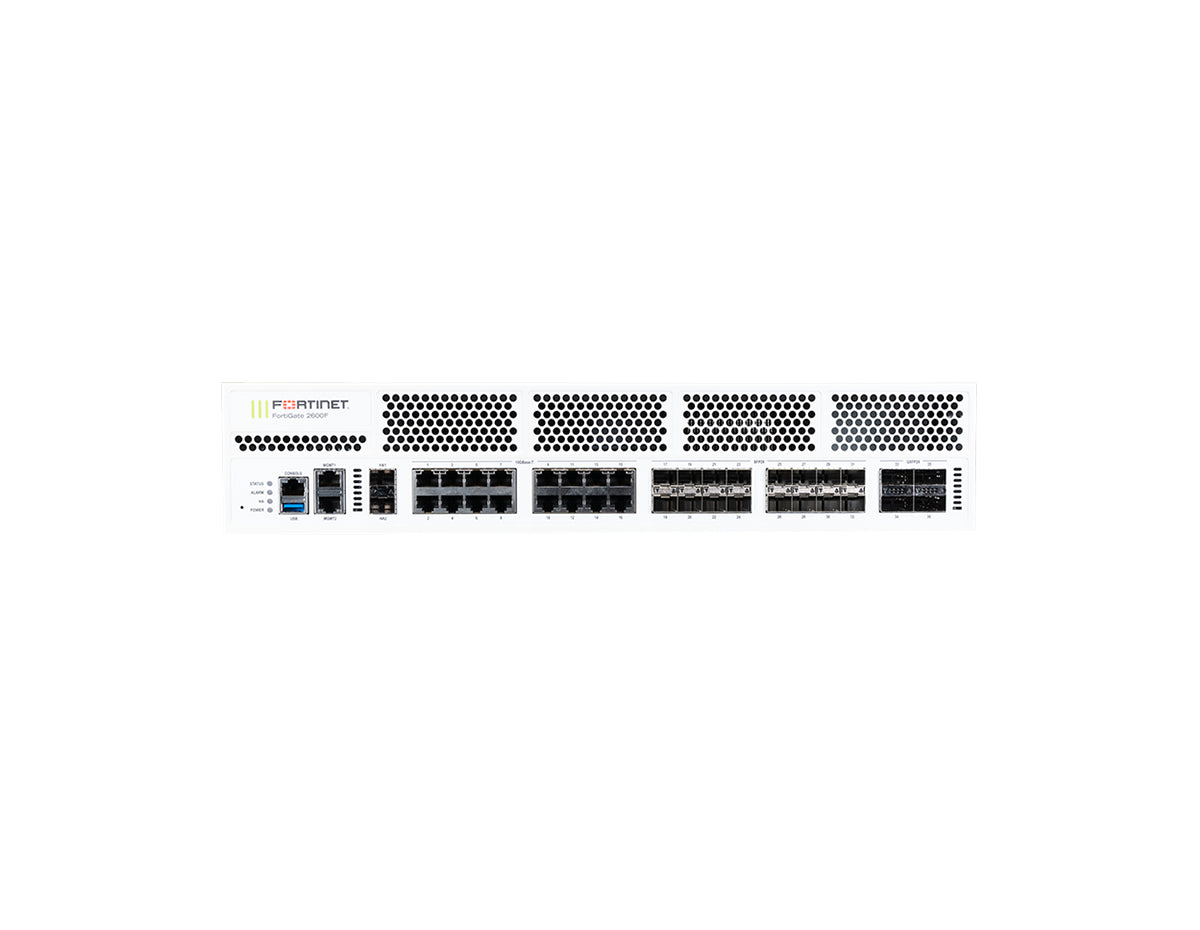

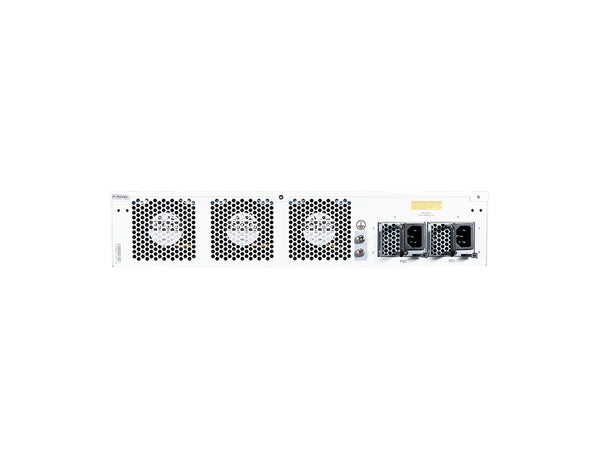

Fortinet FG-2601F-DC-BDL-809-36 Next-Generation Firewall

Fortinet FG-2601F-DC-BDL-809-36 Next-Generation Firewall

Name: Fortinet FG-2601F-DC-BDL-809-36 Next-Generation Firewall
Brand: Fortinet
Price: 158880.0 USD
Availability: InStock

Part Number: FG-2601F-DC-BDL-809-36

Technical Details

Firewall, DC dual PSUs, 4x 100GE QSFP28, 16x 25GE SFP28, 2x 960GB NVMe SSD, including 3 Year FortiCare Premium and FortiGuard Enterprise Protection

$233,646.80

$158,880.00

32% OFF

You Save: $74,766.80

Net 30 or as low as $/month

Apply Now

Product & Solutions Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

The FortiGate 2601F-DC is a Next-Generation Firewall for DC-powered data centers and telecom environments, leveraging Fortinet's patented SPU NP7 and CP9 processors with 100 GE connectivity and dual 960GB NVMe onboard SSDs for onboard storage.

FG-2601F-DC-BDL-809-36 bundles the hardware with FortiCare Premium + FortiGuard Enterprise Protection for a 3 Year term.

Hyperscale Security with Integrated Storage and DC Power

IPS throughput: 31 Gbps (enterprise traffic mix).
NGFW throughput: 27 Gbps (enterprise traffic mix).
Threat protection throughput: 25 Gbps (enterprise traffic mix).
IPv4 firewall throughput (1518/512/64 byte, UDP): 198 / 196 / 140 Gbps.
IPsec VPN throughput (512 byte): 55 Gbps.
SSL-VPN throughput: 16 Gbps.
4x 100 GE QSFP28 / 40 GE QSFP+ slots, 16x 25 GE SFP28 / 10 GE SFP+ / GE SFP slots, 16x 10 GE / GE RJ45 ports.
Onboard storage: 2x 960GB NVMe SSD.
DC power input: -48VDC to -60VDC, dual DC power supplies (hot swappable).
Power consumption (average / maximum): 420.3 W / 513.7 W.
Dimensions: 3.5 x 17.25 x 21.1 in (88.4 x 438 x 536 mm), weight: 30.9 lbs (14.0 kg).
Included transceivers: 2x SFP+ (SR 10 GE).

Upgrade Your Network Security

Deploy the FortiGate 2601F-DC-BDL-809-36 for high-performance, DC-powered security with integrated storage and 100 GE connectivity.

Properties

Product Series	FortiGate 2600F Series
SKU	FG-2601F-DC-BDL-809-36
Bundle / Subscription	Hardware + FortiCare Premium + FortiGuard Enterprise Protection (3 Year)
Form Factor	Rack Mount, 2RU
Threat Protection Throughput	25 Gbps
Interfaces	4x 100 GE QSFP28 / 40 GE QSFP+ slots, 16x 25 GE SFP28 / 10 GE SFP+ / GE SFP slots, 8x 10 GE SFP+ slots, 16x 10 GE / GE RJ45 ports, 2x 10 GE SFP+ / GE SFP HA slots, 2x GE RJ45 MGMT ports
Onboard Storage	2x 960GB NVMe SSD
Power Input	-48VDC to -60VDC
Dimensions (H x W x L)	3.5 x 17.25 x 21.1 in (88.4 x 438 x 536 mm)
Weight	30.9 lbs (14.0 kg)

Specifications

System Performance - Enterprise Traffic Mix
IPS Throughput	31 Gbps
NGFW Throughput	27 Gbps
System Performance & Capacity
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	198 / 196 / 140 Gbps
IPsec VPN Throughput (512 byte)	55 Gbps
SSL-VPN Throughput	16 Gbps
Concurrent Sessions (TCP)	24 Million / 40 Million* (requires Hyperscale Firewall License)
New Sessions/Second (TCP)	1 Million / 2 Million* (requires Hyperscale Firewall License)
Hardware & Interfaces
Hardware Accelerated 100 GE QSFP28 / 40 GE QSFP+ Slots	4
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots	16
10 GE SFP+ Slots	8
Hardware Accelerated 10 GE / GE RJ45 Ports	16
Hardware Accelerated 10 GE SFP+ / GE SFP HA Slots	2
GE RJ45 Management Ports	2
USB 3.0 Port	1
Console RJ45 Port	1
Trusted Platform Module (TPM)	Included
Dimensions & Power
Power Consumption (Average / Maximum)	420.3 W / 513.7 W
Redundant Power Supplies	Dual DC Power Supplies (Hot Swappable)

Accessories

Included Transceivers	2x SFP+ (SR 10 GE)
Optional Accessories	Rack Mount Sliding Rails (SP-FG3040B-RAIL), AC Power Supply (SP-FG1800F-PS), DC Power Supply (SP-FG1800F-DC-PS), Hyperscale Firewall License (LIC-FGT-HYPSC-1K2K), transceiver modules (1 GE SFP, 10 GE SFP+, 25 GE SFP28, 40 GE QSFP+, 100 GE QSFP28), direct attach cables (40 GE QSFP+ and 100 GE QSFP28), and QSFP breakout cable
