FORTINET FG-200F-BDL-950-36 FIREWALL
| Model: | FG-200F-BDL-950-36 |
| Detail: |
|
| List Price: | |
| Price: | $6,950.00 |
| You Save: | $10,236.40 (60% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

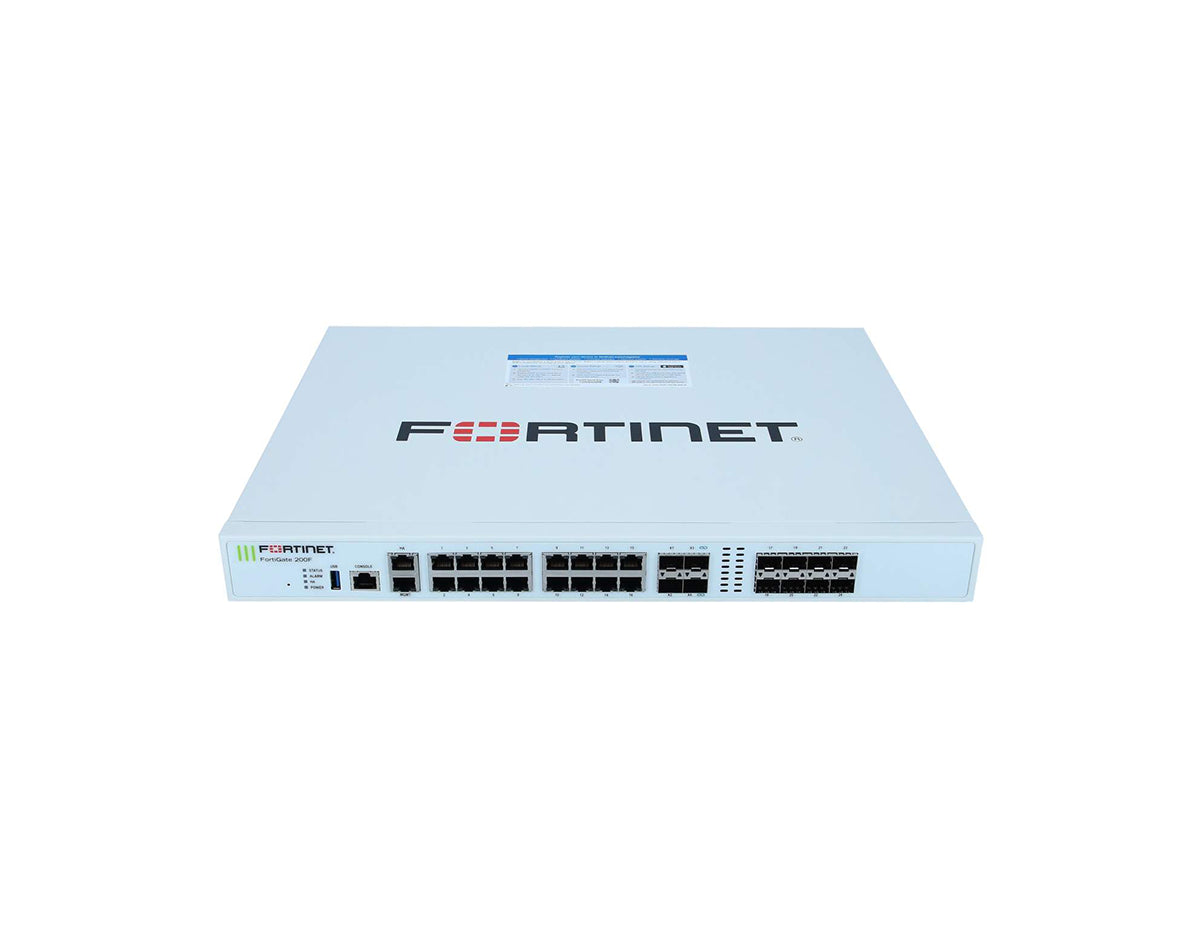

Fortinet FG-200F-BDL-950-36 Firewall
The FortiGate 200F Series Next-Generation Firewall (NGFW) integrates artificial intelligence (AI) and machine learning to provide comprehensive threat protection across various scales. It offers enhanced network visibility, allowing for the identification of applications, users, and devices before they pose security risks. Equipped with a robust suite of AI and machine learning security features, the FortiGate 200F Series extends into an integrated security fabric platform, ensuring a secure networking environment that is extensive, thorough, and automated.
The device comes with a 3-year subscription to 24x7 FortiCare Support and FortiGuard UTM (Unified Threat Protection).
Quick Specs:
- 16x RJ45 Ports (including 1 x MGMT port, 1 X HA port, 16 x switch ports)
- 8x GE SFP Slots
- 4x 10GE SFP+ Slots
- Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
Please see the related tabs for the FG-200F-BDL-950-36 datasheet and compatible accessories.
Accessories
| FN-TRAN-GC |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots.
|
| FN-TRAN-SX |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots
|
| FN-TRAN-LX |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
|
Specifications
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 27 / 27 / 11 Gbps |
| Firewall Latency (64 byte UDP packets) | 4.78 μs |
| Firewall Throughput (Packets Per Second) | 16.5 Mpps |
| Concurrent Sessions (TCP) | 3 Million |
| New Sessions/Second (TCP) | 280.000 |
| Firewall Policies | 16.000 |
| IPsec VPN Throughput (512 byte packets) | 2 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
| Client-to-Gateway IPsec VPN Tunnels | 16000 |
| SSL-VPN Throughput | 2 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 500 |
| SSL Inspection Throughput | 4 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 3500 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 300000 |
| Application Control Throughput | 13 Gbps |
| IPS Throughput | 5 Gbps |
| NGFW Throughput | 3.5 Gbps |
| Threat Protection Throughput | 3 Gbps |
| CAPWAP Throughput | 20 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 64 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 256 / 128 |
| Maximum Number of FortiTokens | 5000 |
| Maximum Number of Registered FortiClients | - |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Dimensions in. | 1.73 x 17.01 x 13.47 |
| Form Factor | Ear Mount, 1 RU |
| Power Required | 100240V AC, 5060 Hz |
| Maximum Current | 100V / 2A, 240V / 1.2A |
| Power Consumption (Average / Maximum) | 101.92 W / 118.90 W |
| Operating Temperature | 32104°F (040°C) |
| Regulatory Compliance |
FCC Part 15B, Class A, CE, RCM, VCCI, UL/ cUL, CB, BSMI
|
| Certifications | USGv6/IPv6 |
Properties
| Properties | FG-200F-BDL-950-36 |
| Description |
18 x GE RJ45 (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 8 x GE SFP slots, 4 x 10GE SFP+ slots, NP6XLite and CP9 hardware accelerated.
|
| Product Family | Mid Range Firewalls |
| Product Type | Firewall |
| GE RJ45 Ports | 16 |
| GE RJ45 Management/DMZ/HA Ports | 1 / 1 |
| GE RJ45/SFP Shared Media Pairs | 8 |
| GE RJ45 WAN Port | 2 |
| USB Port | 1 |
| Console (RJ45) | 1 |
| Wireless Interface | 0 |
| Bundle |
24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
|
| Bundle Duration | 3 Years |
