The FortiGate 120G-BDL-950-60 next-generation firewall combines AI-powered security and machine learning to deliver robust threat protection at scale, bundled with FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for 5 years. Powered by the SP5 ASIC and Fortinet’s purpose-built SPU architecture, this appliance provides superior performance over traditional CPU-based firewalls, ensuring your network remains secure without becoming a bottleneck. It offers deep visibility into applications, users, and devices, enabling automated protection against sophisticated cyberattacks, including ransomware and zero-day threats.
Designed for converged networking and security, the FortiGate 120G seamlessly integrates secure SD-WAN and NGFW capabilities into a single consolidated platform. With high-density port configurations—including 10GE SFP+ and GE SFP slots—it supports flexible connectivity for hybrid IT networks. The device also features dual built-in non-hot swappable power supplies for mission-critical redundancy, making it an ideal solution for enterprise edge deployments that demand both reliability and speed.
Secure networking with AI-powered protection and unparalleled SPU performance.
- High-Performance Threat Protection: Delivers 2.8 Gbps of Threat Protection throughput to help block malicious content and sophisticated attacks.
- Accelerated Networking: Features the SP5 ASIC which accelerates firewall functions, delivering up to 39 Gbps throughput and reducing latency to 3.17 µs.

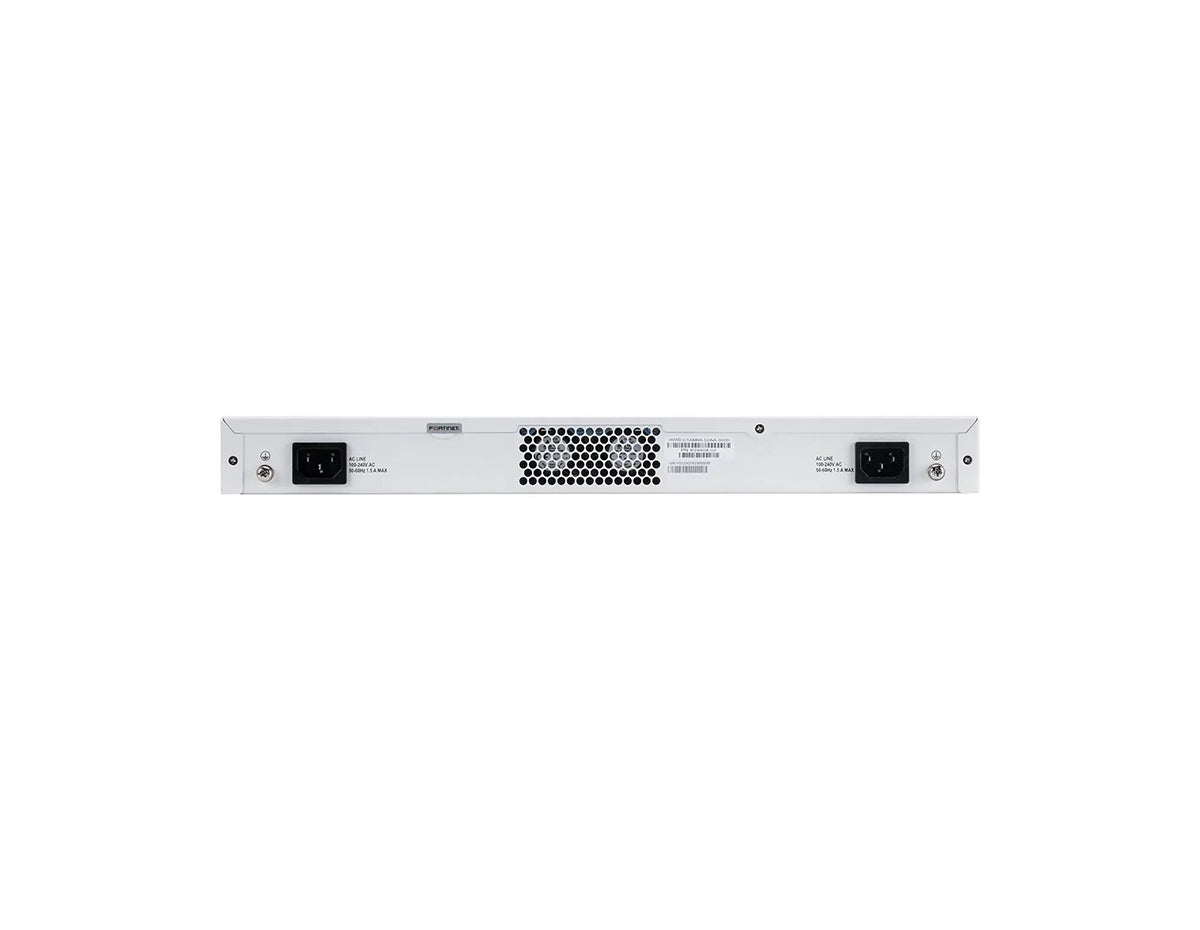

- Integrated Dual Power: Equipped with dual non-swappable AC power supplies to ensure continuous operation and redundancy for critical network environments.
- Comprehensive Connectivity: Provides a rich interface array with 18x GE RJ45 ports, 8x GE SFP slots, and 4x 10GE SFP+ FortiLink slots for versatile network integration.
- Secure SD-WAN: Unified OS and security framework transforms and secures WANs for hybrid working models and cloud-first WAN use cases.
- Encrypted Traffic Inspection: Delivers up to 3 Gbps SSL inspection throughput (IPS, avg. HTTPS) for visibility into encrypted traffic.
Ideal Use Cases
- Enterprise Edge Security: Robust perimeter defense with deep visibility for distributed enterprise networks.
- Secure SD-WAN Deployments: Optimizing WAN connectivity and security for branch offices and hybrid working models.
- Internal Network Segmentation: Preventing lateral movement of threats by enforcing consistent policy across network segments.
- Hybrid Mesh Firewall: Extending security consistency across on-premise and hybrid cloud environments.
Technical Specifications Summary
- IPS Throughput: 5.3 Gbps
- NGFW Throughput: 3.1 Gbps
- Threat Protection Throughput: 2.8 Gbps
- Firewall Throughput / Latency: 39 / 39 / 28 Gbps (1518 / 512 / 64 byte UDP); 3.17 µs (64 byte UDP)
- Firewall Capacity: 42 Mpps; 3 Million concurrent sessions (TCP); 140,000 new sessions/second (TCP)
- VPN Performance: 35 Gbps IPsec (512 byte); 1.5 Gbps SSL-VPN; 500 recommended concurrent SSL-VPN users
- SSL Inspection: 3 Gbps throughput (IPS, avg. HTTPS); 2,100 CPS; 315,000 concurrent sessions

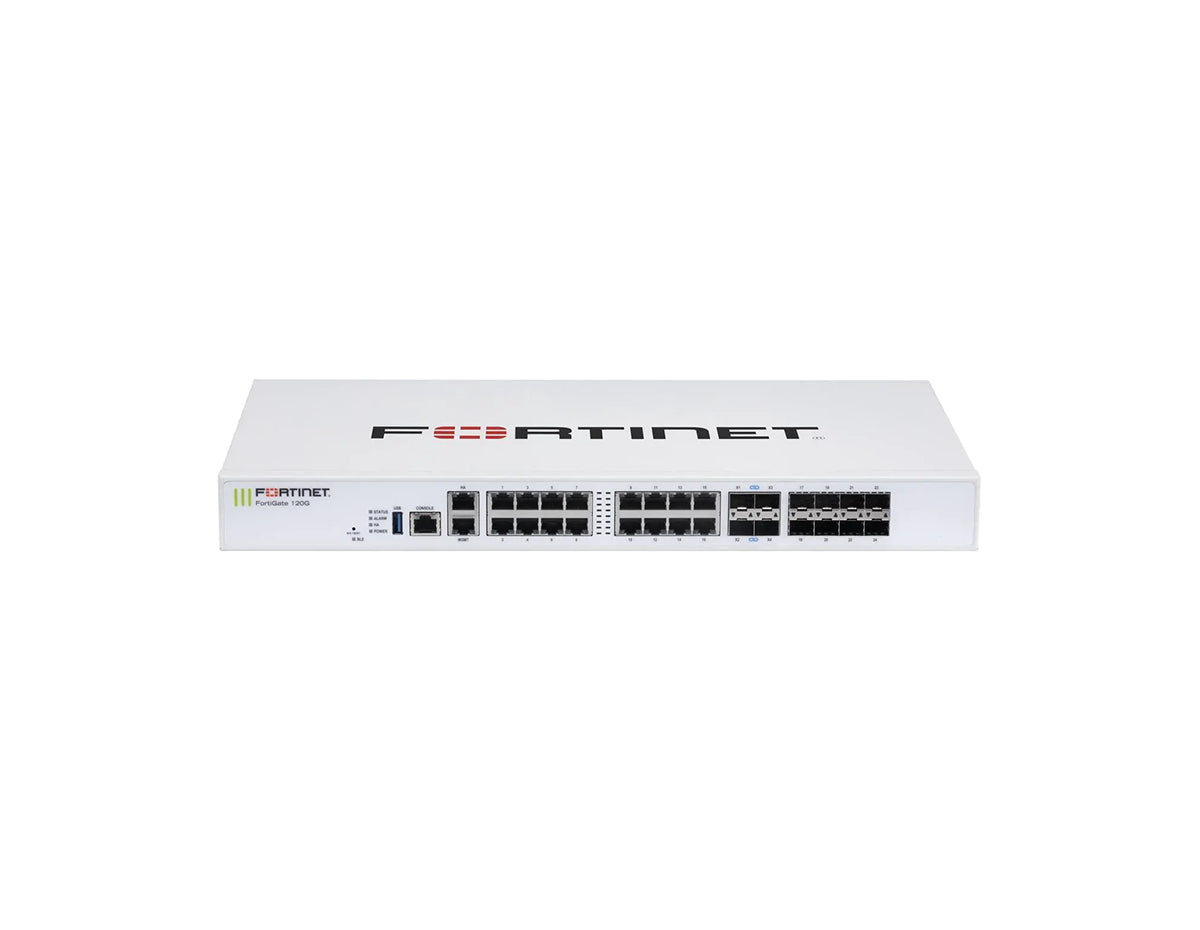

- Interfaces: 16x GE RJ45 (hardware accelerated) + 1x MGMT and 1x HA; 8x GE SFP; 4x 10GE SFP+ FortiLink
- Power / Thermal: 100-240VAC, 50-60Hz; 38 W / 40 W (avg / max); 138 BTU/hr
- Physical / Environment: Rack Mount, 1RU; 1.73 x 17 x 10 in (44 x 432 x 254 mm); 12.17 lbs (5.52 kg); 0°C to 40°C; 20% to 90% non-condensing
- Compliance / Certifications: FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI; USGv6/IPv6
Upgrade Your Network Security
Deploy the FortiGate 120G-BDL-950-60 today for enterprise-grade protection and high-speed performance.
