The FortiGate 120G-BDL-950-12 next-generation firewall combines AI-powered security and machine learning to deliver robust threat protection at scale, bundled with FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for 1 year. Powered by the SP5 ASIC and Fortinet’s purpose-built SPU architecture, this appliance provides superior performance over traditional CPU-based firewalls, ensuring your network remains secure without becoming a bottleneck. It offers deep visibility into applications, users, and devices, enabling automated protection against sophisticated cyberattacks, including ransomware and zero-day threats.
Designed for converged networking and security, the FortiGate 120G seamlessly integrates secure SD-WAN and NGFW capabilities into a single consolidated platform. With high-density port configurations—including 10GE SFP+ and GE SFP slots—it supports flexible connectivity for hybrid IT networks. The device also features dual built-in non-hot swappable power supplies for mission-critical redundancy, making it an ideal solution for enterprise edge deployments that demand both reliability and speed.
Secure networking with AI-powered protection and unparalleled SPU performance.
- High-Performance Threat Protection: Delivers 2.8 Gbps of Threat Protection throughput to help block malicious content and sophisticated attacks.
- Accelerated Networking: Features the SP5 ASIC which accelerates firewall functions, delivering up to 39 / 39 / 28 Gbps throughput (1518 / 512 / 64 byte UDP packets) and reducing latency to 3.17 µs.

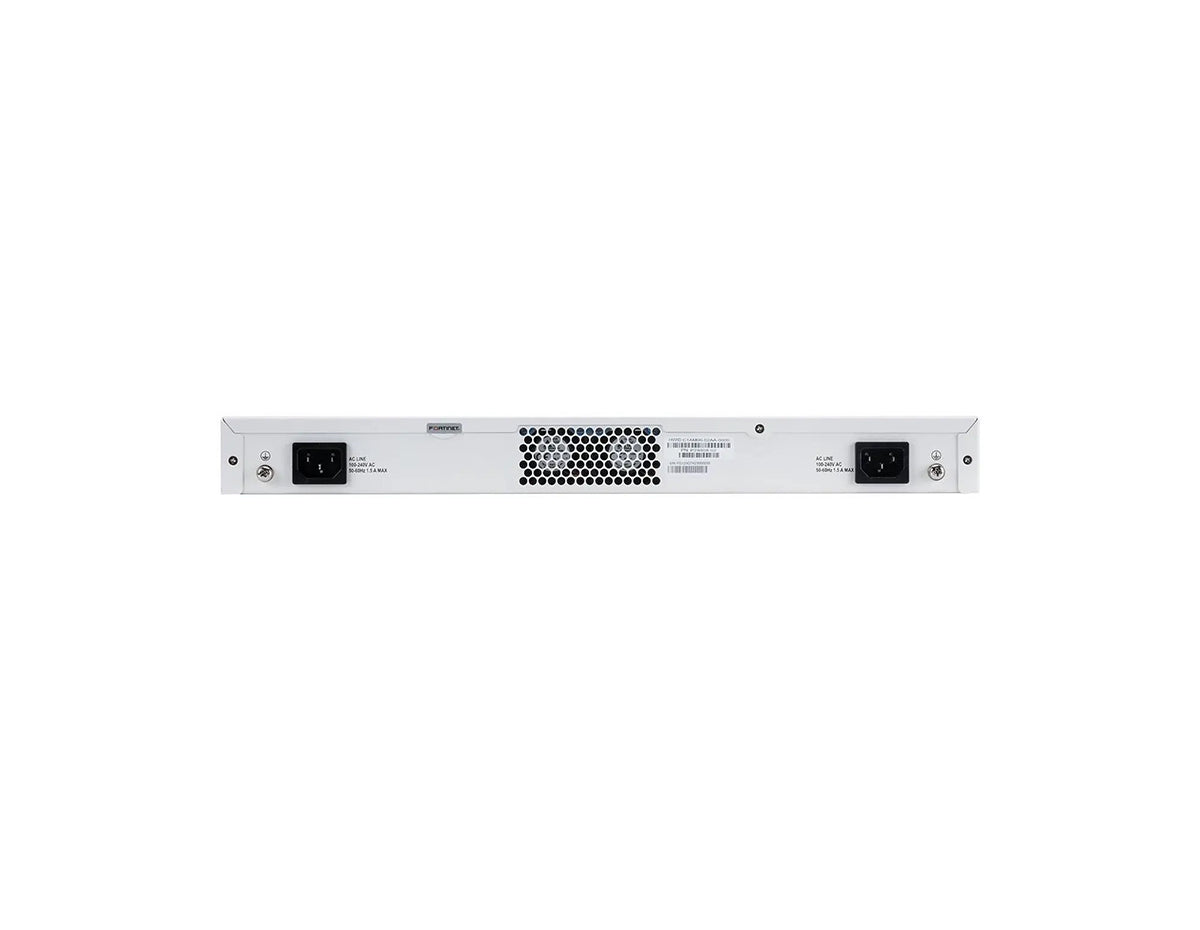

- Integrated Dual Power: Equipped with dual non-swappable AC power supplies to ensure continuous operation and redundancy for critical network environments.

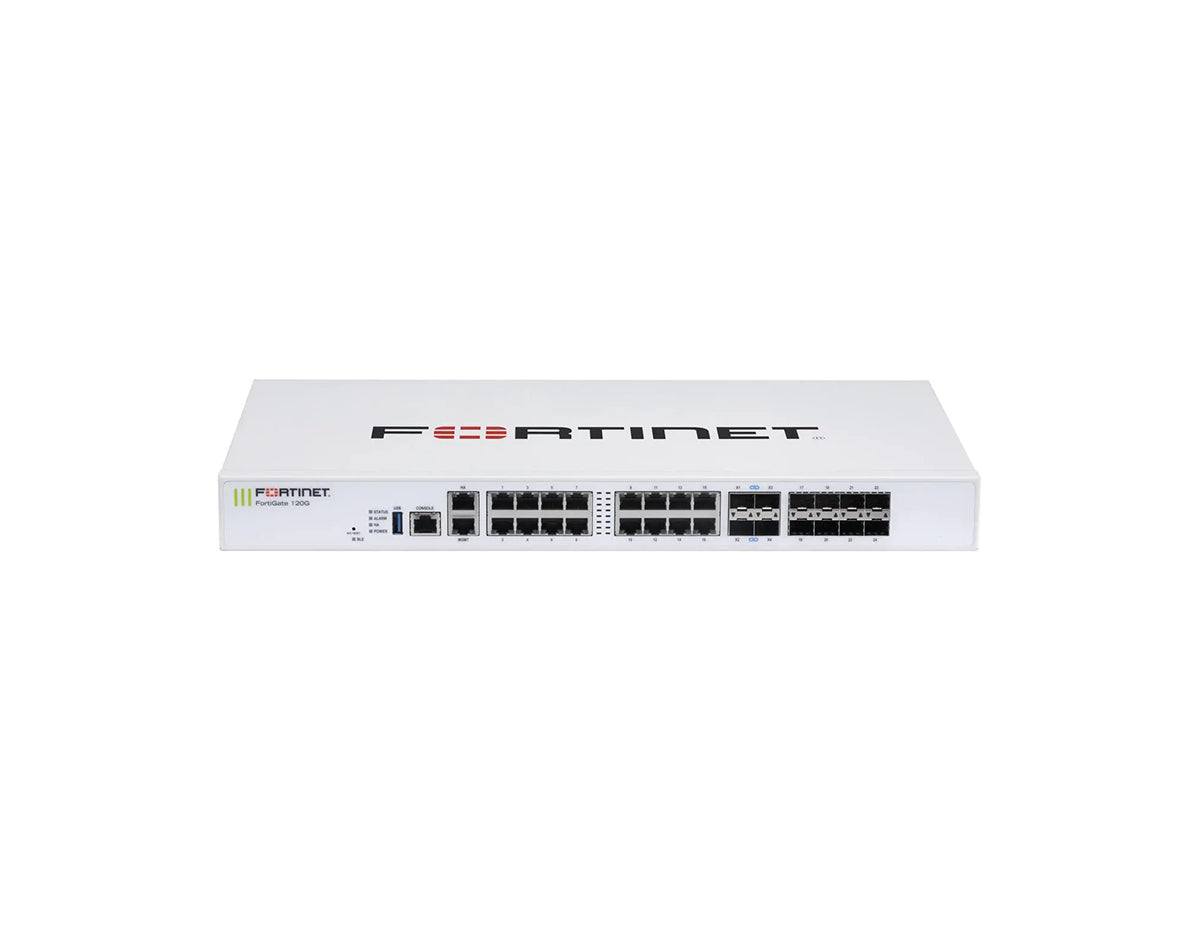

- Comprehensive Connectivity: Provides a rich interface array with 18x GE RJ45 ports, 8x GE SFP slots, and 4x 10GE SFP+ slots for versatile network integration.
- Secure SD-WAN: Unified OS and security framework transforms WANs, providing superior quality of experience and operational efficiencies.
- Encrypted Traffic Inspection: Delivers up to 3 Gbps SSL inspection throughput (IPS, average HTTPS) for visibility into encrypted traffic.
Ideal Use Cases
- Enterprise Edge Security: robust perimeter defense with deep visibility for distributed enterprise networks.
- Secure SD-WAN Deployments: Optimizing WAN connectivity and security for branch offices and hybrid working models.
- Internal Network Segmentation: preventing lateral movement of threats by enforcing consistent policy across network segments.
- Hybrid Mesh Firewall: Extending security consistency across on-premise and hybrid cloud environments.
Technical Specifications Summary
- IPS / NGFW / Threat Protection Throughput: 5.3 Gbps / 3.1 Gbps / 2.8 Gbps
- Firewall Throughput (UDP, 1518 / 512 / 64 byte): 39 / 39 / 28 Gbps
- Firewall Performance: 42 Mpps; 3.17 µs latency (64 byte UDP)
- IPsec VPN Throughput (512 byte): 35 Gbps; up to 2,000 gateway-to-gateway tunnels
- Remote Access VPN: 1.5 Gbps SSL-VPN throughput; 500 concurrent SSL-VPN users (recommended max)
- Session Scale: 3 million concurrent sessions (TCP); 140,000 new sessions/second (TCP)
- Security Policy Capacity: 10,000 firewall policies
- Interface Configuration: 16x accelerated GE RJ45, 1x MGMT, 1x HA, 8x accelerated GE SFP, 4x accelerated 10GE SFP+ FortiLink, 1x USB, 1x RJ45 console
- Power: 100–240VAC, 50–60Hz; 38 W / 40 W (average / max)
- Operating Environment: 0°C to 40°C; 20% to 90% non-condensing; 49 dBA noise level
- Physical: 1RU; 44 x 432 x 254 mm (1.73 x 17 x 10 in); 5.52 kg (12.17 lbs)
- Compliance & Certifications: FCC Part 15B Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI; USGv6/IPv6
Upgrade Your Network Security
Deploy the FortiGate 120G-BDL-950-12 today for enterprise-grade protection and high-speed performance.
