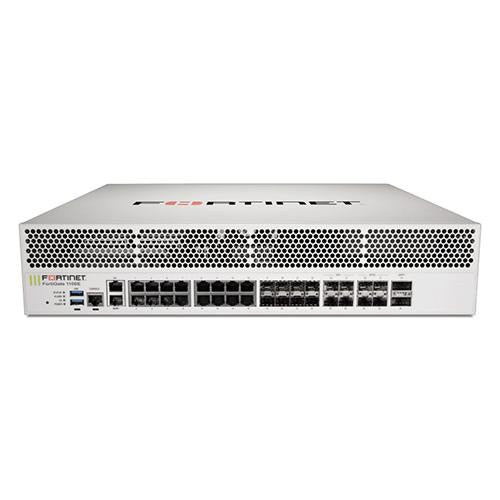

FORTINET FG-1100E FIREWALL
| Model: | FG-1100E |
| Detail: |
|
| List Price: | |
| Price: | $24,697.40 |
| You Save: | $10,584.60 (30% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
2x 40GE QSFP+ slots , 4x 25GE SFP28 slots, 4x 10GE SFP+ slots, 8x GE SFP slots, 18x GE RJ45 ports (including 16x ports, 2x management/HA ports) SPU NP6 and CP9 hardware accelerated, and 2 AC power supplies.
Accessories
| FN-TRAN-GC |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots.
|
| FN-TRAN-SX |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots
|
| FN-TRAN-LX |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
|
| FN-TRAN-SFP+SR |
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-SFP+LR |
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots.
|
| FN-TRAN-SFP+GC |
10 GE SFP+ RJ45 transceiver module for systems with SFP+ slots.
|
| FN-TRAN-SFP+ER |
10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots.
|
| SP-CABLE-ADASFP+ |
10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-SFP28-SR |
25 GE SFP28 transceiver module, short range for all systems with SFP28 slots
|
| FG-TRAN-SFP28-LR |
25 GE SFP28 transceiver module, long range for all systems with SFP28 slots
|
| FN-TRAN-QSFP+SR |
40 GE QSFP+ transceiver module, short range for all systems with QSFP+ slots
|
| FG-TRAN-QSFP+SR-BID |
40 GE QSFP+ transceivers, short range BiDi for systems with QSFP+ slots
|
| FN-TRAN-QSFP+LR |
40 GE QSFP+ transceiver module, long range for all systems with QSFP+ slots.
|
| FG-TRAN-QSFP+4XSFP |
40 GE QSFP+ Parallel Breakout Active Optical Cable with 1m length for all systems with QSFP+ slots
|
| FG-TRAN-QSFP+4SFP-5 |
40 GE QSFP+ Parallel Breakout MPO to 4xLC connectors, 5m reach, transceivers not included.
|
| SP-FG3040B-RAIL |
Rack mount sliding rails for FG-1000C/-DC, FG-1100/1101E, FG-1200D, FG-1500D/-DC, FG-2000E, FG-2500E, FG-3040B/-DC, FG-3140B/-DC, FG-3240C/-DC, FG-3000D/-DC, FG-3100D/-DC, FG3200D/-DC, FG-3400/3401E, FG-3600/3601E, FG-3700D/-DC, FG-3700DX, FG-3810D/-DC and FG-3950B/-DC.
|
| SP-FG300E-PS |
AC power supply for FG-300/301E, FG-400/401E, FG-500/501E, FG-600/601E, FG-1100/1101E, FAZ-200F/FAZ-300F/FMG-200F and FAZ-800F/FMG-300F.
|
| SP-FG300E-DC-PS |
DC power supply for FG-1100E-DC
|
Specifications
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 80 / 80 / 45 Gbps |
| Firewall Latency (64 byte UDP packets) | 2.76 μs |
| Firewall Throughput (Packets Per Second) | 67.5 Mpps |
| Concurrent Sessions (TCP) | 8 Million |
| New Sessions/Second (TCP) | 500.000 |
| Firewall Policies | 100.000 |
| IPsec VPN Throughput (512 byte packets) | 48 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 20000 |
| Client-to-Gateway IPsec VPN Tunnels | 100000 |
| SSL-VPN Throughput | 8.4 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 10000 |
| SSL Inspection Throughput | 10 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 6500 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 780000 |
| Application Control Throughput | 26 Gbps |
| IPS Throughput | 12.5 Gbps |
| NGFW Throughput | 9.8 Gbps |
| Threat Protection Throughput | 7.11 Gbps |
| CAPWAP Throughput | 43 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 250 |
| Maximum Number of FortiSwitches Supported | 196 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 4096 / 2048 |
| Maximum Number of FortiTokens | 20000 |
| Maximum Number of Registered FortiClients | - |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Dimensions in. | 3.5 x 17.44 x 17.62 |
| Form Factor | Rack Mount, 2 RU |
| Power Required | 100240V AC, 5060 Hz |
| Maximum Current | 6A@120V, 3A@240V |
| Power Consumption (Average / Maximum) | 217 W / 336 W |
| Operating Temperature | 32104°F (040°C) |
| Regulatory Compliance |
FCC ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
|
| Certifications | USGv6/IPv6 |
Properties
| Properties | FG-1100E |
| Description |
2x 40 GE QSFP+ slots, 4x 25 GE SFP28 slots, 4x 10 GE SFP+ slots, 8x GE SFP slots, 18x GE RJ45 ports (including 16x ports, 2x management/HA ports) SPU NP6 and CP9 hardware accelerated, and 2 AC power supplies
|
| Product Family | High End Firewalls |
| Product Type | Firewall |
| GE RJ45 Ports | 16 |
| GE RJ45 Management/DMZ/HA Ports | 2 |
| 40 GE SFP+ Slots | 2 |
| 25 GE SFP+ Slots | 4 |
| 10 GE SFP+ Slots | 4 |
| GE SFP Slots | 8 |
| GE RJ45 WAN Port | - |
| USB Port (Client / Server) | 1/ 2 |
| Console (RJ45) | 1 |
| Internal Storage | - |
| Included Transceivers | 2x SFP+ (SR 10GE) |
