FORTINET FG-100F FIREWALL
| Model: | FG-100F |
| Detail: |
|
| List Price: | |
| Price: | $1,175.00 |
| You Save: | $1,525.00 (56% OFF) |
| Condition: | Brand New Sealed |
| Availability: | 3-5 Days |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

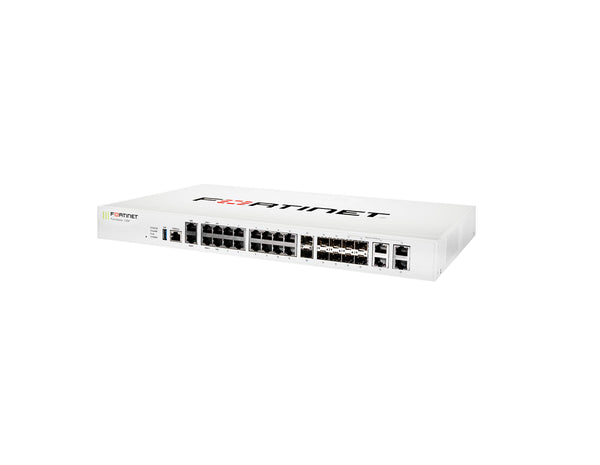

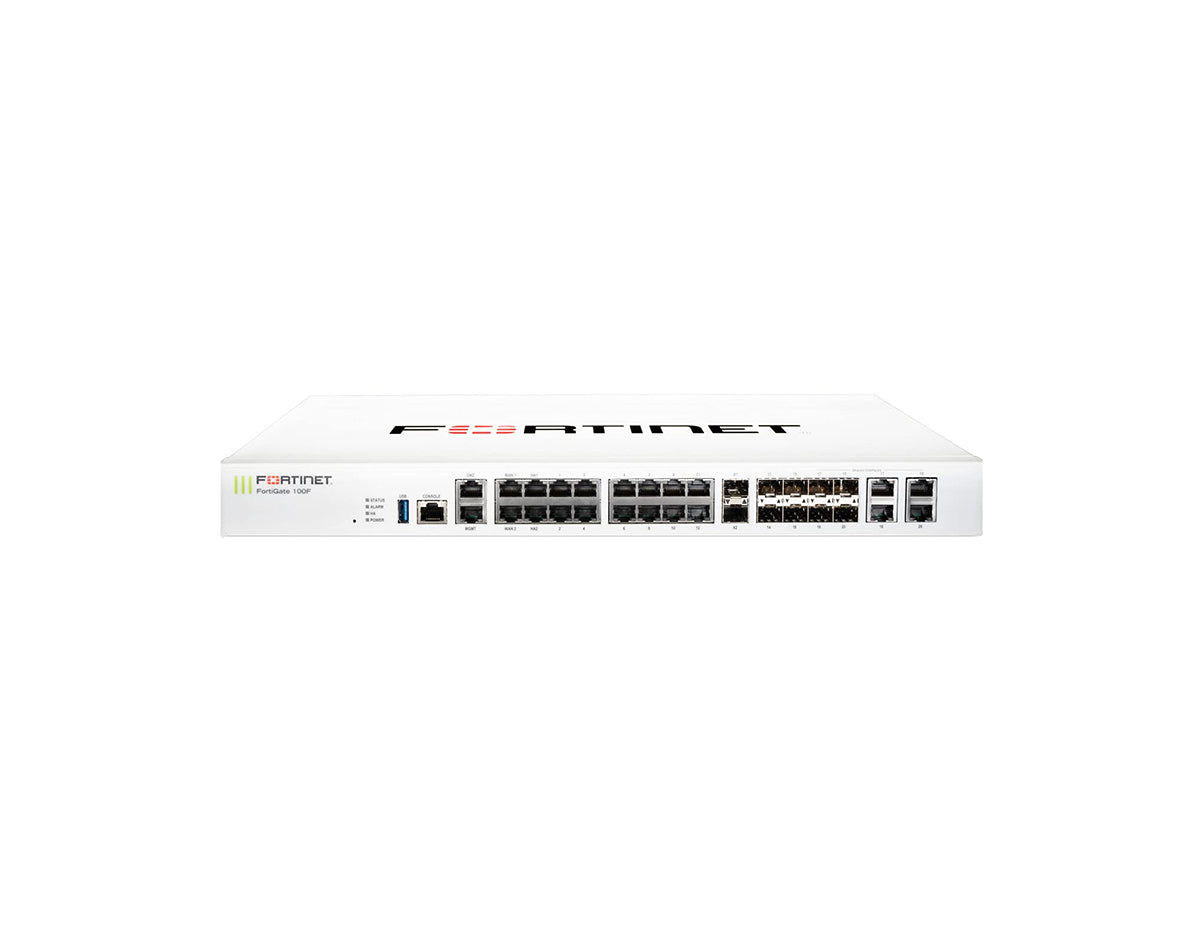

Fortinet FG-100F Firewall
The FortiGate 100F series integrates advanced firewall and SD-WAN functionalities designed for distributed locations within mid-sized to large enterprises. Utilizing a specialized Secure SD-WAN ASIC, the FortiGate 100F ensures high performance for essential business applications while maintaining strong security measures.
Quick Specs:
- 22x GE RJ45 Ports
- 4x SFP ports
- 2x 10GE SFP+ FortiLinks
- Firewall Throughput: 15 Mpps
- ASIC SOC4
Please see the related tabs for the FG-100F datasheet and compatible accessories.
Accessories
| Optional Accessories | |
| FN-TRAN-GC |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots.
|
| FN-TRAN-SX |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots
|
| FN-TRAN-LX |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
|
| FN-TRAN-SFP+GC |
10 GE SFP+ RJ45 transceiver module for systems with SFP+ slots.
|
| FN-TRAN-SFP+SR |
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots.
|
| FN-TRAN-SFP+LR |
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-SFP+ER |
10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-SFP+BD27 |
10GE SFP+ transceiver module, 30KM long range single BiDi for systems with SFP+ and SFP/ SFP+ slots (connects to FN-TRAN-SFP+BD33, ordered separately)
|
| FN-TRAN-SFP+BD33 |
10GE SFP+ transceiver module, 30KM long range single BiDi for systems with SFP+ and SFP/ SFP+ slots (connects to FN-TRAN-SFP+BD27, ordered separately)
|
Specifications
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 20 / 18 / 10 Gbps |
| Firewall Latency (64 byte UDP packets) | 4.97 μs |
| Firewall Throughput (Packets Per Second) | 15 Mpps |
| Concurrent Sessions (TCP) | 1.5 Million |
| New Sessions/Second (TCP) | 56.000 |
| Firewall Policies | 10.000 |
| IPsec VPN Throughput (512 byte packets) | 11.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
| Client-to-Gateway IPsec VPN Tunnels | 16000 |
| SSL-VPN Throughput | 1 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 500 |
| SSL Inspection Throughput | 1 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 1800 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 135000 |
| Application Control Throughput | 2.2 Gbps |
| IPS Throughput | 2.6 Gbps |
| NGFW Throughput | 1.6 Gbps |
| Threat Protection Throughput | 1 Gbps |
| CAPWAP Throughput | 15 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 32 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 128 / 64 |
| Maximum Number of FortiTokens | 5000 |
| Maximum Number of Registered FortiClients | - |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Dimensions in. | 1.73 x 17 x 10 |
| Form Factor | Rack Mount, 1 RU |
| Power Required | 100240V AC, 5060 Hz |
| Maximum Current | 100V / 1A, 240V / 0.5A |
| Power Consumption (Average / Maximum) | 35.1 W / 38.7 W |
| Operating Temperature | 32104°F (040°C) |
| Regulatory Compliance |
FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
|
| Certifications | USGv6/IPv6 |
Properties
| Properties | FG-100F |
| Description |
22x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x Mgmt port, 2x HA ports, 16x switch ports with 4 SFP port shared media), 4 SFP ports, 2x 10 GE SFP+ FortiLinks, dual power supplies redundancy
|
| Product Family | Mid Range Firewalls |
| Product Type | Firewall |
| GE RJ45 Ports | 12 |
| GE RJ45 Management/DMZ/HA Ports | 1/2/1 |
| GE RJ45/SFP Shared Media Pairs | 4 |
| GE RJ45 WAN Port | 2 |
| USB Port | 1 |
| Console (RJ45) | 1 |
| Wireless Interface | 0 |
