The FortiGate 1001F Series combines high-performance threat protection with ultra-fast 100GE and 25GE connectivity for data centers and hybrid IT environments. Powered by AI/ML-driven FortiGuard services and custom SPU NP7/CP9 processors, this Next-Generation Firewall delivers 19 Gbps of IPS throughput and includes 960GB of onboard SSD storage.
The FortiGate 1001F Series is a high-performance Next-Generation Firewall (NGFW) designed to secure data centers and hybrid IT architectures at scale. By consolidating security and networking into a single platform, the FG-1001F protects the network edge with industry-leading throughput and low latency. It features dedicated 100GE QSFP28 and 25GE SFP28 slots, eliminating the need for additional bridging devices and simplifying network design for high-speed cores.
This bundle includes Appliance + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (3 Year).
Powered by Fortinet’s patented SPU NP7 and CP9 processors, the FG-1001F delivers hardware-accelerated performance for critical functions including IPsec VPN, SSL inspection, and VXLAN termination. This model includes 960GB of onboard SSD storage (2x 480GB). With integrated ZTNA enforcement and AI/ML-powered FortiGuard services, the FortiGate 1001F helps maintain consistent protection against sophisticated cyber threats.
High-Performance Security for Data Centers with Integrated Storage
- 960GB Onboard Storage: Includes dual 480GB SSDs for onboard storage on the appliance.
- 100GE & 25GE Connectivity: Features multiple 100 GE QSFP28 and 25 GE SFP28 slots to handle high-speed traffic demands and simplify network segmentation.
- AI/ML-Powered FortiGuard Services: Designed to help combat known, unknown, and zero-day threats, including emerging AI-based threats.
- Hardware Acceleration: Utilizes custom SPU NP7 and CP9 ASICs to deliver up to 198 / 196 / 134 Gbps firewall throughput (UDP) and ultra-low latency of 3.45 µs (64-byte, UDP).
- Integrated ZTNA: Provides integrated Zero Trust Network Access enforcement within an NGFW solution to control and verify user access.
- Power & Efficiency: 215 W average and 415 W maximum power consumption, with 80Plus compliant power supplies.
- Enterprise Data Centers: Ideal for high-speed segmentation and core network protection requiring 100GE interfaces.
- Hybrid Mesh Firewalls: Weaves security deep into data centers and across hybrid IT environments to protect any edge at any scale.
- High-Speed Edge Security: Supports diverse connectivity options including 10GE, 25GE, and 100GE for flexible deployment in evolving networks.
- Encrypted Traffic Inspection: Offloads resource-intensive SSL/TLS 1.3 decryption to dedicated SPUs to maintain performance visibility.
- IPS Throughput: 19 Gbps
- NGFW Throughput: 15 Gbps
- Threat Protection Throughput: 13 Gbps
- Firewall Throughput: IPv4 198 / 196 / 134 Gbps (1518/512/64 byte, UDP); IPv6 198 / 196 / 134 Gbps (1518/512/86 byte, UDP)
- SSL Inspection Throughput: 10 Gbps (IPS, avg HTTPS)
- VPN Throughput: 55 Gbps (IPsec, 512 byte); supports up to 20,000 gateway-to-gateway and 100,000 client-to-gateway IPsec tunnels

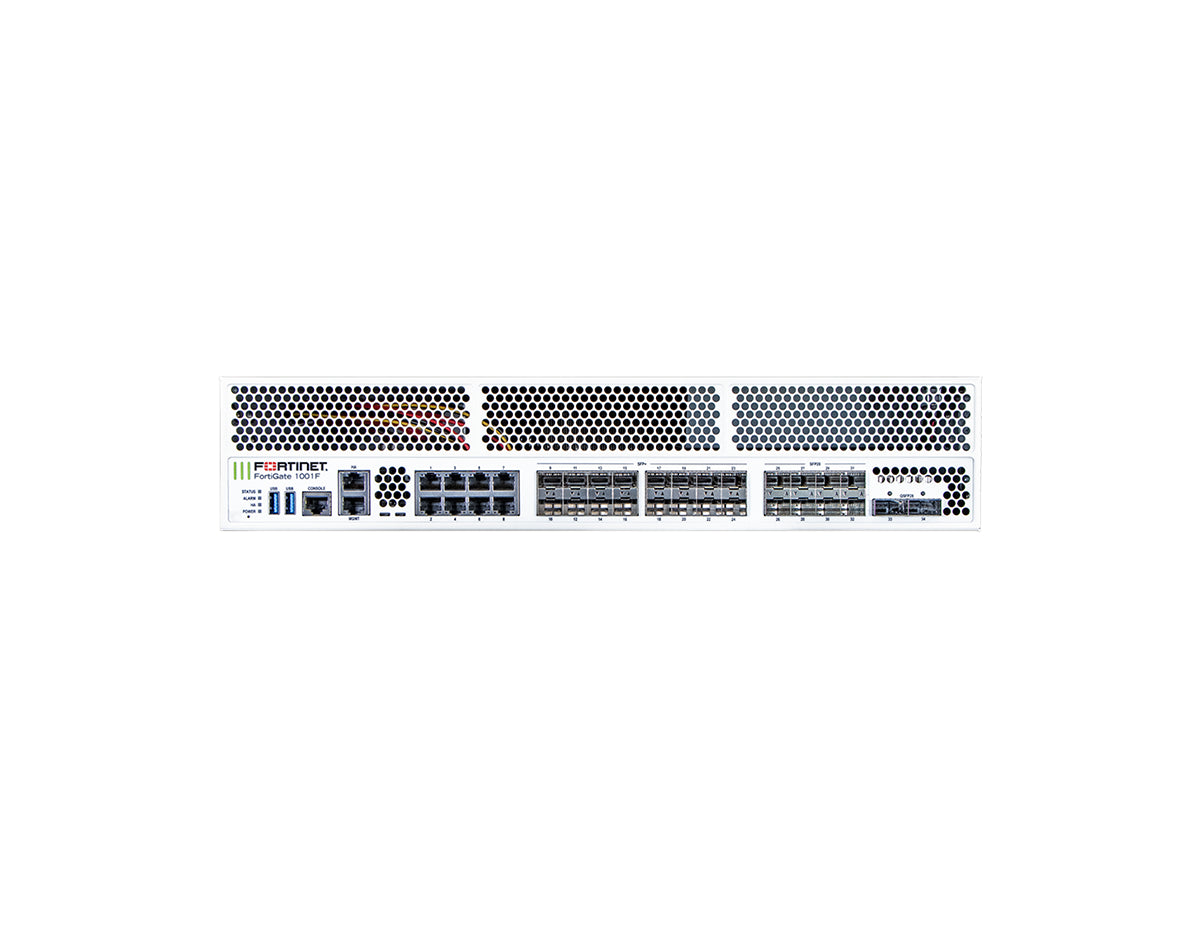

- Network Interfaces: 2x 100 GE QSFP28 / 40 GE QSFP+ slots, 8x 25 GE SFP28 / 10 GE SFP+ / GE SFP slots, 16x 10 GE SFP+ / GE SFP slots, 8x 10 GE / 5 GE / 2.5 GE / GE / 100M RJ45 ports, 1x GE RJ45 management port, 1x 2.5 GE / GE HA port
- Power / Physical: 215 W average / 415 W maximum; 3.5 x 17.44 x 17.63 in (88.9 x 443 x 447.4 mm); 22.71 lbs (10.3 kg)
Upgrade Your Network Security
Secure your data center with the Fortinet FG-1001F-BDL-950-36 bundle.
