Wall-Integrated Wi-Fi 7 Performance for Modern Indoor Networks

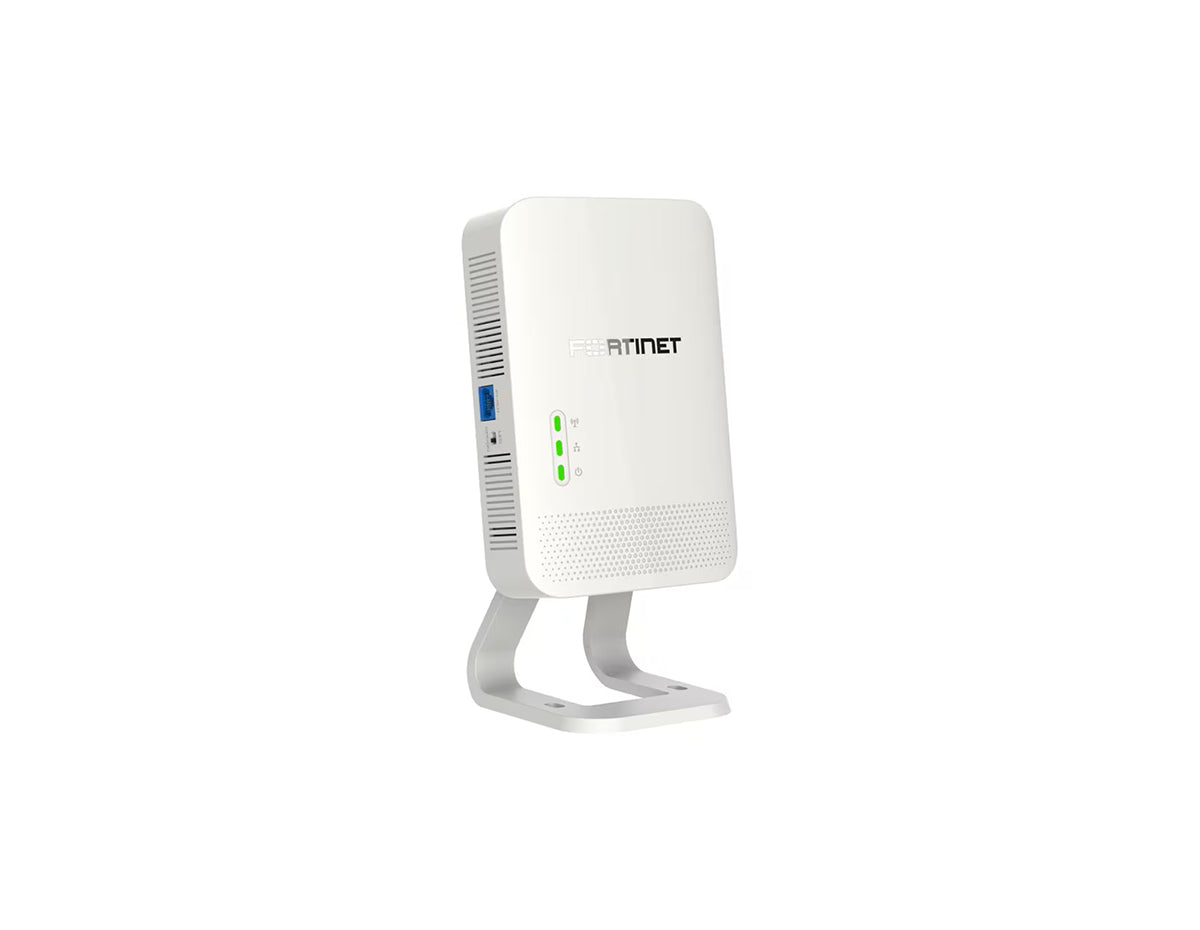

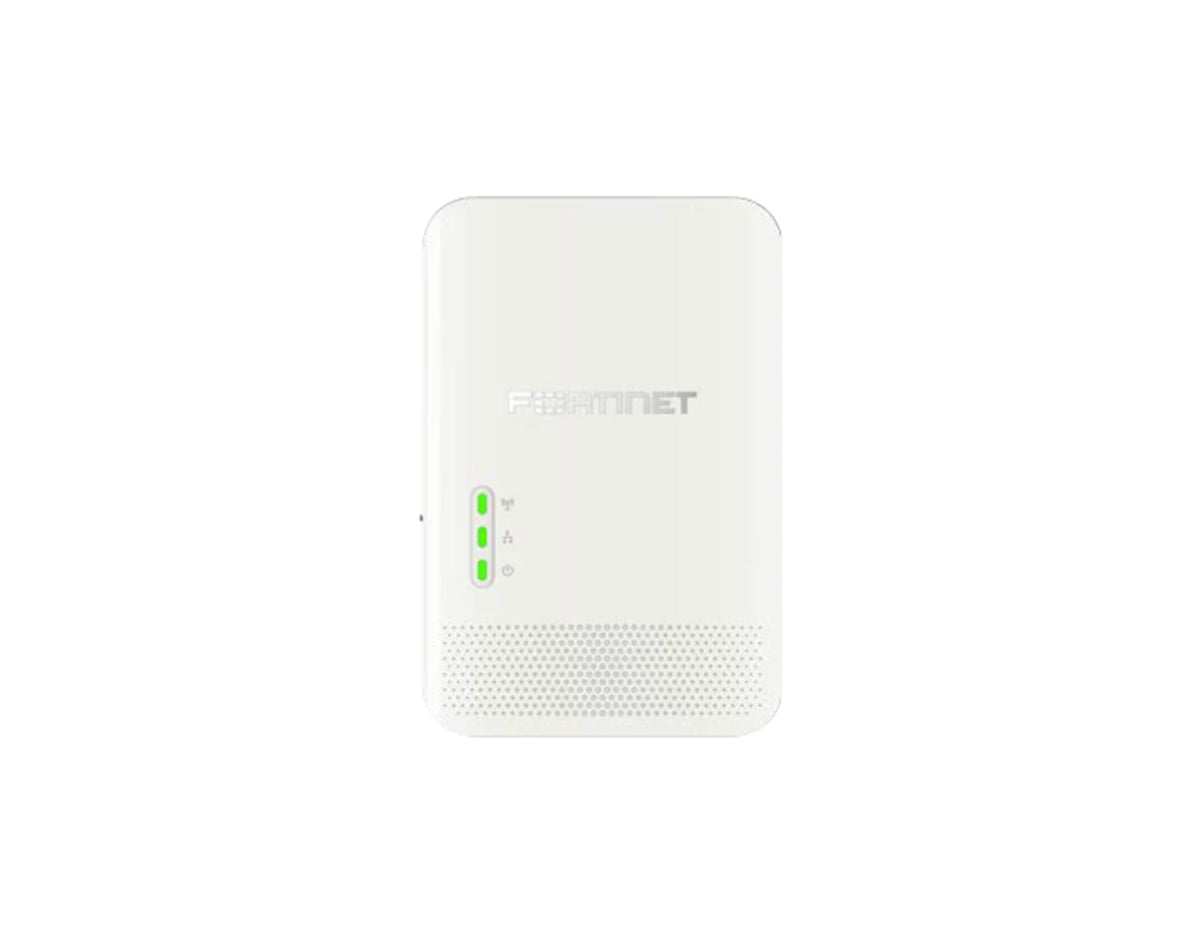

The Fortinet FortiAP-23JK Wall Plate Access Point is designed for high-density indoor deployments where performance, aesthetics, and flexibility matter. Built on Wi-Fi 7 technology, it delivers multi-gigabit wireless speeds while blending seamlessly into wall-mounted installations such as offices, hotels, classrooms, and residential units. With integrated switching ports and IoT radios, it reduces cabling complexity while extending secure connectivity to users and devices.
Key Benefits & Features
- Wi-Fi 7 tri-band architecture: Operates across 2.4 GHz, 5 GHz, and 6 GHz bands with 2x2 spatial streams per band for improved capacity and reduced latency.
- Integrated multi-port wall plate design: Includes one 10G Ethernet uplink, two active Gigabit Ethernet ports, and one RJ-45 pass-through port. One active port supports 802.3af PoE PSE to power downstream devices.
- High-density client handling: Supports up to 24 configured SSIDs and up to 512 clients per radio, optimized for shared environments.
- Built-in IoT radio support: Bluetooth Low Energy and Zigbee radios enable direct integration with IoT sensors and smart building devices.
- Enterprise wireless security: Features WIDS and WIPS, rogue AP detection, WPA3 support, and advanced authentication methods for secure access.
Ideal Use Cases
- Hotel rooms and hospitality guest networks
- Enterprise offices and meeting spaces
- University dormitories and classrooms
- Healthcare and clinical environments
- Smart buildings with IoT device integration
Technical Specifications
- Wireless standard: Wi-Fi 7 (IEEE 802.11be)
- Frequency bands: 2.4 GHz, 5 GHz, 6 GHz
- Maximum throughput: 688 Mbps (2.4 GHz), 2.88 Gbps (5 GHz), 5.76 Gbps (6 GHz)
- Ethernet interfaces: 1 x 10G RJ45 (Uplink), 2 x 10/100/1000 RJ45 (LAN), 1 x Pass-through
- PoE support: 802.3bt Input recommended; 1 x 802.3af PoE PSE output port
- IoT connectivity: Bluetooth 5.2 LE, Zigbee
- Antenna type: Internal antennas
- Mounting: Wall plate mounting kit included
- Form factor: Indoor wall mountable access point
Upgrade Your Wall-Mounted Wireless Experience
Deploy next-generation wireless with a compact design built for performance and flexibility. Order today.
