FORTINET FAP-223E-A ACCESS POINT
| Model: | FAP-223E-A |
| Detail: |
Indoor Wireless AP - Dual radio (802.11 b/g/n and 802.11 a/n/ac Wave 2, 2x2 MU-MIMO), external antennas included, 1 x 10/100/1000 RJ45 port, BT / BLE. Ceiling/wall mount kit included.For power order: 802.3af PoE injector GPI-115 or AC adapter SP-FAP200-PA. Region Code A |
| List Price: | |
| Price: | $150.00 |
| You Save: | $90.00 (38% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

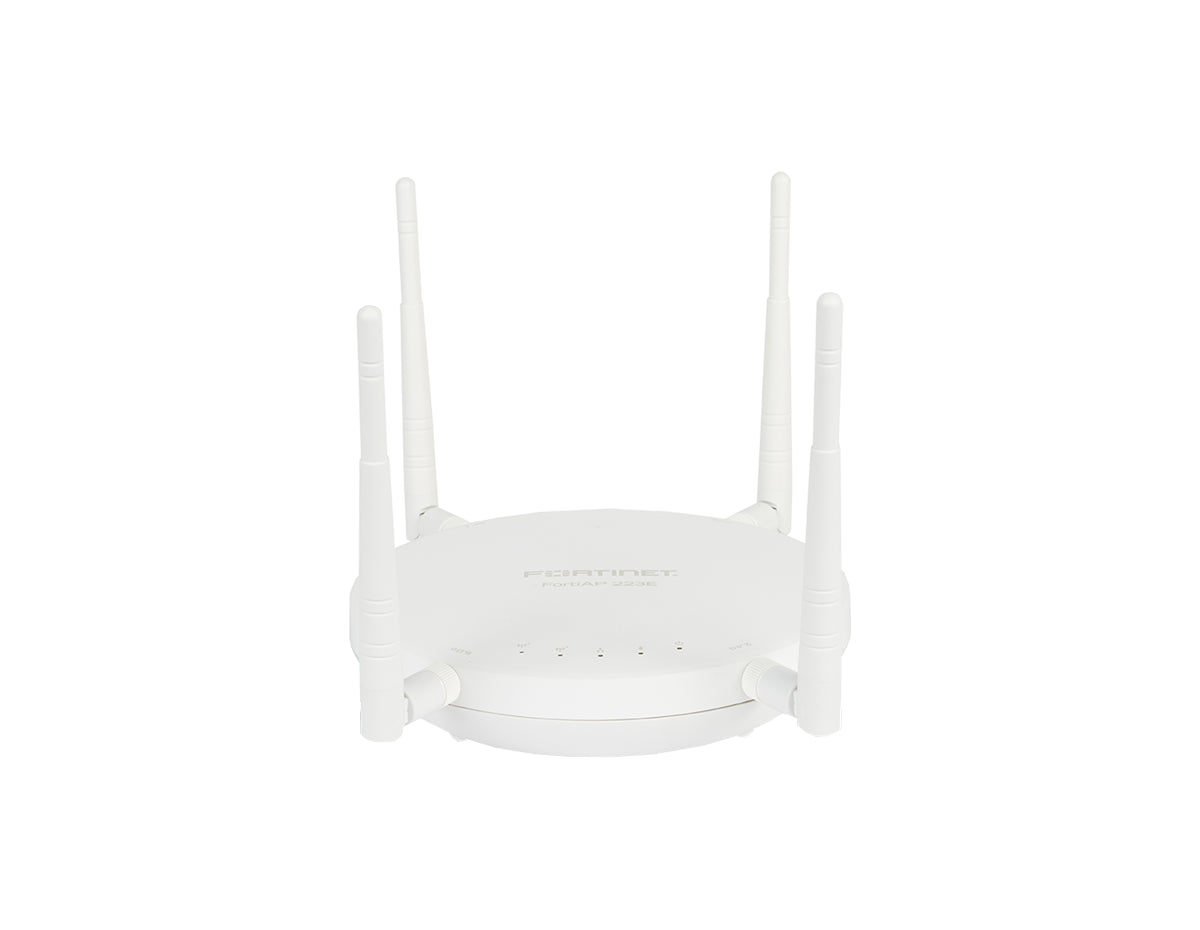

Fortinet FAP-223E-A Access Point
The FortiAP 223E represents a type of 802.11ac Wave 2 access point designed for medium-density usage. This access point, classified as Enterprise-grade, is well-suited for environments with moderate user density, such as offices or classrooms, and offers a Performance Throughput of up to 867 Mbps. The FortiAP-223E is equipped with Beamforming Technology, which directs wireless signals towards connected devices, thereby ensuring a robust and reliable connection across the designated area.
Quick Specs:
- 11ac Wave 2
- 1x 10/100/1000 Base-T RJ45
- Kensington Lock
- Number of Antennas: 4 External + 1 Internal BLE
Please see the related tabs for the FAP-223E-A datasheet and compatible accessories.
Accessories
| Mounting Options | Ceiling, T-Rail, and Wall |
| Included Accessories | Mount kit for Ceiling, T-Rail and Wall, 4 dipole antennas |
| Power Supply | SP-FAP200-PA-XX, GPI-115, or GPI-130 |
Specifications
| Advanced 802.11 Features | 802.11ac Wave 2 MUMIMO Transmit Beam Forming (TxBF)Low-Density Parity Check (LDPC) Encoding Maximum Likelihood Demodulation (MLD) Maximum Ratio Combining (MRC)A-MPDU and A-MSDU Packet Aggregation MIMO Power Save Short Guard Interval |
| Dimensions in. | 6.3 x 6.3 x 1.85 |
| Power Consumption (Max) | 12.36 W |
| Operating Temperature | -4°–113°F (-20°–45°C |
| IEEE Standards | 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.1Q, 802.1X, 802.3af, 802.3az |
| Certifications | Wi-Fi Alliance Certified |
| DFS:FCC, IC, CE, Japan, Taiwan, Korea |
Properties
| Properties | FAP-223E-A |
| Description | Indoor Wireless AP - Dual radio (802.11 b/g/n and 802.11 a/n/ac Wave 2, 2x2 MU-MIMO), external antennas included, 1 x 10/100/1000 RJ45 port, BT / BLE. Ceiling/wall mount kit included. For power order 802.3af PoE injector GPI-115 or AC adapter SP-FAP200-PA. |
| Product Family | Fortinet Indoor Wireless AP |
| Product Type | Access Points |
| Hardware Type | Indoor AP |
| Number of Radios | 2 + 1 BLE |
| Number of Antennas | 4 External + 1 Internal BLE |
| Antenna Type and Peak Gain | Dipole: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz |
| Frequency Bands (GHz)* | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Radio 1 Capabilities | 2.4 GHz b/g/n (2x2:2 stream) 20/40 MHz (256 QAM) |
| Radio 2 Capabilities | 5 GHz a/n/ac (2x2:2 stream) 20/40/80 MHz (256 QAM) |
| Radio 3 Capabilities | - |
| Maximum Data Rate | Radio 1: up to 400 Mbps Radio 2: up to 867 Mbps |
| Bluetooth Low Energy Radio | Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power |
| Interfaces | 1x 10/100/1000 Base-T RJ45 |
| Power over Ethernet (PoE) | IEEE 802.3af |
| Simultaneous SSIDs | Up to 16 (14 if background scanning enabled) |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or preshared key, WEP, Web Captive Portal, MAC blocklist & allowlist |
| Maximum Tx Power | 2.4 GHz: 23 dBm / 200 mW (2 chains combined)* 5 GHz: 24 dBm / 251 mW (2 chains combined)* |
| Per Radio Client Capacity | Up to 512 |
| Cellular Co-existence | Yes |
