Precision Coverage for High-Density Wireless Deployments

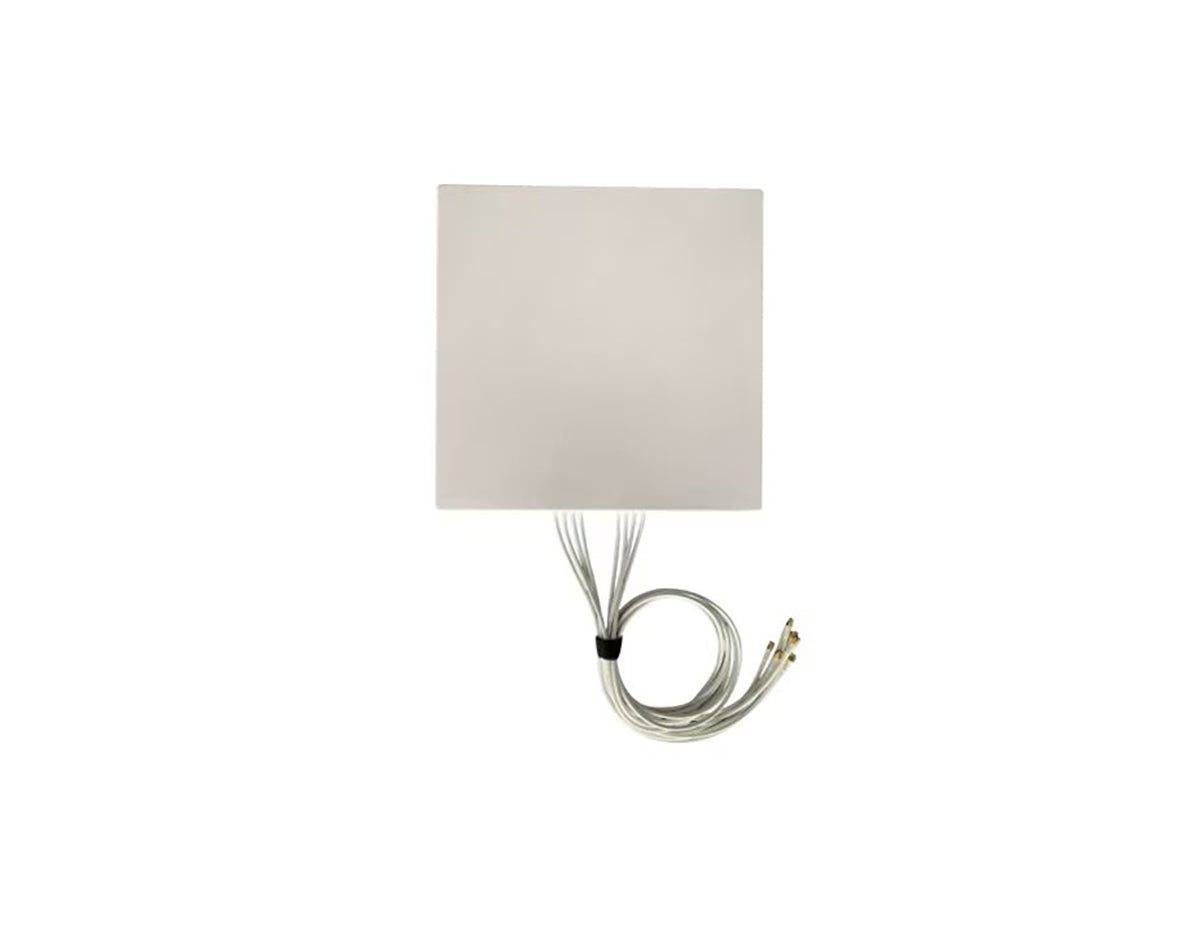

The Fortinet FANT-08ABGN-1213-D-R is a high-gain directional Wi-Fi antenna engineered for environments where precise coverage and interference control are critical. Designed for seamless integration with Fortinet FortiAP access points, this antenna delivers focused RF performance across both 2.4 GHz and 5 GHz bands, making it ideal for dense indoor and outdoor deployments.
With narrow beamwidths and dual polarization support, the FANT-08ABGN-1213-D-R enables targeted signal delivery, reduces co-channel interference, and improves overall wireless efficiency in demanding enterprise and industrial scenarios.
Key Benefits & Features
- High-Gain Directional Design: Provides 12 dBi gain at 2.4 GHz and 13 dBi at 5 GHz to extend coverage in specific zones while minimizing RF spillover.
- Dual-Band Performance: Supports 2400–2500 MHz and 5150–5850 MHz frequency ranges for flexible Wi-Fi network design.
- 8-Port MIMO Support: Equipped with eight RP-SMA male connectors, supporting advanced multi-radio FortiAP configurations.
- Dual Polarization: Four horizontal and four vertical polarized ports enhance signal diversity and throughput.
- Rugged Deployment Ready: Indoor and outdoor rated with IP54 protection and wind resistance up to 100 mph.
Ideal Use Cases
- High-density enterprise Wi-Fi deployments
- Warehouses and manufacturing facilities
- Large venues and targeted coverage zones
- Outdoor campus and yard connectivity
- Directional coverage for aisles and corridors
Technical Specifications
- Frequency Range: 2400–2500 MHz, 5150–5850 MHz
- Antenna Gain: 12 dBi (2.4 GHz), 13 dBi (5 GHz)
- Beamwidth: Horizontal 28°–50°, Vertical 28°–50°
- Polarization: 4x Horizontal, 4x Vertical
- Connectors: 8 x RP-SMA Male
- Maximum Power: 50 Watts
- Ingress Protection: IP54 compliant
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Dimensions: 12 x 12 x 1.5 inches
Upgrade Your Wireless Precision
Order today and optimize your Fortinet Wi-Fi deployment with targeted, high-gain coverage.
