Juniper EX9214-BASE3B-AC Chassis

Juniper EX9214-BASE3B-AC Chassis

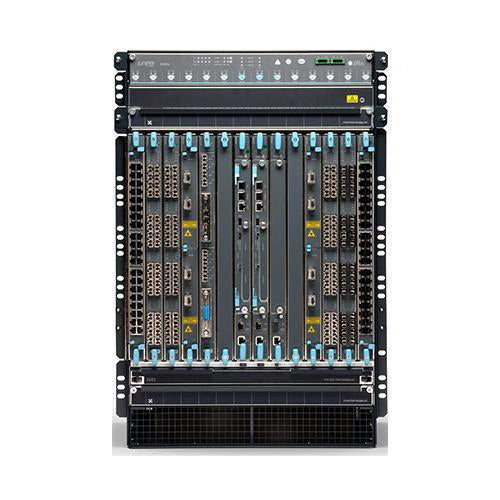

Juniper EX9214-BASE3B-AC is a base EX9214 modular chassis configuration for high-density campus core, aggregation, and data center deployments. It includes a 14-slot chassis with passive midplane, one EX9200-RE2 Routing Engine, two EX9200-SF2 switch fabric-2 modules, two fan trays, and three 4100W AC power supplies, along with the necessary blank panels.

As part of the EX9200 Series, the EX9214 platform provides scalable modular expansion, high availability features, and support for a wide range of EX9200 line cards for flexible 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE network designs.

This base configuration is suitable for organizations that need a large chassis foundation with room for future growth while maintaining operational resiliency and centralized management with Junos OS.

Properties	Juniper EX9214-BASE3B-AC
Description	Base EX9214 system configuration: 14-slot chassis with passive midplane, 2x fan trays, 1x EX9200-RE2 Routing Engine, 2x Switch Fabric-2 modules, 3x 4,100W AC power supplies, and all necessary blank panels.
Product Family	EX9200 Series
Product Type	Ethernet Switch Chassis
Total number of slots	14
Slots available for line cards	11 with fabric redundancy (12 without)
Routing Engine	1x EX9200-RE2
Switch Fabric Module	2x EX9200-SF2
Maximum GbE Port Density (wire speed)
1GbE	440
10GbE	576 (480)
25GbE	480
40GbE	120
100GbE	120
Fabric	• Up to 12 Tbps backplane capacity • Up to 1.5 Tbps (full duplex) per slot fabric capacity • 2+1 fabric redundancy
Routing Engine	• Master and backup Routing Engines (1+1 redundancy) • Up to 64 gigabytes DRAM • Dual front pluggable solid-state drives (SSD) (up to 64 GB each) • Console, auxiliary serial, and Ethernet management ports • USB storage interface
Operating system	Juniper Networks Junos operating system
Power	Holds up to four power supplies (two power supplies per power zone; two power zones per system) • 200-240 V AC (1+1 redundancy per power zone) Maximum power draw: 9,318 W (AC)
Cooling	• Front-to-back airflow • Hot-swappable fan tray with 1+1 redundancy
Dimensions (W x H x D)	17.5 x 27.8 x 27.75 in (44.5 x 70.5 x 70.5 cm)
Weight (fully loaded)	350.1 lbs (158.8 kg)
Rack units	16 U
Power Consumption
EX9214 Base Typical Power	1,290 W
EX9214 Base Reserved Power	1,670 W
Additional Units	Typical Power
EX9200 Routing Engine-2	90 W
EX9200 Switch Fabric-2	155 W
Additional Units	Maximum Power
EX9200 Routing Engine-2	90 W
EX9200 Switch Fabric-2	155 W
Power Supply Capacity
100-120V AC Input	N/A
200-240 V AC Input	8,200 W
-40 to -72 V DC Input	8,200 W
Maximum number of line cards in a chassis
EX9200-40XS	11
EX9200-15C	7
EX9200-12QS	11
EX9200-32XS	10
EX9200-6QS	10
EX9200-2C-8XS	11
EX9200-40T	11
EX9200-40F	11
EX9200-MPC	11

Specifications	EX9214-BASE3B-AC
Backplane capacity	Up to 12 Tbps
Maximum fabric bandwidth/slot	1.5 Tbps/slot
Switch fabric throughput per slot	480 Gbps (EX9200-SF2)
RE DRAM	64 GB
RE CPU	2 GHz, six-core
RE Storage	64 GB
Software Features
High availability	Hardware designed for continuous operation: • Secure, modular architecture that isolates faults • Separate control and forwarding planes that enhance scalability and resiliency • Transparent failover and network recovery • Graceful Routing Engine switchover (GRES) • Nonstop active routing (NSR) • Nonstop bridging (NSB) • Unified in-service software upgrade (unified ISSU)*
Layer 2 Features	Up to 1 million media access control (MAC) addresses Up to 512,000 Address Resolution Protocol (ARP) entries with ML license (256,000 entries without ML license) Up to 512,000 Forwarding Information Block (FIB) entries with ML license (256,000 entries without ML license) Jumbo frames (9,192 bytes maximum) 32,000 VLANs VLAN Registration Protocol 3ad – Link Aggregation Control Protocol (LACP) 1D – Spanning Tree Protocol (STP) 1w – Rapid Spanning Tree Protocol (RSTP) 1s – Multiple Spanning Tree Protocol (MSTP) VLAN Spanning Tree Protocol (VSTP)
Layer 3 Features	1 million IPv4 routing information base (RIB) 1 million IPv6 RIB Static routing RIP v1/v2 OSPF v1/v2 OSPF v3 Filter-based forwarding Virtual Router Redundancy Protocol (VRRP)* IPv6 Bidirectional Forwarding Detection (BFD) Virtual routers BGP (Advanced Feature license) IS-IS (Advanced Feature license)
Hardware tunneling	GRE tunnels MPLS capabilities (Advanced Feature License) VPLS BGP/MPLS VPNs Ethernet VPNs
Multicast	Up to 256,000 IPv4 multicast routes Up to 256,000 IPv6 multicast routes Internet Group Management Protocol (IGMP) v1/v2/v3 IGMP snooping MLD snooping Protocol Independent Multicast PIM-SM, PIM-SSM, PIM-DM Multicast Source Discovery Protocol (MSDP)
Firewall filters	Port ACLs VLAN ACLs Router ACLs Control plane denial-of-service (DoS) protection
Quality of service (QoS)	16,000 policers per chassis 8 egress queues per port Weighted random early detection (WRED) scheduling Weighted round-robin (WRR) queuing Strict priority queuing
Virtualization	Integration with Juniper Networks Contrail Integration with VMware NSX SDN controllers Network virtualization protocols such as VXLAN and OVSDB VXLAN Layer 2 and Layer 3 Gateway EVPN EVPN Multihoming (EVPN Switch Interface – Link aggregation) EVPN VXLAN L2 and L3 gateway Virtual Private LAN Service (VPLS) for Data Center Interconnect
Management	Junos OS command-line interface (CLI) Junos XML management protocol SNMP v1/v2/v3 RADIUS TACACS+ Extensive MIB support Firewall-based port mirroring Link Layer Discovery Protocol (LLDP) Advanced Insight Solutions (AIS)
Operating temperature	32° to 104° F (0° to 40° C)
Storage temperature	-40° to 158° F (-40° to 70° C)
Operating altitude	Up to 10,000 ft (3,048 m)
Seismic	Designed to meet GR-63, Zone 4 earthquake requirements
Relative humidity operating	5% to 90% (noncondensing)
Relative humidity non-operating	5 to 95% (noncondensing)
IEEE Compliance	IEEE 802.1AB: Link Layer Discovery Protocol (LLDP) IEEE 802.1D-2004: Spanning Tree Protocol (STP) IEEE 802.1p: Class-of-service (CoS) prioritization IEEE 802.1Q: Virtual Bridged Local Area Networks IEEE 802.1s: Multiple Spanning Tree Protocol (MSTP) IEEE 802.1w: Rapid Spanning Tree Protocol (RSTP) IEEE 802.3: 10BASE-T IEEE 802.3u: 100BASE-T IEEE 802.3ab: 1000BASE-T IEEE 802.3z: 1000BASE-X IEEE 802.3ae: 10-Gigabit Ethernet IEEE 802.3ba: 40-Gigabit/100-Gigabit Ethernet IEEE 802.3ah: OAM IEEE 802.3ad: Link Aggregation Control Protocol (LACP) IEEE 802.1ae: Media Access Control Security
RFC Compliance	Extensive RFC support (routing, multicast, MPLS, IPv6, QoS, management, and resiliency protocols) as listed in Juniper EX9200 platform documentation.
Services and Manageability	VXLAN, REST API, NETCONF over HTTPS, JET, OpenFlow 1.3, CLI, out-of-band management, configuration rollback, image rollback, SNMP, RMON, NTP, DHCP server/relay, RADIUS, TACACS+, SSHv2, secure copy, DNS resolver, syslog logging, environmental monitoring, temperature sensor, configuration backup via FTP/secure copy
Network Management—MIB Support	J-Flow and extensive SNMP/MIB support as listed in platform documentation.
Safety	Multiple international safety certifications (UL/CSA/IEC/EN) as listed in EX9200 documentation.
EMC	Multiple regional EMC compliance standards (FCC/EN/VCCI/BSMI/ICES/CISPR) as listed in EX9200 documentation.
Immunity	EN 55024 and EN 61000 immunity standards as listed in EX9200 documentation.
Network Equipment Building System (NEBS)	SR-3580 NEBS Criteria Levels (Level 3 Compliance) GR-63-Core: NEBS, Physical Protection
Environmental	Reduction of Hazardous Substances (ROHS) 5/6
Telco	Common Language Equipment Identifier (CLEI) code

Line Cards
EX9200-15C	15x 100GbE/40GbE line card with MACsec AES-256 for EX9200
EX9200-40XS	40-port 10GbE SFP+ line card supporting MACsec AES-256 (requires SFL software license for activation); requires SFP+ optics sold separately
EX9200-12QS	12-port 40GbE QSFP+ or 4-port 100GbE QSFP28 combo line card; requires optics sold separately
EX9200-MPC	EX9200 Modular Port Concentrator (MPC)
EX9200-20F-MIC	EX9200 20-port GBASE-X (half-slot) Modular Interface Card (MIC) supporting MACsec AES-128 (requires SFL software license for activation); requires EX9200-MPC (ordered separately)
EX9200-10XS-MIC	EX9200 10-port 10GBASE-X (half-slot) Modular Interface Card (MIC); requires EX9200-MPC (ordered separately)
Pluggable Optics
-	Add compatible Juniper SFP+/QSFP+/QSFP28 optics as needed (sold separately).
