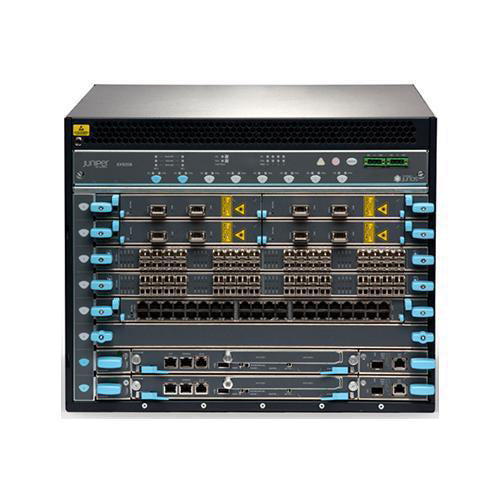

JUNIPER EX9208-RED3B-AC CHASSIS

Model: EX9208-RED3B-AC
Detail: Redundant EX9208 system configuration, 8-slot chassis with passive midplane, 2 x EX9200-RE2 routing engine, 2 x switch fabric-2 module, 4 x 2520W AC Power Supply, 1 x fan tray, all necessary blank panels
List Price: US$106,732.00
Price:
$51,231.36
You Save: $55,500.64 (52% OFF)
Condition: Brand New Sealed
Availability: SPECIAL ORDER
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-

Description



[accesories]
Line Cards
EX9200-15C 15x 100GbE/40GbE line card with MACsec AES-256 for EX9200
EX9200-40XS 40-port 10GbE SFP+ line card supporting MACsec AES-256 (requires SFL software license for activation); requires SFP+ optics sold separately
EX9200-12QS 12-port 40GbE QSFP+ or 4-port 100GbE QSFP28 combo line card; requires optics sold separately
EX9200-MPC EX9200 Modular Port Concentrator (MPC)
EX9200-20F-MIC EX9200 20-port GBASE-X (half-slot) Modular Interface Card (MIC) supporting MACsec AES-128 (requires SFL software license for activation); requires EX9200-MPC (ordered separately)
EX9200-10XS-MIC EX9200 10-port 10GBASE-X (half-slot) Modular Interface Card (MIC); requires EX9200-MPC (ordered separately)

Accessories

Line Cards
EX9200-15C 15x 100GbE/40GbE line card with MACsec AES-256 for EX9200
EX9200-40XS 40-port 10GbE SFP+ line card supporting MACsec AES-256 (requires SFL software license for activation); requires SFP+ optics sold separately
EX9200-12QS 12-port 40GbE QSFP+ or 4-port 100GbE QSFP28 combo line card; requires optics sold separately
EX9200-MPC EX9200 Modular Port Concentrator (MPC)
EX9200-20F-MIC EX9200 20-port GBASE-X (half-slot) Modular Interface Card (MIC) supporting MACsec AES-128 (requires SFL software license for activation); requires EX9200-MPC (ordered separately)
EX9200-10XS-MIC EX9200 10-port 10GBASE-X (half-slot) Modular Interface Card (MIC); requires EX9200-MPC (ordered separately)

Specifications

Specifications EX9208-RED3B-AC
Backplane capacity Up to 7.5Tbps
Maximum fabric bandwidth/slot 1.5 Tbps/slot
Switch fabric throughput per slot 480 Gbps (EX9200-SF2)
RE DRAM 64 GB
RE CPU 2 GHz, six-core
RE Storage 64 GB
Software Features
High availability Hardware designed for continuous operation:
• Secure, modular architecture that isolates faults
• Separate control and forwarding planes that enhance scalability and resiliency
• Transparent failover and network recovery
• Graceful Routing Engine switchover (GRES)
• Nonstop active routing (NSR)
• Nonstop bridging (NSB)
• Unified in-service software upgrade (unified ISSU)*
Layer 2 Features Up to 1 million media access control (MAC) addresses
Up to 512,000 Address Resolution Protocol (ARP) entries with ML license (256,000 entries without ML license)
Up to 512,000 Forwarding Information Block (FIB) entries with ML license (256,000 entries without ML license)
Jumbo frames (9,192 bytes maximum)
32,000 VLANs
VLAN Registration Protocol
3ad – Link Aggregation Control Protocol (LACP)
1D – Spanning Tree Protocol (STP)
1w – Rapid Spanning Tree Protocol (RSTP)
1s – Multiple Spanning Tree Protocol (MSTP)
VLAN Spanning Tree Protocol (VSTP)
Layer 3 Features 1 million IPv4 routing information base (RIB)
1 million IPv6 RIB
Static routing
RIP v1/v2
OSPF v1/v2
OSPF v3
Filter-based forwarding
Virtual Router Redundancy Protocol (VRRP)*
IPv6
Bidirectional Forwarding Detection (BFD)
Virtual routers
BGP (Advanced Feature license)
IS-IS (Advanced Feature license)
Hardware tunneling GRE tunnels
MPLS capabilities (Advanced Feature License)
VPLS
BGP/MPLS VPNs
Ethernet VPNs
Multicast Up to 256,000 IPv4 multicast routes
Up to 256,000 IPv6 multicast routes
Internet Group Management Protocol (IGMP) v1/v2/v3
IGMP snooping
MLD snooping
Protocol Independent Multicast PIM-SM, PIM-SSM, PIM-DM
Multicast Source Discovery Protocol (MSDP)
Firewall filters Port ACLs
VLAN ACLs
Router ACLs
Control plane denial-of-service (DoS) protection
Quality of service (QoS) 16,000 policers per chassis
8 egress queues per port
Weighted random early detection (WRED) scheduling
Weighted round-robin (WRR) queuing
Strict priority queuing
Virtualization Integration with Juniper Networks Contrail
Integration with VMware NSX SDN controllers
Network virtualization protocols such as Virtual eXtensible LAN (VXLAN) and Open vSwitch Database (OVSDB)
VXLAN Layer 2 and Layer 3 Gateway
EVPN
EVPN Multihoming (EVPN Switch Interface – Link aggregation)
EVPN VXLAN L2 and L3 gateway
Virtual Private LAN Service (VPLS) for Data Center Interconnect
Management Junos OS command-line interface (CLI)
Junos XML management protocol
SNMP v1/v2/v3
RADIUS
TACACS+
Extensive MIB support
Firewall-based port mirroring
Link Layer Discovery Protocol (LLDP)
Advanced Insight Solutions (AIS)
Operating temperature 32° to 104° F (0° to 40° C)
Storage temperature -40° to 158° F (-40° to 70° C)
Operating altitude Up to 10,000 ft (3,048 m)
Seismic Designed to meet GR-63, Zone 4 earthquake requirements
Relative humidity operating 5% to 90% (noncondensing)
Relative humidity non-operating 5 to 95% (noncondensing)
IEEE Compliance IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)
IEEE 802.1D-2004: Spanning Tree Protocol (STP)
IEEE 802.1p: Class-of-service (CoS) prioritization
IEEE 802.1Q: Virtual Bridged Local Area Networks
IEEE 802.1s: Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1w: Rapid Spanning Tree Protocol (RSTP)
IEEE 802.3: 10BASE-T
IEEE 802.3u: 100BASE-T
IEEE 802.3ab: 1000BASE-T
IEEE 802.3z: 1000BASE-X
IEEE 802.3ae: 10-Gigabit Ethernet
IEEE 802.3ba: 40-Gigabit/100-Gigabit Ethernet
IEEE 802.3ah: Operation, Administration, and Maintenance (OAM)
IEEE 802.3ad: Link Aggregation Control Protocol (LACP)
IEEE 802.1ae: Media Access Control Security
RFC Compliance RFC 768: UDP
RFC 783: Trivial File Transfer Protocol (TFTP)
RFC 791: IP
RFC 792: Internet Control Message Protocol (ICMP)
RFC 793: TCP
RFC 826: ARP
RFC 854: Telnet client and server
RFC 894: IP over Ethernet
RFC 903: Reverse Address Resolution Protocol (RARP)
RFC 906: TFTP Bootstrap
RFC 951, 1542: BootP
RFC 1027: Proxy ARP
RFC 1058: RIP v1
RFC 1112: IGMP v1
RFC 1122: Host Requirements
RFC 1195: Use of Open Systems Interconnection (OSI) IS-IS for Routing in TCP/IP and Dual Environments (TCP/IP transport only)
RFC 1256: IPv4 ICMP Router Discovery Protocol (IRDP)
RFC 1492: TACACS+
RFC 1519: Classless Interdomain Routing (CIDR)
RFC 1587: OSPF NSSA Option
RFC 1591: Domain Name System (DNS)
RFC 1745: BGP4/IDRP for IP-OSPF Interaction
RFC 1765: OSPF Database Overflow
RFC 1771: Border Gateway Protocol 4
RFC 1772: Application of the Border Gateway Protocol in the Internet
RFC 1812: Requirements for IP Version 4 Routers
RFC 1965: Autonomous System Confederations for BGP
RFC 1981: Path maximum transmission unit (MTU) Discovery for IPv6
RFC 1997: BGP Communities Attribute
RFC 2030: Simple Network Time Protocol (SNTP)
RFC 2068: HTTP server
RFC 2080: RIPng for IPv6
RFC 2081: RIPng Protocol Applicability Statement
RFC 2131: BOOTP/Dynamic Host Configuration Protocol (DHCP) relay agent* and DHCP server*
RFC 2138: RADIUS Authentication
RFC 2139: RADIUS Accounting
RFC 2154: OSPF with Digital Signatures (password, Message Digest 5)
RFC 2236: IGMP v2
RFC 2267: Network Ingress Filtering
RFC 2270: BGP-4 Dedicated autonomous system (AS) for Sites/Single Provider
RFC 2283: Multiprotocol Extensions for BGP-4
RFC 2328: OSPF v2 (Edge mode)
RFC 2338: VRRP*
RFC 2362: PIM-SM (Edge mode)
RFC 2370: OSPF Opaque LSA Option
RFC 2373: IPv6 Addressing Architecture
RFC 2375: IPv6 Multicast Address Assignments
RFC 2385: TCP MD5 Authentication for BGPv4
RFC 2439: BGP Route Flap Damping
RFC 2453: RIP v2
RFC 2460: Internet Protocol, v6 (IPv6) specification
RFC 2461: Neighbor Discovery for IP Version 6 (IPv6)
RFC 2462: IPv6 Stateless Address Autoconfiguration
RFC 2463: ICMPv6
RFC 2464: Transmission of IPv6 Packets over Ethernet Networks
RFC 2474: DiffServ Precedence, including 8 queues/port
RFC 2475: DiffServ Core and Edge Router Functions
RFC 2526: Reserved IPv6 Subnet Anycast Addresses
RFC 2545: Use of BGP-4 Multiprotocol Extensions for IPv6 Interdomain Routing
RFC 2547: BGP/MPLS VPNs
RFC 2597: DiffServ Assured Forwarding (AF)
RFC 2598: DiffServ Expedited Forwarding (EF)
RFC 2710: Multicast Listener Discovery (MLD) for IPv6
RFC 2711: IPv6 Router Alert Option
RFC 2740: OSPF for IPv6
RFC 2796: BGP Route Reflection (supersedes RFC 1966)
RFC 2796: Route Reflection
RFC 2858: Multiprotocol Extensions for BGP-4
RFC 2893: Transition Mechanisms for IPv6 Hosts and Routers
RFC 2918: Route Refresh Capability for BGP-4
RFC 3031: Multiprotocol Label Switching Architecture
RFC 3032: MPLS Label Stack Encoding
RFC 3036: LDP Specification
RFC 3065: Autonomous System Confederations for BGP
RFC 3176 sFlow
RFC 3215: LDP State Machine
RFC 3306: Unicast-Prefix-based IPv6 Multicast Addresses
RFC 3376: IGMP v3
RFC 3392: Capabilities Advertisement with BGP-4
RFC 3446: Anycast Rendevous Point (RP) Mechanism using PIM and MSDP
RFC 3478: Graceful Restart for Label Distribution Protocol
RFC 3484: Default Address Selection for IPv6
RFC 3513: Internet Protocol Version 6 (IPv6) Addressing
RFC 3569: PIM-SSM PIM Source Specific Multicast
RFC 3587: IPv6 Global Unicast Address Format
RFC 3618: Multicast Source Discovery Protocol (MSDP)
RFC 3623: OSPF Graceful Restart
RFC 3768: Virtual Router Redundancy Protocol (VRRP)*
RFC 3810: Multicast Listener Discovery Version 2 (MLDv2) for IP
RFC 3973: PIM-Dense Mode
RFC 4213: Basic Transition Mechanisms for IPv6 Hosts and Routers
RFC 4291: IPv6 Addressing Architecture
RFC 4360: BGP Extended Communities Attribute
RFC 4364: BGP/MPLS IP Virtual Private Networks (VPNs)
RFC 4443: ICMPv6 for the IPv6 specification
RFC 4486: Sub codes for BGP Cease Notification message
RFC 4552: Authentication/Confidentiality for OSPFv3
RFC 4604: Using Internet Group Management Protocol Version 3 (IGMPv3)
RFC 4724: Graceful Restart Mechanism for BGP
RFC 4761: Virtual Private LAN Service (VPLS) using BGP for auto-discovery and signaling
RFC 4798: Connecting IPv6 Islands over IPv4 MPLS Using IPv6 Provider Edge Routers (6PE)
RFC 4861: Neighbor Discovery for IPv6
RFC 4862: IPv6 Stateless Address Autoconfiguration
RFC 5095: Deprecation of Type 0 Routing Headers in IPv6
RFC 5286, Basic Specification for IP Fast Reroute: Loop-Free Alternates
RFC 5306: Restart Signaling for IS-IS
RFC 5308: Routing IPv6 with IS-IS
RFC 5340: OSPF for IPv6
Draft-ietf-bfd-base-09.txt: Bidirectional Forwarding Detection
Draft-ietf-l2vpn-evpn-00.txt: BGP MPLS-based Ethernet VPN
Services and Manageability Virtual eXtensible Local Area Network (VXLAN)
REST API
NETCONF sessions over outbound HTTPS
Juniper Extension Toolkit (JET)
OpenFlow v1.3
Junos OS CLI
Out-of-band management: Serial; 10/100/1000BASE-T Ethernet
ASCII configuration file
Rescue configuration
Configuration rollback
Image rollback
SNMP: v1, v2c, v3
RMON (RFC 2819): Groups 1, 2, 3, 9
Network Time Protocol (NTP)
DHCP server
DHCP relay with Option 82
RADIUS
TACACS+
SSHv2
Secure copy
DNS resolver
Syslog logging
Environment monitoring
Temperature sensor
Configuration backup via FTP/secure copy
Network Management—MIB Support J-Flow
RFC 1155: Structure of Management Information (SMI)
RFC 1157: SNMPv1
RFC 1212, RFC 1213, RFC 1215: MIB-II, Ethernet-like MIB, and traps
RFC 1657: BGP-4 MIB
RFC 1724: RIPv2 MIB
RFC 1850: OSPFv2 MIB
RFC 1901: Introduction to Community-based SNMPv2
RFC 1902: Structure of Management Information for Version 2 of the Simple Network Management Protocol (SNMPv2)
RFC 1905, RFC 1907: SNMP v2c, SMIv2, and Revised MIB-II
RFC 2011: SNMPv2 for IP using SMIv2
RFC 2012: SNMPv2 for transmission control protocol using SMIv2
RFC 2013: SNMPv2 for user datagram protocol using SMIv2
RFC 2096: IPv4 Forwarding Table MIB
RFC 2287: System Application Packages MIB
RFC 2465: Management Information Base for IP Version 6
RFC 2570–2575: SNMPv3, user-based security, encryption, and authentication
RFC 2576: Coexistence between SNMP Version 1, Version 2, and Version 3
RFC 2578: SNMP Structure of Management Information MIB
RFC 2579: SNMP Textual Conventions for SMIv2
RFC 2665: Ethernet-like interface MIB
RFC 2787: VRRP MIB
RFC 2819: RMON MIB
RFC 2863: Interface Group MIB
RFC 2863: Interface MIB
RFC 2922: LLDP MIB
RFC 2925: Ping/Traceroute MIB
RFC 2932: IPv4 Multicast MIB
RFC 3413: SNMP Application MIB
RFC 3826: The Advanced Encryption Standard (AES) Cipher Algorithm in the SNMP
RFC 4188: STP and Extensions MIB
RFC 4363: Definitions of Managed Objects for Bridges with traffic classes, multicast filtering, and VLAN extensions
Draft-ietf-idr-bgp4-mibv2-02.txt: Enhanced BGP-4 MIB
Draft-ietf-isis-wg-mib-07
Draft-reeder-snmpv3-usm-3desede-00
Draft-ietf-idmr-igmp-mib-13
Draft-ietf-idmr-pim-mib-09
Draft-ietf-bfd-mib-02.txt
Safety CAN/CSA-22.2 No. 60950-00/UL 1950 Third Edition, Safety of Information Technology Equipment
EN 60825-1 Safety of Laser Products—Part 1: Equipment Classification, Requirements, and User’s Guide
EN 60950 Safety of Information Technology Equipment
IEC 60950-1 (2001) Safety of Information Technology Equipment (with country deviations)
EN 60825-1 +A1+A2 (1994) Safety of Laser Products—Part 1: Equipment Classification
EN 60825-2 (2000) Safety of Laser Products—Part 2: Safety of Optical Fiber Comm. Systems
C-UL to CAN/CSA 22.2 No.60950-1 (Second Edition)
TUV/GS to EN 60950-1, Amendment A1-A4, A11
CE-IEC60950-1, all country deviations
EMC AS/NZS CISPR22:2009
EN 55022 2006+A1:2007 European Radiated Emissions
FCC 47CFR , Part 15 Class A (2009) USA Radiated Emissions
VCCI-V-3/2009.04 and V-4/2009.04 Japanese Radiated Emissions
BSMI CNS 13438 and NCC C6357 Taiwan Radiated Emissions
EN 300 386 V1.5.1 Telecom Network Equipment - EMC requirements
ICES-003 Issue 4, Feb 2004 Canada Radiated Emissions
CISPR 24:1997/A1:2001/A2:2002 IT Equipment Immunity Characteristics
Immunity EN 55024:1998/A1:2001/A2:2003 Information Technology Equipment Immunity Characteristics
EN-61000-3-2 (2006) Power Line Harmonics
EN-61000-3-3 +A1 +A2 +A3 (1995) Power Line Voltage Fluctuations
EN-61000-4-2 +A1 +A2 (1995) Electrostatic Discharge
EN-61000-4-3 +A1+A2 (2002) Radiated Immunity
EN-61000-4-4 (2004) Electrical Fast Transients
EN-61000-4-5 (2006) Surge
EN-61000-4-6 (2007) Immunity to Conducted Disturbances
EN-61000-4-11 (2004) Voltage Dips and Sags
Network Equipment Building System (NEBS) SR-3580 NEBS Criteria Levels (Level 3 Compliance)
GR-63-Core: NEBS, Physical Protection
Environmental Reduction of Hazardous Substances (ROHS) 5/6
Telco Common Language Equipment Identifier (CLEI) code

Properties

Properties Juniper EX9208-RED3B-AC
Description Redundant EX9208 system configuration: 8-slot chassis with passive midplane and 1x fan tray, 2x EX9200-RE2 Routing Engines, 2x Switch Fabric-2 modules, 4x 2,520 W AC PSUs, and all necessary blank panels.
Product Family EX9200 Series
Product Type Ethernet Switch
Total number of slots 8
Slots available for line cards 6
Routing Engine 2x EX9200-RE2
Switch Fabric Module 2x EX9200-SF2
Maximum GbE Port Density (wire speed)
1GbE 240
10GbE 288 (240)
25GbE 360
40GbE 90
100GbE 90
Fabric • Up to 7.5 Tbps backplane capacity
• Up to 1.5 Tbps (full duplex) per slot fabric capacity
• 1+1 fabric redundancy
Routing Engine • Master and backup Routing Engines (1+1 redundancy)
• Up to 64 gigabytes DRAM
• Dual front pluggable solid-state drive (SSD) (Up to 64 GB each)
• Console, auxiliary serial, and Ethernet management ports
• USB storage interface
Operating system Juniper Networks Junos operating system
Power Holds up to four power supplies:
• 100-120 V AC (3+1 redundancy)
• 200-240 V AC (2+2 redundancy)
Maximum power draw: 4,831 W (AC)
Cooling • Front-to-back airflow
• Hot-swappable fan tray with 1+1 redundancy
Dimensions (W x H x D) 17.5 x 14 x 27.75 in
(44.5 x 35.6 x 70.5 cm)
Weight (fully loaded) 163.6 lbs (74.2 Kg)
Rack units 8 U
Power Consumption
EX9208 Redundant Typical Power 800 W
EX9208 Redundant Reserved Power 800 W
Additional Units Typical Power
EX9200 Routing Engine-2 90 W
EX9200 Switch Fabric-2 155 W
Additional Units Maximum Power
EX9200 Routing Engine-2 90 W
EX9200 Switch Fabric-2 155 W
Power Supply Capacity
100-120V AC Input 3,501 W
200-240 V AC Input 4,100 W
-40 to -72 V DC Input 4,100 W
Maximum number of line cards in a chassis
EX9200-40XS 6
EX9200-15C 6
EX9200-12QS 6
EX9200-32XS 4
EX9200-6QS 4
EX9200-2C-8XS 6
EX9200-40T 6
EX9200-40F 6
EX9200-MPC 6
INTERNATIONAL -

International buyers must acknowledge that all duties and taxes are their sole responsibility and Network Devices Inc is not held responsible for possible additional charges.

DOMESTIC -

Products are shipped Monday through Friday via UPS/FedEx/USPS. The estimated delivery time is 1-6 business days depending on location. If “Free Shipping” is offered, it will be by Ground only and within USA Continental States Only (48 States). There will be a surcharge on shipments to Hawaii, Alaska, Puerto Rico and APO/FPO addresses. After you have made a purchase, the surcharge will be calculated using the parcel’s weight and size. Network Devices Inc ships the product the same day of receiving an order. Otherwise you will a receive notification of delay or cancellation of said order.

Just added to your wishlist:
My Wishlist
You've just added this product to the cart:
Checkout
