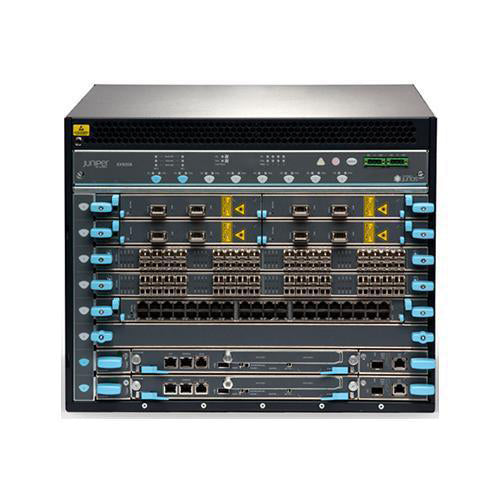

Juniper EX9208-BASE3A-AC Chassis

Juniper EX9208-BASE3A-AC Chassis

The Juniper EX9208-BASE3A-AC is a base configuration modular chassis in the EX9200 Series, built for high-density campus aggregation and data center environments. This 8U chassis includes the core hardware required to start an EX9208 deployment: one EX9200-SF2 switch fabric module, one EX9200-RE routing engine module, one fan tray, one air filter kit, and three 2520W AC power supplies.

The EX9208 platform is designed for scalability and high availability, with support for up to six hot-removable/hot-insertable line cards and redundant, load-sharing power architecture. The chassis can support up to four AC or DC power supplies (without mixing AC and DC in the same chassis), and major components such as power supplies, fan tray, and line cards are field-replaceable units (FRUs) for easier maintenance and serviceability.

Please note that line cards are not included in the base chassis configuration and must be ordered separately based on the required port density and interface type.

Properties	Juniper EX9208-BASE3A-AC Chassis
Description	Base EX9208 chassis configuration with AC power, including chassis with craft interface and midplane, one EX9200-SF2 module, one EX9200-RE module, one fan tray, one air filter kit, and three 2520W AC power supplies.
Product Family	Juniper EX9200 Series
Product Type	Modular Ethernet Switch Chassis
Chassis Size	8U
Power Type	AC
Included Power Supplies	3 x 2520W AC
Cooling	1 x Fan Tray (FRU), side-to-side cooling
Routing Engine	1 x EX9200-RE (base configuration)
Switch Fabric	1 x EX9200-SF2
Line Card Slots	6 horizontal slots (line cards sold separately)
Hot-Swap Components	Line cards, fan tray, power supplies (FRUs)
First Junos OS Release	14.1

Specification	Details
SKU	EX9208-BASE3A-AC
Configuration Type	Base configuration with 2520W AC power supplies
Included Components	Chassis with craft interface and midplane; 1 x EX9200-SF2 module; 1 x EX9200-RE module; 1 x fan tray; 1 x air filter kit; 3 x 2520W AC power supplies; 1 x EX9200-SF module cover panel; 6 x line card cover panels; blank panels for empty power supply slots
System Architecture	Modular EX9208 switch chassis designed for high performance, scalable connectivity, and carrier-class reliability
Throughput (EX9208 platform)	Up to 4.8 Tbps total or up to 240 Gbps per slot full duplex
Host Subsystem	Routing Engine + Switch Fabric working together (base configuration includes one host subsystem)
Line Card Capacity	Up to 6 line cards (slots 0–5)
Line Card Notes	Line cards are not part of base/redundant configurations and must be ordered separately
Power Supply Capacity (Chassis)	Supports up to 4 AC or DC power supplies (do not mix AC and DC in same chassis)
Power Cord Note	Power cords and additional power supplies must be purchased separately
Rack Fit	8U chassis; five EX9208 switches fit in a standard 48U rack
