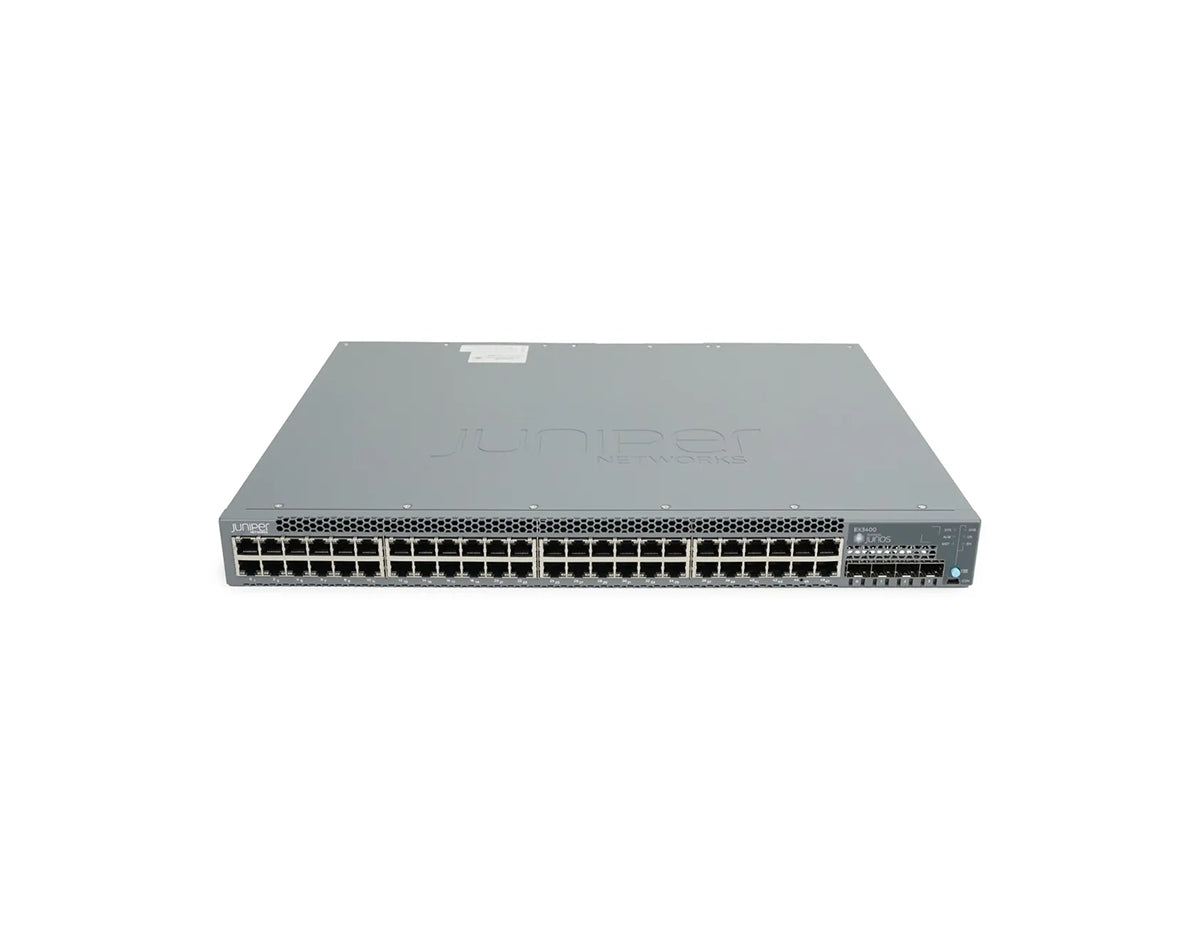

JUNIPER EX3400-48T SWITCH

Model: EX3400-48T
Detail: --> THIS ITEM IS A SPECIAL ORDER AND MAY TAKE ADDITIONAL SHIPPING TIME, Switch, L3, managed, 48 x 10/100/1000 + 4 x Gigabit SFP / 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+, rack-mountable, <
List Price: US$6,691.00
Price:
$3,095.00
You Save: $3,596.00 (54% OFF)
Condition: Brand New Sealed
Availability: SPECIAL ORDER
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside New Jersey
Quantity:
+
-

-->

Â

Juniper EX3400-48T Switch Overview

Â

EX3400 Ethernet Switches are a cost-effective solution for highly demanding converged data, voice, and video enterprise access networks. The compact, fixed-configuration 1U devices offer levels of performance and management. This model offers 48 10/100/1000BASE-T ports, the EX3400 switch also supports IEEE 802.3af Power over Ethernet for powering networked telephones, video cameras, wireless LAN access points, and other IP devices. Four front-panel dual-mode (GbE/10GbE) SFP/SFP+ uplink ports and two 40GbE QSFP+ ports are also available for connecting the switches to upstream devices. The EX3400Â supports Juniper's unique Virtual Chassis technology for interconnecting up to 10 switches that can be managed as a single device. The EX3400 can also be configured as a satellite device in a Junos Fusion Enterprise deployment, which aggregates large numbers of access switches into a logical management platform.

Â

Ports 48-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+, 2 x 40GbE QSFP+
Backplane speed 160 Gbps
Data rate 336 Gbps
Throughput 250 Mpps (wire speed)
Dimensions (W x H x D) 17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm)
1 rack unit

Specifications

-->

Form factor Fixed platform
Virtual Chassis configuration consisting of up to 10 switches
Junos Fusion Enterprise Satellite device
40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities 2
100GBASE C form-factor pluggable transceiver (CFP) port densities N/A
Resiliency Redundant, field-replaceable power supplies
Redundant trunk groups that provide port redundancy and simplify switch configuration
Operating system Junos OS
Traffic monitoring sFlow
Quality-of-service (QoS) queues/port 8 unicast/4 multicast
MAC addresses 32,000
Jumbo frames 9216 bytes
IPv4 unicast/multicast routes 36,000/4,000
IPv6 unicast/multicast routes 18,000/2,000
Number of VLANs 4,096
ARP entries 16,000
