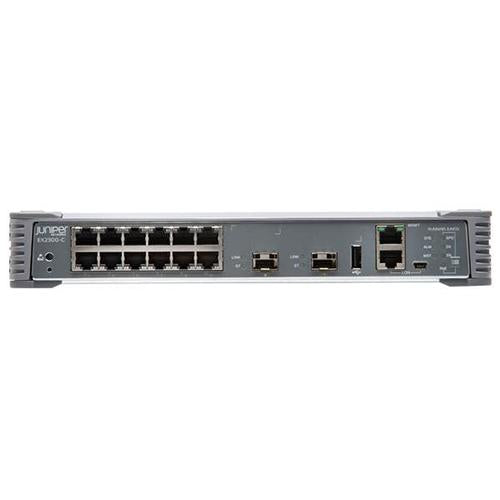

JUNIPER EX2300-C-12P-VC SWITCH WITH VIRTUAL CHASSIS LICENSE

Model: EX2300-C-12P-VC
Detail: , Switch, L3, managed, 12 x 10/100/1000 (PoE+) + 2 x Gigabit SFP / 10 Gigabit SFP+, rack-mountable, PoE+ (124 W), with‚ Virtual Chassis License
List Price: US$2,308.00
Price:
$1,154.00
You Save: $1,154.00 (50% OFF)
Condition: Brand New Sealed
Availability: SPECIAL ORDER
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-

Description

The Juniper Networks EX2300-C Ethernet Switch offers an economical, entry-level solution in a compact, fanless form factor for access layer deployments in branches, retail, and workgroup environments. To simplify network operations, the EX2300-C is hardware-ready to act as a satellite device to support a Juniper Networks Junos Fusion Enterprise deployment, which can combine several wiring closets into one logical management platform. For smaller deployments, the EX2300 also supports Juniper Networks Virtual Chassis technology, allowing up to four interconnected switches to be managed as a single logical device, delivering a scalable, pay-as-you-grow solution for expanding networks. The Juniper Networks EX2300-C Ethernet Switch delivers a compact, silent, and power-efficient platform for low-density branch deployments and commercial access or enterprise workgroup environments outside the wiring closet. Featuring 12 10/100/1000BASE-T access ports and two 10GbE uplink ports in a fanless design, the EX2300-C switch delivers a powerful solution for supporting services such as unified communications, IP telephony, closed circuit television (CCTV), and other applications in office, classroom, hospitality, and other space and wiring-constrained environments.




Accessories

Accessories and License Upgrade PIDs
EX-CBL-CON-USB Console cable with USB Type A and mini-B connectors
EX2300-C-CBL-GRD Cable guard
EX2300-C-MGNT-MNT Magnet mount
EX2300-C-RMK Rack-mount kit
Subscription Licenses
S-EX-A-C1-3 Software, EX Series Advanced license, Class 1 (12 ports), includes Wired Assurance subscription for EX Series 12-port switches, 3 year
S-EX-A-C1-5 Software, EX Series Advanced license, Class 1 (12 ports), includes Wired Assurance subscription for EX Series 12-port switches, 5 year
S-EX-A-C1-3-COR Software, EX Series Advanced license, Class 1 (12 ports), includes Wired Assurance subscription for EX Series 12-port switches with SVC CORE support, 3 year
S-EX-A-C1-5-COR Software, EX Series Advanced license, Class 1 (12 ports), includes Wired Assurance subscription for EX Series 12-port switches with SVC CORE support, 5 year
Perpetual Licenses
S-EX-A-C2-P Software, EX Series Advanced license, Class 2 Perpetual license for 12-port switches
EX-12-EFL Enhanced Feature License for EX2300 12 port switches
Optics
EX-SFP-10GE-USR SFP+ 10-Gigabit Ethernet Ultra Short Reach Optics, 850 nm for 10m on OM1, 20m on OM2, 100m on OM3 multimode fiber
EX-SFP-10GE-DAC-1M SFP+ 10-Gigabit Ethernet Direct Attach Copper (twinax copper cable), 1m
EX-SFP-10GE-SR SFP+ 10GBASE-LR; LC connector; 1310 nm; 10km reach on single-mode fiber
EX-SFP-10GE-LR SFP+ 10GBASE-LR; LC connector; 1310 nm; 10km reach on single-mode fiber
EX-SFP-10GE-DAC-3M SFP+ 10-Gigabit Ethernet Direct Attach Copper (twinax copper cable), 3m
EX-SFP-10GE-DAC-5M SFP+ 10-Gigabit Ethernet Direct Attach Copper (twinax copper cable), 5m
EX-SFP-1GE-SX SFP 1000BASE-SX; LC connector; 850 nm; 550m reach on multimode fiber
EX-SFP-1GE-SX-ET Extended Temperature SFP 1000BASE-SX; LC connector; 850 nm; 550m reach on multimode fiber
EX-SFP-1GE-LX SFP 1000BASE-LX; LC connector; 1310 nm; 10 km reach on single-mode fiber
EX-SFP-1GE-LH SFP 1000BASE-LH Gigabit Ethernet Optics, 1550 nm for 70 km transmission on single-mode fiber
EX-SFP-1GE-T SFP 10/100/1000BASE-T Copper Transceiver Module for up to 100m transmission on Category
EX-SFP-1GE-LX40K SFP 1000BASE-LX Gigabit Ethernet Optics, 1310 nm for 40 km transmission on single-mode fiber
EX-SFP-GE10KT13R14 SFP 1000BASE-BX Gigabit Ethernet Optics, Tx 1310 nm/Rx 1490 nm for 10 km transmission on single strand of single-mode fiber
EX-SFP-GE10KT14R13 SFP 1000BASE-BX Gigabit Ethernet Optics, Tx 1490 nm/Rx 1310 nm for 10 km transmission on single strand of single-mode fiber
EX-SFP-GE10KT13R15 SFP 1000BASE-BX Gigabit Ethernet Optics, Tx 1310 nm/Rx 1550 nm for 10 km transmission on single strand of single-mode fiber
EX-SFP-GE10KT15R13 SFP 1000BASE-BX Gigabit Ethernet Optics, Tx 1550 nm/Rx 1310 nm for 10 km transmission on single strand of single-mode fiber
EX-SFP-GE40KT13R15 SFP 1000BASE-BX Gigabit Ethernet Optics, Tx 1310 nm/Rx 1550 nm for 40 km transmission on single strand of single-mode fiber
EX-SFP-GE40KT15R13 SFP 1000BASE-BX Gigabit Ethernet Optics, Tx 1550 nm/Rx 1310 nm for 40 km transmission on single strand of single-mode fiber
EX-SFP-GE80KCW1470 SFP Gigabit Ethernet CWDM, LC connector; 1470 nm, 80 km reach on single-mode fiber
EX-SFP-GE80KCW1490 SFP Gigabit Ethernet CWDM, LC connector; 1490 nm, 80 km reach on single-mode fiber
EX-SFP-GE80KCW1510 SFP Gigabit Ethernet CWDM, LC connector; 1510 nm, 80 km reach on single-mode fiber
EX-SFP-GE80KCW1530 SFP Gigabit Ethernet CWDM, LC connector; 1530 nm, 80 km reach on single-mode fiber
EX-SFP-GE80KCW1550 SFP Gigabit Ethernet CWDM, LC connector; 1550 nm, 80 km reach on single-mode fiber
EX-SFP-GE80KCW1570 SFP Gigabit Ethernet CWDM, LC connector; 1570 nm, 80 km reach on single-mode fiber
EX-SFP-GE80KCW1590 SFP Gigabit Ethernet CWDM, LC connector; 1590 nm, 80 km reach on single-mode fiber
EX-SFP-GE80KCW1610 SFP Gigabit Ethernet CWDM, LC connector; 1610 nm, 80 km reach on single-mode fiber

Specifications

Specifications EX2300-C-12P-VC
DRAM 2 GB with ECC
Flash Memory 2 GB
CPU 1.25GHz ARM CPU
Physical Layer Physical port redundancy: Redundant trunk group (RTG)
Cable diagnostics for detecting cable breaks and shorts
Auto medium-dependent interface/medium-dependent interface crossover (MDI/MDIX) support
Port speed downshift/setting maximum advertised speed on 10/100/1000BASE-T ports
Digital optical monitoring for optical ports
Packet-Switching Capacities 32 Gbps (unidirectional)/64 Gbps (bidirectional)
Software Specifications
Layer 2/Layer 3 Throughput (Mpps) (Maximum with 64 Byte Packets) 47 Mpps (wire speed)
Layer 2 Features Maximum MAC addresses in hardware: 16,000
Jumbo frames: 9216 bytes
Number of VLANs supported: 4093 (2044 active VLAN)
Range of possible VLAN IDs: 1-4094
Port-based VLAN
MAC-based VLAN
Voice VLAN
Layer 2 Protocol Tunneling (L2PT)
IEEE 802.1ak: Multiple VLAN Registration Protocol (MVRP)
Compatible with Per-VLAN Spanning Tree Plus (PVST+)
RVI (Routed VLAN Interface)
IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)
LLDP-MED with VoIP integration
IEEE 802.1ad Q-in-Q tunneling
IEEE 802.1br Bridge Port Extension
IEEE 802.1D: Spanning Tree Protocol
IEEE 802.1p: CoS Prioritization
IEEE 802.1Q: VLAN Tagging
IEEE 802.1Q-in-Q: VLAN Stacking
IEEE 802.1s: Multiple Spanning Tree Protocol (MSTP)
Number of MST instances supported: 64
IEEE 802.1w: Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1X: Port Access Control
IEEE 802.3: 10BASE-T
IEEE 802.3u: 100BASE-TX
IEEE 802.3ab: 1000BASE-T
IEEE 802.3z: 1000BASE-X
IEEE 802.3af: PoE
IEEE 802.3at: PoE+
IEEE 802.3ad: Link Aggregation Control Protocol (LACP)
IEEE 802.3x: Pause Frames/Flow Control
Layer 3 Features: IPv4 Maximum number of ARP entries: 1,500
Maximum number of IPv4 unicast routes in hardware: 512
prefixes; 4,096 host routes
Maximum number of IPv4 multicast routes in hardware: 2,048
groups; 2,048 multicast routes
Routing Protocols: RIP v1/v2, OSPF v1/v2
Static routing
Routing policy
Bidirectional Forwarding Detection (BFD) with slow timers (> 3
sec)
IP directed broadcast
Layer 3 Features: IPv6 Maximum number of Neighbor Discovery (ND) entries: 1,500
Maximum number of IPv6 unicast routes in hardware: 512
prefixes; 2,048 host routes
Maximum number of IPv6 multicast routes in hardware: 1,024
groups; 1,024 multicast routes
Neighbor discovery, system logging, Telnet, SSH, SNMP,
Network Time Protocol (NTP), Domain Name System (DNS)
Static routing
Routing protocols: RIPng, OSPF v3
Access Control Lists (ACLs) (Junos OS Firewall Filters) Port-based ACL (PACL)256 ingress; 256 egress
VLAN-based ACL (VACL)256 ingress; 256 egress
Router-based ACL (RACL)256 ingress; 512 egress
ACL entries (ACE) in hardware per system: 2,000
ACL counter for denied packets
ACL counter for permitted packets>
Ability to add/remove/change ACL entries in middle of list
(ACL editing)
L2-L4 ACL
Access Security MAC limiting
Allowed MAC addressesconfigurable per port
MAC limiting
Allowed MAC addressesconfigurable per port
Sticky MAC (persistent MAC address learning)
Dynamic ARP inspection (DAI)
Proxy ARP
Static ARP support
DHCP snooping
802.1X port-based
802.1X multiple supplicants
802.1X with VLAN assignment
802.1X with authentication bypass access (based on host MAC
address)
802.1X with VoIP VLAN support
802.1X dynamic access control list (ACL) based on RADIUS
attributes
802.1X Supported EAP types: Message Digest 5 (MD5),
Transport Layer Security (TLS), Tunneled Transport Layer
Security (TTLS), Protected Extensible Authentication Protocol
(PEAP)
IPv6 RA Guard
IPv6 Neighbor Discovery Inspection
Captive Portal
Static MAC authentication
MAC-RADIUS
Control plane DoS protection
Fallback Authentication
Trusted Network Connect (TNC) certified
High Availability Link Aggregation
802.3ad (LACP) support:
- Number of LAGs supported: 128
- Maximum number of ports per LAG: 8
Tagged ports support in LAG
Uplink failure detection
Quality of Service (QoS) Layer 2 QoS
Layer 3 QoS
Ingress policing: 2 rate 3 color
Hardware queues per port: 8
Scheduling methods (egress): Strict Priority (SP), shaped-deficit
weighted round-robin (SDWRR)
802.1p: DSCP/IP precedence trust and marking
L2-L4 classification criteria: Interface, MAC address, Ethertype,
802.1p, VLAN, IP address, DSCP/IP precedence, TCP/UDP
port numbers
Congestion avoidance capabilities: Tail drop and WRED
Multicast Internet Group Management Protocol (IGMP) snooping
entries: 2,000
IGMP: v1, v2, v3
IGMP snooping
PIM sparse mode (PIM SM), PIM source-specific multicast (PIM
SSM), PIM dense mode (PIM DM)
Device Management and Operations Junos OS CLI
Device Management and Operations
Junos OS CLI
Junos Web interface (J-Web)
Out-of-band management: Serial, 10/100BASE-T Ethernet
ASCII configuration
Rescue configuration
Configuration rollback
Image rollback
Simple Network Management Protocol (SNMP): v1, v2c, v3
Remote monitoring (RMON) (RFC 2819) Groups 1, 2, 3, 9
Network Time Protocol (NTP)
DHCP server
DHCP client and DHCP proxy
DHCP relay and helper
RADIUS authentication
TACACS+ authentication
SSHv2
Secure copy
HTTP/HTTPs
DNS resolver
System log logging
Temperature sensor
Configuration backup via FTP/secure copy
Interface range
Management and Analytics Platforms Juniper Mist Wired Assurance for Campus
Junos Space® Network Director for Campus
Junos Space® Management
Operating temperature 32° to 104° F (0° to 40° C)
Storage temperature -40° to 158° F (-40° to 70° C)
Operating altitude up to 5.000 ft (1524 m)
Non-operating altitude up to 16,000 ft (4877 m)
Relative humidity operating 10% to 85% (noncondensing)
Relative humidity non-operating 0% to 95% (noncondensing)
Safety Certifications UL-UL60950-1 (Second Edition)
C-UL to CAN/CSA 22.2 No.60950-1 (Second Edition)
TUV/GS to EN 60950-1 (Second Edition)
CB-IEC60950-1 (Second Edition with all country deviations)
EN 60825-1 (Second Edition)
Electromagnetic Compatibility Certifications FCC 47CFR Part 15 Class A
EN 55022 Class A
ICES-003 Class A
VCCI Class A
AS/NZS CISPR 22 Class A
CISPR 22 Class A
EN 55024
EN 300386
CE
Telecom Quality Management TL9000
Telco CLEI code

Properties

Properties Juniper EX2300-C-12P-VC
Description EX2300 Compact Fanless 12-port 10/100/1000BASE-T PoE+, 2 x 1/10GbE SFP/SFP+ with Virtual Chassis License (optics sold separately)
Product Family EX2300-C Series
Product Type Ethernet Switch
GbE Port Density 14 (12 access ports + 2 uplink ports)
Dimensions (HxWxD) Inches 10.98 x 1.72 x 9.4 in (27.9 x 4.4 x 23.9 cm)
Weight 6.99 lb (3.17 kg)
Cooling Fanless Operation
Backplane 40 Gbps Virtual Chassis interconnect to link up to four switches as a single logical device
Product Options
Access Port Configuration 12-port 10/100/1000BASE-T
Uplink Ports Two SFP/SFP+ ports
PoE+ Capable Ports 12
Height 1 RU
PoE+ Budget 124 W
Power Supply Rating 170 W AC
Power Options
Max. System Power Consumption (Input Power without PoE) Total PoE Power Budget
24 W AC 124W
Acoustic Noise in DB 0 DB (Fanless)
*EX2300-C Virtual Chassis configurations operate as highly resilient unified systems, providing simplified management using a single IP address, single telnet/SSH session, single command-line interface (CLI), automatic version checking, and automatic configuration. The EX2300-C switches are also capable of local switching, so packets coming into a port destined for another port on the same switch do not have to traverse the Virtual Chassis, increasing forwarding capacities. *While EX2300-C switches can be interconnected over either of the two front panel 10GbE uplink ports, these ports can also be configured as 1GbE uplinks to aggregation devices by disabling the Virtual Chassis technology.
VC Description The EX2300-C supports Junipers unique Virtual Chassis technology, enabling up to four interconnected EX2300-C switches to be managed as a single logical device and delivering a scalable, pay-as-you-grow solution for expanding network environments. The EX2300-C can also be connected to an existing Virtual Chassis configuration composed of EX2300 switches.
