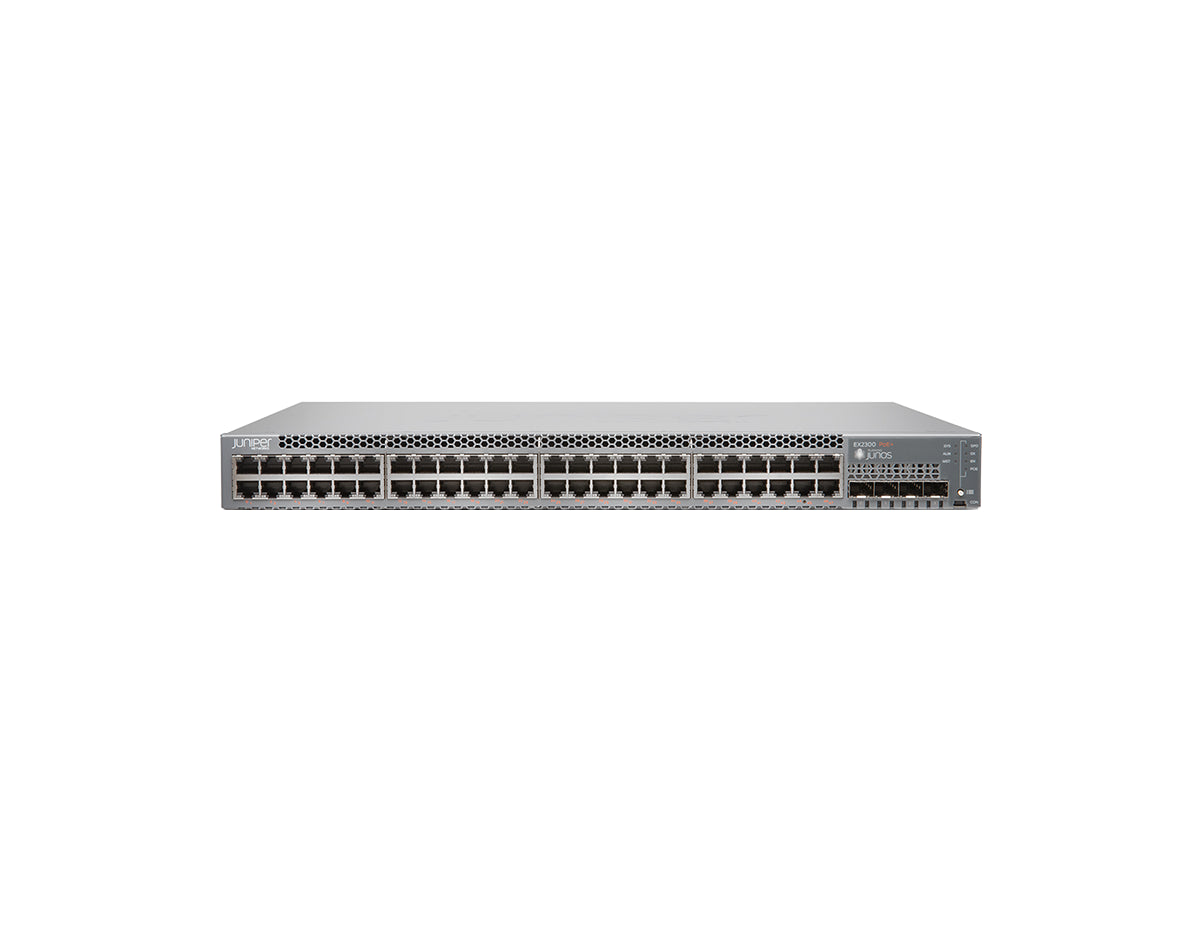

JUNIPER EX2300-48P SWITCH

Model: EX2300-48P-NEW
Detail: Flexible 4x1GbE SFP/10GbE SFP+ uplinks, 48 ports(10/100/1000BASE-T) are available with or without PoE/PoE+, Packet-Switching Capacities: 176 Gbps, Fixed power supply, Low power consumption, Low acoustic fans
List Price: US$4,500.00
Price:
$2,170.00
You Save: $2,330.00 (52% OFF)
Condition: Brand New Sealed
Availability: IN STOCK
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside New Jersey
Quantity:
+
-

Use JUNIPER EX2300-48P SWITCH for Carrier-Class Performance

JUNIPER EX2300-48P SWITCH offers a compact, high-performance solution to support today’s converged network access deployments. Every EX2300 switch has an ASIC-based Packet Forwarding Engine with CUP integration to provide wire-rate forwarding support with constant basis, side by side with all control features enabled.

The PEE has the same level of carrier-class performance and reliability to the EX2300 switches that Juniper Networks routers add to the world’s largest service provider networks. Get a maximum system budget of 740 watts to deliver up to 30 watts to select ports.

Key Benefits of JUNIPER EX2300-48P SWITCH

JUNIPER EX2300-48P SWITCH is ideal selection for EX2300 models and to support the 802.3af Class 3 Power over Ethernet (PoE) and 802.3at PoE+ standards for supporting networked devices such as telephones, video cameras, IEEE 802.11ac WLAN access points, and videophones in converged networks. Users will get exceptional value for their enterprise-class environments. Juniper Networks Junos Fusion Enterprise gives more than 100 EX2300 switches to be configured as satellite devices that connect to EX9200 core aggregation devices.



Backplane speed 80 Gbps
Data rate 176 Gbps
Throughput 130 Mpps (wire speed)
Ports 48-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP/SFP+ (optics sold separately)
Dimensions (W x H x D) 17.4 x 1.75 x 12.2 in (44.19 x 4.45 x 30.98 cm)
1 rack unit





Specifications

Form factor Fixed platform
Virtual Chassis configuration consisting of up to four switches
Junos Fusion Enterprise Satellite device
Ports 48-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP/SFP+ (optics sold separately)
Dimensions (W x H x D) 17.4 x 1.75 x 12.2 in (44.19 x 4.45 x 30.98 cm)
1 rack unit
Backplane speed 80 Gbps
Data rate 176 Gbps
Throughput 130 Mpps (wire speed)
10/100/1000BASE-T port densities N/A
10GBASE-X port densities N/A
40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities N/A
100GBASE C form-factor pluggable transceiver (CFP) port densities N/A
Resiliency Integrated power supply and fans
Operating system Junos OS
Traffic monitoring sFlow
Quality-of-service (QoS) queues/port 8
MAC addresses 16,000
Jumbo frames 9216 bytes
IPv4 unicast/multicast routes 4096 / 2048
IPv6 unicast/multicast routes 2048 / 1024
Number of VLANs 4093
ARP entries 1500
