JUNIPER EX2300-24T SWITCH

Model: EX2300-24T-NEW
Detail:

Switch, L3, Managed, 24 x 10/100/1000 + 4 x Gigabit SFP / 10 Gigabit SFP+, Desktop, Rack-mountable,
List Price: US$1,595.00
Price:
$755.00
You Save: $840.00 (53% OFF)
Condition: Brand New Sealed
Availability: IN STOCK
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside New Jersey
Quantity:
+
-

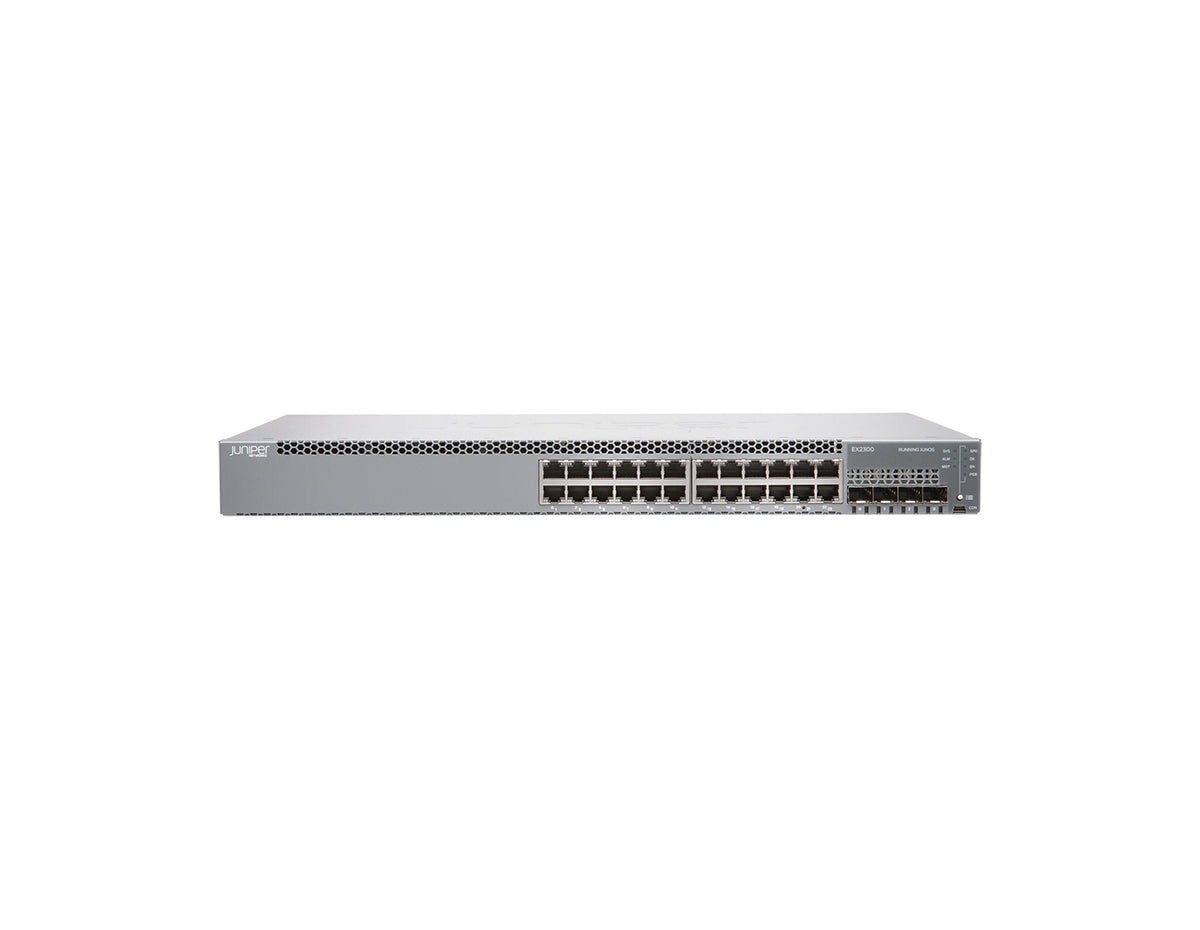

Juniper EX2300-24T Switch Overview



The Juniper Networks EX2300 Ethernet Switch offers an economical, entry-level, standalone solution for access layer deployments in branch and remote offices, as well as enterprise campus networks. To simplify network operations, the EX2300 is hardware-ready to act as a satellite device to support a Juniper Networks Junos Fusion Enterprise deployment, which can combine several wiring closets into one logical management platform. For smaller networks, up to four EX2300 switches can be interconnected in a Virtual Chassis configuration, allowing them to be managed as a single switch. The Juniper Networks EX2300 line of Ethernet switches offers a compact, high-performance solution for supporting today's converged network access deployments. Each EX2300 switch includes an ASIC-based Packet Forwarding Engine (PFE) with an integrated CPU to consistently deliver wire-rate forwarding, even with all control plane features enabled. The PoE-enabled EX2300 switch includes a maximum system budget of 740 Watts to deliver up to 30 Watts to select ports.



Backplane speed 80 Gbps
Data rate 128 Gbps
Throughput 95 Mpps (wire speed)
Ports 24-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+ (optics sold separately)
Dimensions (W x H x D) 17.4 x 1.75 x 10.2 in (44.19 x 4.45 x 25.9 cm)

1 rack unit

Specifications

Form factor Fixed platform
Virtual Chassis configuration consisting of up to four switches
Junos Fusion Enterprise Satellite device
Ports 24-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+ (optics sold separately)
Dimensions (W x H x D) 17.4 x 1.75 x 10.2 in (44.19 x 4.45 x 25.9 cm)
1 rack unit
Backplane speed 80 Gbps
Data rate 128 Gbps
Throughput 95 Mpps (wire speed)
10/100/1000BASE-T port densities N/A
10GBASE-X port densities N/A
40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities N/A
100GBASE C form-factor pluggable transceiver (CFP) port densities N/A
Resiliency Integrated power supply and fans
Operating system Junos OS
Traffic monitoring sFlow
Quality-of-service (QoS) queues/port 8
MAC addresses 16,000
Jumbo frames 9216 bytes
IPv4 unicast / multicast routes 4096 / 2048
IPv6 unicast / multicast routes 2048 / 1024
Number of VLANs 4093
ARP entries 1500
