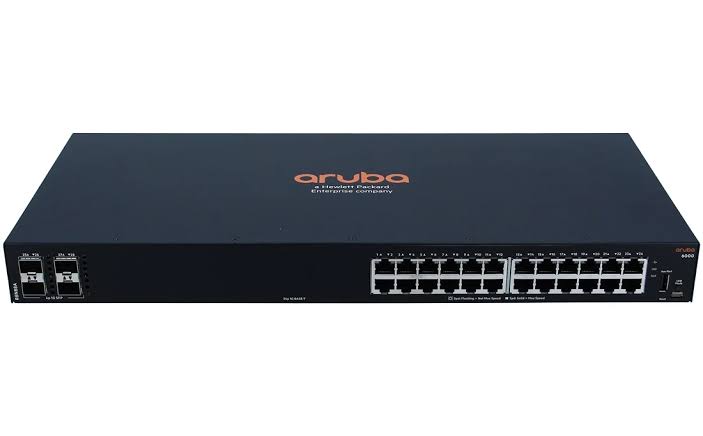

HPE Aruba CX 6000 24G 4F Switch R8N88B
Reliable Layer 2 Access for Business Networks
The HPE Aruba Networking CX 6000 24G 4F Switch (R8N88B) is a fully managed Layer 2 access switch designed for enterprise wired connectivity. Part of the HPE Aruba Networking CX 6000 Switch Series, it combines 24 Gigabit Ethernet access ports with four built-in 1G SFP uplink ports for flexible network connectivity. The switch runs the database-driven HPE Aruba Networking CX Switch Operating System and supports Web GUI, CLI, REST APIs, and centralized management via HPE Aruba Networking Central and Multi-Edit Software for streamlined administration.
Key Benefits and Features
- High-Density Connectivity: Provides 24x 10/100/1000BASE-T access ports for Gigabit Ethernet endpoint aggregation.
- Dedicated Uplinks: Includes four built-in 1G SFP uplink ports for high-speed network connections.
- Wire-Speed Performance: Delivers 56 Gbps switching capacity and up to 41.6 Mpps throughput for non-blocking traffic delivery.
- Enterprise Management: Flexible management choices including HPE Aruba Networking Central, Switch Multi-Edit Software, intuitive Web GUI, or industry-standard CLI.
- Software-Defined Ready: Modern operating system architecture equipped with REST APIs for automated network operations.
Ideal Use Cases
- Enterprise and midsize business access networks
- Branch office wired network deployments
- Gigabit Ethernet endpoint aggregation
- Environments requiring reliable Layer 2 switching with dedicated SFP fiber uplinks
Technical Specifications Summary
- Model: R8N88B
- Access Ports: 24x 10/100/1000BASE-T
- Uplink Ports: 4x 1G SFP
- Switching Capacity: 56 Gbps
- Throughput: 41.6 Mpps
- Latency: 1.5 µSec (1 Gbps)
- Processor: Dual-core Arm Cortex-A9 @ 1016 MHz
- Memory: 4 GB DDR3
- Flash Capacity: 16 GB eMMC
- Power Consumption: 22.4W Max (w/o PoE)
Deploy the HPE Aruba Networking CX 6000 R8N88B in Your Access Network
Choose the R8N88B for managed Gigabit Ethernet access with 24 copper ports, four 1G SFP uplinks, and centralized management capabilities.
| Brand | HPE Aruba Networking |
| SKU | R8N88B |
| Product Type | Layer 2 Access Switch |
| Series | HPE Aruba Networking CX 6000 Switch Series |
| Form Factor | Fixed 1U |
| Port Count | 24x 10/100/1000BASE-T access ports |
| Uplink Ports | 4x 1G SFP Ports |
| Console Port | 1x USB-C console port |
| USB Host Port | 1x USB Type-A host port |
| Power Supply | Fixed power supply |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km); derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) |
| Input Voltage | 100–127 VAC / 200–240 VAC |
| Latency | 1.5 µSec (1 Gbps) |
| Throughput | 41.6 Mpps |
| Switching Capacity | 56 Gbps |
| Processor | Dual-core Arm Cortex-A9 @ 1016 MHz |
| Memory | 4 GB DDR3 |
| Flash Storage | 16 GB eMMC |
| Frequency | 50 / 60 Hz |
| Maximum Power Rating | 22.4W (w/o PoE) |
| Optional Mounting Kit | HPE Aruba Networking X414 1U Universal 4-post Rack Mount Kit (J9583B) |
| Console Cables | USB-C to USB-C (R9J33A) / USB-A to USB-C (R9J32A) |
