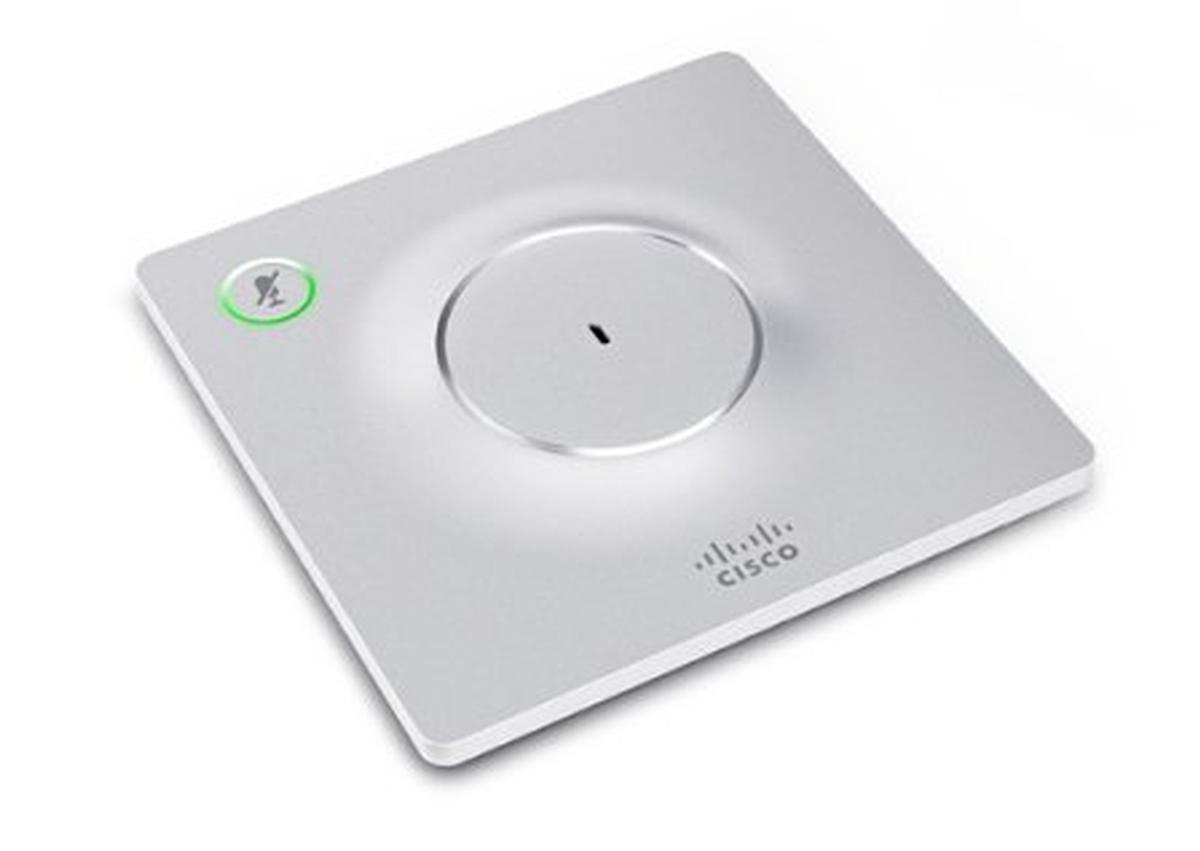

The Cisco Omni-Directional Microphone is designed for Cisco Telepresence Systems. It provides audio and coverage solutions for integrated video systems and custom video deployments.
| Properties |
Cisco CTS-MIC-TABL20 Table Microphone |
| Description |
Balanced omnidirectional table microphone with boundary layer type design for Cisco video systems |
| Product Type |
Analog Table Microphone |
| Compatibility |
Room Bar, Room Kit Series, SX Series, MX Series, Board Pro, Room Panorama |
| Mount Type |
Tabletop (magnetic plate or recessed installation) |
| Frequency Range |
80 Hz to 20 kHz, ±6 dB |
| Free Field Sensitivity |
-34 dB ±3 dB (1V/Pa at 1 kHz) |
| Signal-to-Noise Ratio |
Minimum 70 dB |
| Phantom Power |
9V / 52V |
| Mute Functionality |
LED indicator and mute/unmute button |
| Pickup Range |
1.5 m radius (360° coverage) |
| Dimensions (Diameter x Height) |
6.39 cm x 1.09 cm (2.52 in x 0.43 in) |
| Weight |
0.28 lb (0.126 kg) |
| Color |
White |
| Connector Options |
4-pin mini jack or 4-pin Euroblock |
| Included Items |
Cisco Table Microphone with selected connector (included in the box) |
| Optional Accessories |
Tabletop metal plate, extension cables, spare Euroblock or mini jack cables |
| Compatible Products |
Room Bar, SX10, SX20, SX80, MX700, MX800, Board Pro Series |
