| Specifications |

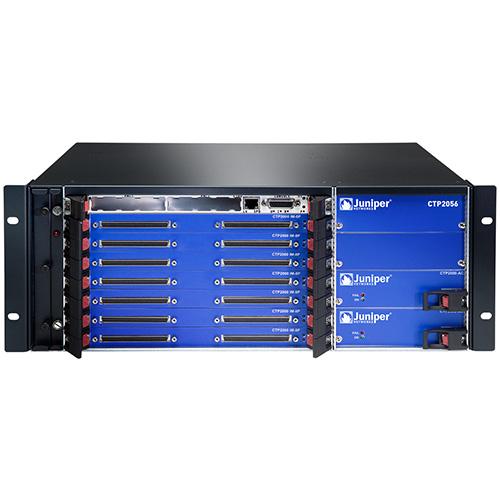

CPT2056-AC-03 |
| Operating temperature |
32° to 104° F (0° to 40° C) |
| Humidity |
5%-90% RH noncondensing |
| Platform Features |
| Software circuit provisioning |
EIA530, RS-232, V.35, 4WTO, T1, and E1 circuit types are software configured including the line encoding, clocking, rates, and IP settings. |
| Scalable product family |
A family of four CTP Series Circuit to Packet Platforms provides different port densities. Products can address the requirements of small remote sites through large central network hubs. |
| CTPView Network Management System |
Secure, multi-user, web-based network management system provides network monitoring, circuit provisioning, IP performance reporting, database backup, and circuit troubleshooting tools. |
| Multiple system and circuit clocking solutions |
CTP Series Circuit to Packet Platforms are designed to use multiple external clocks as monitored and prioritized system references.
Circuits are configured to use the system clock, external circuit timing, or to adaptively recover clock information from the remote port when required by the application or when no reference is configured. |
| Auto switch |
The status of the CTP Series circuit ports is monitored, and the circuit is automatically switched to an alternate local or remote port when a failure is detected. |
| Packet protector |
Redundant packets are created and transmitted to the IP network and then processed by the receiving CTP Series. |
| Autobaud |
The input timing leads are monitored, and the circuit rate is automatically changed at both ends of the network if a rate change is detected. |
| Loops and BERTs |
Each CTP Series port supports interface and network loops and the ability to generate and monitor a bit error rate test with up to nine BERT patterns selectable. |
| Layer 2 Serial-to-Ethernet IP aggregation |
The CTP Series Circuit to Packet Platforms can aggregate layer 2 traffic from serial interfaces onto a Fast Ethernet or Gigabit Ethernet interface. Layer 2 protocols supported are Frame Relay, PPP and Cisco-HDLC. Each CTP Series port is connected to a different VLAN. |
| Port mirroring |
The CTP Series is able to port-mirror any transmit or any receive up to 10 local or remote destinations. |
| Analog voice—4WE&M |
The CTP Series supports analog 4WE&M type I, II,and V interfaces with software selectable transmit and receive-level adjustments per interface. |
| Analog voice—2WFXS |
The CTP Series supports analog 2WFXS loop start, ground start, and PLAR modes with software selectable transmit and receive-level adjustments per interface. |
| Analog voice—2WFXO |
The CTP Series support analog 2WFXO loop start and ground start modes with software selectable transmit and receive-level adjustments per interface. |
| IRIG-B |
The CTP Series supports an inter-range instrumentation group time code (IRIG-B) signal to be transported through an IP network. IRIG-B encodes day of year, hour, minute, and second data on a 1-KHz carrier frequency, with an update rate of once per second. |
| Primary Circuit to Packet Solutions |
| SS7 transport over IP |
Provides transport of dedicated T1 or E1 SS7 links over the IP/ MPLS network. |
| TDM over IP solution |
The provisioning of point-to-point TDM trunks over the IP network does not require changes to the TDM equipment. |
| PBX interconnect over IP solution |
Provides E1 and T1 trunking for PBX interconnection over the IP network. |
| PBX Extension over IP with 2WFXS/2WFXO |
Provides two-wire analog PBX to phone extensions over IP and two-wire PBX to PBX/central office connections over IP. Private- line automatic ringdown (PLAR) is also supported. |
| Leased line extension over IP solution |
Supports standards-based encapsulation and DS0 bundling. IETF PWE3 RFCs, SAToP and CESoPSN are supported. |
| Radio over IP solution |
Allows for connectivity of analog and digital radios over IP networks. |
| Serial encryption over IP solution |
Provides transport of KG/KIV bit-synchronous cipher text across an IP network. |
| T1 and E1 backup over IP |
Point-to-point T1 or E1 circuits can be automatically backed up over the IP/MPLS network. |
