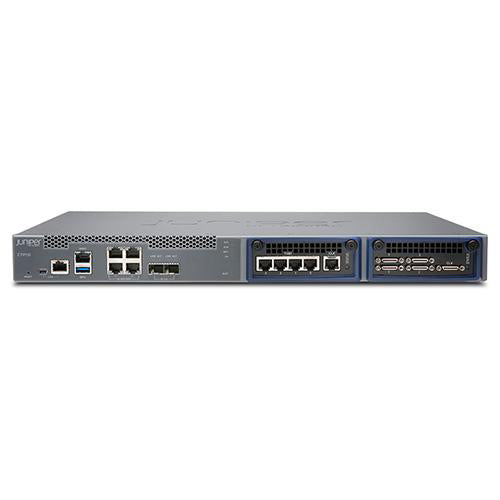

JUNIPER CTP151-AC ROUTER

Model: CTP151-AC
Detail:
  • CTP151 system with two interface slots, fixed power supply, processor, and CTPOS
List Price: US$11,513.00
Price:
$8,619.00
You Save: $2,894.00 (25% OFF)
Condition: Brand New Sealed
Availability: SPECIAL ORDER
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-

Description

Juniper Networks CTP151 Circuit to Packet platform is a 1-U high, full-rack wide chassis and can be installed in a rack with the supplied rack-mounting kit. The CTP151 platform has two removable modules for serial interfaces, T1/E1 interfaces, or both.

Accessories

CTP151 Common Interface Modules
CTP150-IM-SER 4-port serial module with 4 HD-26 pin interfaces and one clock input interface. Serial supports RS- 232/V.24, EIA530/530A/RS-422/499/X.21, V.35.
CTP150-IM-SER-MS 4-port serial module with 4 HD-26 pin interfaces and one clock input interface. Includes two daughter cards to add 4WTO analog, high-quality analog and IRIG capabilities to two ports.
CTP150-IM-T1E1 4-port T1/E1 module with 4 RJ-48 interfaces and one clock input interface
CTP151 Common Spares
CTP150-CBL-DB15-DCE-F HD-26 interface cable, DB15, DCE, Female
CTP150-CBL-DB15- DTE-M HD-26 interface cable, DB15, DTE, Male
CTP150-CBL-DB25-DCE-F HD-26 interface cable, DB25, DCE, Female
CTP150-CBL-DB25-DCE-Y Y-cable with DCE DB25 connectors
CTP150-CBL-DB25- DTE-M HD-26 Interface cable, DB25, DTE, Male
CTP150-CBL-RJ45-DIU HD-26 Interface cable, RJ45, V.24

Specifications

Specifications ACX6160-T-AC
Operating temperature 32° to 104° F (0° to 40° C)
Humidity 5%-90% RH noncondensing
Platform Features
Software circuit provisioning EIA530, RS-232, V.35, 4WTO, T1, and E1 circuit types are software configured including the line encoding, clocking, rates, and IP settings.
Scalable product family A family of four CTP Series Circuit to Packet Platforms provides different port densities. Products can address the requirements of small remote sites through large central network hubs.
CTPView Network Management System Secure, multi-user, web-based network management system provides network monitoring, circuit provisioning, IP performance reporting, database backup, and circuit troubleshooting tools.
Multiple system and circuit clocking solutions CTP Series Circuit to Packet Platforms are designed to use multiple external clocks as monitored and prioritized system references.

Circuits are configured to use the system clock, external circuit timing, or to adaptively recover clock information from the remote port when required by the application or when no reference is configured.
Auto switch The status of the CTP Series circuit ports is monitored, and the circuit is automatically switched to an alternate local or remote port when a failure is detected.
Packet protector Redundant packets are created and transmitted to the IP network and then processed by the receiving CTP Series.
Autobaud The input timing leads are monitored, and the circuit rate is automatically changed at both ends of the network if a rate change is detected.
Loops and BERTs Each CTP Series port supports interface and network loops and the ability to generate and monitor a bit error rate test with up to nine BERT patterns selectable.
Layer 2 Serial-to-Ethernet IP aggregation The CTP Series Circuit to Packet Platforms can aggregate layer 2 traffic from serial interfaces onto a Fast Ethernet or Gigabit Ethernet interface. Layer 2 protocols supported are Frame Relay, PPP and Cisco-HDLC. Each CTP Series port is connected to a different VLAN.
Port mirroring The CTP Series is able to port-mirror any transmit or any receive up to 10 local or remote destinations.
Analog voice4WE&M The CTP Series supports analog 4WE&M type I, II,and V interfaces with software selectable transmit and receive-level adjustments per interface.
Analog voice2WFXS The CTP Series supports analog 2WFXS loop start, ground start, and PLAR modes with software selectable transmit and receive-level adjustments per interface.
Analog voice2WFXO The CTP Series support analog 2WFXO loop start and ground start modes with software selectable transmit and receive-level adjustments per interface.
IRIG-B The CTP Series supports an inter-range instrumentation group time code (IRIG-B) signal to be transported through an IP network. IRIG-B encodes day of year, hour, minute, and second data on a 1-KHz carrier frequency, with an update rate of once per second.
Primary Circuit to Packet Solutions
SS7 transport over IP Provides transport of dedicated T1 or E1 SS7 links over the IP/ MPLS network.
TDM over IP solution The provisioning of point-to-point TDM trunks over the IP network does not require changes to the TDM equipment.
PBX interconnect over IP solution Provides E1 and T1 trunking for PBX interconnection over the IP network.
PBX Extension over IP with 2WFXS/2WFXO Provides two-wire analog PBX to phone extensions over IP and two-wire PBX to PBX/central office connections over IP. Private- line automatic ringdown (PLAR) is also supported.
Leased line extension over IP solution Supports standards-based encapsulation and DS0 bundling. IETF PWE3 RFCs, SAToP and CESoPSN are supported.
Radio over IP solution Allows for connectivity of analog and digital radios over IP networks.
Serial encryption over IP solution Provides transport of KG/KIV bit-synchronous cipher text across an IP network.
T1 and E1 backup over IP Point-to-point T1 or E1 circuits can be automatically backed up over the IP/MPLS network.

Properties

Properties Juniper CTP151-AC
Description AC base chassis with 4-port 10/100/1000BASE-T RJ-45 and 2-port 1GbE/10GbE SFP/SFP+
Product Family CTP Series
Product Type Router
Serial Interfaces
EIA-530, RS-232/V.28, RS-422/V.11, RS-423/V.10, X.21, V.35, T1, E1 Yes
IRIG-B Yes
Encoding NRZ, Conditioned Diphase, Isochronous, Asynchronous, AMI, B8ZS, HDB3, TDM/TDC, Transparent Yes
Interface quantity 8
Rates 50 bps12.880 Mbps
Voice Interfaces
Analog voice 4-wire TO interface quantity 4
4WE&M N/A
2WFXS N/A
2WFXO N/A
T1 and E1 8
Companding conversion N/A
IP Interfaces
10/100/1000BASE-T (RJ-45) 4
SFP 1000BASE-T 2*
SFP 1000BASE-SX 2*
SFP 1000BASE-LX 2*
Precedent setting(DSCP), configurable TOS byte Yes
VLAN tagging Yes
Virtual IP Yes
Circuit modessymmetric, asymmetric, unidirectional, hairpin Yes
IPv4 and IPv6 Yes
IETF PWE3 RFC SAToP Yes
IETF PWE3 RFC CESoPSN Yes
Layer 2 serial aggregation Yes
Port mirroring Yes
*Software support roadmap item
Dimension (WxHxD) 17.36 x 1.73 x 12 in (44.1 x 4.4 x 30.5 cm)
Weight (lb) 9.92
Mounting Front Rack
Input voltage (AC) 100-240 VAC
Power supply 150W
Input current 0.47 A at 110 VAC
