MIKROTIK CRS328-24P-4S+RM SWITCH
| Model: | CRS328-24P-4S-RM |
| Detail: |
|
| List Price: | |
| Price: | $460.00 |
| You Save: | $29.00 (6% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

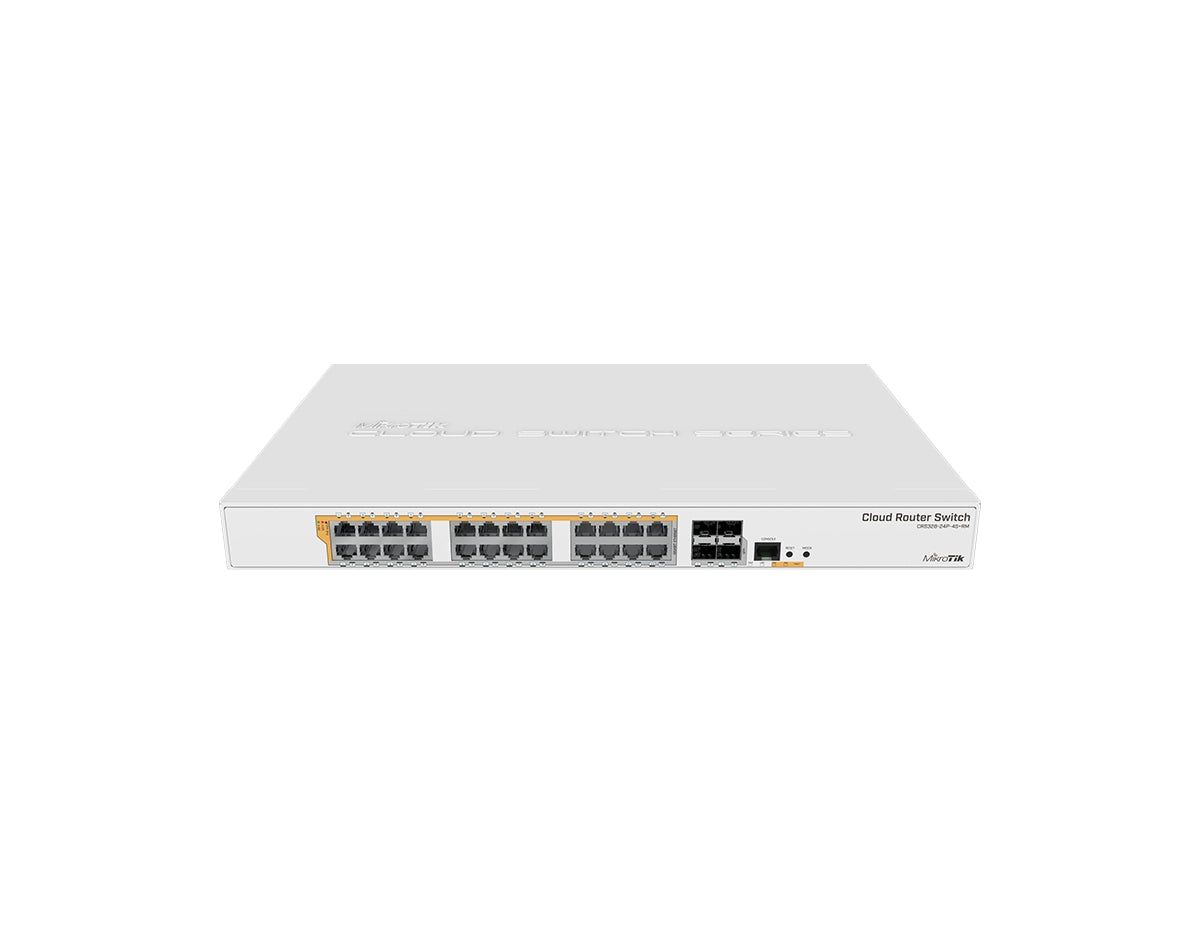

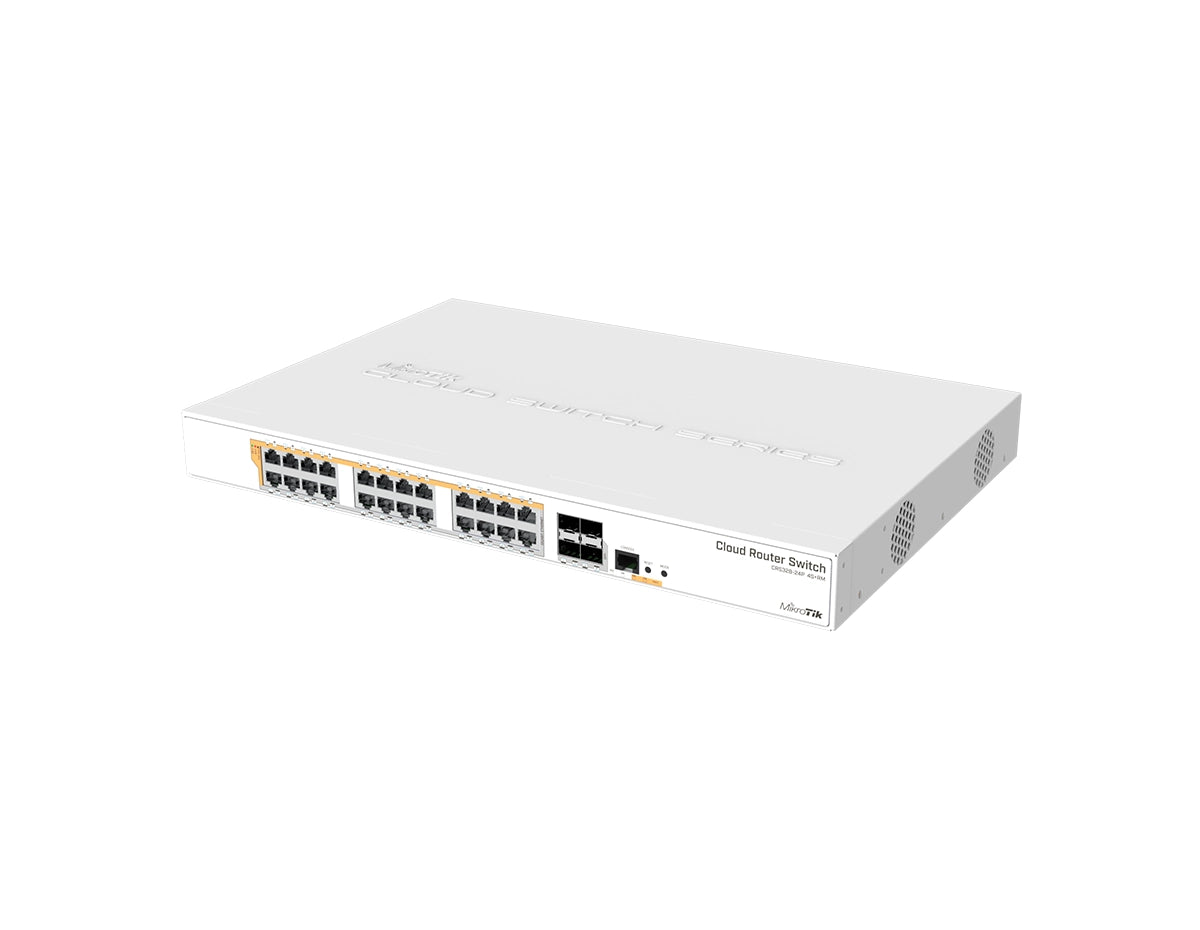

MikroTik CRS328-24P-4S+RM Switch
The CRS328-24P-4S+RM is equipped with 24 Gigabit Ethernet ports and 4x 10 Gbps SFP+ ports. This equipment drives the advancement of your network by providing exceptional power and flexibility. Its non-blocking Layer 2 capability guarantees seamless data transmission, accommodating up to 4,000 concurrent VLANs and improving network segmentation and security. With Dual-boot feature, you can choose between the following operating systems: RouterOS or SwOS.
Quick Specs:
- 24x 10/100/1000 Gigabit Ethernet ports
- 4x 10G SFP+ Ports
- Non-blocking Layer 2 switching capacity
Please see the related tabs for the CRS328-24P-4S+RM datasheet and compatible accessories.
Accessories
| Accessories |
| IEC cord |
| Rack ears |
| K-54 kit |
Specifications
| Specifications | CRS328-24P-4S+RM |
| Memory | 512 MB |
| Flash Storage size | 16 MB |
| CPU | 98DX3236A1 800 MHz |
| CPU core count | 1 |
| Switch chip model | 98DX3236A1 |
| OS | RouterOS / SwitchOS |
| Non-Blocking throughput | 64 Gbps |
| Switching capacity | 128 Gbps |
| Forwarding rate | 95.2 Mpps |
| Features | Non-blocking Layer 2 switching capacity 16K host table IEEE 802.1Q VLAN Supports up to 4K simultaneous VLANs Port isolation Port security Broadcast storm control Port mirroring of ingress/egress traffic STP / RSTP / MSTP Access Control List MikroTik neighbor discovery SNMP 10218-byte jumbo frames support IGMP snooping IEEE 802.3ad and static link aggregation |
| MTBF | Approximately 200.000 hours at 25C |
| Temperature | -20°C to 60°C tested |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | IP00 |
Properties
| Properties | MikroTik CRS328-24P-4S+RM |
| Description | 4 port Gigabit Ethernet router/switch with four 10Gbps SFP+ ports in 1U rackmount case, Dual Boot and PoE output, 500W |
| Product Family | CRS Series |
| Product Type | Ethernet Switch |
| Quick Specs | 24 Gigabit Ethernet ports 4 SFP+ ports RJ45 serial console port Non-Blocking throughput: 64 Gbps Switching capacity: 128 Gbps Forwarding rate: 95.2 Mpps Maximum power consumption: 44 W (without PoE devices connected) Supports PoE+ IEEE 802.3at/af and 26 V Passive PoE) Temperature based fan control 1U rackmount Selectable power output per port (26 / 53 V) |
| Ports | |
| 10/100/1000 Ethernet ports | 24 |
| SFP+ | 4 |
| Serial console port | 1 RJ45 |
| Extras | CPU temperature monitor Current Monitor PCB temperature monitor Voltage Monitor Mode button |
| Dimensions | 443 x 300 x 44 mm |
| Number of AC inputs | 1 |
| AC input range | 100-240 |
| Max power consumption | 494 W |
| Max power consumption without attachments | 44 W |
| Cooling type | 2 fans |
| PoE-out ports | Ether1-Ether24 |
| PoE out | 802.3af/at |
| Max out per port output (input 18-30 V) | 1000 mA |
| Max out per port output (input 30-57 V) | 450 mA |
| Max total out (A) | 20 A |
