MIKROTIK POE++ 17X GIGABIT ETHERNET PORTS SWITCH (CRS320-8P-8B-4S+RM)
| Model: | CRS320-8P-8B-4S-RM |
| Detail: |
Supports up to 90W per port, Eight 802.3af/at PoE-out ports and eight 802.3bt PoE++ ports, 4 SFP+ 10G Ports provides high-speed uplinks for improved network performance.,
< |
| Price: | $495.00 |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |

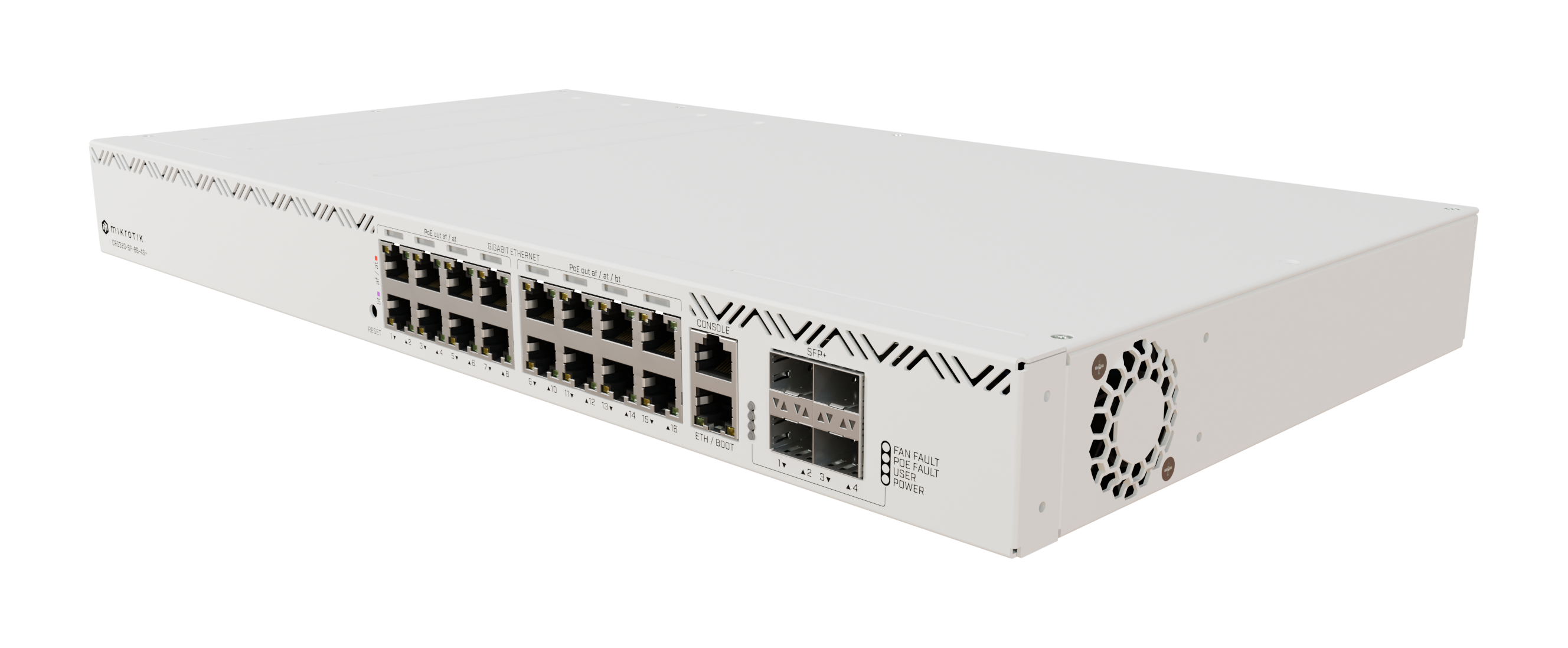

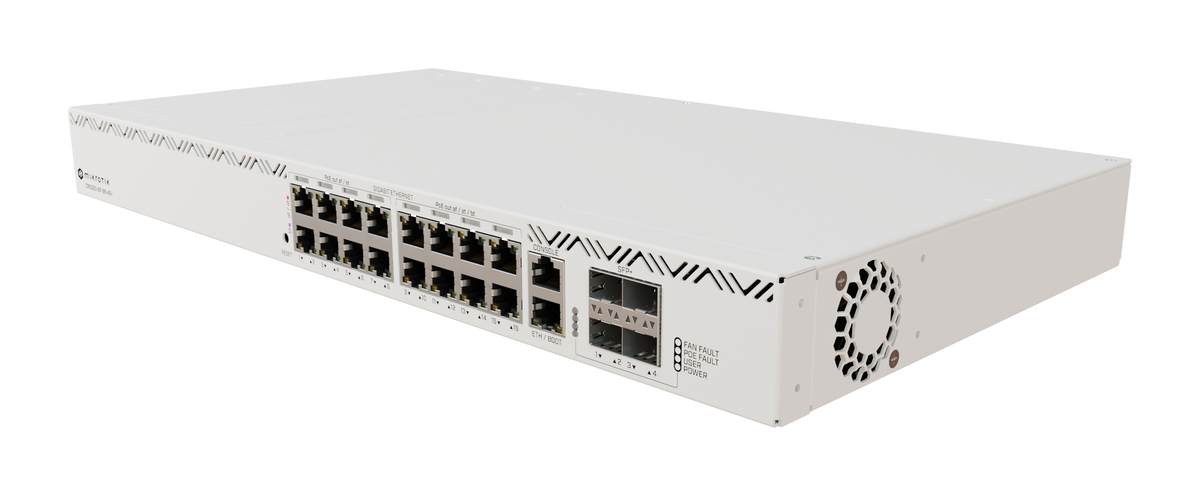

MikroTik PoE++ Switch CRS320-8P-8B-4S+RM
The MikroTik CRS320-8P-8B-4S+RM is a powerful PoE++ switch designed for modern networking environments that require high power output and flexible connectivity. This switch can output up to 90W per port, making it suitable for powering 4K security cameras, LED screens, or even industrial automation systems. With 17 Gigabit Ethernet ports, 4 SFP+ 10G ports, and support for the 802.3af/at/bt PoE standard, this switch is a versatile solution for a wide range of applications.
Key Features:
- High-Power PoE++: Supports up to 90W per port, ideal for powering demanding devices like 4K security cameras and PoE-powered light fixtures.
- 17 Gigabit Ethernet Ports: Eight 802.3af/at PoE-out ports and eight 802.3bt PoE++ ports for versatile connectivity options.
- 4 SFP+ 10G Ports: Provides high-speed uplinks for improved network performance.
- Expandable Power Supply: Comes with a 600W power supply, with the option to add an additional PSU to increase power output to 1150W.
- Rugged and Reliable Design: Built for demanding environments with a robust metal case and rackmountable design.
- RouterOS v7: Powered by MikroTik's advanced RouterOS with Layer-3 hardware offloading for optimal performance.
Technical Specifications:
- CPU: Dual-Core 800 MHz
- RAM: 256 MB DDR3
- Storage: 32 MB Flash
- Ethernet Ports: 17 Gigabit Ethernet ports
- SFP+ Ports: 4 x 10G SFP+ for high-speed uplinks
- PoE Standards: 802.3af/at (ports 1-8), 802.3bt (ports 9-16)
- Max Power Output: 90W per PoE++ port, up to 1150W total with additional PSU
- Operating Temperature: -10°C to +50°C
- Dimensions: 444 x 235 x 44 mm
Specifications
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.2 Mpps |
| Latency | <1 microsecond for 64-byte packets |
| Certifications | CE, FCC, RoHS compliant |
| Environmental Safety | RoHS 3 compliant (Directive 2015/863/EU), halogen-free materials used |
| EMC Compliance | Meets EN 55032, EN 55024, and FCC Part 15 standards |
| Power Budget | Total PoE budget of 480W across all PoE-enabled ports |
| MTBF | >250,000 hours |
| Heat Dissipation | Maximum 1638 BTU/hr |
| Vibration Resistance | Tested up to 3.0 Grms (5-500 Hz) according to IEC 60068-2-6 |
| Shock Resistance | Tested to withstand 30 G for 11 ms under IEC 60068-2-27 |
| Advanced Features | Supports VLANs, QoS, port isolation, and Layer 3 routing features |
| Firmware Updates | Supports automatic updates via RouterOS |
| Redundancy | Dual hot-swappable power supplies for power redundancy |
| Power Efficiency | >90% at full load |
| Deployment | Optimized for enterprise and industrial networking environments requiring robust PoE capabilities |
| Reliability | Tested to handle continuous PoE load under high-temperature conditions for 1000 hours |
| Security Features | Supports 802.1X authentication, MAC filtering, and traffic control |
Properties
| Product Name | CRS320-8P-8B-4S+RM |
| Description | Mikrotik CRS320-8P-8B-4S+RM, a PoE++ switch with 17 Gigabit Ethernet ports and 4 SFP+ ports, designed for high-performance networking in enterprise and industrial environments. |
| Switch Type | Managed Layer 3 switch |
| Total Ports | 17 x Gigabit Ethernet (8 with PoE++ support, 8 with power budget control, 1 combo port), 4 x 10G SFP+ ports |
| PoE Support | PoE++ (802.3bt) on 8 ports, up to 60W per port |
| Power Supply | Dual redundant hot-swappable AC power supplies (300W each) |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 44.3 cm x 22.5 cm x 4.5 cm (17.4 in x 8.9 in x 1.8 in) |
| Weight | 3.7 kg (8.16 lb) |
| Cooling | Active cooling with temperature-controlled fans |
| Mounting Options | 1U rack-mountable (rack ears included) |
| Usage | Suitable for powering high-power devices such as access points, cameras, and other PoE equipment |
| Durability | Tested to operate continuously with a total PoE power budget of up to 480W |
