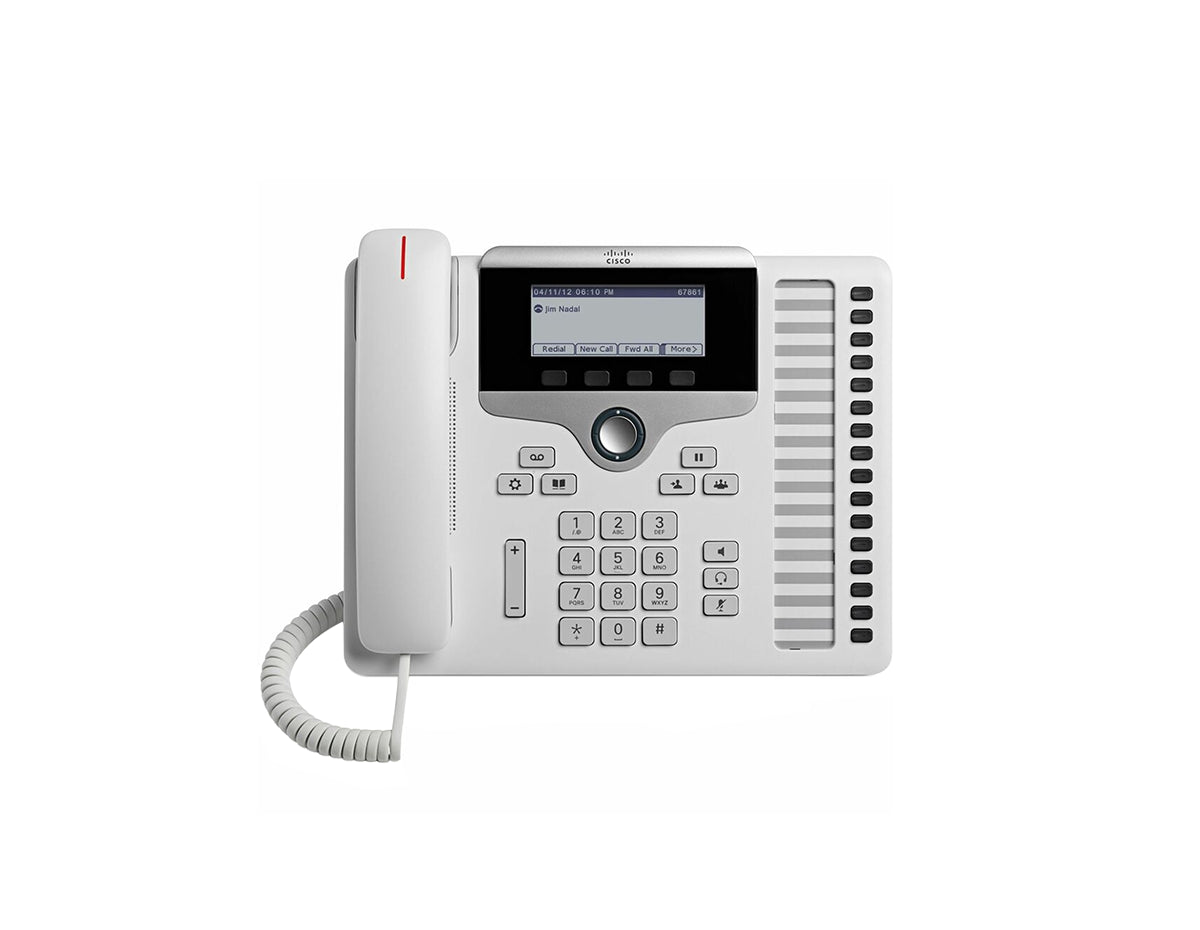

CISCO CP-7861-W-K9 IP PHONE

Accessories

Specifications

Audio	● Automatic Gain Control
	● Comfort Noise Generation
	● Silence Suppression/Voice Activity Detection
	● Acoustic Echo Cancellation (AEC)
	● Dynamic Noise Reduction
Signaling protocol support	● Session Initiation Protocol (SIP)
Codec support	● G.711a/μ, G.722, G.729a/b, iLBC, OPUS
Key call features support	● + Dialing (E.164)
	● Abbreviated dial
	● Adjustable ringing and volume levels
	● Adjustable display contrast
	● Agent greeting
	● Auto-answer
	● Auto-detection of headset (Not available on the IP Phone 7811)
	● Busy Lamp Field (BLF) (Not available on the IP Phone 7811)
	● Call back
	● Call forward
	● Call history
	● Call park
	● Call Pickup
	● Call timer
	● Call waiting
	● Caller ID
	● cBarge
	● Corporate directory
	● Conference
	● Cross Cluster Extension Mobility (EMCC)
	● Dial from the list
	● Direct transfer
	● Do not disturb
	● Extension Mobility (EM)
	● Forced access codes and client matter codes
	● Group call pickup
	● Hold/resume
	● Immediate divert
	● Intercom (Not available on the IP Phone 7811)
	● Join (Not available on the IP Phone 7811)
	● Message-waiting indicator
	● Meet me conference
	● Mobility
	● Music on hold
	● Mute
	● Network profiles (automatic)
	● On- and off-network distinctive ringing
	● Personal directory
	● Privacy
	● Private Line Automated Ringdown (PLAR)
	● Redial
	● Ring tone per line appearance
	● Shared line
	● Silent monitoring and recording
	● Speed dial
	● Time and date display
	● Transfer
	● Voicemail
	● Whisper coaching
Language support	● Arabic (Arabic Area)
	● Bulgarian (Bulgaria)
	● Catalan (Spain)
	● Chinese (China) – GB 2312
	● Chinese (Hong Kong)
	● Chinese (Taiwan)
	"● Croatian (Croatia)
	● Czech (Czech Republic)
	● Danish (Denmark)
	● Dutch (Netherlands)
	● English (United Kingdom)
	● Estonian (Estonia)
	● French (France)
	● Finnish (Finland)
	● German (Germany)
	● Greek (Greece)
	● Hebrew (Israel)
	● Hungarian (Hungary)
	● Italian (Italy)
	● Japanese (Japan)
	● Latvian (Latvia)
	● Lithuanian (Lithuania)
	● Korean (Korea Republic)
	● Norwegian (Norway)
	● Polish (Poland)
	● Portuguese (Portugal)
	● Portuguese (Brazil)
	● Romanian (Romania)
	● Russian (Russian Federation)
	● Spanish (Columbia)
	● Spanish (Spain)
	● Slovak (Slovakia)
	● Swedish (Sweden)
	● Serbian (Republic of Serbia)
	● Serbian (Republic of Montenegro)
	● Slovenian (Slovenia)
	● Thai (Thailand)
	● Turkish (Turkey)"
Directories	● The phone identifies incoming messages and categorizes them for users on the screen. This makes it fast and easy to return calls using direct dial-back capability. The corporate directory integrates with the Lightweight Directory Access Protocol (LDAP) standard directory.
Quality-of-service (QoS) options	● The phone supports CDP and 802.1Q/p standards, and can be configured with an 801.1Q VLAN header containing the VLAN ID overrides configured by the Admin VLAN ID.
Security	● Certificates
	● Image authentication
	● Device authentication
	● File authentication
	● Signaling authentication
	● Media encryption using Secure Real-Time Transfer Protocol (SRTP) using AES-128
	● Signaling encryption using Transport Layer Security (TLS) Protocol using AES-128 or AES-256
	● Encrypted configuration files
	● 802.1X authentication
	● Cryptography
Configuration options	● The user can configure IP address assignment statically or through the DHCP client.
Physical dimensions (H×W×D)	● IP Phone 7811: 207 x 195 x 33mm (exclude foot stand)
	● IP Phone 7821: 207 x 206 x 28mm (exclude foot stand)
	● IP Phone 7841: 207 x 206 x 28mm (exclude foot stand)
	● IP Phone 7861: 207 x 265 x 28mm (exclude foot stand)
Display	● IP Phone 7821, 7841, 7861: 3.5” 396×162 pixels
	● IP Phone 7811: 3.28” 384×106 pixels
Ethernet switch	● The phone has a 10/100BASE-T (The Cisco® IP Phone 7811, 7821 and 7861) or a10/100/1000BASE-T
	(The Cisco® IP Phone 7841) Ethernet connection through two RJ-45 ports, one for the LAN connection and the other for a downstream Ethernet device connection like a PC.
Phone casing composition	● Polycarbonate Acrylonitrile Butadiene Styrene (ABS) textured plastic.
Power requirements	● The phone is an interoperable IEEE 802.3af PoE (Class 1 device); 48 VDC is required; it can be supplied locally at the desktop using an optional AC-to-DC power supply (CP-PWR-CUBE-3=). Use of the power supply also requires the use of one of the corresponding AC country cords.
Operational temperature	● 32 to 104°F (0 to 40°C)
Cosmetic	● Cisco cosmetic class A
Certification and compliance	● Regulatory Compliance
	◦ CE Markings per directives 2004/108/EC and 2006/95/EC
	● Safety
	◦ UL 60950 Second Edition
	◦ CAN/CSA-C22.2 No. 60950 Second Edition
	◦ EN 60950 Second Edition (including A11 and A12)
	◦ IEC 60950 Second Edition (including A11 and A12)
	◦ AS/NZS 60950
	◦ GB4943
	● EMC - Emissions
	◦ 47CFR Part 15 (CFR 47) Class B
	◦ AS/NZS CISPR22 Class B
	◦ CISPR22: 2005 w/Amendment 1: 2005 Class B
	◦ EN55022: 2006 w/Amendment 1: 2007 Class B
	◦ ICES003 Class B
	◦ VCCI Class B
	◦ EN61000-3-2
	◦ EN61000-3-3
	◦ KN22 Class B
	● EMC - Immunity
	◦ EN55024
	◦ CISPR24
	◦ EN60601-1-2
	◦ KN24
	◦ Armadillo Light
	● Telecom
	◦ FCC Part 68 HAC
	◦ CS-03-HAC
	◦ AS/ACIF S004
	◦ AS/ACIF S040
	◦ NZ PTC 220
	◦ Industry Standards: TIA 810 and TIA 920
	◦ Industry Standards: IEEE 802.3 Ethernet, IEEE 802.3af and 802.3at

Properties

Properties	CP-7861-W-K9
Description	● Cisco IP Phone 7861, White
Product Family	CP7800 Series
Product Type	IP Phones
Hardware Features
Ergonomic design	● The phone offers an easy-to-use interface and provides a traditional telephony-like user experience.
Graphical display	● White backlit, greyscale, 3.5” 396×162 pixel-based display on the IP Phone 7821, 7841 and 7861. ● Non-backlit, greyscale, 3.28” 384×106 pixel-based display on the IP Phone 7811. ● Provide scrollable access to calling features and text-based XML applications.
Handset	● The handset is a standard wideband-capable audio handset (connects through an RJ-9 port) for the IP Phone 7821, 7841 and 7861. ● The default handset is a standard narrowband-capable audio handset (connects through an RJ-9 port) for the IP Phone 7811, and wideband on handset is available with purchase of additional wideband handset. ● The handset is Hearing Aid-Compatible (HAC) and meets Federal Communications Commission (FCC) loudness requirements for the Americans with Disabilities Act (ADA). You can achieve Section 508 loudness requirements by using industry-standard inline handset amplifiers such as Walker Equipment W-10 or CE-100 amplifiers. The dial pad is also ADA-compliant. ● The narrowband handset (for the IP Phone 7811) produces a magnetic field that attracts small metallic objects such as pins and staples. To avoid possible injuries do not keep small metallic objects close to the handset.
Headset	● The analog headset jack is a standard wideband-capable RJ-9 audio port for the IP Phone 7821, 7841, and 7861.
Backlit Indicator	● The phone supports backlit indicators for the audio path keys (handset, headset and speakerphone), select key, line keys, and message waiting. ● Headset key is not available on the IP Phone 7811.
Volume control	● A volume-control toggle provides easy decibel-level adjustments of the handset, monitor speaker, and ringer.
Full duplex speakerphone	● Full-duplex speakerphone allows gives you flexibility in placing and receiving calls. For added security, the audible Dual Tone Multifrequency (DTMF) tones are masked when the speakerphone mode is used.
Bezel	● The IP Phone 7821, 7841 and 7861 include a default black bezel (replaceable), and an optional silver bezel is also available separately. ● The IP Phone 7811 is available with a black bezel.
Dual-position foot stand	● The display is easy to view and the buttons and keys are easy to use. The two-position foot stand supports viewing angles of 30 degrees and 45 degrees; you can remove the foot stand for wall mounting, with mounting holes located on the base of the phone. (IP Phone 7821, 7841 and 7861) ● Only 1 foot-stand position (45 degrees) is supported on the IP Phone 7811.
Wall-mountable	● The phone can be installed on a wall using optional wall-mount kit (available separately).
Electronic hook switch	● The hookswitch can be controlled electronically with a third party headset connected to the auxiliary port for the IP Phone 7821, 7841, and 7861.
Keys	● The phone has the following keys ◦ Line keys ◦ Soft-keys ◦ Two-way navigation and select keys ◦ Hold/Resume, Transfer and Conference keys ◦ Messaging, Service and Directory keys ◦ Standard key pads ◦ Volume control toggle key ◦ Speakerphone, headset and mute keys (Headset key is not available on the IP Phone 7811)
Ethernet cables	● The IP Phone 7811, 7821, 7841, and 7861 ◦ Category 3/5/5e/6 for 10-Mbps cables with 4 pairs ◦ Category 5/5e/6 for 100-Mbps cables with 4 pairs ● The IP Phone 7841 ◦ Category 5/5e/6 for 1000-Mbps cables with 4 pairs
Power Features
IEEE PoE class 1	● The phone supports IEEE 802.3af PoE (Class 1); power consumption does not exceed 3.84 watts.
AC Power Adapter	● Cisco power cube 3 (CP-PWR-CUBE-3=) and Cisco power adapter 3 (CP-PWR-ADPT-3) are used as standard Cisco IP Phone Power Supplies for non-PoE deployments.
Cisco power injector	● The IP Phone 7811, 7821 and 7861 are compatible with Cisco Unified IP Phone Power Injector (CP- PWR-INJ), and 7841 is compatible with Cisco Aironet Power Injector (AIR-PWRINJ5=).
Call-Control Support
Cisco Unified Communications Manager	● 8.5.1 ● 8.6.2 ● 9.1.2 ● 10.x and later
Cisco Business Edition 6000	● 8.6.2 ● 9.1.2 ● 10.x and later
Cisco Hosted Collaboration Solution	● 8.6.2 and later (using supported UCM versions above)
Cisco Unified Survivable Remote Site Telephony	● 8.x and later
