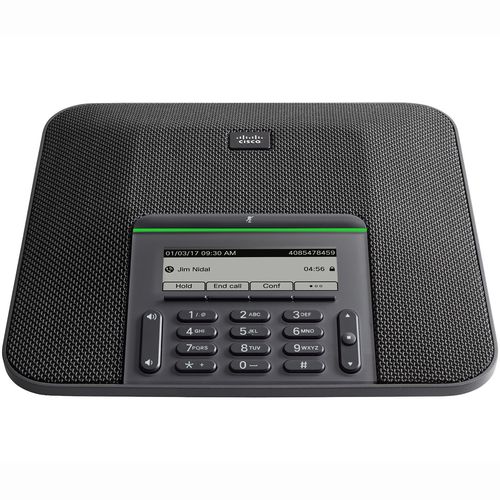

CISCO CP-7832-3PCC-K9 IP PHONE

Accessories

Specifications

Signaling protocol support	● Session Initiation Protocol (SIP)
Audio codec support	● G.711a-law and mu-law, wideband (G.722), G.729a, G.729ab, Internet Low Bitrate Codec (iLBC), OPUS
Call features	● + Dialing
	● Abbreviated dial
	● Adjustable ring tones and volume levels ● Auto-answer
	● Barge
	● Call back
	● Call forward
	● Call history lists
	● Call timer
	● Call waiting
	● Caller ID
	● Corporate directory
	● Conference
	● Cross Cluster Extension Mobility (EMCC) ● Dial from the list
	● Direct transfer
	● Do not disturb
	● Extension Mobility (EM)
	● Hold/Resume
	● Immediate divert
	● Join
	● Message-waiting indicator
	● Music on hold (MoH)
	● Mute
	● Network profiles (automatic)
	● On- and off-network distinctive ringing
	● Personal directory
	● Privacy
	● Predialing before sending
	● Redial
	● Shared line
	● Speed dial (Favorites)
	● Time and date display
	● Transfer
	● Voicemail (Messages)
Quality-of-service (QoS) options	● The phone supports Cisco Discovery Protocol and 802.1Q/p standards, and can be configured with an 801.1Q VLAN header containing the VLAN ID overrides configured by the admin VLAN ID
Directories	● The phone identifies incoming messages and categorizes them for users on the screen. This makes it fast and easy to return calls using direct dial-back capability. The corporate directory integrates with the Lightweight
	Directory Access Protocol (LDAP) standard directory.
Security features	● Secure credential storage
	● Image authentication
	● Random bit generation
	● Manufacturer-installed certificates (MIC)
	● Ethernet 802.1X supplicant options: Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST) and Extensible Authentication Protocol-Transport Layer Security (EAP-TLS)
	● Signaling authentication and encryption using TLS v1.2
	● Media authentication and encryption using SRTP
	● HTTPS for client and server
	● Secure Shell (SSH) Protocol server
Configuration options	● The user can configure IP address assignment statically or through the DHCP client.
Physical dimensions (H×W×D)	● 8.90 x 8.90 x 2.14 in. (226 x 226 x 54.4 mm)
Graphical display	● The 384x128 (W x H) monochrome display with white LED backlight provides scrollable access to calling features and text-based XML applications
	● Antiglare and fingerprint-proof bezel offers a crystal clear view of high-resolution LCD
Ethernet switch	● 10/100 BASE-T
Phone casing composition	● Acrylonitrile butadiene styrene (ABS) textured plastic; Cisco cosmetic class A
Operational temperature	●  32 to 104°F (0 to 40°C)
Certification and compliance	● Regulatory Compliance
	◦ CE Markings per directives 2014/30/EU and 2014/53/EU and 2014/35/EU
	● Safety
	◦ UL 60950 Second Edition
	◦ CAN/CSA-C22.2 No. 60950 Second Edition
	◦ EN 60950 Second Edition (including A11 & A12) ◦ IEC 60950 Second Edition (including A11 & A12) ◦ AS/NZS 60950
	◦ GB4943
	● EMC - Emissions
	◦ 47CFR Part 15 (CFR 47) Class B ◦ AS/NZS CISPR32
	◦ CISPR32
	◦ EN55032
	◦ ICES003 Class B
	◦ VCCI Class B
	◦ EN61000-3-2
	◦ EN61000-3-3
	◦ KN22 Class B
	● EMC - Immunity ◦ EN55024
	◦ CISPR24
	◦ KN24
	◦ Armadillo Light
	● Telecom
	◦ AS/ACIF S004
	◦ NZ PTC 220
	◦ Industry standards: TIA 810 and TIA 920
	◦ Industry standards: IEEE 802.3 Ethernet, IEEE 802.3af and 802.3at
	● Radio
	◦ FCC Part 2.1093 (BT RF Exposure TR) ◦ RSS-102 (BT RF Exposure TR)
	◦ RSS-210
	◦ EN 300.328
	◦ EN50385 (BT RF Exposure TR)
	◦ EN 301-489-1
	◦ EN 301-489-17
	◦ NCC LP0002



Properties



Properties	CP-7832-3PCC-K9
Description	Cisco IP Conference Phone 7832 shipped with Multiplatform Phone firmware
Product Family	CP7800 Series
Product Type	IP Phones
Hardware Features
Ergonomic design	● Sleek form and approachable materials for a differentiated, modern look and feel ● 7800 Series interface provides an easy-to-use and traditional telephony-like user experience
Graphical display	● The 384x128 (W x H) monochrome display with white LED backlight provides scrollable access to calling features and text-based XML applications ● Antiglare and fingerprint-proof bezel offers a crystal clear view of high-resolution LCD
Ethernet switch	● 10/100 BASE-T
Volume control	● A volume control toggle provides easy decibel level adjustments of the speaker and ringer.
Keys	● The phone has the following keys: ◦ Four context-dependent soft keys ◦ Two-way navigation and select keys ◦ Standard keypad ◦ Volume-control toggle key ◦ Large mute key accessible from all sides
Power Features
IEEE Power over Ethernet (PoE)	● IEEE PoE Class 2. The phone is compatible with both IEEE 802.3af and 802.3at switch blades and supports both Cisco Discovery Protocol and Link Layer Discovery Protocol - Power over Ethernet (LLDP-PoE) ● If the connected LAN switches don’t support PoE, a spare PoE power cable will be needed to work with Cisco Power Cube 3/Power Adapter 3 to provide AC wall power.
Call-Control Support
Cisco Unified Communications Manager	● 10.5 and later
Cisco Hosted Collaboration Solution	● 10.5 and later
Cisco Spark Call	● Cisco Spark Call support for Cisco cloud solution
