Mikrotik CCR2004-1G-12S+2XS Router

Name: Mikrotik CCR2004-1G-12S+2XS Router
Brand: Mikrotik
SKU: CCR2004-1G-12S+2XS-NEW
Price: 505.00 USD
Availability: InStock

Part Number: CCR2004-1G-12S-2XS

Technical Details

The Connectivity Router - your best companion when it comes to SFP, SFP+ and SFP28 management! 1, 10 and 25 Gbps ports in a single device to make your life easier.

$595.00

$505.00

15% OFF

You Save: $90.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

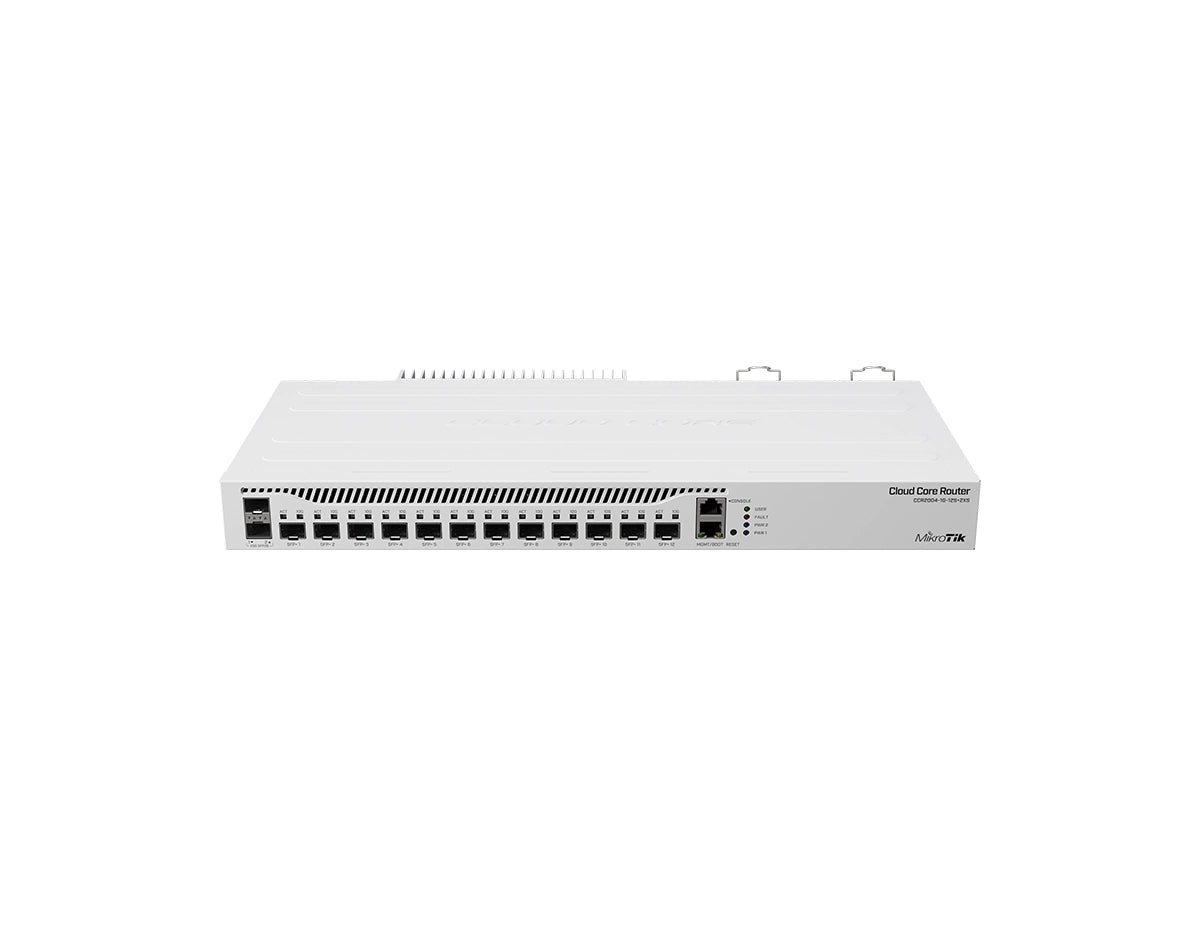

MikroTik CCR2004-1G-12S+2XS Router

The CCR2004-1G-12S+2XS provides a wide range of ports, comprising 12 x 10G SFP+ and 2 x 25G SFP28, establishing it as a robust networking solution. This router delivers unparalleled single-core performance and outstanding outcomes in single tunneling (up to 2.3 Gbps) and BGP feed processing, ensuring high-caliber performance for your network. This product is housed in a durable and space-saving RackMount case. Its sleek 1U rackmount design facilitates effortless incorporation into your current network configuration.

Quick Specs:

1x 10/100/1000 Ethernet Port
12x 10G SFP+ ports uplink
2x 25G SFP28 ports uplink
RouterOS v7 / 4GB ECC RAM

Please see the related tabs for the CCR2004-1G-12S+2XS datasheet and compatible accessories.

Properties

Properties	MikroTik CCR2004-1G-12S+2XS
Description	The Connectivity Router - your best companion when it comes to SFP, SFP+ and SFP28 management! 1, 10 and 25 Gbps ports in a single device to make your life easier.
Product Family	CCR Series
Product Type	Ethernet Router
Features	72 core CPU 1 GHz clock per core State of the art TILE GX architecture over 120 million pps packet throughput up to 80 Gbps throughput Full set of features 8x SFP+ ports 16GB ECC RAM Ports directly connected to CPU microSD and 2x M.2
Ports
1G Ethernet ports	1
10G SFP+	12
25G SFP28	2
Serial console port	1 RJ45
Memory card type	microSD, 2x M.2
Smart card slot	Yes
Number of M.2 slots	2
Extras	CPU temperature monitor PCB temperature monitor Voltage Monitor
Dimensions	443 x 224 x 44 mm
Number of AC inputs	2
AC input range	100-240
Max power consumption	49 W
Max power consumption without attachments	32 W
Cooling type	2 fans

Specifications

Specifications	CCR2004-1G-12S+2XS
Memory	4 GB
NAND Storage size	128 MB
CPU	AL32400 1700 MHz
CPU core count	4
OS	MikroTik RouterOS v7, Level 6 license, free product lifetime upgrades
MTBF	Approximately 200.000 hours at 25C
Temperature	-20°C to 60°C tested
IPsec hardware acceleration	Yes
Certification	CE, EAC, ROHS
IPsec test results
Mode	IPsec throughput
Single tunnel
1400 byte
AES-128-CBC + SHA1	kpps: 303.6 Mbps: 3400.3
512 byte
AES-128-CBC + SHA1	kpps: 353.6 Mbps: 1448.3
64 byte
AES-128-CBC + SHA1	kpps: 354.7 Mbps: 181.6
256 tunnels
1400 byte
AES-128-CBC + SHA1	kpps: 302.0 Mbps: 3382.4
AES-128-CBC + SHA256	kpps: 302.0 Mbps: 3382.4
AES-256-CBC + SHA1	kpps: 300.3 Mbps: 3363.4
AES-256-CBC + SHA256	kpps: 300.3 Mbps: 3363.4
512 byte
AES-128-CBC + SHA1	kpps: 378.8 Mbps: 1551.6
AES-128-CBC + SHA256	kpps: 378.8 Mbps: 1551.6
AES-256-CBC + SHA1	kpps: 374.5 Mbps: 1534.0
AES-256-CBC + SHA256	kpps: 374.5 Mbps: 1534.0
64 byte
AES-128-CBC + SHA1	kpps: 376.4 Mbps: 192.7
AES-128-CBC + SHA256	kpps: 376.4 Mbps: 192.7
AES-256-CBC + SHA1	kpps: 374.5 Mbps: 191.7
AES-256-CBC + SHA256	kpps: 374.5 Mbps: 191.7

Accessories

2 IEC cords
Screw and feet kit (K10)
Rackmount bracket
