CISCO CBS250-16P-2G SWITCH
| Model: | CBS250-16P-2G |
| Detail: | Managed, Rack-mountable, 16 x 1G PoE+ ports, 2 x 1G SFP Uplinks, PoE+ (120W), Layer 3 |
| List Price: | |
| Price: | $475.00 |
| You Save: | $2.01 (0% OFF) |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

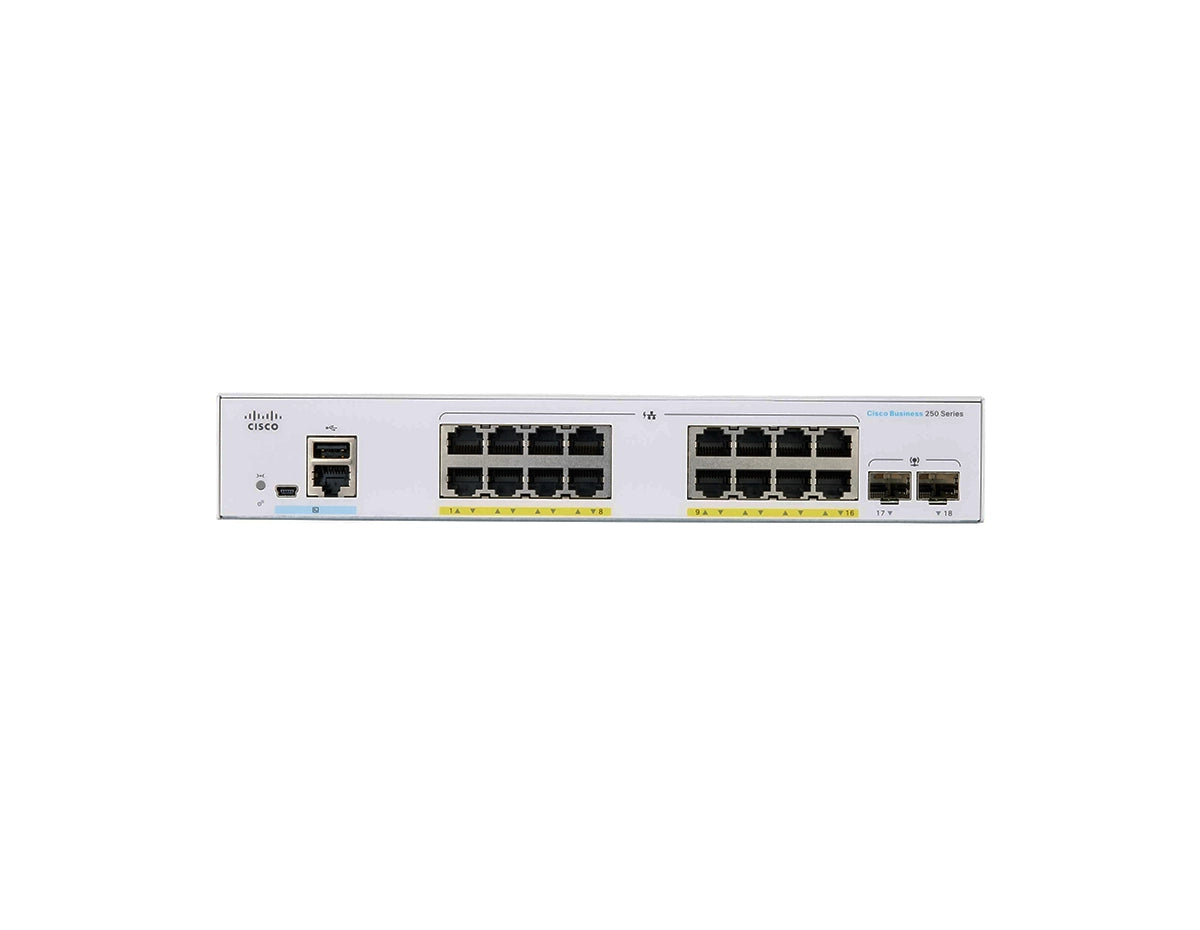

Cisco CBS250-16P-2G Switch
The Cisco CBS250-16P-2G Switch is a cost-effective solution designed for small and medium-sized businesses looking to support PoE devices in their network infrastructure. Equipped with 16 Gigabit Ethernet PoE+ ports and a 120W total PoE budget, this switch enables the deployment of IP cameras, phones, and wireless access points with ease. The CBS250-16P-2G also includes 2 Gigabit SFP uplink ports, providing flexibility for network expansion and enhanced performance.
Key Features:
- 16 x Gigabit Ethernet PoE+ Ports: Supports up to 30W per port, perfect for powering devices like IP cameras and phones.
- 2 x SFP Uplink Ports: Ensures flexible and fast uplink options for network expansion.
- Energy-Efficient Design: Complies with IEEE 802.3az standards to reduce energy consumption during low traffic periods.
- Advanced Security: Includes 802.1X authentication, ACLs, and DoS protection to secure your network.
- Simple Management: Easily managed via Cisco Business Dashboard or an intuitive web-based interface.
Technical Overview:
- Recommended for: Small to medium-sized businesses, branch offices, and retail environments.
- Ports: 16 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports.
- Uplink Modules: 2 x Gigabit SFP ports.
- Switching Capacity: 36 Gbps.
- Forwarding Rate: 26.78 Mpps.
- Energy Efficiency: Meets IEEE 802.3az standards for power-saving operation.
You can check the related tab for the CBS250-16P-2G datasheet.
Accessories
| Hardware | |
| LEDs | Power, link/activity (cable diagnostics, loop detection), Gigabit, * PoE, * Max PoE. |
| Cabling type | Category 5e or better |
| Mounting options | Desktop, wall-mount or rack mount |
| Physical security lock | Kensington lock slot |
| Accessories | There is no additional accessories other than the power supply and the mounting kit which are included with the device package . |
| Supported SFP modules | SKU |
| MGBSX1 | Multimode fiber |
| MGBLX1 | Single-mode fiber |
| MGBLH1 | Single-mode fiber |
| MGBT1 | UTP cat 5e |
| Package contents | |
| Cisco Business 110 Series switch | |
| Power cord or adapter | |
| Quick start guide | |
| Mounting kit | |
| Minimum requirements | |
| Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet | |
| Cat5e or better Ethernet cable | |
| Network interface card for each computer | |
Specifications
| Specifications | CBS250-16P-2G |
| Capacity in millions of packets | 26.78 mpps |
| Switching capacity | 36.0 Gbps |
| Flash Memory | 16 MB |
| DRAM | 512 MB |
| CPU | 400 MHz ARM |
| CPU Memory | 128 MB |
| Packet Buffer | 1.5 MB |
| MAC addresses | 8K |
| Head-of-line (HOL) blocking | HOL blocking prevention |
| Quality of Service (QoS) | 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) |
| Loop detection | Helps discover loops in the network to avoid broadcast storms |
| Cable diagnostics | Quickly identify and troubleshoot network cable faults and/or shorts |
| Media-dependent interface | Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X) |
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet |
| Operating Temperature |
23° to 122°F (-5° to 50°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Compliance/certifications | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Warranty | Limited lifetime |
Properties
| Properties | CBS250-16P-2G |
| Description | — 16 10/100/1000 PoE+ ports with 120W power budget — 2 Gigabit SFP |
| Product Family | CBS 250 Series |
| Product Type | Small Business Switch |
| Number of Ports | 18 |
| RJ-45 ports | 16 Gigabit Ethernet |
| Downlinks total 10/100/1000 ports | 16 |
| Power dedicated to PoE | 120W |
| Number of ports that support PoE | 16 |
| Power | 100 to 240V 50 to 60 Hz, internal, universal |
| Fans | Fanless |
| Unit dimensions in. (W x D x H) | 10.56 x 11.69 x 1.73 |
| Rack-mountable | Yes |
