CISCO C9500-48X-A SWITCH
| Model: | C9500-48X-A |
| Detail: |
|
| List Price: | |
| Price: | $22,850.00 |
| You Save: | $15,964.16 (41% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

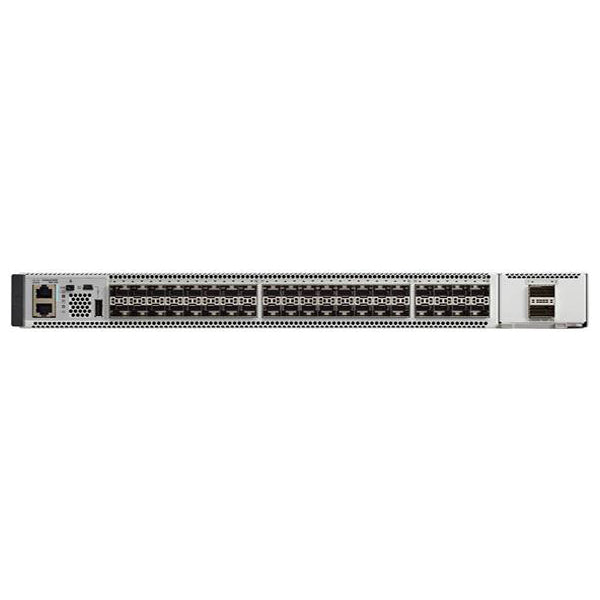

Cisco Catalyst C9500-48X-A Switch
The Cisco Catalyst C9500-48X-A Switch is a high-performance, next-generation core and aggregation switch designed to provide exceptional speed and scalability for enterprise networks. Featuring 48 non-blocking 10G Gigabit Ethernet ports and powered by Cisco's Network Advantage software, this switch delivers advanced routing, automation, and security features to ensure a robust and efficient network infrastructure.
Key Features:
- 48 x 10G Gigabit Ethernet Ports: Delivers high-speed, non-blocking connectivity for demanding enterprise applications.
- Cisco StackWise Virtual Technology: Enables simplified management and redundancy across multiple switches.
- Layer 3 Advanced Routing: Supports OSPF, EIGRP, BGP, and MPLS for sophisticated network management.
- Energy-Efficient: Complies with IEEE standards to minimize power consumption while maximizing performance.
- Network Advantage License: Provides access to advanced routing, automation, and security features.
Technical Overview:
- Recommended for: Large-scale enterprise core networks and data centers.
- Ports: 48 x 10G Gigabit Ethernet SFP+ ports.
- Switching Capacity: 960 Gbps.
- Forwarding Rate: 720 Mpps.
- Layer 3 Features: OSPF, EIGRP, BGP, MPLS, and VRF-Lite.
- Management: Web-based GUI, CLI, SNMP, and Cisco DNA Center.
- Licensing: Network Advantage.
- Energy Efficiency: Complies with IEEE 802.3az standards for energy efficiency.
You can check the related tab for the Cisco C9500-48X-A datasheet.
Accessories
| Network Modules | |
| C9500-NM-8X | Cisco Catalyst 9500 Series Network Module 8-port 1/10 Gigabit Ethernet with SFP/SFP+ |
| C9500-NM-2Q | Cisco Catalyst 9500 Series Network Module 2-port 40 Gigabit Ethernet with QSFP+ |
| Stacking accessories | |
| C9500- ACCKIT-19I= | Accessory Kit for Cisco Catalyst 9500 Series - 19" rack mount |
| C9500- ACCKIT-23I= | Accessory Kit for Cisco Catalyst 9500 Series - 23" rack mount |
| C9500- 4PT-KIT= | Extension rails and brackets for four-point mounting for Cisco Catalyst 9500 Series |
| Power Supplies | |
| PWR-C4-950WAC-R | 950W AC Config 4 Power Supply front-to-back cooling |
| PWR-C4-950WDC-R | |
| Licenses | |
| C9500-DNA-E-3Y | Catalyst 9500 NW and Cisco DNA Essentials. license (3Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU |
| C9500-DNA-E-5Y | Catalyst 9500 NW and Cisco DNA Essentials. license (5Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU |
| C9500-DNA-E-7Y | Catalyst 9500 NW and Cisco DNA Essentials. license (7Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU |
| C9500-DNA-A-3Y | Catalyst 9500 NW and Cisco DNA Advantage license (3Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU |
| C9500-DNA-A-5Y | Catalyst 9500 NW and Cisco DNA Advantage license (5Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU |
| C9500-DNA-A-7Y | Catalyst 9500 NW and Cisco DNA Advantage license (7Y) |
Specifications
| Specifications | C9500-48X-A |
| DRAM | 16 GB |
| Flash Memory | 16 GB |
| Switching Capacity | Up to 960 Gbps |
| Forwarding Rate‚ | Up to 720 Mpps |
| Total Number of MAC addresses | Up to 64,000 |
| Total Number of IPv4 routes (Address Resolution Protocol [ARP] + Direct Routes) | Up to 80,000 host |
| Total Number of IPv4 routes (Indirect Routes) | Up to 64,000 indirect |
| Total Number of IPv6 (NDP and Direct Routes) | Up to 40,000 host |
| Total Number of IPv6 routes (Indirect Routes) | Up to 32,000 indirect |
| VLAN IDs | 4.094 |
| Total Number of IPv4 Multicast Routes | Up to 32,000 |
| Total Number of IPv6 Multicast Routes | Up to 16,000 |
| QoS ACL Scale | Up to 18,000 |
| Security ACL Scale | Up to 18,000 |
| FNF entries | Up to 512,000 |
| Jumbo Frame | 9,198 bytes |
| PVST Instances | 300 |
| STP Virtual Ports (Port VLANs) for PVST |
13,000 |
| STP Virtual Ports (Port VLANs) for MST | 13,000 |
| Total Switched Virtual Interfaces (SVIs) | 1,000 |
| Operating Temperature | 32‚° to 104‚°F (0‚° to 40‚°C) |
| Storage Temperature | -4‚° to 149‚°F (-20‚° to 65‚°C) |
| Operating Altitude | Operation up to 10,000 feet at 40‚°C; up to 6,000 feet at 45‚°C |
| Relative humidity operating and nonoperating (noncondensing) | Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
| Mean-time between failures (MTBF) | 277,310 |
| Safety Certifications | UL 60950-1 CAN/CSA-C22.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950-1 GB4943 |
| EMI and EMC compliance |
‚ 47 CFR Part 15 Class A ‚ CNS13438: 2006 Class A ‚ EN 300 386 V1.6.1 ‚ EN61000-3-2: 2014 ‚ EN61000-3-3: 2013 ‚ ICES-003 Issue 6: 2016 Class A ‚ KN 32: 2015 Class A ‚ TCVN 7189: 2009 Class A ‚ EN 55032:2012/ AC:2013 Class A ‚ EN 55032:2015 Class A ‚ CISPR 32 Edition 2 Class A ‚ V-2/2015.04 Class A ‚ V-3/2015.04 Class A ‚ CISPR24: 2010 + A1: 2015 ‚ EN 300 386 V1.6.1 ‚ EN55024: 2010 + A1: 2015 ‚ KN35: 2015 ‚ TCVN 7317: 2003 |
Properties
| Properties | Cisco C9500-48X-A |
| Description | Cisco Catalyst 9500 40-port 10G switch, 8 x 10GE Network Module, NW Adv. License |
| Product Family | Catalyst 9500 |
| Product Type | Ethernet Switch |
| Cisco IOS Software | Network Advantage |
| Number of Ports | 48 |
| Includes | C9500-NM-8X (Cisco Catalyst 9500 8 x 10GE Network Module) |
| Port Density (* with uplink module) |
|
| 1G port density | 40+8* |
| 10G port density | 40+8* |
| 25G port density | - |
| 40G port density | 2 |
| 100G port density | - |
| 10G port density with breakout cable | 8* |
| 25G port density with breakout cable | - |
| Fans and Fan trays | |
| FAN-T4-R (Max # of fans) | Yes (5) |
| C9K-T1-FANTRAY (Max # of fans) | No |
| Power Supply Selection | PWR-C4-950WAC-R or PWR-C4-950WDC-R |
| Input Voltage | 90 to 264 VAC |
| Dimensions (HxWxD) Inches | 1.73 x 17.5 x 21.52 |
| Weight | 25.75 lb (11.68 kg) |
| Rack Units (RU) | 1 RU |
| Minimum Software Requirements | Open Cisco IOS XE Software Release 16.6.1 |
| Software Features | |
| ‚ | Network Advantage |
| Switch fundamentals Layer 2, Routed Access (RIP, EIGRP Stub, OSPF Up to 1000 routes),PBR, PIM Stub Multicast (up to 1000 routes)), PVLAN, VRRP, PBR, CDP, QoS, FHS, 802.1x, Macsec-128, CoPP, SXP, IP SLA Responder, SSO |
+ |
| Advanced switch capabilities and scale BGP, EIGRP, HSRP, IS-IS, BSR, MSDP, PIM SM, PIM SSM, PIM-BIDIR, IP SLA, OSPF |
+ |
| Network segmentation VRF, VXLAN, LISP, BGP-EVPN2, TrustSec2, SGT2, MPLS, mVPN2 |
+ |
| Automation NETCONF, RESTCONF, gRPC, gNMI/gNOI, YANG, PnP Agent, ZTP/Open PnP, GuestShell (On-Box Python) |
+ |
| Telemetry and visibility Model-driven telemetry, sampled NetFlow, SPAN, RSPAN |
+ |
| High availability and resiliency GIR, NSF, ISSU2, StackWise Virtual, SMU |
+ |
| IoT integration PTP (IEEE1588v2) |
+ |
| Security MACsec-256, WAN MACsec |
- |
| Cisco trustworthy solutions Trust Anchor module, Secure Boot, Image Signing, Modern Crypto, Runtime Defenses |
+ |
